Samyang Xeen 5-Lens Kit 14/24/35/50/85mm Pl

Samyang Xeen 5-Lens Kit 14/24/35/50/85mm Pl(8001)

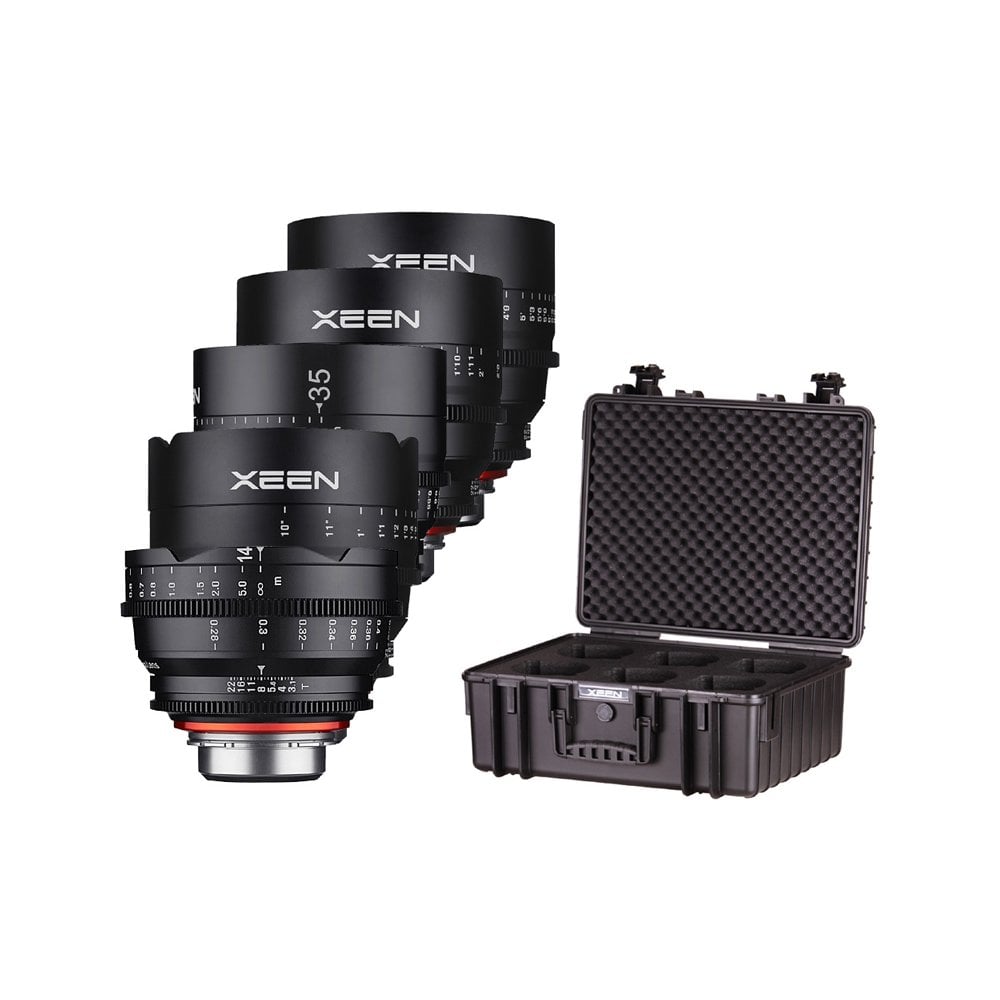

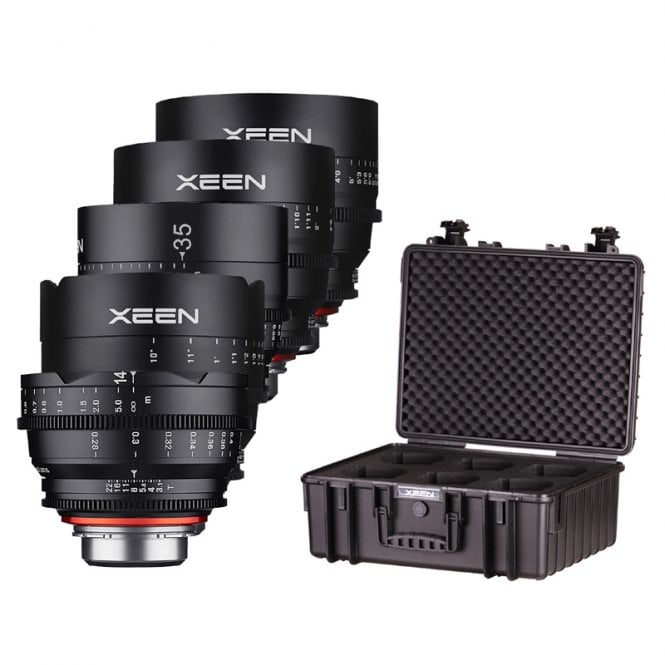

This Kit of Five Xeen Cinema Lenses from Samyang includes the 14, 24, 35, 50 and 85mm lenses.

This provides you with a full, color-matched set of lenses that cover full frame and are fitted with PL mounts. The lenses feature an internal focus design, which means that the front of the lens doesn't rotate as you change focus, and the lens maintains a constant volume. Dual-sided focus marks make it easier on your camera assistant working on either side of the camera, and the 200° of focus barrel rotation provides ample real estate for precision marking.

Each lens incorporates built-in, cinema-style focus and iris gears that share common positions, making for fast lens changes. The 24, 35, 50, and 85mm lenses feature a maximum aperture of T1.5 and an 11-bladed iris. The 14mm features a maximum aperture of T3.1 and has a 9-bladed iris. As these are cinema lenses, the iris is designed to be clickless, allowing smooth aperture pulls.

Samyang Xeen 14mm T3.1 Lens for PL Mount

Samyang's Xeen 14mm T3.1 Lens for PL Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, minimizing the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and color-match to a factory standard, allowing you to assemble a set over time with minimal color shift. This 14mm lens provides what is considered a very wide angle of view on full-frame cameras, and a tighter angle of view on smaller formats.

The lens features dual sided focus scales marked in feet, with dual-sided iris scales. The 9-bladed iris provides a rounded aperture for natural looking highlights and bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity. This gives you a high degree of precision when adjusting focus.

This 14mm lens has an image circle that covers a full-frame sensor. When mounted on a camera with a Super 35mm sensor it provides you with a tighter shot than if it was mounted on a camera with a full-frame sensor.

The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.

Dual right and left side focus and t-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount, or facing upside numerals.

Each lens in the XEEN series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.

The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.

The non-rotating front allows you to use optional clip-on matte boxes.

Clickless aperture ring for smooth iris pulls.

A minimum focusing distance of 11" allows you to get up close to your subject.

Samyang Xeen 24mm T1.5 Lens for PL Mount

Samyang's Xeen 24mm T1.5 Lens for PL Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, this minimizes the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and are color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 24mm lens provides what is considered a wide angle of view on full-frame cameras, and a tighter angle of view on smaller formats.

The lens features dual sided focus scales marked in feet, with dual sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision when adjusting focus.

This is a 24mm lens that has an image circle that covers a full-frame sensor. When mounted on a camera with a Super 35mm sensor it provides you with a tighter shot than if it was mounted on a camera with a full-frame sensor.

The lens features metal construction to withstand the rigors of daily production.

Dual right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount, or facing upside numerals.

Each lens in the XEEN series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.

The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.

The non-rotating front allows you to use optional clip-on matte boxes.

"Clickless" aperture ring for smooth iris pulls.

A minimum focusing distance of 10" allows you to get up close to your subject.

Samyang Xeen 35mm T1.5 Lens for PL Mount

Samyang's Xeen 35mm T1.5 Lens for PL Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, minimizing the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and color match to a factory standard, allowing you to assemble a set over time with minimal color shift. This 35mm lens provides what is considered a somewhat wide angle of view on full-frame cameras, and a tighter angle of view on smaller formats.

The lens features dual-sided focus scales marked in feet, with dual-sided iris scales. The 11-bladed iris provides a rounded aperture for natural looking highlights and bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity. This gives you a high degree of precision when adjusting focus.

This 35mm lens has an image circle that covers a full-frame sensor. When mounted on a camera with a Super 35mm sensor it provides you with a tighter shot than if it was mounted on a camera with a full-frame sensor.

The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.

Dual right and left side focus and t-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount, or facing upside numerals.

Each lens in the XEEN series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.

The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.

The non-rotating front allows you to use optional clip-on matte boxes.

Clickless aperture ring for smooth iris pulls.

A minimum focusing distance of 13" allows you to get up close to your subject.

Samyang Xeen 50mm T1.5 Lens for PL Mount

Samyang's Xeen 50mm T1.5 Lens for PL Mount is built specifically for use as a cinema lens, and is not a modified still lens. It features an internal focus design so that the lens does not change size while focusing, minimizing breathing. Each lens in the Samyang Xeen cinema lens set is multi-coated for good contrast, glare prevention, and are color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 50mm lens provides what is considered a normal angle of view on full-frame cameras, and a tighter angle of view on smaller formats. The lens features dual sided focus scales in feet, with dual sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh.

The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision and consistent focus.

This is a 50mm lens that has an image circle that covers a full-frame sensor. When mounted on a camera with a Super 35mm sensor it provides a tighter shot than a normal lens rendering faces with less distortion and providing a slightly compressed background.

The lens features metal construction to withstand the rigors of daily production.

Dual calibrated right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount.

Each lens in the Xeen series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.

The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.

"Clickless" aperture ring for smooth iris pulls.

A minimum focusing distance of 18" allows you to get up close to your subject.

Samyang Xeen 85mm T1.5 Lens for PL Mount

Samyang's Xeen 85mm T1.5 Lens for PL Mount is built specifically for use as a cinema lens, and is not a modified still photo lens. It features an internal focus design so that the lens does not change size while focusing, minimizing breathing. Each lens in the Samyang Xeen cinema lens set is multi-coated for good contrast, glare prevention, and color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 85mm focal length is often chosen for portraits and close-ups. The lens features dual-sided focus scales in feet, with dual-sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh.

The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision and consistent focus.

This is an 85mm lens that has an image circle that covers a full-frame sensor. It has the effect of bringing the background closer, and is often used for portraits and close-ups. When used on a camera with a Super 35mm sensor as opposed to a full-frame sensor the lens becomes more suited for tight close-ups.

The lens features metal construction to withstand the rigors of daily production.

Dual calibrated right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount.

Each lens in the Xeen series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.

The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.

"Clickless" aperture ring for smooth iris pulls.

A minimum focusing distance of 3' 9" allows you to get up close to your subject.

Focal Length: 14mm

Aperture: Maximum: T3.1

Lens Mount: PL Mount

Iris Blades: 9

Minimum Focus Distance: 11.0" / 27.9 cm

Lens Rotation:

Focus Throw: 200°

Iris : 300°

Angle of View:

Full-Frame: 115.7°

Super35: 98.2°

Dimensions: 4.6 x 3.2" / 117.6 x 80.3 mm

Weight: 41.3 oz / 1,170 g

Samyang Xeen 24mm T1.5 Lens for PL Mount

Focal Length: 24mm

Aperture:

Maximum: T1.5

Minimum: T22

Lens Mount: PL Mount

Lens Construction: 13 glass elements in 12 groups

Iris Blades: 11

Minimum Focus Distance: 10" / 25 cm

Lens Rotation:

Focus Throw: 200°

Iris : 40°

Angle of View:

Full-Frame: 84.1°

Super35: 61.2°

Dimensions: 4.6 x 4.5" / 117.6 x 113.8 mm

Weight: 41.6 oz / 1,180.0 g

Samyang Xeen 35mm T1.5 Lens for PL Mount

Focal Length: 35mm

Aperture: Maximum: T1.5

Lens Mount: PL Mount

Iris Blades: 11

Minimum Focus Distance: 13.0" / 33.0 cm

Lens Rotation:

Focus Throw: 200°

Iris : 300°

Angle of View:

Full-Frame: 63.1°

Super35: 46.9°

Dimensions: 4.6 x 4.5" / 117.6 x 113.7 mm

Weight: 48.0 oz / 1,360 g

Samyang Xeen 50mm T1.5 Lens for PL Mount

Focal Length: 50mm

Aperture:

Maximum: T1.5

Minimum: T22

Lens Mount: PL Mount

Lens Construction: 9 elements in 6 groups

Iris Blades: 11

Minimum Focus Distance: 18.0" / 45.7 cm

Angle of View:

Super35: 31.2°

APS-C (1:1.5x): 30.84°

Lens Support: 1/4"-20

Dimensions: 4.6 x 4.5" / 117.6 x 113.7 mm

Weight: 40.9 oz / 1,160.0 g

Samyang Xeen 85mm T1.5 Lens for PL Mount

Focal Length: 85mm

Aperture:

Maximum: T1.5

Minimum: T22

Lens Mount: PL Mount

Lens Construction: 9 elements in 7 groups

Iris Blades: 11

Minimum Focus Distance: 3' 9" / 1.1 m

Angle of View:

Full-Frame: 28.4°

Super35: 19°

Lens Support: 1/4"-20

Dimensions: 4.6 x 4.5" / 117.6 x 113.7 mm

Weight: 43.9 oz / 1,245.0 g

In the Box

XEEN 14mm T3.1

XEEN 24mm T1.5

XEEN 35mm T1.5

XEEN 50mm T1.5

XEEN 85mm T1.5

Custom Case
