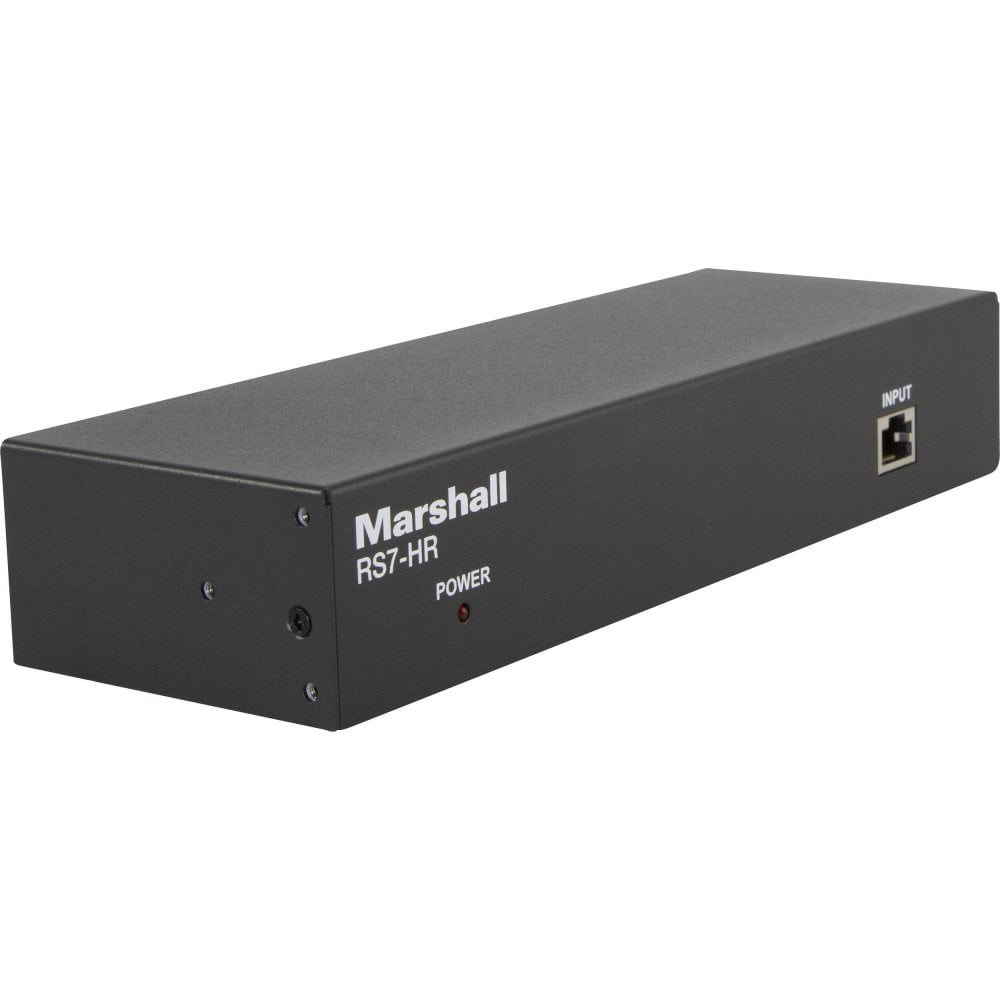

Marshall RS232-RS422 CAT5 Distribution Extender Box

code: RS7-HR
  • £217.25
  • RRP: £284.00
Status   |   Usually dispatched within 24 hours


  • Splits one Cat (RJ45) control cable to 7 cameras
  • Easy and clean setup from Marshall Controllers (VS-PTC-IP, VS-PTC-200) and others
  • Easy access dip switches to switch between RS232 and RS422
  • Refresh button is used when any changes are made (add/remove, dip switch change)
  • Rack mount ears provided (1 pair) for 1RU 19″ rack mount and small ears (1 pair) for optional table or wall mount

Marshall RS7-HR (RS7/HR, RS7_HR, RS7HR, RS7 HR) RS232-RS422 CAT5 Distribution Extender Box

The Marshall RS7-HR extends usable RS232 Cat cable runs for control of cameras to 100m from controller to RS7-HR box and another 100m to each of seven camera locations (200m total). Using RS422 its extends (300m + 300m for a total of 600m). Includes Rack Mount Ears.

  • Input Connector: 1 x RJ45
  • Output Connectors: 7 x RJ45
  • Serial Communication: RS-232 and RS-422 (via Switch)
  • Rack Mount: 1 RU
  • Cable Distance Supported: RS-232: Up to 656' / 200 m, over 2 x Cables, RS-422: Up to 1969'/ 600 m, over 2 x Cables
  • Power Connector: 1 x 5 VDC Barrel

In The Box

  • RS232-RS422 CAT5 Distribution Extender Box
  • Power Adapter
  • 1x RU Rackmount Kit
