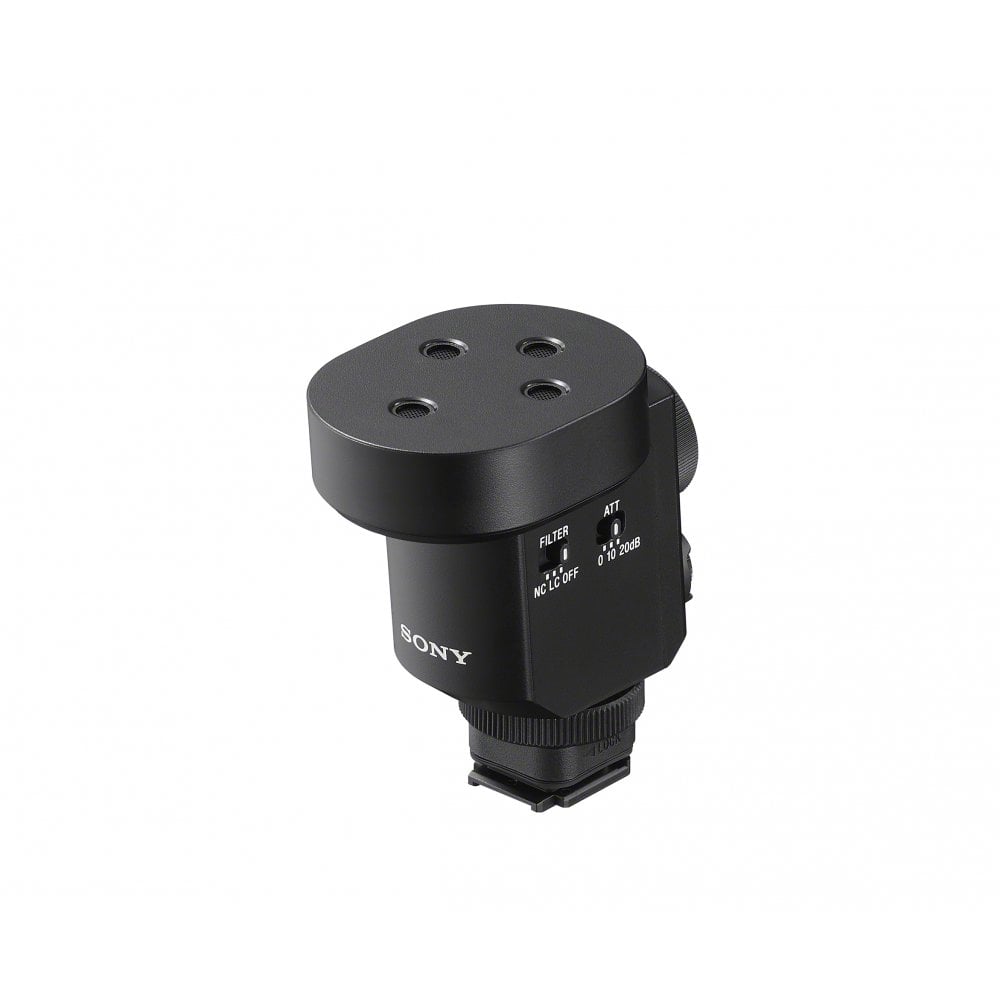

Sony Digital Shotgun Microphone

Sony Digital Shotgun Microphone(ECMM1.CE7, ECMM1CE7, ECMM1/CE7)

Compact shotgun microphone with eight audio recording modes

Completely redefines shotgun microphone performance with beamforming technology that provides the world's first1 eight dial-selectable audio recording modes in a compact microphone with outstanding versatility and audio quality.

Versatile and compact, with superb sound

The ECM-M1 uses beamforming technology and advanced digital processing technology to provide eight audio recording modes including stereo for outstanding versatility and superb sound quality in a wide range of video shooting situations.

Eight audio recording modes in one versatile microphone

Beamforming technology combines four discrete microphone capsules with precision algorithms, to maximize pickup sensitivity in the desired directions while reducing it in others. The result is an incredibly compact and versatile microphone with high performance even in challenging audio environments.

Simple controls for easy setting and operation

Simply turning a dial on the rear of the microphone allows easy, intuitive selection of pickup patterns, and a lock button in the center prevents accidental changes. Other controls are also straightforward and easy to understand and operate.

Microphone

Primary Applications: Audio for Video, Location Sound

Form Factor: Camera-Mount

Intended Sound Sources: Speech/Voice-Over, Dialogue

Sound Field: Mono, Stereo

Capsule: 4 x Electret Condenser

Polar Pattern:

° Multi-Directional, Omnidirectional, Supercardioid, Unidirectional

Pattern Selection: Switched

Orientation: End Address

High-Pass Filter: None

Tone Adjustment: Low Cut

Gain Adjustment: 0 dB to 20 dB

Indicators: None

On-Board Controls: Gain/Sensitivity, LF, Polar Pattern

Windscreen: Windsock/Windjammer (Included)

Performance

Frequency Range: 40 Hz to 20 kHz

Maximum SPL: 120 dB SPL

Sensitivity: -20 dBFS at 1 kHz

Signal-to-Noise Ratio: 14 dB SPL

Connectivity

Analog Output: None

USB & Digital Output: 1 x Sony Multi Interface Shoe (on Mic)

Headphone Output: None

Wireless: None

Digital Audio

Sample Rate: 48 kHz

Digital Signal Processing: Noise Reduction

OS Compatibility: None

Mobile App Compatible: No

*As of July, 2023: Check with manufacturer for the most up-to-date compatibility

Power

Bus Power: None

Operating Voltage: Not Specified by Manufacturer

Physical

Color: Black

Mounting: Camera/Shoe-Mount (via Integrated Hardware)

Mounting Thread Size: Included Mount Has No Threading

Included Case: Pouch

Included Filters: None

Operating Temperature: 32 to 104°F / 0 to 40°C

Dimensions: H: 2.8 x W: 1.6 x L: 2.5" / H: 72.2 x W: 40 x L: 64.4 mm

Weight: 2.3 oz / 65 g (Microphone)

In the Box

1x Sony ECM-M1 Digital Shotgun Microphone

1x Windscreen

1x Fur type noise reducing windscreen, MI Shoe cap

1x Protector cap for Microphone MI Shoe connector, Bag

1x Convenient carrying bag for mic
