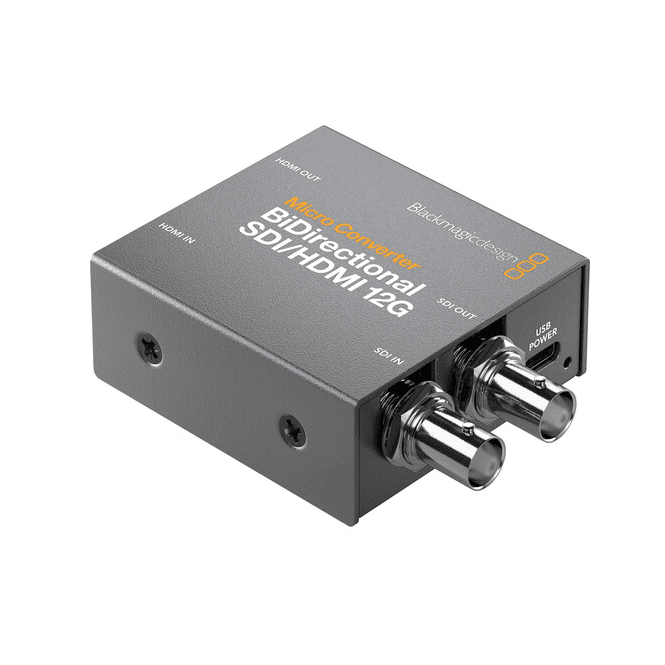

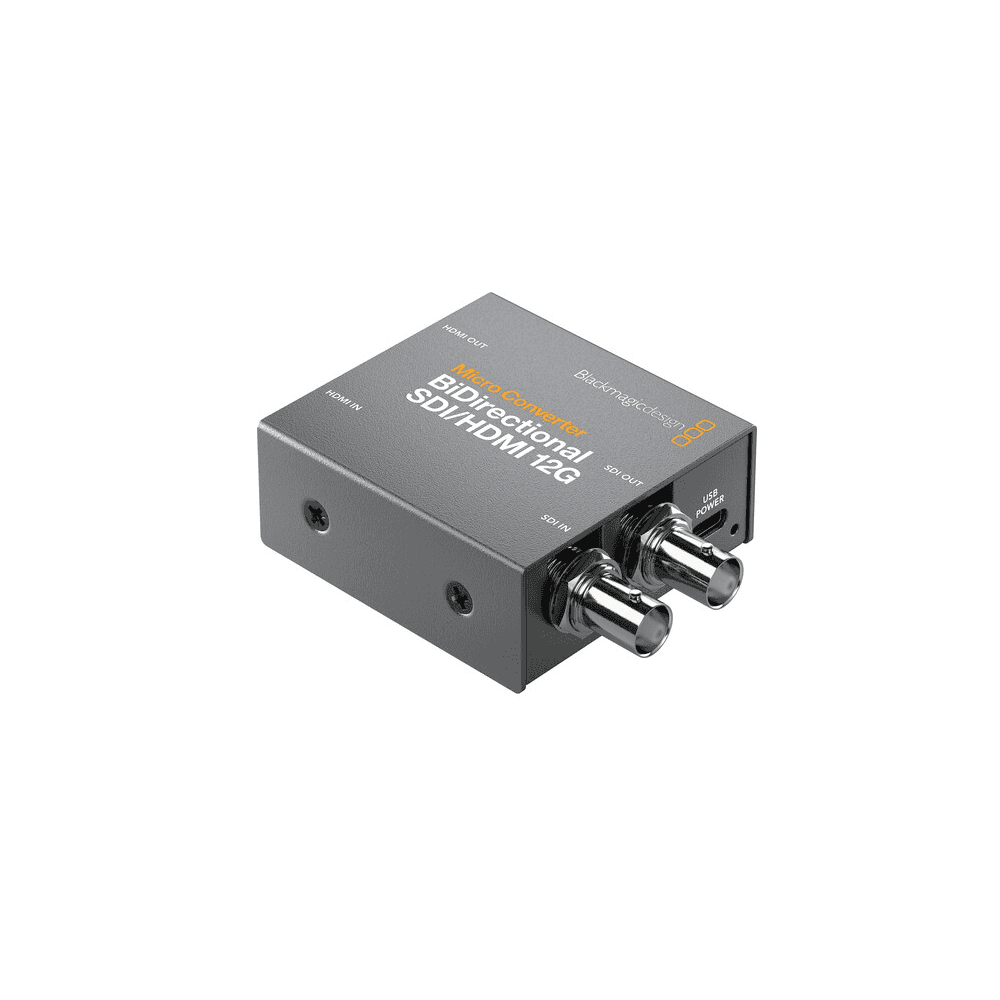

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G

code: BMD-CONVBDC/SDI/HDMI12G

£128.99
Secure yours with a deposit of
RRP: £135.00
|
|

Availability | Usually dispatched within 24 hours

Add to Compare

Features

Simultaneous SDI to HDMI & HDMI to SDI
1 x SD/HD/12G-SDI & 1x HDMI Input/Output
Supports up to DCI/UHD 4K60 Video
Blackmagic Camera Control, Tally Support
SDI Re-Clocking/HDMI Timecode
HDMI Copy Protection Support
Automatic Input Signal Detection
Embedded HDMI & SDI Input/Output
LED Video & Power Signal Indicators

Description
Specification
Included In Box
Reviews
(0)

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G BMD CONVBDC SDI HDMI12G BMD/CONVBDC/SDI/HDMI12G BMD-CONVBDC-SDI-HDMI12G BMDCONVBDCSDIHDMI12G BMD-CONVBDC/SDI/HDMI12G

Easily combine SDI and HDMI components in your video setup with the Micro Converter BiDirectional SDI/HDMI 12G from Blackmagic Design. This compact bidirectional converter can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Since each conversion direction can be a different SD, HD, or UHD video standard, it's like getting two converters in one. It also offers camera control conversion for Blackmagic HDMI cameras like the Pocket Cinema Camera 4K or 6K, enabling you to use them with an SDI-based live switcher.

The pocket-sized Micro Converter BiDirectional SDI/HDMI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions, including cine-style 48 fps, and both HDMI and SDI embedded audio input and output. This converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. The converter is powered using a separately available power supply.

Specifications

Video Input Connectors

1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female
1 x HDMI (HDMI 2.0) Female

Input Video Format

SDI (8/10-Bit 4:2:2 RGB, YUV)

DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps

HDMI (8/10-Bit 4:2:2 RGB, YUV)

DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL: 25 fps

Audio Input Connectors: None

Embedded Audio Input: HDMI - SDI

Video Output Connectors

1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female
1 x HDMI (HDMI 2.0) Female

Output Video Format

SDI (8/10-Bit 4:2:2 RGB, YUV)

DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL (768 x 576): 25 fps

In The Box

1x Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G
