Blackmagic Videohub Master Control Pro

Blackmagic Videohub Master Control Pro BMD/VHUB/WMSTRCRL/PRO BMD-VHUB-WMSTRCRL-PRO BMD VHUB WMSTRCRL PRO BMDVHUBWMSTRCRLPRO BMD-VHUB/WMSTRCRL/PRO

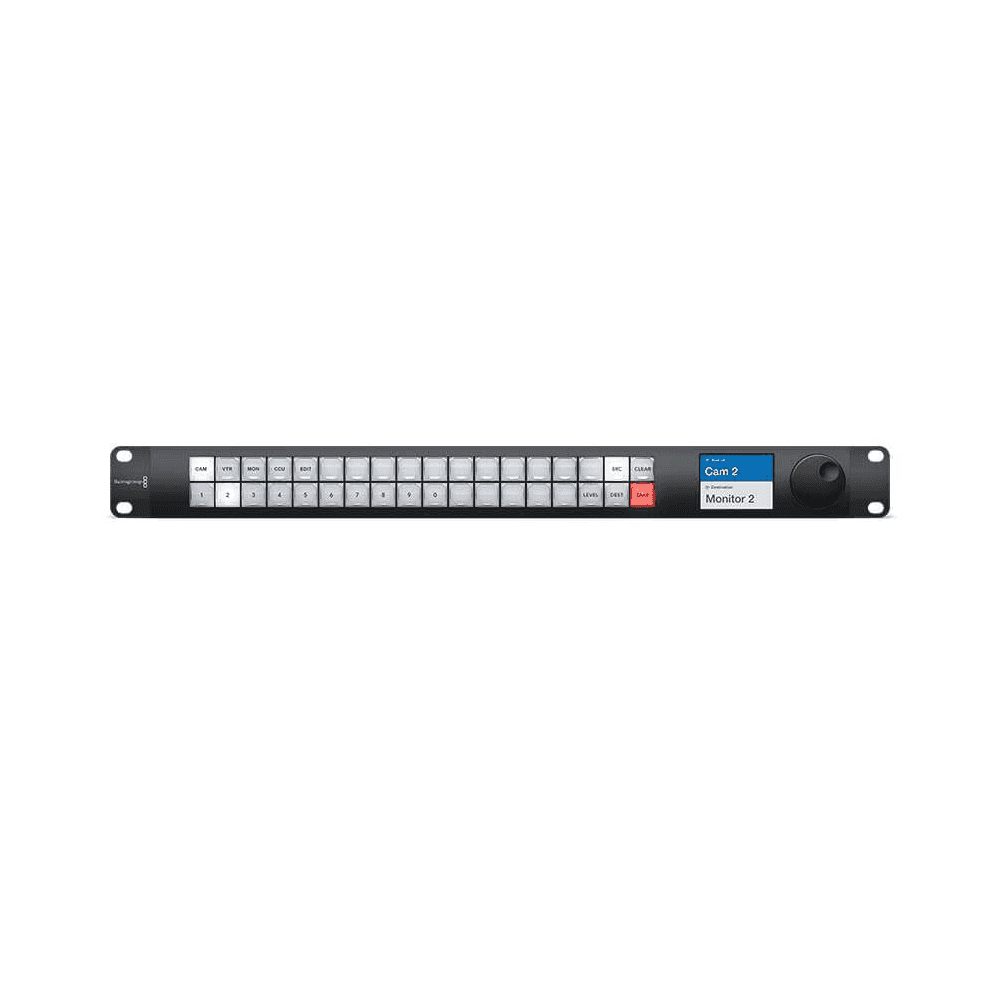

When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD. Powers via DC or the Ethernet connection.

HARDWARE CONTROL PANELS

ADD INCREDIBLE RACK MOUNT HARDWARE CONTROL PANELS

For dedicated remote router panels, you can choose between Videohub Smart Control Pro and Videohub Master Control Pro. Both optional panels connect to your network via Ethernet and can control any Videohub model. Videohub Smart Control Pro is ideal for direct cut bus style routing to monitors or decks, while Videohub Master Control Pro gives you full spin knob control and direct label entry with an LCD display to see your router crosspoint labels. You get perfect integration and 24/7 broadcast reliability with Blackmagic Videohub remote panels.

Specifications

Ethernet: RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.

RS-422: In and Out (for future implementation)

Computer Interface: USB-C for configuration and software updates.

Power: 100 - 240 AC

Hardware Control: 21 assignable buttons with scroll wheel for fast selection of source and destination.

LCD information screen.

Internal Software: Internal Software upgrade via included firmware updater application via USB or ethernet.

Operating Systems:

• Mac 10.13 High Sierra
• Mac 10.14 Mojave or later
• Windows 10

Physical Installation: 1 rack unit size. Less than 3 inches deep.

Button Configuration: Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.

Power Fail Requirements: Button configurations and router communication preserved and restored instantly

at power on. Button configuration can also be saved for later recall.

Power Supply: Internal 100 - 240 V AC

Operating temperature: 0° to 40° C (32° to 104° F)

Storage temperature: -20° to 45° C (-4° to 113° F)

Relative Humidity: 0% to 90% non-condensing

In The Box

• 1x Video Master Control Pro
