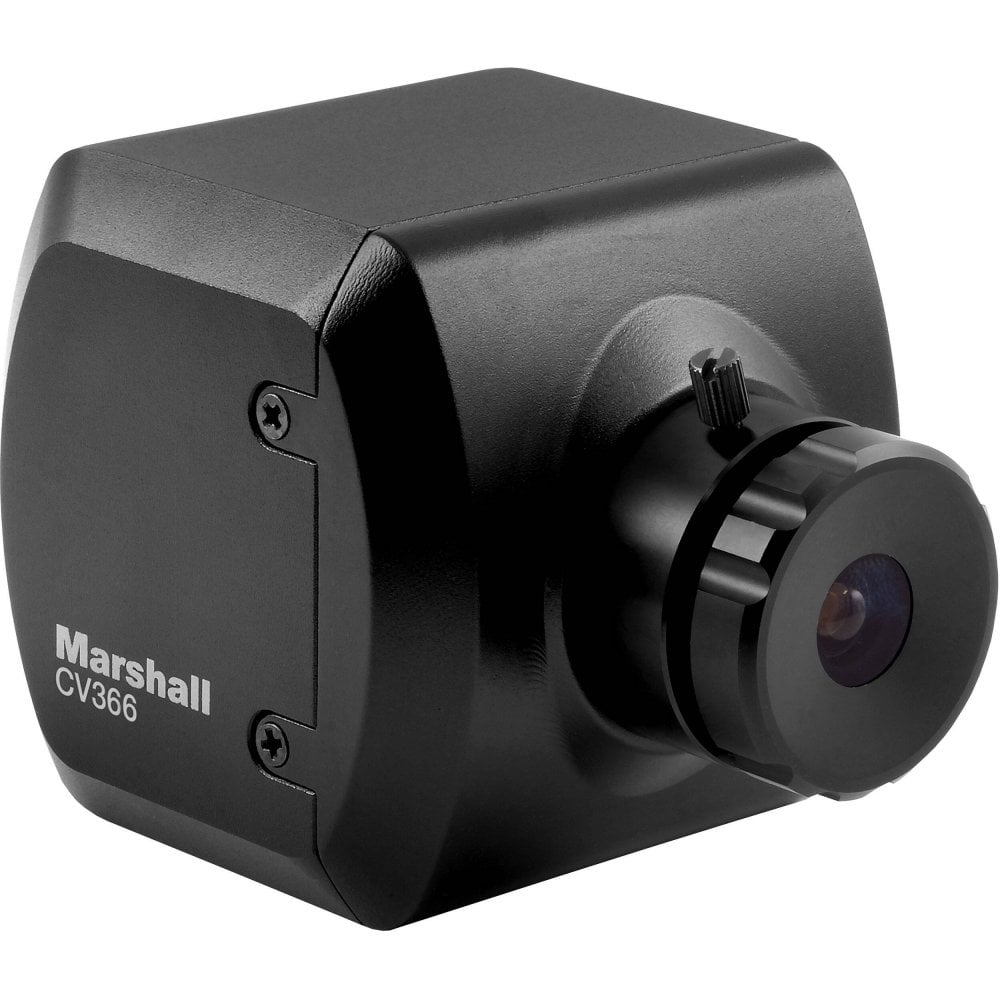

Marshall Compact Genlock Broadcast Camera - 3G-SDI and HDMI Output

Marshall CV366 (CV-366, CV/366, CV_366, CV 366) Compact Genlock Broadcast Camera - 3G-SDI and HDMI Output

Featuring tri-level Genlock sync, Marshall’s CV366 seamlessly integrates into professional broadcasting workflows. With a 1/2.8″ Sony sensor, CV366 captures sharp & vibrant images, even in low-light conditions.

Genlock tri-level sync enables CV366 to integrate with broadcast environments, allowing multiple cameras of any brand to synchronise together seamlessly.

Dual 3G-SDI & HDMI outputs deliver 1920x1080p, 1920x1080i & 1280x720p images at up-to 60 frames per second. Further camera inputs & outputs are available through the included breakout cable, including external 3.5mm microphone input.

A wide selection of CS Mount lenses are available, allowing users to select the perfect lens for any scenario.

CV366 is a durable and professional Compact camera with use-cases including sports broadcast, reality television & live stream events.

CV366

1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080i @ 50, 59.94 & 60 / 1280x720p @ 50, 59.94 & 60

Sensor

• Sensor Type: 1/2.8″ 2.2 Megapixel

Resolution & Frame Rates

• HD 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60
• HD 1920x1080i: 50, 59.94 & 60
• HD 1280x720p: 50, 59.94 & 60

Input & Output Connectors

• Video Output: 1x 3G-SDI & 1x HDMI
• I/O Breakout Cable: 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input & 1x Tri-Level Genlock
• Firmware & Service: 1x Micro-USB

Lens

• Mount Type: CS Mount
• Focus: Manual

Image Control Settings

• White Balance: Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain)

Control Protocol

• Control Protocol: RS-485

General

• Power Input: 12V DC

In The Box

• 1x CV366 Camera Body
• 1x Camera Breakout Cable
• 1x Power Supply Unit (PSU)
