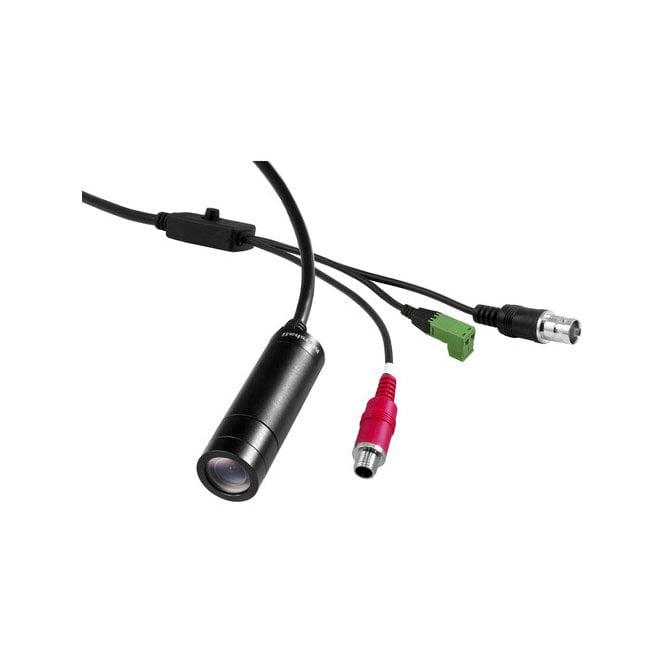

Marshall CV228 IP67 Weatherproof Lipstick-Style Camera with 4.0mm Interchangeable Lens - 3G-SDI Output

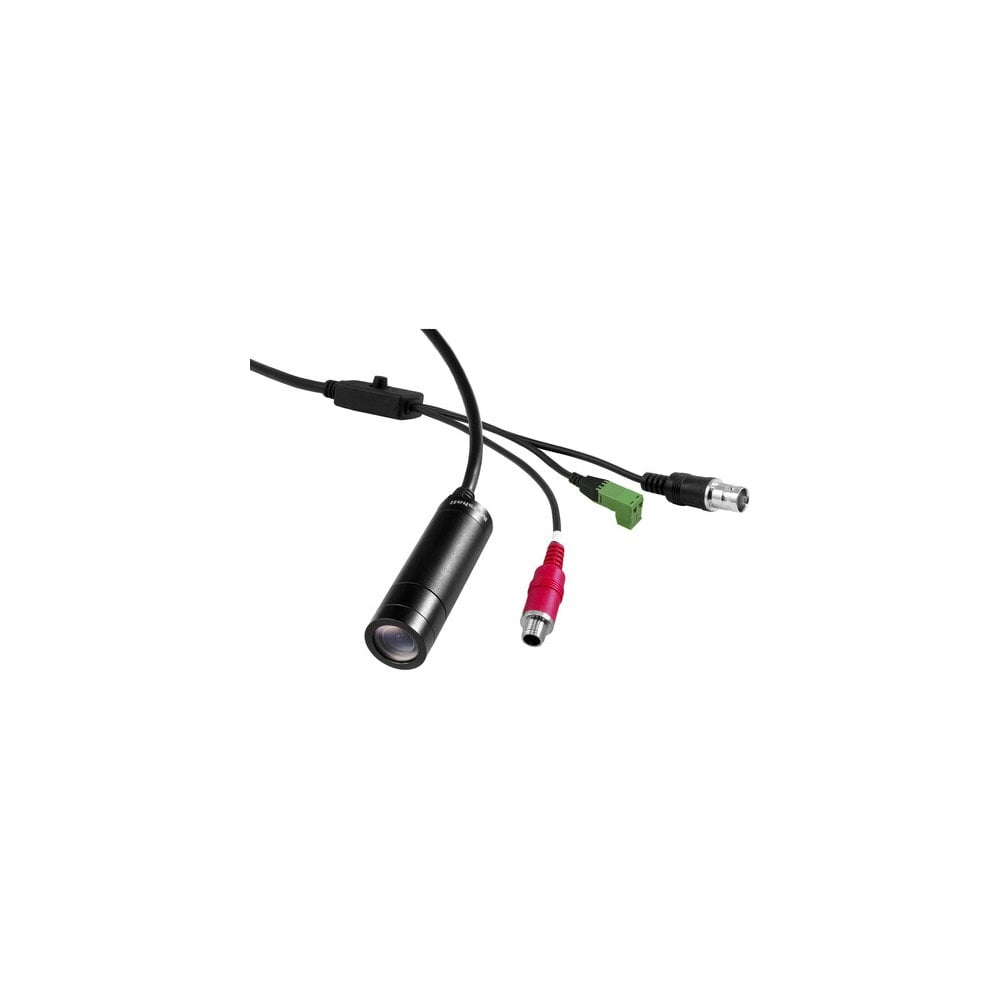

The upgraded Marshall Electronics CV228 All-Weather 3G/HD-SDI HD Lipstick Camera features an IP67 rating for dust and water protection and a 1/2.8" CMOS sensor in a compact form factor. The CV228 can capture up to 1080p video at 60 fps and output said video via the full-size BNC connector on its breakout cable. An included M12 4mm lens is interchangeable and provides an 85° horizontal field of view.

The 10' breakout cable not only has a 3G/HD-SDI connection, but also an RS-485 and locking DC connector to facilitate power and control. A built-in joystick offers OSD control, while the RS-485 connection operates via VISCA protocol to control image parameters. Mount the camera virtually anywhere thanks to its ultracompact form factor and 1/4"-20 mounting thread to attach it to tripods or stands.

Features at a Glance

Full-sized 3G/HD-SDI BNC output

2.5MP, 1/2.8" CMOS sensor

10' breakout cable with BNC, RS-484 remote adjustment, and locking 12V power connector

Interchangeable 4.0mm 85&Deg; lens with IP67 cap

IPIP67 weatherproof housing, submerge in up to 10' of water

Full HD video resolutions

Remote adjustable via RS-485 with VISCA protocol or OSD menu joystick

Compatible with optional CV-RCP-V2 touchscreen with RCP protocol and free camera control software

Wide range of image adjustment settings, including white balance, color, gain control, pedestal, white clip, exposure, gamma, and more

Marshall Electronics CV228 Specs

General

Image Sensor

1.2.8" Progressive CMOS 2.4 MP

Scanning System

16:9 Progressive

Sync System

Internal

Effective Pixels

1944 x 1212

Minimum Illumination

0.2 Lux (Day)

0.1 Lux (Night)

0.005 Lux (DSS On)

Horizontal Resolution

1000 TV Lines

Lens

M12 4.0mm 85°

Back Light Compensation

WDR, BLC, Spot

Exposure

Auto, Manual Shutter, Flickerless

White Balance

Auto, ATW, Manual, Push

Electronic Shutter

1/1 to 1/30,000

Advanced Functions

Privacy Mask

Image Mirror/Flip

DNR

D-Zoom

Defog

Digital Image Stabilizer

Inputs / Outputs

Video I/O

1 x BNC (3G-SDI) Output

Control I/O

RS-485

Video Formats

SMPTE 292M (1.485 Gb/s):

1920 x 1080p at 25, 29.97, 30 fps

1920 x 1080i at 50, 59.94, 60 fps

1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps

SMPTE 424M (2.97 Gb/s):

1920 x 1080p at 50, 59.94, 60 fps

RS-485

Sony VISCA Protocol

Power

Power Source

Plug-In Power

DC Input Power

7 to 12 VDC

Power Consumption

6 W

Environmental

IP Rating

IP67

Operating Temperature

22 to 82°F / -10 to 50°C

Physical

Color

Black

Cable Length

9.8' / 3 m

Dimensions

2.5 x 0.8 x 0.8" / 62.5 x 19.5 x 19.5 mm

Weight

6.9 oz / 195 g

Packaging Info

Package Weight

1.405 lb

Box Dimensions (LxWxH)

10.1 x 5.1 x 4.2"

In the box;

1 x Marshall Weatherproof Lipstick-Style Camera with 4.0mm Interchangeable Lens - 3G-SDI Output
