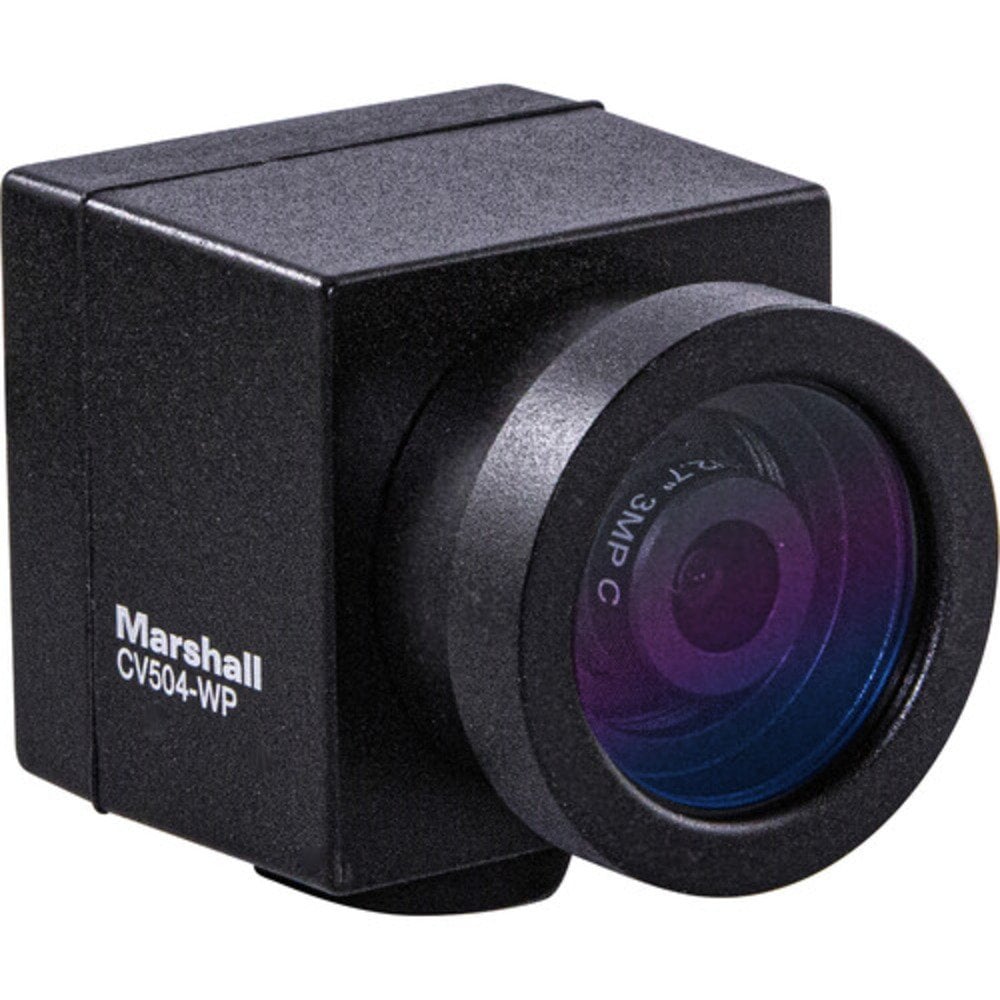

Marshall CV504-WP IP67 Weatherproof Mini Broadcast Camera

Marshall CV504-WP (CV504/WP, CV504_WP, CV504 WP, CV504WP) IP67 Weatherproof Mini Broadcast Camera with 4.0mm Interchangeable Lens

CV504-WP

1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080i @ 50, 59.94 & 60 / 1280x720p @ 50, 59.94 & 60

Built with the new Sony 1/2.8″ Solid-State sensors, the CV504-WP is able to provide clear HD video with 10-bit colour even in low-light conditions down to 0.01Lux. The CV504-WP can also compete even in complete darkness with its night mode, enabling capture of IR wavelengths to get a clear picture in environments as little as 0.005Lux.

Marshall CV504-WP Weatherproof Miniature HD Camera is the professional solution for capturing crisp video in true colour at outdoor broadcast events and AV applications where weather is a factor. The CV504-WP offers interchangeable lenses, remote adjustable settings and protection from the elements in a compact IP67-rated housing.

The CV504-WP utilises a flexible 10′ (3m) weatherproof cable that carries video, control and power to a full-sized 3G/HD-SDI (BNC) output, RS485 connection and locking 12V power connector.

The CV504-WP can capture detailed shots from impossible angles, while maintaining an ultra-discreet presence. Remote adjustment of a wide range of picture settings including white balance, red/blue, exposure, gain control, pedestal (blacks), white clip, gamma and more are delivered via common RS485 (Visca) or OSD menu joystick.

Sensor

• Sensor Type: 1/2.8″ 2.2 Megapixel
• Effective Pixels: 1980×1080
• Pixel Size: 2.9μm x 2.9μm

Resolution & Frame Rates

• HD 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60
• HD 1920x1080i: 50, 59.94 & 60
• HD 1280x720p: 50, 59.94 & 60

Input & Output Connectors

• Video Output: 1x 3G-SDI
• Remote Control: 1x RS-485 Interface
• Power Input: 1x Locking Barrel 12V DC Power Connector

Lens

• Mount Type: M12
• Focal Length: 4.0mm
• Max. Aperture: f/2.0
• Focus: Manual

Image Control Settings

• White Balance: ATW (1,900°K~11,000°K) / Manual / Indoor / Outdoor / One Push

Control Protocol

• Control Protocol: VISCA (RS-485)

General

• IP Rating: IP67
• I/O Cable Length: 10′ (3m)
• Power Input: 12V DC

In The Box

• 1x Marshall CV504-WP Camera Body
• 1x 10′ Breakout Cable (Attached to Camera Body)
• 1x 4.0mm M12 Lens
• 1x Power Supply Unit (PSU)
