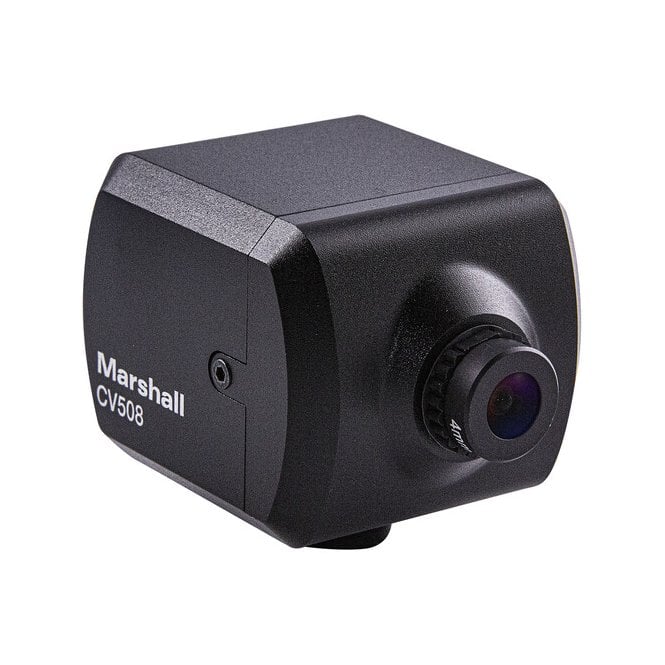

Marshall CV508 Mini Broadcast Camera with 4.0mm Interchangeable Lens

Marshall CV508 (CV-508, CV/508, CV_508, CV 508) Mini Broadcast Camera with 4.0mm Interchangeable Lens

The Marshall CV508 Full-HD Miniature Camera with HDMI offers performance, flexibility, and value in a tiny form factor. Built around a next generation 2.2-Megapixel, 1/2.8-inch sensor, the CV508 delivers ultra-crisp, clear, Full-HD video in both interlaced and progressive modes at up to 60/59/50fps.

The CV508 utilises full-sized BNC (3G/HDSDI) and HDMI outputs on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV508’s threaded M12 lens mount offers a wide range of prime and varifocal lens options.

The CV508 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.

Sensor

• Sensor Type: 1/2.8″ 2.2 Megapixel
• Pixel Size: 2.9μm x 2.9μm

Resolution & Frame Rates

• HD 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60
• HD 1920x1080i: 50, 59.94 & 60
• HD 1280x720p: 50, 59.94 & 60

Input & Output Connectors

• Video Output: 1x 3G-SDI & 1x HDMI
• I/O Breakout Cable: 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input
• Firmware & Service: 1x Micro-USB

Lens

• Mount Type: M12
• Focal Length (included lens): 4.0mm
• Max. Aperture: f/2.0
• Focus: Manual

Image Control Settings

• White Balance: Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain)

Control Protocol

• Control Protocol: RS-485

General

• Power Input: 12V DC
• Dimensions: 40mm x 44mm x 45mm

In The Box

• 1x Marshall CV508 Camera Body
• 1x Camera Breakout Cable
• 1x 4.0mm M12 Lens
• 1x Power Supply Unit (PSU)
