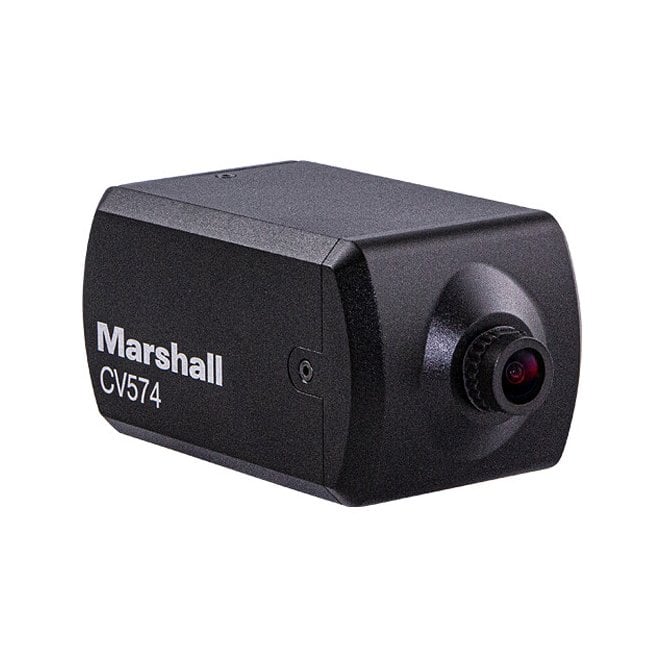

Marshall CV574 NDI 4K UHD Mini Broadcast Camera with 4.0mm Interchangeable Lens

Marshall CV574 (CV-574, CV/574, CV_574, CV 574) NDI 4K UHD Mini Broadcast Camera with 4.0mm Interchangeable Lens

CV574

3840x2160p @ 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080p @ 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080i @ 50, 59.94 & 60 / 1280x720p @ 50, 59.94 & 60

CV574 networkable POV camera is a new addition to Marshall’s miniature camera lineup. Featuring NDI|HX3, the new Sony 1/2.8″ sensor and 4K UHD output, the CV574 delivers exceptional performance in any workflow.

With the NDI|HX3 codec, the CV574 can deliver low latency, high quality video with no visible compression artifacts. Simultaneous output with HDMI and other IP output options including SRT, RTSP, MPEG-TS and HEVC.

The included breakout cable enables audio input, power and control via RS-485 and the included control joystick. Alternatively, the CV574 supports PoE allowing for power, control and video over just 1 ethernet cable.

A wide selection of M12 lenses complement the included 4.0mm M12 lens, allowing users to select the perfect lens for any scenario.

CV574 is a durable and professional Mini camera with a variety of use-cases including sports broadcast, reality television & live stream events.

Sensor

• Sensor Type: 1/2.8″ 8.5 Megapixel
• Pixel Size: 2.75μm x 2.75μm

Resolution & Frame Rates

• UHD 3840x2160p: 25, 29.97, 30, 50, 59.94 & 60
• HD 1920x1080p: 25, 29.97, 30, 50, 59.94 & 60
• HD 1920x1080i: 50, 59.94 & 60
• HD 1280x720p: 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60

Input & Output Connectors

• Video Output: HDMI & RJ45 (IP Ethernet, NDI|HX2 & NDI|HX3)
• I/O Breakout Cable: 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input
• Firmware & Service: 1x USB-C

Lens

• Mount Type: M12
• Focal Length: 4.0mm
• Max. Aperture: f/2.0
• Focus: Manual

Image Control Settings

• White Balance: Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain)

Control Protocol

• Control Protocol: RS-485

General

• Power Input: 12V DC

In The Box

• 1x Marshall CV574 Camera Body
• 1x Camera Breakout Cable
• 1x 4.0mm M12 Lens
• 1x Power Supply Unit (PSU)
