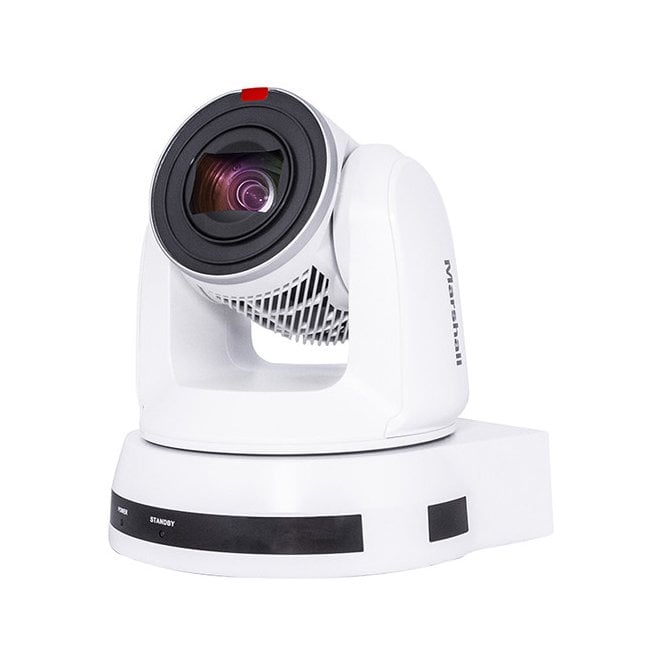

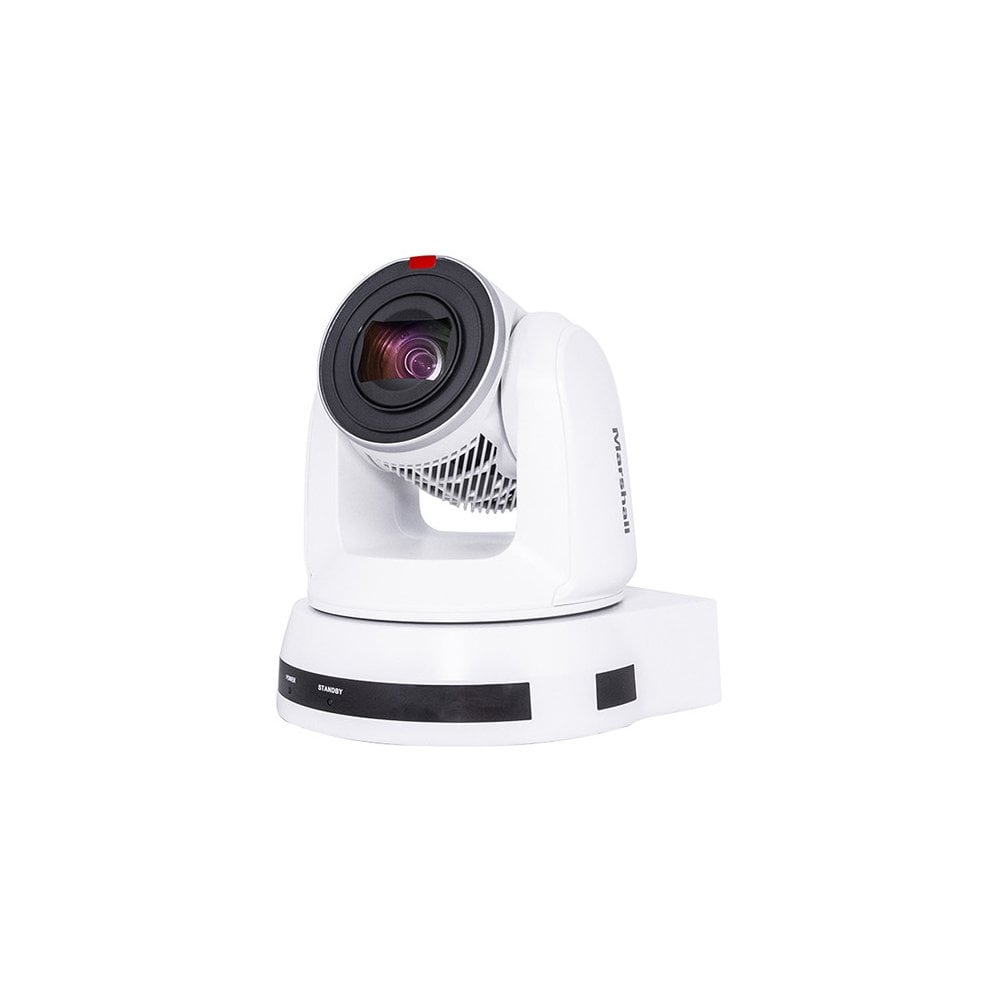

Marshall CV630-IPW UHD PTZ Broadcast Camera with 4.6-135mm 30x Zoom Lens - White

Marshall CV630-IPW (CV630/IPW, CV630_IPW, CV630IPW, vc630-ipw) UHD PTZ Broadcast Camera with 4.6-135mm 30x Zoom Lens - White

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.

At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5″ sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.

The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.

CV630-IPW (White)

Dual-Region – 3840x2160P 29.97/25, 1920x1080P 60/59.94/50/29.97/25, 1920x1080i 60/59.94/50, 1280x720P 60/59.94/50/29.97/25

• Sensor: 8 Megapixel 1/2.5″ Sensor
• Video Outputs: 3G/HD-SDI, HDMI & Ethernet
• PTZ Lens: 4.6mm to 135mm Zoom
• Pan & Tilt: 340° Horizontal Pan / 120° Vertical Tilt
• Control Interface: RS-232, RS-422 & Ethernet
• Power Input: 12V Barrel Connector
• Colour: White

In the Box

• Marshall UHD PTZ Broadcast Camera with 4.6-135mm 30x Zoom Lens – IP/Ethernet, 3G/HD-SDI & HDMI Output (White)
