Marshall Global Shutter and Compact Genlock Broadcast Camera – 3G-SDI and HDMI Output

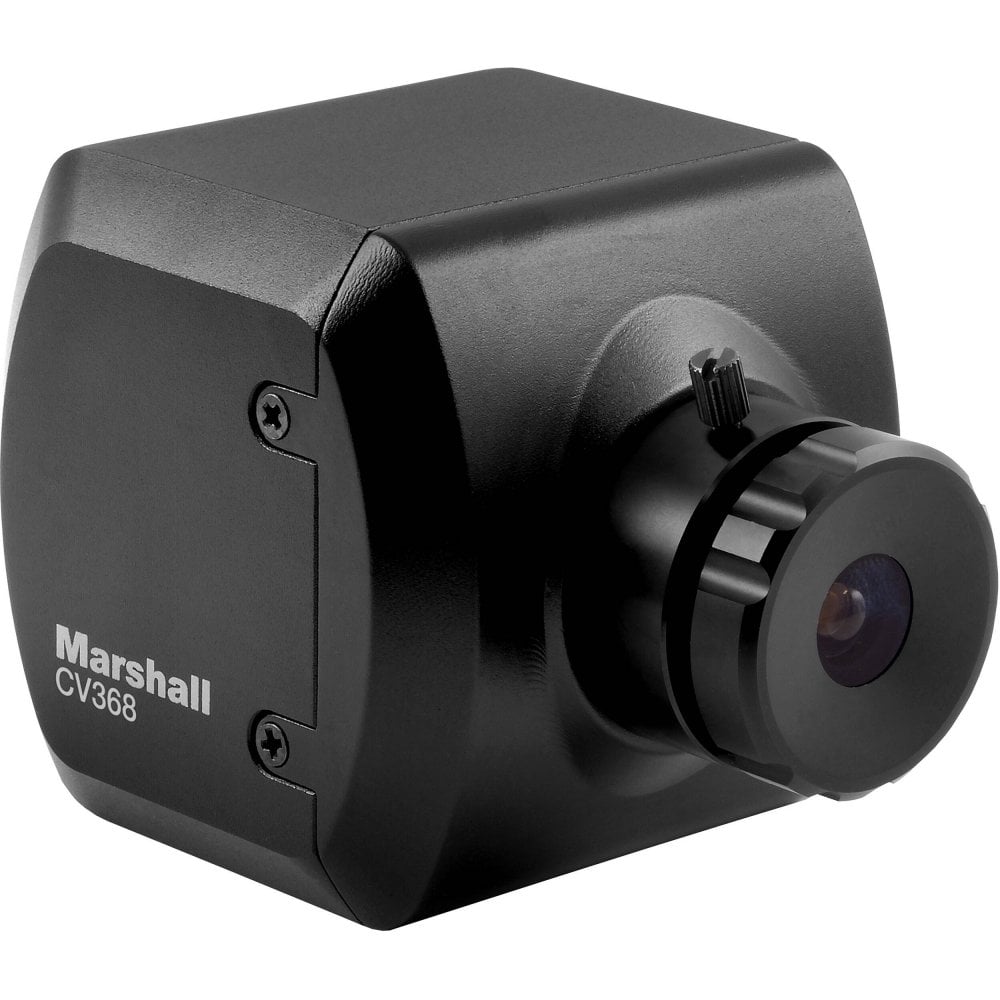

Marshall CV368 (CV-368, CV/368, CV_368, CV 368) Global Shutter and Compact Genlock Broadcast Camera – 3G-SDI and HDMI Output

CV368 is Marshall’s premier Compact camera, featuring a Sony global shutter sensor and Genlock tri-level sync. These features allow CV368 to integrate directly with broadcast workflows and provide the highest-quality images from any Marshall Compact camera.

The 1/1.8″ global shutter sensor from Sony delivers perfect, anomaly-free images – with the camera capturing every single frame across the entire sensor simultaneously. In addition, CV368’s sensor features 25% larger pixels – to deliver cleaner images, especially in low-light.

Genlock tri-level sync enables CV368 to integrate with broadcast environments, allowing multiple cameras of any brand to synchronise together seamlessly.

Dual 3G-SDI & HDMI outputs deliver 1920x1080p, 1920x1080i & 1280x720p images at up-to 60 frames per second. Further camera inputs & outputs are available through the included breakout cable, including external 3.5mm microphone input. A wide selection of CS Mount lenses are available, allowing users to select the perfect lens for any scenario.

CV368 is a durable and professional Compact camera with use-cases including sports broadcast, reality television & live stream events.

Sensor

• Sensor Type: 1/1.8″ 3.2 Megapixel

Resolution & Frame Rates

• HD 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60
• HD 1920x1080i: 50, 59.94 & 60
• HD 1280x720p: 50, 59.94 & 60

Input & Output Connectors

• Video Output: 1x 3G-SDI & 1x HDMI
• I/O Breakout Cable: 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input & 1x Tri-Level Genlock
• Firmware & Service: 1x Micro-USB

Lens

• Mount Type: CS Mount
• Focus: Manual

Image Control Settings

• White Balance: Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain)

Control Protocol

• Control Protocol: RS-485

General

• Power Input: 12V DC

In The Box

• 1x CV368 Camera Body
• 1x Camera Breakout Cable
• 1x Power Supply Unit (PSU)
