Sony PXW-Z280 4K Handheld Camcorder package d

code: PXWZ280PACKD
  • £7,137.90
Availability | Usually dispatched within 24 hours
Loading...

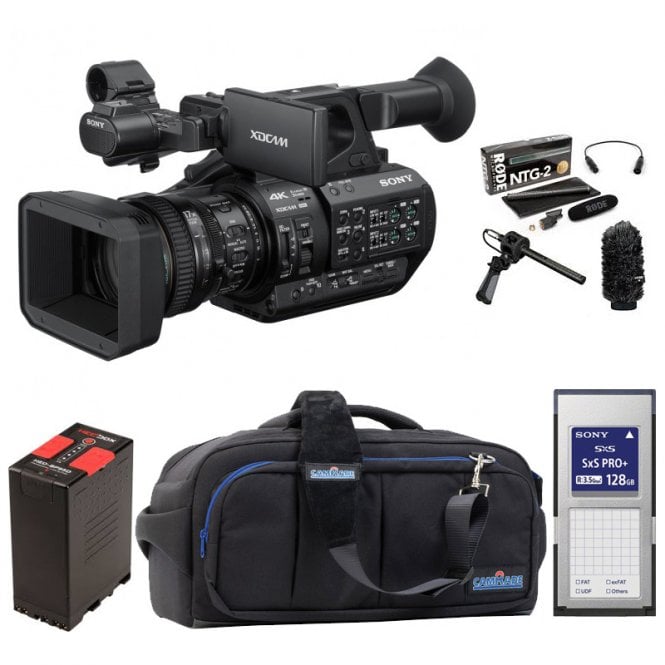

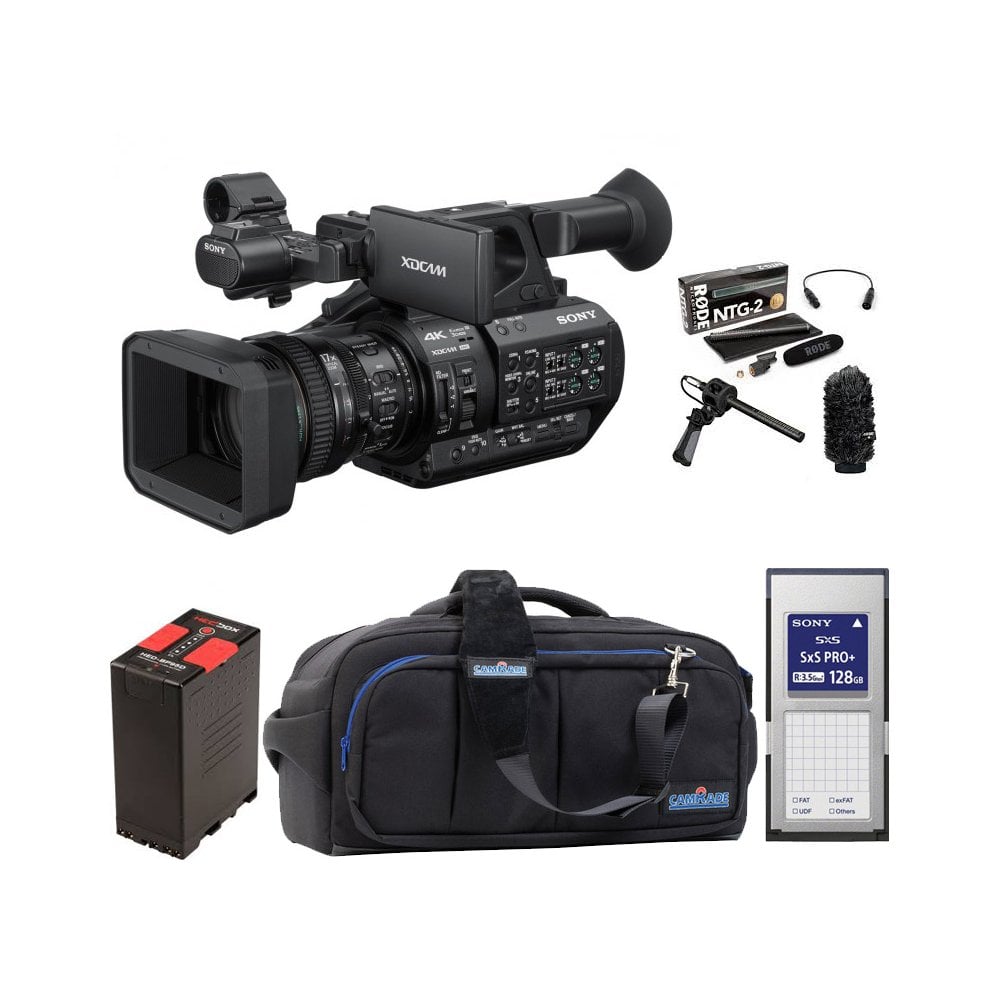

Sony PXW-Z280 (PXW Z280, PXW_Z280) 4K Handheld Camcorder package d © includes:


1x Sony PXW-Z280 4K Handheld Camcorder (PXW-Z280)

1x Hedbox Pro Battery Pack for SONY 6700mAh Li-Ion Battery with 2x D-Tap 14.4V & USB 5V (BPU) (HED-BP95D)

1x Sony SBP-128E SxS Pro+ 128GB Read 3.5GB/s Write 2.8GB/s Memory Card (SBP-128E)

1x Camrade CAM-R&GB-MEDIUM run&gunBag Medium bag (CAM-R&GB-MEDIUM)

1x Rode NTG2 Multi-Powered Shotgun Microphone (NTG2)

1x Rode WS6 Deluxe Wind Shield (WS6)

1x Rode PG2R Pistol Grip Shock Mount (PG2R)

1x Digibroadcast 12inch 3Pin Male to Female Xlr Cable (12INCHXLR3PIN)



*Digibroadcast has put together some bespoke Sony packages for our clients based on our own research and surveys and holds the right to protect all of its content ©



World-leading handheld 4K HDR performance

An all-new 4K 3CMOS 1/2-type sensor with a deep depth of field and class-leading performance provides the pinnacle of 4K HDR performance in your hand. Face Detection AF keeps your subject in focus, while HLG and S-Log3 provide stunning HDR to suit any workflow.

Revolutionary networking capabilities

Deliver your content faster wherever you are. PXW-Z280 is the world’s first camcorder with built-in Dual Link Cellular connection for double the uplink performance and reliability. Integrated 12G-SDI supports transfers at up to 12Gbps over a standard SDI cable.

The complete package for professionals

Unpack and shoot from day one. Advanced XAVC-Intra and XAVC-Long for 4K QFHD and HD, plus MPEG HD422, MPEG HD and DVCAM to support any workflow. Familiar Sony control layout and operation minimise training requirements.

World's first 1/2-type 3CMOS Sensor for broadcast 4K

The Z280’s all-new Exmor R™ imager is custom-designed for broadcast 4K acquisition. Its three 1/2-type Exmor R™ CMOS deliver a deep depth of field with superb image quality. Red, blue, and green light are independently captured by separate image sensors, contributing to high resolution, high sensitivity of F12 (59.94p) and wide dynamic range. An advanced LSI (featuring intelligent noise reduction, enhanced detail reproduction and distortion correction technologies) delivers remarkably lifelike 4K 4:2:2 10-bit images. Even if you’re delivering in HD, your recordings will capture detail and image texture that HD sensors simply cannot see.



17x professional HD zoom lens with three independent rings with end-stop and large focal length

The PXW-Z280 is equipped with a 17x professional zoom lens able to zoom from 30.3mm to 515mm (35mm equivalent). The 1/2-inch type lens has three independent control rings with end-stop, which allows manual control of focus, zoom and iris, making for better and faster adjustment.



The image can be enlarged without any picture degradation in HD mode and 34x times zoom equivalent image is captured with sensor cropping extender.



Spectacular HDR performance

Demand for HDR content is increasing and Z280 offers you a choice of two powerful workflows.



S-Log2/3 is the proven choice for premium applications where you wish to capture as much data as possible for the ultimate flexibility in grading

Instant HDR Workflow is all about speed. Shoot, edit and view content in Hybrid Log-Gamma (HLG) to deliver content quickly without compromising on imaging expression and quality of content



Amazingly fast precision auto focus

The PXW-Z280 features newly developed Face detection AF. You can choose between Face Priority AF and Face Only AF. Simply keep the person in frame and and however you move to obtain a better angle, you can be confident the PXW-Z280 will keep your subject in pin-sharp focus.



Built-in electronic Variable ND Filters

Sony’s ground-breaking integration of electronic variable ND Filters into the body of a camcorder enables fast, agile shooting. Moving from shadowy interiors to bright sun-lit exteriors is no problem with PXW-Z280. Unlike conventional optical ND filters, the electronic ND filter on the PXW-Z280 can be controlled from 1/4ND to 1/128ND linearly while ND Filters can be set to fully auto. You can even manually adjust Depth of Field using the iris lens ring, while relying on the PXW-Z280 to maintain constant exposure without changing gain nor shutter speed.



12G-SDI accelerated workflow

Revolutionise your workflow with 12Gbps content transfer – four times the bandwidth of 3G-SDI over a standard SDI cable and ideal for working with highest quality 4K content or speeding through HD content. Sony is the first broadcast manufacturer to build 12G-SDI into a compact handheld camcorder. Once you’ve tried it, you won’t want to use anything else.



Accurate OLED viewfinder

An expansive 0.5-inch high quality OLED viewfinder is perfectly offset for right-eye or left-eye viewing. OLED’s superb accuracy, high contrast and high resolution (2.36M dot) enables precise manual focus and eliminates any colour-breaking phenomenon.







General

Mass Approx 2.6 kg (body)

Approx. 5 lb 11.7 oz (body)

Approx. 3.0 kg (with lens hood, eyecup, BP-U30 battery, a SxS memory card)

Approx. 6 lb 9.8 oz (with lens hood, eyecup, BP-U30 battery, a SxS memory card)

Dimensions (W x H x D) 178.4 × 202.0 × 426.3 mm (With the accessories (lens hood, eyecup),

excluding the grip belt and including the projecting parts)

7 1/8 x 8 x 16 7/8 inches (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)

Power Requirements DC In: 12V,

Battery: 14.4 V

Power Consumption Approx. 24W

(while recording with LCD Off, EVF On when the external device connector is not used.)

Approx. 31W

(while recording with LCD On, EVF On when the external device connector is used.)

Operating Temperature 0°C to 40°C

32°F to 104°F

Storage Temperature -20°C to +60°C

-4°F to +140°F

Battery Operating Time Approx. 1 hours, 5 minutes with BP-U30 battery

(while recording with LCD Off, EVF On when the external device connector is not used.)

Approx. 2 hours, 10 minutes with BP-U60 battery

(while recording with LCD Off, EVF On when the external device connector is not used.)

Approx. 3 hours, 15 minutes with BP-U90 battery

(while recording with LCD Off, EVF On when the external device connector is not used.)

Recording Format (Video)

XAVC-I QFHD mode:

MPEG-4 AVC/H.264, CBG, Max.600 Mbps

XAVC-I HD mode:

MPEG-4 AVC/H.264, CBG, Max.222 Mbps



XAVC-L QFHD mode:

VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC

XAVC-L HD 50 mode:

VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC

AVC-L HD 35 mode:

VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC

XAVC-L HD 25 mode:

VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC



MPEG HD422 mode:

CBR, maximum bit rate 50Mbps, MPEG-2 422P@HL

MPEG HD420 HQ mode:

VBR, maximum bit rate 35Mbps, MPEG-2 MP@HL



DVCAM mode:

CBR, 25Mbps, DVCAM

Recording Format (Audio)

XAVC-I mode:

LPCM 24-bit, 48kHz, 4 channels:

XAVC-L mode:

LPCM 24-bit, 48kHz, 4 channels:

MPEG HD422 mode:

LPCM 24-bit, 48kHz, 4 channels:

MPEG HD420 HQ mode:

LPCM 16-bit, 48kHz, 4 channels:

DVCAM mode:

LPCM 16-bit, 48kHz, 4 channels

Recording Frame Rate

XAVC-I QFHD mode:

3840x2160/59,94p, 50p, 29.97p, 23.98p, 25p

XAVC-I HD mode:

1920x1080/59,94p, 59.94i, 50p, 50i, 29.97P, 23.98P, 25P 1280x720/59.94P, 50P

XAVC-L QFHD 150 mode:

3840x2160/59.94P, 50P, 29.97P, 23.98P, 25P

XAVC-L HD 50 mode:

1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P 1280x720/59.94P, 50P

XAVC-L HD 35 mode:

1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P

Recording Frame Rate - Continued XAVC-L HD 25 mode:

1920x1080/59.94i, 50i



MPEG HD422 mode:

1920x1080/59.94i, 50i, 29.97P, 23.98P, 25P

1280x720/59.94P, 50P, 29.97P, 23.98P, 25P

MPEG HD420 HQ mode:

1920x1080/59.94i, 50i, 29.97P, 23.98P, 25P

1440x1080/59.94i, 50i, 29.97P, 23.98P, 25P

1280x720/59.94P,50P



DVCAM mode:

720x480/59.94i, 29.97PsF

720x576/50i, 25PsF

Recording/Playback Time

XAVC-I QFHD mode

When using SBP-128B(128GB):

Approx. 22 minutes

XAVC-I HD mode

When using SBP-128B(128GB):

Approx. 57 minutes

XAVC-L QFHD 150 mode

When using SBP-128B(128GB):

Approx. 86 minutes

XAVC-L HD 50 mode

When using SBP-128B(128GB):

Approx. 230 minutes

XAVC-L HD 35 mode

When using SBP-128B(128GB):

Approx. 310 minutes

Recording/Playback Time - Continued XAVC-L 25 mode

When using SBP-128B(128GB):

Approx. 420 minutes

MPEG HD422 mode

When using SBP-128B(128GB):

Approx. 215 minutes

MPEG HD420 HQ mode

When using SBP-128B(128GB):

Approx. 330 minutes



When using SBP-128B(128GB):

Approx. 405 minutes

Recording Format (Proxy Audio) XAVC Proxy: AAC-LC, 128 kbps, 2 channels

Recording Format (Proxy Video) XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR

1920x1080, 9Mbps

1280x720, 9Mbps

1280x720, 6Mbps

640x360, 3Mbps

480x270, 1Mbps

480x270, 0.5Mbps

Lens

Lens Mount Fixed

Zoom Ratio 17x (optical), servo/manual

Focal Length f = 5.6 - 95.2 mm

(35mm equivalent: 30.3 - 515 mm)

Iris F1.9 - F16 and close

auto/manual selectable

Focus 800 mm to ∞ (Macro Off),

50 mm to ∞ (Macro On, Wide),

800 mm to ∞ (Macro On, Tele)

AF/MF/Full MF selectable

Image Stabilizer On/Off selectable, shift lens

Filter Diameter M77 mm, pitch 0.75mm

Camera Section

Imaging Device (Type) 1/2 type back-illuminated Exmor R 3CMOS sensor

Effective Picture Elements 3840 (H) x 2160 (V)

Optical System F1.6 prism system

Built-in Optical Filters ND filters

OFF: CLEAR

1: 1/4ND

2: 1/16ND

3: 1/64ND

Linear variable ND (Approx. 1/4ND to 1/128ND)

Sensitivity (2000 lx, 89.9% reflectance) F12 (typical, 1920 x 1080/59.94p mode)

F13 (typical, 1920 x 1080/50p mode)

F12 (typical, 3840 x 2160/59.94p, High Sensitivity Mode)

F13 (typical, 3840 x 2160/50p, High Sensitivity Mode)

Minimum Illumination 0.0013lx (typical)

(1920 x 1080/59.94i mode, F1.9, +42 dB gain, High Sensitivity Mode, with 64 frame accumulation)

S/N Ratio 63 dB (Y) (typical)

Horizontal Resolution 2,000 TV lines or more (3840 x 2160p mode)

1,000 TV lines or more (1920 x 1080p mode)

Shutter Speed 1/24 sec to 1/8,000 sec

Slow Shutter (SLS) 2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation

Slow and Quick Motion Function



2160P: 1-60 fps

1080P: 1-60 fps

720P: 1-60 fps



1080P: 1-30 fps

720P: 1-60 fps



1080P: 1-30 fps

720P: 1-60 fps

White Balance Preset (3200K), Memory A,

Memory B/ATW

Gain -3, 0, 3, 6, 9, 12, 18 dB, 42dB(Turbo Gain ON), AGC

Gamma Curve Selectable

Input/Output

Audio Input XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable

LINE:+4, 0, -3dBu/10kΩ

MIC:-80dBu to -30dBu /3kΩ

(0 dBu=0.775 Vrms)

Video Output BNC (x1), HD-Y/ HD-SYNC/Composite

1.0Vp-p, 75Ω

(switchable to Genlock in)

Audio Output Integrated into Multi/Micro USB jack(x1)

SDI Output BNC (x1), 12G/3G/HD/SD selectable

Timecode Input BNC (x1) (switchable to TC out)

0.5V-1.8Vp-p, 3.3kΩ

Timecode Output BNC (x1) (switchable to TC in)

1.0Vp-p, 75Ω

Genlock Input BNC (x1) (switchable to Video out) 1.0 Vp-p, 75Ω

USB USB device, Multi/Micro USB jack (x1)

Host:USB 3.0/2.0 type A(x1)

USB 2.0 type A(x1)

Headphone Output Stereo mini jack (x1)

-16dBu 16Ω

Speaker Output Monaural

Output: 500mW

DC Input DC jack (x1)

Remote Stereo mini-minijack (Φ2.5 mm)

HDMI Output Type A (x1)

Wired LAN RJ-45 (x1), 1000BASE-T, 100BASE-T, 10BASE-T

Monitoring

Viewfinder 1.3 cm (0.5 type)

Approx 2.36M dots

LCD 8.8cm (3.5 type)

Approx. 1.56M dots

Built-In Microphone

Built-In Microphone Omni-directional stereo electret condenser microphone

Media

Type ExpressCard/34 slot (x2)

Wi-Fi/NFC

Supported Format IEEE 802.11 a/b/g/n/ac

Frequency Band 2.4 GHz bandwidth

5.2/5.3/5.6 GHz bandwidth*

Security WEP/WPA-PSK/WPA2-PSK

NFC NFC Forum Type 3 Tag compliant

Suplied Accessories

Suplied Accessories Lens hood (1), Pre-installed to the Camcorder

EVF eyecup (1)

Battery pack BP-U30 (1)

AC Adapter/charger BC-U1A (1)

Power Code (1)

USB cable (1)

Shoulder strap (1)

Warranty Booklet (1)

"Before Using this Unit" (1)

CDROM "Operating instructions" (1)

Be the first to review Sony PXW-Z280 4K Handheld Camcorder package d. Write a review ›
