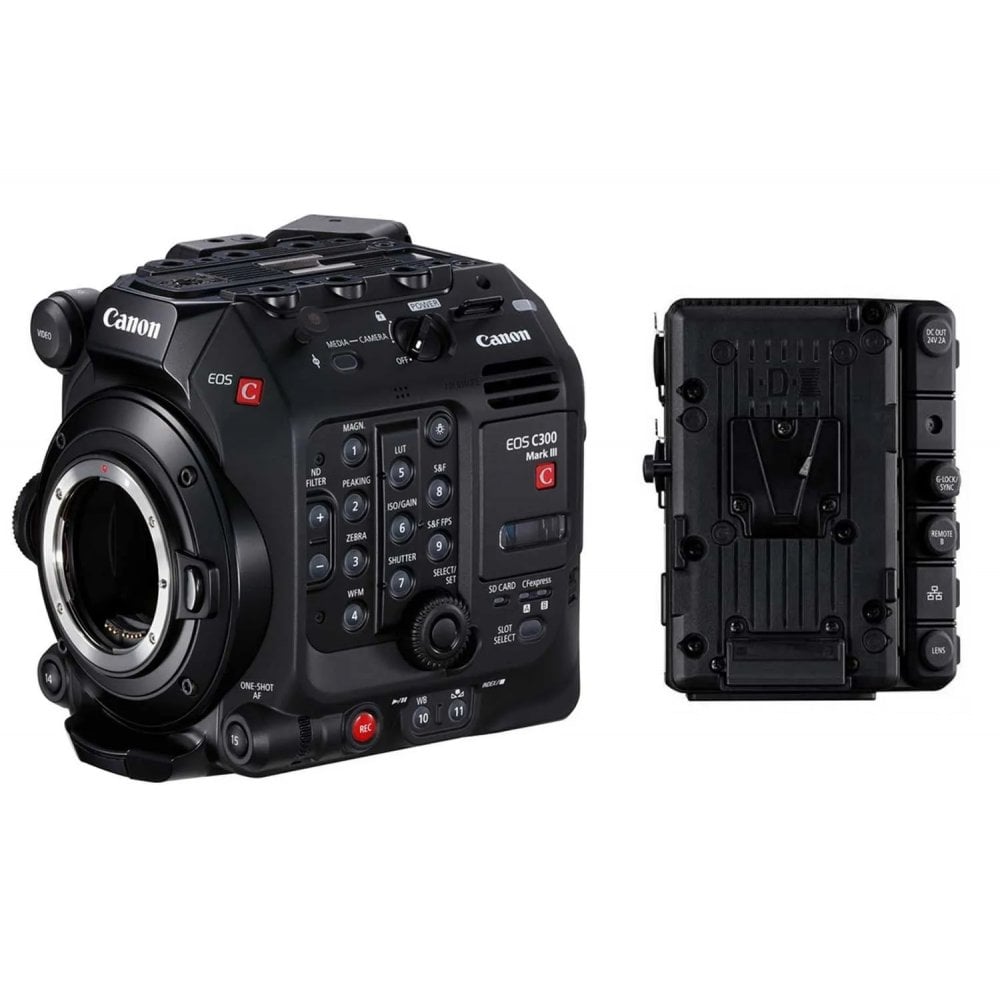

Canon Eos C300 Mk III with Eu-v2 Extension Unit

Canon Eos C300 Mk III with Eu-v2 Extension Unit(3795C020)

A versatile 4K Super 35mm Cinema EOS System camera

Canon EOS C300 Mark III with EU-V2 Extension Unit is a cinema EOS camera with a 4K Super 35mm DGO sensor, 4K 120P Slow motion, High Dynamic Range and Dual Pixel CMOS AF. Delivering an exceptional high-resolution image with 16+ stops of latitude. It also has an impressive low light capability, with improved low noise, of up to ISO 102,400 where the human eye cannot easily see. The DGO sensor is a newly-developed imaging system that generates HDR video by reading out each pixel with different gains. It combines images using pixels shot with a saturation-prioritising amplifier for bright areas, and a low noise-prioritising amplifier for darker areas, resulting in higher dynamic range. It is also compatible with Dual Pixel CMOS AF.

If you're looking for a similar camera with a more powerful sensor, we also have the Canon EOS C500 MK II  available to order.

The Canon Cinema EOS C300 Mark III supports continuous 4K recording at up to 120fps, both in Cinema RAW Light and XF-AVC. In 2K (crop) mode, frame rates from 12 fps up to 150 fps can also be set for greater creative freedom, while a dedicated Slow & Fast button, provides quick access to the desired Slow & Fast setting.

Dual card slots enable simultaneous internal recording of 4K Cinema RAW Light files (10/12-bit) or 4K XF-AVC files (4:2:2 10-bit) onto CFexpress cards. XF-AVC supports ALL-I which delivers the best quality, and Long-GOP which enables longer recording times through higher compression. A Proxy can also be recorded onto an SD card, making editing work more efficient.

The Canon EOS C300 MK III with EU-V2 Bundle incorporates Electronic Image Stabilization (IS) into the camera body, supporting 5-axis camera shake correction. Even when used with lenses with no electronic lens communication, Electronic IS is possible by manually inputting the focal length.

Canon C300 Mark III provides support for optional interchangeable lens mounts for different project requirements. EF lens mount provides perfect compatibility with a huge range of Canon EF lenses including EF Cine Primes, while the optional PL mount supports the Cooke/i system. Additionally, B4 mount adapters are also available (for EF or PL mounts) to use with B4 lenses.

Optional Extension Units offer a flexible modular design and configuration capability to cater for a variety of production requirements. Extension Unit 1 offers multi-camera support with a Genlock interface, while Extension Unit 2 adds further interfaces, such as two more XLR inputs, ideal for broadcast applications and a V-Lock battery mount for extended recording times. The optional EVF Unit is ideal for hand-held use but also answers user’s demands to make it easily removable for gimbal applications.

Approx. 1,750g lightweight body enables it to be comfortably rigged with gimbals, hand-held rigs, making it ideal for various shooting conditions.

Canon EU-V2 Extension Unit

This unit adds Genlock/SYNC, REMOTE B (RS-422), Ethernet, 2x XLR terminals, a V-mount battery plate, a 12-pin lens terminal and DC OUT 24V-2A support, attaching to the camera’s extension terminal.

The Canon EU-V2 Extension Unit is designed for the new Canon C500 MK II Camera.

Sensor Full Frame CMOS sensor

System RGB primary colour filter (Bayer array)

Sensor Modes Super 35 mm / Super 16 mm (Crop)

Total Pixels Approx. 9.6 megapixels (4206 x 2280)

Effective Pixels (Full Frame Mode) Approx. 8.85 megapixels (4096 x 2160): When 4096 x 2160 or 2048 x 1080 is selected as the resolution

Approx. 8.29 megapixels (3840 x 2160): When 3840 x 2160 or 1920 x 1080 is selected as the resolution

Effective Sensor Screen Size Super 35 mm;

26.2 x 13.8 mm (29.6 mm on the diagonal): When 4096 x 2160 or 2048 x 1080 is selected as the resolution

24.6 x 13.8 mm (28.2 mm on the diagonal): When 3840 x 2160 or 1920 x 1080 is selected as the resolution

Dynamic Range Canon Log 2: 1600% / 16+ stops**

Canon Log 3: 1600% / 14 stops**

Wide DR: 800% (at ISO 400)

**At ISO800/Dual Gain Output: On

Image Processor

Type DIGIC DV7

Lens

Lens Mount Canon EF Mount. User changeable to EF Mount with Cinema Lock or PL Mount

B4 mount lens via adapter accessory (EF or PL)

Lens Magnification factor

(for EF Mount lenses, including Cinema Primes) Super 35 mm; 4096 x 2160 (RAW),

4096 x 2160, or 2048 x 1080 resolution: Actual focal length x approx. 1.460 3840 x 2160 or 1920 x 1080 resolution: Actual focal length x approx. 1.534 Super 16 mm (Cropped);

2048 x 1080 resolution: Actual focal length x approx. 2.920

1920 x 1080 resolution: Actual focal length x approx. 3.069

Changeable Lens Mount Yes, User changeable to EF with Cinema Mount or PL

Peripheral illumination correction YES (dependent on lens used)

ND filter Up to 10 stops via built in ND filter system (in extended mode)

Focus control EF Mount: Via lens, wireless control or wired remote (dependent on lens used)

PL Mount: Only Cine Servo lenses

Iris control (EF mount lenses) Via body, grip, wireless control or wired remote. 1/2-stop, 1/3-stop or FINE control.

Possible to maintain constant F-number during zoom.

Cooke /i Technology Support Yes (PL Mount only after mount change)

Anamorphic Lens Support Yes, x2.0/x1.3

Image stabilization system Optical depending on lens used, Digital 5-Axis IS for non IS lenses. Combination of Optical IS and Digital IS to give combined 5-Axis IS

Recording

Internal Recording CFexpress card x2 for Cinema RAW Light or XF-AVC/MXF, SD card for XF-AVC Proxy recording SD card also used for Photo Storage (1920 x 1080), CP setting transfer and firmware update,

Recording time

(CFexpresscard, 512GB) Approx.

Cinema RAW Light: 4096 X 2160: 1 Gbps: 64 Mins

2048 X 1080: 250 Mbps 256 Mins



XF-AVC/MXF:4096 X 2160: 810 Mbps 79

Mins/410Mbps156Mins

2048 X 2160: 310 M bps 207

Mins/160Mbps401Mins



Recording Formats Cinema RAW Light (CRM), XF-AVC (MXF) ALL-I or Long GOP

System Frequency/ Frame Rates 59.94Hz mode (59.94P / 59.94i / 29.97P / 23.98P)

50.00Hz mode (50.00P / 50.00i / 25.00P)

24.00 Hz mode (24.00P)

Cinema RAW Light Bit Rate/Bit Depth (PAL) 4096 X 2160: 50.00P, 1 Gbps 10-bit/25.00P, 1 Gbps 12-bit

2048 X 1080: 50.00P , 250M bps 10-bit/25.00P

250 M bps 12-bit

XF-AVC Recording Bit Rate/ Sampling (PAL) 4096 X 2160/3840 X 2160: 50.00P YCC 4:2:2 10-BIT 810 Mbps/25.00P YCC 4:2:2 10-bit 410 Mbps

2048 X 1080/1920 X 1080: 50.00P YCC 4:2:2 10-BIT 310 Mbps/25.00P YCC 4:2:2 10-bit 160 Mbps

XF-AVC Proxy Recording Bit Rate/ Sampling (PAL) To SD Card 2048 X 1080: 50.00P, YCC 4:2:0 8-bit 35 Mbps/25.00P, YCC 4:2:0 8-bit 24 Mbps Long GOP

Slow/Fast Motion Yes, Cinema RAW Light 4096 x 2160: 12 – 120 FPS/ 2048x1080/ 12 -120 FPS

XF-AVC: 4096 x 2160: 12 - 120 FPS/2048 x1080/

1920x1080 (2K/ Super 16mm) 12 -180 FPS

Proxy files recorded at same frame rate

Interval Record No

Frame Record No

Pre Record (cache record) Yes, 3 seconds

Relay Recording Yes

Double Slot (simultaneous) Recording Yes

Scan Reverse Yes

HD->SD Conversion No

Photo Storage Media SD/SDHC memory card

Photo Recording Size 4096x2160/3840x2160/2048x1080/1920x1080

System

Wave Form Monitor Yes. Via MON.1/2, VIDEO or HDMI Terminals (Not av ailable from SDI Out 1 -4)

Line Display/Line and Spot/Line Select/Field Display/RGB Display/YPrPb. HDR PQ/HLG output supported.

False Colour Display (Exposure Indication) Yes. Via MON.1/2, VIDEO or HDMI Terminals

Colour Bars SMPTE, EBU and ARIB colour bars available. See the menu.

Peaking Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable)

Zebra Level1;Level2;Both

Output viaHD-SDI or HDMI

Markers On/Off selectable: centre, horizontal, grid, aspect, safety zone, and rectangular marker. Colour selectable, yellow, blue, green, red, black, grey or white.

EVF

Built-In EVF No

Optional EVF Accessory Yes. OLED Electronic Viewfinder, EVF-V50 or EVF-V70

Inputs/Outputs

Audio In XLR 3-pin connector x2 , 3.5 mm stereo mini jack (input only)

Input 1 and 2 on camera body. Additional 2x 3-Pin XLR on optional Expansion Unit EU-V2 (Input 3 and 4)

Headphone Output 3.5 mm stereo mini jack (output only, Camera Body).

Video Monitor Output MON.: BNC jack , (output only, Camera Body).

HDMI HDMI connector (type A) (output only, Camera Body).

USB Yes, Input only, Camera Body. (GP-E2 connection)

SDI Output BNC jack 1 x 12G-SDI Out (output only, Camera Body).

Time Code BNC jack (input/output, Camera Body)

Genlock Yes with optional Expansion Unit EU-V1 and EU-V2. BNC jack (input only/also serves as SYNC OUT connector)

Synch BNC jack (output only/also serves as GENLOCK connector)

Component Out No

AV Terminal No

DC Output Yes, with optional EU-V2. DC 24V 2A jack Fischer 3-pin jack (output only),

D-Tap connection, 50W maximum

DC Input XLR 4-pin jack

Remote Control Terminal REMOTE A connector 2.5 mm stereo mini-mini jack (input only)

REMOTE B connector Round 8-pin jack (for RS-422) with optional EU-V1 or EU-V2

Wireless Control Terminal Yes

Lens Terminal Yes, with optional EU-V2. 12-pin jack

Ethernet Terminal Yes, with optional EU-V1 and EU-V2. Ethernet connector (RJ45) (supports 1000 BASE-T)

IP Streaming Yes. Via Ethernet connection. Wi-Fi capability 9 Mbps/4 Mbps:1920 X 1080 (59.94p/59.94i/ 50.00p/50.00i) optional EU-V1 or EU-V2 required

User Viewing LUT Input Yes

Video Connector Canon’s proprietary specification (special 13-pin jack) for LM-V2 Monitor or optional EVF-V70 viewfinderorLM-V1monitoror

Misc.

Tally Lamp Yes

Custom Dial Yes

Shooting Functions Exposure

Exposure Metering Manual exposure determined by shutter setting, iris setting, ISO/gain setting and ND filter setting, Push Auto Iris, Auto Iris

Exposure Compensation Yes

Auto Exposure Mode Auto Iris with compatible lenses

Push Auto Iris Yes EF model all compatible lenses, PL Version compatible Canon Cine Servo lenses only with 12-pin connection on optional EU-V2

Exposure Lock No

Auto Gain Control Setting Yes

ISO Sensitivity 1-Stop Display: [100], 160(*), 200, 400, 800, 1600, 3200, 6400, 12800, 25600, [51200,102400]

[---] Displayed when ISO speed expansion is ON.

(*) Displayed when ISO speed expansion is OFF

1/3 Stop Display: [100,125], 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, 8000, 10000, 12800, 16000, 20000, 25600, [32000,40000,51200,64000, 80000,102400]

[---] When ISO speed expansion is ON.

Auto Focus System (EF Mount) Dual Pixel CMOS AF, Contrast AF

AF Frame Sizes (EF Mount) Large; size equivalent to approx. 20% (vertical)

x 25% (horizontal) of the image display range Small; size equivalent to approx. 20% (vertical)

x 8% (horizontal) of the image display range Selectable AF point over 80% (approx.) of sensor

Auto Focus Modes (EF Mount) One-Shot AF, Continuous AF and AF-Boosted MF. All modes take effect when the AF/MF switch of the EF lens is at the AF setting.

One-Shot AF, Continuous AF, AF-Boosted MF

Face Detection AF (EF Version Only) Face Priority or Face Only.

Focus Guide EF version: All compatible Canon EF lenses, Canon CineServoLenses

Gain Setting [-6dB,-3dB], -2dB(*), 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB,

30dB, 33dB, 36dB, 39dB, 42dB, [45dB,48dB,51dB,54dB] [---] Displayed when ISO speed expansion is ON.

(*) Displayed when ISO speed expansion is OFF. When ISO speed expansion is ON:

between -2 dB and 54 dB

When ISO speed expansion is OFF: Any value

from -2 dB to 42 dB in 0.5 dB increments can be set

Shutter

Control Modes Off; Speed; Angle; Clear Scan (CS); Slow Shutter (SLS)

Shutter Speed 1 sec to 1/2000 depending on frame rate and Shutter Control Mode, 39 setting options

Shutter Angle 11.25º to 360º depending on frame rate

Slow Shutter (SLS) 1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate

Clear Scan 24.00 Hz* to 250.40 Hz

(*) The frequency will differ depending on the frame rate setting.

Custom Picture

Stored Configurations C1: BT.709 (Wide DR / BT.709 Gamut)

C2: LOG2 (Canon Log 2 / Cinema Gamut)

C3: LOG3 (Canon Log3 / Cinema Gamut

C4: PQ (PQ / BT .2020 Gamut)

C5: HLG (HLG / BT .2020 Gamut)

USER5 to USER20 (Wide DR / BT.709 Gamut)

Colour Matrix Neutral: Accurate colour reproduction

Production Camera: Colour reproduction

for use in movie production

Video: Colour reproduction equivalent to

C300/500 CP-OFF (for commercial cameras)

Master Pedestal -50 to +50

Master Black Adjustable for each channel RGB -50 to +50

plus Master Black -50 to +50

Black Gamma Adjustable Level -50 to +50, Range -20 to +50

and Point -20 to +50

Low Key Saturation Adjustable: -50 to +50

Knee Point -50 to +109, Slope -35 to +50,

Saturation -10 to +10

Sharpness Adjustment for Level, H Detail Freq., Coring, HV Detail Balance, Limit, Select, Knee Aperture and Level dependent sharpness

Noise Reduction Off, On (1 to 12)

Skin Detail Off, Low, Middle, High / Hue, Chroma, Area, Luminance. 32 steps

Selective Noise Reduction Off, Low, Middle, High / Hue, Chroma, Area, Luminance.

Colour Matrix Phase, Gain and RGB adjustment, in tandem with Gamma selection

White Balance AWB, USER setting 01(setting range:

2000K to 15000K/ -20CC to

+20CC), daylight, tungsten, settings (A/B)

Colour Correction Area selection / area revision of two areas

Setup Level -50 to +50 On/Off

Wi-Fi & GPS Specifications

Wi-Fi (Optional Accessory) 1) WPS [Wi-Fi Protected Setup]

(push-button system, PIN code system)

(2) Manual setup

(3) Search for access points

Open system, WPA-PSK, WPA2-PSK, WEP-64, WEP-128, TKIP, AES, Auto /manual

GPS Information (Optional Accessory) Latitude/Longitude/Elevation, Coordinated Universal Time(UTC)

White Balance

Auto Yes

Preset Daylight (5400K), Tungsten (3200K), Kelvin (2000K- 15000K, 100K intervals), Set A, Set B

White Balance Matching Yes, for previous models

White Balance Shift YES. -9 to +9 (Daylight and Tungsten only)

Black Balance

Black Balance Adjustment Yes

Time Code

Count Up System Regen, RecRun, Free Run, External, Hold (Drop frame av ailable for some frame rates)

Start Value Setting “00:00:00:00”, Set/Reset selectable

Audio

Recording Linear PCM (24-bit / 48kHz), 4 channels

Accessories

Supplied Camera Grip GR-V1,

Thumb rest,

Mic holder unit [w/ M4 screw],

LCD Monitor LM-V2,

LCD Attachment Unit LA-V2,

Handle unit,

Shoulder strap SS-1200,

Battery Charger CG-A20,

Compact power adapter CA-CP200B,

AC cable,

Battery pack (BP-A60),

Extension System Attachment Bracket,

Unit Cable UN-5,

Other: Stopper, Hex Wrenches (M4 and M3),

Hex Socket Head Bolt (1/4 in.),

Hex Socket Head Bolt (M3)

Optional Canon Battery Pack BP-A30/BP-A60

(provided with camera)

Canon Battery Charger CG-A10/CG-A20

(provided with camera)

Canon Remote Controller RC-V100

Canon Compact Power Adapter CA-CP200B (provided with camera)

Canon Shoulder Strap SS-1200

(provided with camera)

Canon Tripod base TB-1

Canon Wireless Transmitter WFT- E9*

Canon GPS Receiver GP-E2

Canon Unit Cable UN-5 (provided)/UN-10 (purchased separately)

Canon OLED Electronic View Finder EVF-V50/EVF-V70 Canon Extension unit 1: EU-V1

Canon Extension unit 2: EU-V2

Canon EF Cinema Lock Mount Kit CM-V1

Canon PL Mount Kit PM-V1

Canon B4 Mount Adapter MO-4E/MO-4P

Canon LCD Monitor LM-V2 (included)/LM-V1

Canon LCD Attachment Unit LA-V2 (included)/LA-V1 Canon Camera Grip GR-V1 (included)

Canon Shoulder Support Unit SU-15

Canon Shoulder Style Grip Unit SG-1

Canon Clamp Base CL-V2

Canon Rod Clamp RD-1

Canon Handle Unit HDU-2

Canon 8-pin Remote Cable RR-10/RR-100

Canon EF/EF cinema lens group,

Canon PL cinema lens group, and accessories designed for these lenses

(*) New products

Third Party Accessories V-Lock battery (via EU-V2 module)

Miscellaneous

Dimensions (Main Body Only) 153x148x168mm (WxHxD)

Weight (Body Only) Approx. 1,750g

Weight (Accessories) Extension unit 1: EU-V1: Approx.114 g

Extension unit 2: EU-V2: Approx. 652 g

OLED Electronic View Finder: EVF-V50: Approx.170 g EF Cinema Lock Mount Kit CM-V1:

Approx. 170 g *Not including cap

PL Mount Kit PM-V1:

Approx. 345 g *Not including cap

M O-4E: Approx. 230 g M O-4P: Approx. 248 g CFexpress card: Approx. 8 g (0.28 oz.)

Clamp Base: CL-V2:Approx. 120 g (4.2 oz.)

Operating Temperature Range Approx. 0 to 40°C, (85% relative humidity)

Approx. -5 to 45°C, (60% relative humidity)

Power Supply BP-A60 (Supplied), BP-A30 (Optional) V-Lock

with EU-V2, 11V - 20V, Mains 4-pin XLR

Power Consumption (W) RAW:

Super 35mm 1Gbps 4096x2160, 31.0W

Super 16mm 250Mbps, 28.7W

XF-AVC:

Super 35mm 810Mbps 4096x2160, 31.0W

Super 16mm 310Mbps, 28.7W

Max. power consumption 63 W

Recording Time RAW/XF-AVC

Super 35mm: 130 minutes

Super 16mm: 140 minutes

via BP-A60 battery

In the Box

1x C300 MIII Camera Body Only

1x Canon EU-V2 Extension Unit
