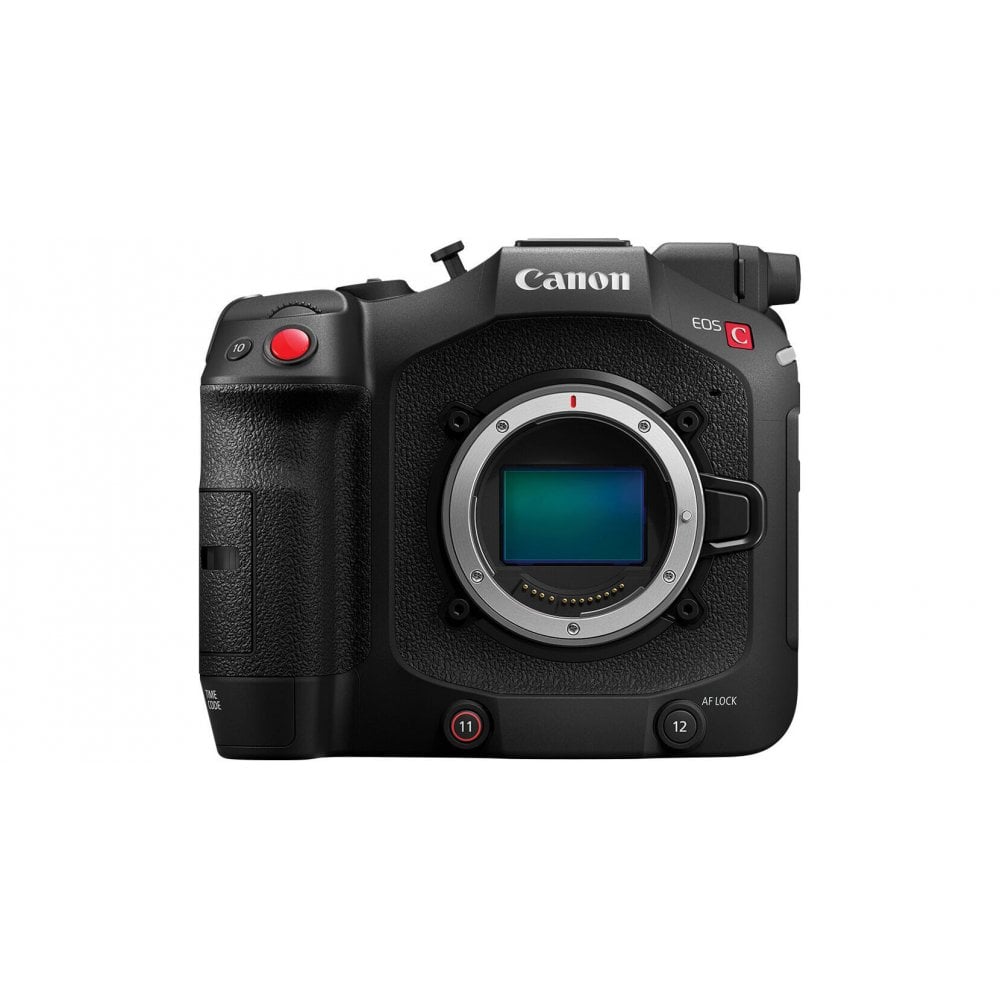

Canon EOS C80 Cinema Camera RF Mount

Canon 6389C006 (63-89C0-06, 63/89C0-06, 63 89C0 06, 63_89C0_06) EOS C80 Cinema Camera RF Mount

UNLEASH YOUR CREATIVE POTENTIAL

Stay agile with the EOS C80, a compact and ergonomic powerhouse featuring a 6K full-frame BSI sensor, RF mount, and Dual Pixel CMOS AF II technology. It delivers exceptional image quality and versatility, perfect for cinema, live, and virtual production needs.

A CLOSER LOOK AT THE EOS C80

Explore the standout features of the EOS C80 that elevate your professional video productions.

6K full frame BSI sensor

The backside illuminated (BSI) sensor technology brings forth a striking balance of dynamic range and rich, natural color tones. Its triple base ISO system weaves together sharp clarity with low-noise performance, shaping visuals that feel both vivid and immersive.

VIDEO PRODUCTION ELEVATED

Full frame 6K BSI sensor

Capture stunning visuals with Canon’s advanced backside illuminated (BSI) stacked CMOS sensor, offering next-level performance with triple base ISO (800 / 3200 / 12800), lifelike color reproduction, and an impressive 16 stops of dynamic range.

Dual Pixel CMOS AF II with EOS iTR AF X

Experience enhanced, faster autofocus technology with pinpoint accuracy and ultra-responsive tracking for faces, eyes, heads, bodies, and animals across the full sensor. Take full control with face-only recognition and customizable settings, ensuring your focus remains sharp and precise at all times.

Compact, ergonomic and familiar design

The updated, familiar design offers enhanced ergonomics, improved connectivity, and an upgraded joystick along with a multi-function shoe. Whether using the top handle or customizing your own rig, this camera provides the flexibility to shoot with ease, even in the most challenging conditions.

Professional recording formats and high frame rates

The EOS C80 supports 12-bit Cinema RAW Light LT recording at up to 6K 30P, and 4:2:2 10-bit at up to 4K 120P. It also offers oversampled 4K via XF-AVC, along with enhanced XF-AVC S and XF-HEVC S (MP4) formats, all featuring comprehensive metadata and structured filenames. Additionally, HDMI RAW output is available for use with compatible external recorders.

RF mount

Count on advanced prime, zoom, and cinema lenses for exceptional optical performance, real-time lens metadata, and lightning-fast AF/IS systems. Effortlessly use your PL and EF lenses with a Canon mount adapter for added versatility in your productions.

Uncompromised connectivity

The EOS C80 features professional on-body I/O options, including 12G-SDI, HDMI, 2x mini-XLR, Mic In, Remote, and Timecode ports. With built-in Wi-Fi and Ethernet, it supports real-time IP streaming (SRT / RTSP) and remote control via XC Protocol and the Multi-Camera Control app. The camera is also expandable through Canon’s Multi-Function Shoe for added versatility.

Designed for the future

The EOS C80 offers real-time lens metadata output and capture, ideal for virtual production (VP) and VFX workflows, with seamless integration with Unreal Engine and After Effects, including distortion correction data. Additionally, create immersive VR experiences using Canon’s RF 5.2mm F2.8L Dual Fisheye lens for unparalleled visual storytelling.

Image Sensor

• Sensor: Full Frame Back-Side Illuminated (BSI) CMOS sensor
• Filter: RGB primary color filter (Bayer array)
• Sensor Modes: Full Frame / Super 35mm (crop)
• Total Pixels: Approx. 26.67 megapixels (6202x4300)
• Effective Pixels: Approx. 19.05 megapixels (6008x3170)：When 6000x3164 / 4096x2160 / 2048x1080 is selected as the resolution, Approx. 17.86 megapixels (5634x3170)： When 3840x2160 / 1920x1080 is selected as the resolution
• Effective Sensor Screen Size: Full Frame: 36.0 x 19.0 mm (40.7 mm on the diagonal)： When 6000x3164 / 4096x2160 / 2048x1080 is selected as the resolution, 33.8 x 19.0 mm (38.7 mm on the diagonal)： When 3840x2160 / 1920x1080 is selected as the resolution
• Dynamic Range: Canon Log 2: 1600% / 16 stops (at ISO 800), Canon Log 3: 1600% / 14 stops (at ISO 800), Base ISO: 800 / 3200 / 128001

Image Processor

• Type: DIGIC DV7

Lens

• Lens Mount: Canon RF mount, PL mount support via PL-RF Mount Adapter, EF mount support via EF-EOS R Mount Adapter
• Lens Magnification Factor: Full frame; 6000x3164, 4096x2160 or 2048x1080: Actual focal length x Approx. 1.06, 3840x2160 or 1920x1080: Actual focal length x Approx. 1.12, Super 35mm (Crop);
• 4368x2304, 4096x2160 or 2048x1080: Actual focal length x Approx.1.46, 3840x2160 or 1920x1080: Actual focal length x Approx.1.54
• Digital Lens Correction: Peripheral Illumination Correction, Chromatic Aberration Correction, Diffraction Correction, Distortion Correction (RF lenses only)
• ND Filter: 2, 4 or 6 Stops. Up to 10 stops via built in ND filter system (in extended mode)
• Iris Control (EF Mount Lenses): 1/2-stop, 1/3-stop or FINE control, Auto Iris
• Cooke /i Technology™ Support: Only when equipped with PL-RF Mount Adapter
• Anamorphic Lens Support: x2.0 / x1.8 / x1.3
• Image Stabilization System: 5-Axis Combination IS (Optical and Digital) with supported lenses
• Digital 5-Axis IS for non IS lenses.

Recording

• Internal Recording Media: 2x SD Card (SD / SDHC / SDXC)
• Recording Time: Cinema RAW Light LT: 6000 x 3164 576 Mbps: approx. 118 Mins, Cinema RAW Light ST: 4368 x 2304 470 Mbps: approx. 145 Mins, XF-AVC: 4096x2160 500 Mbps: approx. 136 Mins, XF-AVC S: 4096x2160 500 Mbps: approx. 136 Mins, XF-HEVC S: 4096x2160 135 Mbps: approx. 505 Mins2
• Recording Formats: Cinema RAW Light (CRM), XF-AVC (MXF), XF-AVC S (MP4), XF-HEVC S (MP4)
• Relay Recording: Yes3
• Double Slot (Simultaneous) Recording: Yes4
• Simultaneous Recording in Multiple Formats: Yes
• System Frequency / Frame Rates: 59.94Hz mode (59.94P / 59.94i / 29.97P / 23.98P), 50.00Hz mode (50.00P / 50.00i / 25.00P), 24.00 Hz mode (24.00P)
• Cinema RAW Light Bit Rate / Bit Depth (PAL): 12-bit Cinema RAW Light LT: FF / 6000 x 3164 / 25P [576 Mbps], S35 / 4368 x 2304 / 50P [611 Mbps], S35 / 4368 x 2304 / 25P [306 Mbps], 12-bit Cinema RAW Light ST: S35 / 4368 x 2304 / 25P [470 Mbps]
• XF-AVC Recording Bit Rate / Sampling (PAL / MXF): 4:2:2 10-bit (Intra-frame): 4096x2160 or 3840x2160 / 50P [500 Mbps], 4096x2160 or 3840x2160 / 25P [500 / 375 / 250 Mbps], 2048x1080 or 1920x1080 / 50P [250 Mbps], 2048x1080 or 1920x1080 / 50i [125 Mbps], 2048x1080 or 1920x1080 / 25P [125 Mbps], 4:2:2 10-bit (Long GOP): 4096x2160 or 3840x2160 / 50P [250 Mbps], 4096x2160 or 3840x2160 / 25P [150 Mbps], 2048x1080 or 1920x1080 / 50P [50 Mbps], 2048x1080 or 1920x1080 / 50i [50 / 25 Mbps], 2048x1080 or 1920x1080 / 25P [50 Mbps]
• XF-AVC S Recording Bit Rate / Sampling (PAL / MP4): 4:2:2 10-bit (Intra-frame): 4096x2160 or 3840x2160 / 50P [500 Mbps], 4096x2160 or 3840x2160 / 25P [500 / 375 / 250 Mbps], 2048x1080 or 1920x1080 / 50P [250 Mbps], 2048x1080 or 1920x1080 / 25P [125 Mbps], 4:2:2 10-bit (Long GOP): 4096x2160 or 3840x2160 / 50P [250 Mbps], 4096x2160 or 3840x2160 / 25P [150 Mbps], 2048x1080 or 1920x1080 / 50P [50 Mbps], 2048x1080 or 1920x1080 / 25P [50 Mbps], 4:2:0 8-bit (Long GOP):
• 4096x2160 or 3840x2160 / 50P [150 Mbps], 4096x2160 or 3840x2160 / 25P [100 Mbps], 2048x1080 or 1920x1080 / 50P [35 Mbps], 2048x1080 or 1920x1080 / 25P [35 Mbps]
• XF-HEVC S Recording Bit Rate / Sampling (PAL / MP4): 4:2:2 10-bit (Long GOP): 4096x2160 or 3840x2160 / 50P [225 Mbps], 4096x2160 or 3840x2160 / 25P [135 Mbps], 2048x1080 or 1920x1080 / 50P [50 Mbps], 2048x1080 or 1920x1080 / 25P [50 Mbps], 4:2:0 10-bit (Long GOP): 4096x2160 or 3840x2160 / 50P [150 Mbps], 4096x2160 or 3840x2160 / 25P [100 Mbps], 2048x1080 or 1920x1080 / 50P [35 Mbps], 2048x1080 or 1920x1080 / 25P [35 Mbps]
• Proxy Recording Bit Rate / Sampling (PAL): 4:2:0 8-bit (Long GOP): 2048x1080 or 1920x1080 [35 / 16 / 9 Mbps], 1280 x 720 [6 Mbps], 4:2:0 10-bit (Long GOP): 2048x1080 or 1920x1080 [16 / 9 Mbps]5
• Slow / Fast Motion: 6K RAW: up to 30FPS, 4K recording: up to 120FPS (Long GOP) / 60FPS (Intra-frame), 2K recording: up to 180FPS (Long GOP) / 120FPS (Intra-frame)
• Interval Record: Yes
• Frame Record: Yes
• Pre Record (Cache Record): 3 Seconds6
• Digital Tele-converter: 1.5x, 2x, 2.5x, 3x, Off
• Photo Storage Media: SD Card
• Photo Recording Size: 4096x2160 / 3840x2160 / 2048x1080 / 1920x10807

System

• Display Type: 3.5 inch LCD Touch Panel
• Display Resolution: approx. 2.76 million dots (1280xRGBx720)
• Display Touch Screen Functions: Focus Point Selection, Touch Screen UI for Shooting Settings
• OSD for Vertical Shooting: Yes
• Wave Form Monitor: Yes (Line / Line + Spot / RGB Parade / YPrPb Parade)
• False Colour Display (Exposure Indication): Yes (6 Colour Index)
• Colour Bars: SMPTE / EBU / ARIB
• Peaking: Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable)
• Zebra: Level 1; Level 2; Both
• Markers: On/Off selectable: centre, horizontal / verstical, grid, aspect, safe area and user marker. Colour selectable

EVF

• Built-In EVF: No

Inputs / Outputs

• Audio In: 2x Mini XLR 3-pin connector, 1x 3.5 mm stereo mini jack, Built in Stereo microphones on camera body
• Headphone Output: 1x 3.5mm stereo mini jack
• Video Monitor Output: No
• HDMI: 1x HDMI (Type-A)
• USB: 1x USB-C Data Terminal (USB3.2 Gen1)
• SDI Output: 1x 12G-SDI Output (BNC)
• Time Code: 1x BNC Terminal (Input / Output)
• Genlock: No
• Sync: No
• DC Input: 1x 24V DC jack
• Multi-Accessory Shoe: Yes (via camera body)
• Remote Control Terminal: 1x 2.5 mm stereo mini jack
• Lens Terminal: No
• Ethernet Terminal: 1x RJ45 Connector (1000BASE-T compatible)
• Grip: No
• IP Streaming / FTP: IP Streaming via Ethernet / Wi-Fi connection, 9 Mbps / 4 Mbps: 1920 x 1080 (59.94p / 59.94i / 50.00p / 50.00i)
• UDP / RTP / SRT / RTP+FEC / RTSP+RTP
• User LUT Input: Yes, in-built LUTs available for monitoring. Custom LUTs can be applied directly to internal recordings via Look File function (compatible with 17 or 33 grid .cube files)
• Video Connector: No
• Tally Signal: Yes, via Wi-Fi or Ethernet using XC Protocol
• Return Signal Input: No
• Default Function Button Settings: 1. WB, 2. SET WB, 3. PEAKING, 4. WFM, 5. DISP, 6. ZEBRA, 7. AUTO IRIS, 8. MAGN., 9. FUNC, 10. (unassigned), 11. (unassigned), 12. AF LOCK, 13. AUDIO STATUS
• User Assignable Buttons: 13x (Body)

Exposure

• Exposure Metering: Standard / Spotlight / Backlight
• Exposure Compensation: AE shift function available. Target value (±8 steps from center)
• Auto Exposure Mode: Auto Iris / Auto ISO
• Push Auto Iris: Yes
• Exposure Lock: No
• Auto Gain Control Setting: Yes
• ISO Sensitivity: 1-Stop Display: 100* / 160** / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200* / 102400*, 1/3-Stop Display: 100* / 125* / 160 / 200 / 250 / 320 / 400 / 500 / 640 / 800 / 1000 / 1250 / 1600 / 2000 / 2500 / 3200 / 4000 / 5000 / 6400 / 8000 / 10000 / 12800 / 16000 / 20000 / 25600 / 32000* / 40000* / 51200* / 64000* / 80000* / 102400*8 *when ISO Extended Range is set to ON **when ISO Extended Range is set to OFF
• Auto Focus System: Dual Pixel CMOS AF II + EOS iTR AF X
• AF Frame Sizes: Full: approx. 100% (Vertical) x approx. 100% (Horizontal) Large Zone (Vertical): Video display range approx. 97% (Vertical) x 25% (Horizontal), Large Zone (Horizontal): Video display range approx. 43% (Vertical) x 76% (Horizontal), Zone: Video display range approx. 43% (Vertical) x 25% (Horizontal), Small Zone: Video display range approx. 15.9% (Vertical) x 11.8% (Horizontal)
• Auto Focus Modes: Continuous AF / One-Shot AF
• Face Detection AF: Yes (Eye / Face / Head / Body)
• Animal Detection AF: Yes (Dogs / Cats)
• Focus Guide: Yes, with compatible Canon lenses
• Gain Setting: -6dB*, -3dB*, -2dB**～42dB, 45dB*, 48dB*, 51dB*, 54dB*9 *when ISO Extended Range is set to ON **when ISO Extended Range is set to OFF

Shutter

• Control Modes: Speed / Angle / Clear Scan / Slow Shutter
• Shutter Speed: 1/1～1/2000 (total of 47 settings)
• Shutter Angle: 11.25º to 360º depending on frame rate
• Slow Shutter (SLS): 1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate
• Clear Scan: 23.97 Hz～1971 Hz depending on sensor mode / frame rate

Custom Picture

• Stored Configurations: C1: Canon 709, C2: Canon Log 2, C3: Canon Log 3, C4: BT.709 Wide DR, C5: BT.709 Standard, C6: PQ, C7: HLG, C8: EOS Standard, C9: EOS Neutral, C10: User10 ～User20
• HDR-HLG Profile: BT.2100: Corresponds to ITU-R BT.2100 Vivid: Corresponds to Traditional Colour in ITU-R BT.2390
• Colour Matrix: Neutral: Accurate colour reproduction, Production Camera: Colour reproduction for use in movie production, Video: Colour reproduction with contrast for TV broadcasts.
• Wi-Fi & GPS Specifications: Wi-Fi (Optional Third Party Accessory) In-built (2.4 / 5GHz bands)
• Supporting 802.11a/b/g/n/ac
• GPS Information (Optional Accessory): Only when equipped with GP-E2 GPS Receiver

White Balance

• Auto: Yes
• Preset: Daylight (5600K), Tungsten (3200K), Kelvin (2000K-15000K, 100K intervals), Set A, Set B
• White Balance Shift: -5 CC - +5 CC (Daylight / Tungsten), -20 CC - +20 CC (Kelvin)

Time Code

• Count Up System: Regen / RecRun / Free Run / External / Frame Count

Audio

• Recording Format: RAW / XF-AVC: Linear PCM (24-bit / 48 kHz, 4 channels) XF-AVC S / XF-HEVC S: Linear PCM (24-bit / 48 kHz, 4 channels) or MPEG2-AAC LC (16 bit 48kHz) 2 channels

Physical Specifications

• Dimensions (Main Body Only): approx. 160 x 138 x 116 mm
• Weight (Body Only): approx. 1310g
• Weight (Accessories): Handle Unit: Approx. 155g, BP-A30N Battery Pack: Approx. 243g, CA-CP300 B Compact Power Adapter: Approx. 219g, Battery Charger CG-A20: Approx. 145g, Microphone Holder + 2 screws: Approx. 60g
• Operating Temperature Range: Approx. 0 to 40°C, (85% relative humidity), Approx. -5 to 45°C, (60% relative humidity)

1. When shooting in RAW or Canon Log 2 / 3

2. Based on 25P recording on a 512GB card at maximum bitrate

3. Relay Recording not available during RAW or S&F Recording

4. Double Slot Recording not available during S&F Recording

5. Proxy recording available in XF-AVC, XF-AVC S and XF-HEVC S (depending on the main format selected)

6. Pre Record not available during RAW or S&F Recording

7. Depending on Sensor Mode and Format selected

8. Available when Base ISO is set to Automatic

9. Available when Base ISO is set to Automatic

In The Box:

• EOS C80 Body
• Handle Unit
• Microphone Holder & Screws
• Body Cap
• Tape Measure Hook
• Hex Wrench
• BP-A60N Battery
• CG-A20 Battery Charger
• CA-CP300B Power Adapter
• User Manual
