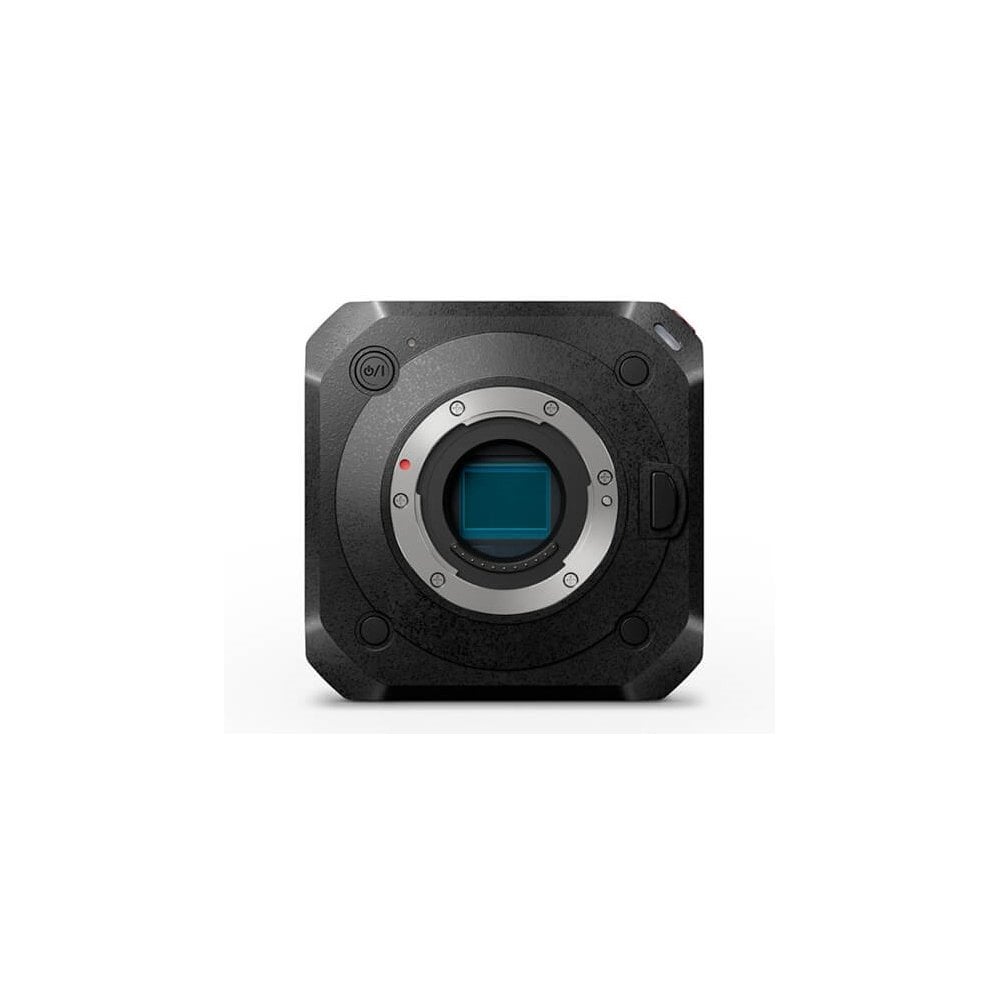

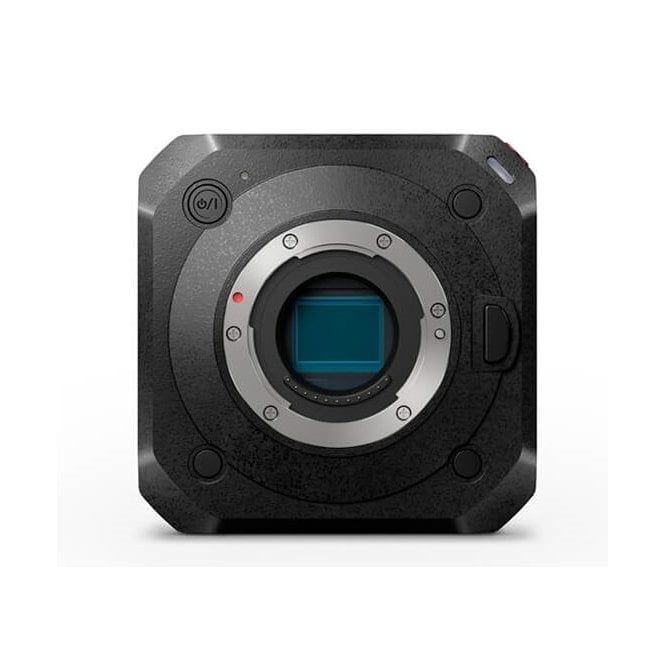

Panasonic Lumix PAN-DC-BGH1E Box-style Mirrorless Camera

Panasonic Lumix PAN-DC-BGH1E (PAN/DC-BGH1E, PAN/DC/BGH1E, PANDCBGH1E, PAN DC BGH1E) Box-style Mirrorless Camera

Based on the Micro Four Thirds System, the LUMIX BGH1 offers increased flexibility and access to an extensive lens lineup, bringing together technologies Panasonic has acquired though the development of professional cinema cameras, camcorders, and the LUMIX GH series.

With today’s increased demand for streaming in addition to traditional broadcasting, the LUMIX BGH1 provides a versatile solution in the form of an easy-to-use expandable camera that can be used in multi-camera, drone, IP remote control, and live-streaming environments.

PROFESSIONAL-LEVEL VIDEO QUALITY ACHIEVED BY HIGH SENSITIVITY AND WIDE DYNAMIC RANGE

The LUMIX BGH1 integrates a 10.2-megapixel Live MOS Sensor with Dual Native ISO technology and a Venus Engine. Dual Native ISO technology seamlessly utilises two circuits to create two separate native ISO settings, which is used in Panasonic professional Varicam models. Normally, noise increases as sensitivity rises with a single native ISO image sensor, however, an image sensor with Dual Native ISO minimises noise generation by choosing an optimal circuit to use according to the sensitivity before gain processing. As a result, the BGH1 is capable of a maximum ISO 51200 high sensitivity recording.

The LUMIX BGH1 enables 4:2:0 10-bit C4K/4K 60p / 50p internal video recording. It records video with a designated gamma curve compatible with ITU-R BT.2100, and you can now choose Hybrid Log Gamma (HLG) in Photo Style. A low-bit-rate recording mode C4K/4K HEVC/H.265 for HLG is also available. The V-Log L featuring log characteristics with 13 stops of wide dynamic range is pre-installed. It is also capable of C4K/4K 4:2:2 10-bit output via HDMI. The VFR (Variable Frame Rate) lets users record overcranked / undercranked video in C4K/4K (60 fps, maximum 2.5x slower in 24p) and FHD (240 fps, maximum 10x slower in 24p)*. The minimum frame rate for quick motion video is 2 fps.

* The angle of view is reduced when the frame rate is set to 201 fps.

USER CONVENIENCE IN FILM PRODUCTION AND SIMPLE SCALABILITY WITH EXTERNAL DEVICES

The LUMIX BGH1 benefits from a new heat dispersion structure to achieve unlimited video recording. The body frame is composed of aluminum and magnesium alloy, making the camera both durable and lightweight.

The LUMIX BGH1 is a compact box-style camera complying with Power over Ethernet+ (PoE+) protocols. Control over maximum of 12 LUMIX BGH1 cameras*1 is available using Panasonic PC software ‘LUMIX Tether for Multicam’*². With a future firmware update, it will also support wired IP streaming (RTP/RTSP). In addition to a USB 3.1 Type-C port, it is also equipped with a 3G-SDI and a HDMI Type-A terminal, which can be used for simultaneous output. Furthermore, Genlock IN and Timecode IN/OUT functions which enable multi-angle synchronised video recording are available, allowing the user to build a scalable system with external monitors, rigs, and gimbals supplied from other manufacturers.

The LUMIX BGH1 is equipped with a double SD Card slot for backup recording or relay recording.

TYPE

• Type: Digital Single Lens Mirrorless camera
• Recording media: SD Memory Card / SDHC Memory Card* / SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
• Lens mount: Micro Four Thirds mount

IMAGE SENSOR

• Type: Live MOS sensor (17.3 x 13.0 mm)
• Camera effective pixels / Total pixels: 10.28 megapixels / 11.93 megapixels
• Aspect ratio / Color filter: 4:3 / Primary color filter

LATITUDE

• Latitude: 13 stops (V-Log L)

STILL IMAGE

• Recording file format: JPEG (DCF, Exif 2.31) *Tethered photo shooting with LUMIX Tether for Multicam software
• Aspect ratio: 4:3
• File size (Pixels): 3680 x 2760 (L) / 2592 x 1944 (M) / 1824 x 1368 (S)
• Image quality: Fine / Standard
• Color space: sRGB

MOTION PICTURE

MOV

59.94 Hz

• [C4K] 4096 x 2160: 59.94p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, Hi-Res Audio) *HLG is selectable, 59.94p, 150 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio), 29.97p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable, 23.98p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
• [4K] 3840 x 2160: 59.94p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, Hi-Res Audio) *HLG is selectable, 59.94p, 150 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio), 29.97p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable, 23.98p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
• [Anamorphic 4K] 3328 x 2496 (4:3): 59.94p, 150 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio), 29.97p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable, 23.98p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
• [FHD] 1920 x 1080: 59.94p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable, 29.97p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable, 23.98p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.

50.00 Hz

• [C4K] 4096 x 2160: 50.00p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, Hi-Res Audio) *HLG is selectable, 50.00p, 150 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio), 25.00p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
• [4K] 3840 x 2160: 50.00p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, Hi-Res Audio) *HLG is selectable, 50.00p, 150 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio), 25.00p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
• [Anamorphic 4K] 3328 x 2496 (4:3): 50.00p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, Hi-Res Audio) *HLG is selectable, 50.00p, 150 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio), 25.00p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
• [FHD] 1920 x 1080: 50.00p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable, 25.00p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.

24.00 Hz

• [C4K] 4096 x 2160: 24.00p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
• [4K] 3840 x 2160: 24.00p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
• [Anamorphic 4K] 3328 x 2496 (4:3): 24.00p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
• [FHD] 1920 x 1080: 24.00p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.

MP4

59.94 Hz

• [4K] 3840 x 2160: 59.94p, 100 Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC), 29.97p, 72 Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC), 23.98p, 72 Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC), 29.97p, 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC), 23.98p, 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
• [FHD] 1920 x 1080: 59.94p, 28 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC), 29.97p, 20 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC), 23.98p, 24 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

50.00 Hz

• [4K] 3840 x 2160: 50.00p, 100 Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC), 25.00p, 72 Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC), 25.00p, 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
• [FHD] 1920 x 1080: 50.00p, 28 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC), 25.00p, 20 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

VARIABLE FRAME RATE

MOV

59.94 Hz

• [C4K] 4096 x 2160: 29.97p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM), 23.98p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [4K] 3840 x 2160: 29.97p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM), 23.98p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [Anamorphic 4K] 3328 x 2496 (4:3): 29.97p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM), 23.98p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [FHD] 1920 x 1080: 59.94p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*, 29.97p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*, 23.98p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* *Angle of view narrows if you select a frame rate with a number of frames 201 or more.

50.00 Hz

• [C4K] 4096 x 2160: 25.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [4K] 3840 x 2160: 25.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [Anamorphic 4K] 3328 x 2496 (4:3): 25.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [FHD] 1920 x 1080: 50.00p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*, 25.00p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* *Angle of view narrows if you select a frame rate with a number of frames 201 or more.

24.00 Hz

• [C4K] 4096 x 2160: 24.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [4K] 3840 x 2160: 24.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [Anamorphic 4K] 3328 x 2496 (4:3): 24.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [FHD] 1920 x 1080: 24.00p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* *Angle of view narrows if you select a frame rate with a number of frames 201 or more.

VARIABLE FRAME RATE

MOV

59.94 Hz

• [C4K] 4096 x 2160: 29.97p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM), 23.98p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [4K] 3840 x 2160: 29.97p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM), 23.98p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [Anamorphic 4K] 3328 x 2496 (4:3): 29.97p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM), 23.98p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [FHD] 1920 x 1080: 59.94p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*, 29.97p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*, 23.98p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* *Angle of view narrows if you select a frame rate with a number of frames 201 or more.

50.00 Hz

• [C4K] 4096 x 2160: 25.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [4K] 3840 x 2160: 25.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [Anamorphic 4K] 3328 x 2496 (4:3): 25.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [FHD] 1920 x 1080: 50.00p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*, 25.00p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* *Angle of view narrows if you select a frame rate with a number of frames 201 or more.

24.00 Hz

• [C4K] 4096 x 2160: 24.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [4K] 3840 x 2160: 24.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [Anamorphic 4K] 3328 x 2496 (4:3): 24.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
• [FHD] 1920 x 1080: 24.00p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* *Angle of view narrows if you select a frame rate with a number of frames 201 or more.

FOCUS

• Type: Contrast AF system
• DFD technology: Yes
• Focus mode: AF / MF
• AF mode: Motion picture: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Oval) / 1-Area Still image: Auto Detection (Face, Eye, Body, Animal) / 225-Area / 1-Area *Tethered photo shooting with LUMIX Tether for Multicam software.
• AF detective range: EV -6–20 (F1.4, ISO100 equivalent, AF [Still image])
• AF custom setting: AF Speed, AF Sensitivity
• AF lock: Set the Fn button in custom menu to AF lock
• Others: AF-ON, Continuous AF, AF+MF, MF Guide, MF Assist, Focus Peaking, Focus Ring Lock, 1-Area AF Moving Speed, Lens Focus Resume

EXPOSURE CONTROL

• Light metering system: 1,728-zone multi-pattern sensing system
• Light metering mode: Multiple / Center Weighted / Spot / Highlight Weighted
• Metering range: EV 0–18 (F2.0 lens, ISO100 equivalent)
• Exposure mode: Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
• ISO sensitivity (Standard output sensitivity): Auto / 80* / 100* / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO.
• Dual Native ISO: [Normal]: Native ISO: 160, 800, Auto: Auto / 80* / 100* / 160–51200 / 102400* / 204800* *Extended ISO, Low: Auto / 80* / 100* / 160–800 *Extended ISO, High: Auto / 800–51200 / 102400* / 204800* *Extended ISO, [V-Log L]: Native ISO: 400, 2000, Auto: Auto / 400–25600, Low: Auto / 400–2000, High: Auto / 2000–25600, [HLG]: Native ISO: 320, 1600, Auto: Auto / 320–51200 / 102400* / 204800* *Extended ISO, Low: Auto / 320–1600, High: Auto / 1600–51200 / 102400* / 204800* *Extended ISO, [Cinelike D2 / Cinelike V2]: Native ISO: 160, 800 Auto: Auto / 80* / 100* / 160–51200 / 102400* / 204800* *Extended ISO. Low: Auto / 80* / 100* / 160–800 *Extended ISO. High: Auto / 800–51200 / 102400* / 204800* *Extended ISO.
• Exposure compensation: Motion picture: 1/3 EV step ±3 EV Still image: 1/3 EV step ±5 EV *Tethered photo shooting with LUMIX Tether for Multicam software.
• AE lock: Set the Fn button in custom menu to AE lock

WHITE BALANCE

• White balance: AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
• White balance adjustment: Blue/Amber bias, Magenta/Green biass
• Color temperature setting: 2500–10000K in 100K

SHUTTER

• Shutter speed: Motion picture: 1/16,000–1/2 Still image: 1/16,000–1 *Tethered photo shooting with LUMIX Tether for Multicam software.

PHOTO STYLE

• Photo Style: Motion picture: Standard / Vivid / Natural / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1–10 Still image: Standard *Tethered photo shooting with LUMIX Tether for Multicam software.
• Picture adjustment: Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Sharpness / Noise Reduction / Dual Native ISO Setting / ISO / WB *Adjustable settings vary depending on the Photo Style mode.

FILTER

• Filter: Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color

OTHER FUNCTIONS

• Master pedestal level: 31 steps
• Luminance level: 8-bit: 0–255 / 16-235 / 16-255, 10-bit: 0–1023 / 64‒940 / 64‒1023
• LUT view assist: Rec / Playback: HDMI / SDI
• HLG view assist: Rec / Playback: HDMI (AUTO / MODE1 / MODE2 / OFF) / SDI (MODE1 / MODE2 / OFF)
• Anamorphic desqueeze display: 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF, Rec: SDI, Playback: HDMI / SDI
• Synchro scan: Yes
• SS/Gain operation: Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
• Color bars / 1 kHz test tone: Yes (SMPTE / EBU / ARIB) / Yes
• Knee control: Yes (in Like709 mode)
• Level gauge: Yes

FUNCTION BUTTON

• REC: Exposure Mode / Aperture Value / Shutter Speed / Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / i.Dynamic Range / Filter Effect / One Push AE / Synchro Scan / Focus Mode / AF Mode / AF Custom Setting (Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Rec File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Image Area of Video / Digital Zoom / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Cursor Button Lock / DISP. / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Monochrome Live View / Zebra Pattern / LUT View Assist (HDMI) / LUT View Assist (SDI) / LUT Select / HLG View Assist (HDMI) / HLG View Assist (SDI) / Anamorphic Desqueeze Display / Color Bars / Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
• PLAY: Anamorphic Desqueeze Display / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / Video Record / DISP. / Card Slot Change / Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / LUT View Assist (HDMI) / LUT View Assist (SDI) / HLG View Assist (HDMI) / HLG View Assist (SDI) / No Setting / Off (Disable Press and Hold) / Restore to Default

INTERFACE

• USB: SuperSpeed USB 3.1 Gen1 Type-C
• DC IN: DC 12 V (11.4–12.6 V), EIAJ Type4

HDMI

• HDMI: HDMI Type A, Audio: Stereo
• Monitor-through: 4:2:2 10-bit (When [Rec Quality] is set to [4:2:2 10-bit] or [4:2:0 10-bit].), 4:2:2 8-bit (When [Rec Quality] is set to [4:2:0 8-bit]), Down Convert: Auto / 4K/30p/25p / 1080p / 1080i / OFF
• Playback: 59.94 Hz: Auto / C4K/59.94p / C4K/29.97p / C4K/23.98p / 4K/59.94p / 4K/29.97p / 4K/23.98p / 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 720/59.94p / 480/59.94p, 50.00 Hz: Auto / C4K/50.00p / C4K/25.00p / 4K/50.00p / 4K/25.00p / 1080/50.00p / 1080/25.00p / 1080/50.00i / 720/50.00p / 576/50.00p, 24.00 Hz: Auto / C4K/24.00p / 4K/24.00p / 1080/24.00p

SDI

• SDI: BNC Terminal, 0.8 V [p-p], 75 Ω, 3G-SDI, Audio: Stereo, SDI Sound Output Gain Adj.: 0 dB / -6 dB / -8 dB
• Monitor-through: 4:2:2 10-bit
• Playback: 59.94 Hz: 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 1080/29.97PsF / 1080/23.98PsF / 720/59.94p, 50.00 Hz: 1080/50.00p / 1080/25.00p / 1080/50.00i / 1080/25.00PsF / 720/50.00p, 24.00 Hz: 1080/24.00PsF
• Ethernet: Remote Control: LAN Terminal (RJ-45), Power Supply: PoE+ (IEEE802.3at compliant) * Use an IEC60950-1 or IEC62368-1 compliant PoE+ (IEEE802.3at compliant) hub or power supplying device.
• Remote input: φ2.5 mm
• Microphone: Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
• External microphone / external audio device input: φ3.5 mm for external microphone / external audio device, MIC (Plug-in Power) / MIC / LINE is selectable, Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately)
• XLR microphone: Yes, with DMW-XLR1 (sold separately)
• Headphone output: φ3.5 mm
• SD Card slot: Slot 1, Slot 2

TC IN/OUT

• Count up: Rec Run / Free Run
• Timecode mode: Drop Frame / Non-Drop Frame (When system frequency [59.94 Hz] is selected)
• HDMI timecode output: ON / OFF
• SDI timecode output: ON / OFF
• External TC setting: TC Synchronization / TC Output Reference

Genlock IN

• Genlock IN: ON / OFF
• Horizontal phase synchronization: -206–+49
• Fan: Auto1 / Auto2 / Normal / Slow
• Lamp: Tally Lamp (front/rear) / Card Access Lamp / Power LED / Network LED

WIRELESS

• Wi-Fi: IEEE 802.11b/g/n, 2412 MHz–2462 MHz (1–11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
• Bluetooth: Bluetooth® v4.2 (Bluetooth Low Energy [BLE])

POWER

• Direct power supply: AC Adaptor (12 V, 3 A) (bundled) Li-ion Battery Pack (7.28V) (sold separately) PoE+ (IEEE802.3at compliant) (sold separately)
• Battery: Li-ion Battery Pack AG-VBR59 (7.28 V, 5900 mAh, 43 Wh) (sold separately), Li-ion Battery Pack AG-VBR89 (7.28 V, 8850 mAh, 65 Wh) (sold separately), Li-ion Battery Pack AG-VBR118 (7.28 V, 11800 mAh, 86 Wh) (sold separately)
• Continuous recordable time (Motion picture): MP4 [4K/60p]: Approx. 270 min, MP4 [FHD/60p]: Approx. 300 min *When using H-ES12060 and AG-VBR59 (sold separately). When the battery is fully charged, MP4 [4K/60p]: Approx. 420 min, MP4 [FHD/60p]: Approx. 480 min *When using H-ES12060 and AG-VBR89 (sold separately). When the battery is fully charged, MP4 [4K/60p]: Approx. 560 min, MP4 [FHD/60p]: Approx. 640 min *When using H-ES12060 and AG-VBR118 (sold separately). When the battery is fully charged.
• Actual recordable time (Motion picture): MP4 [4K/60p]: Approx. 135 min, MP4 [FHD/60p]: Approx. 150 min *When using H-ES12060 and AG-VBR59 (sold separately). When the battery is fully charged, MP4 [4K/60p]: Approx. 210 min, MP4 [FHD/60p]: Approx. 240 min *When using H-ES12060 and AG-VBR89 (sold separately). When the battery is fully charged, MP4 [4K/60p]: Approx. 280 min, MP4 [FHD/60p]: Approx. 320 min *When using H-ES12060 and AG-VBR118 (sold separately). When the battery is fully charged.

DIMENSIONS / WEIGHT

• Dimensions (W x H x D): Approx. 93.0 x 93.0 x 78.0 mm / 3.66 x 3.66 x 3.07 inch (excluding protrusions)
• Weight: Approx. 545 g / 1.2 lb (Body only)

OPERATING ENVIRONMENT

• Operating temperature: -10 °C to 40 °C (14 °F to 104 °F)
• Operating humidity: 10 % RH to 80 ％ RH

In The Box

• Panasonic Lumix Box-style Mirrorless Camera
• Power Adapter
• Cable Lock
