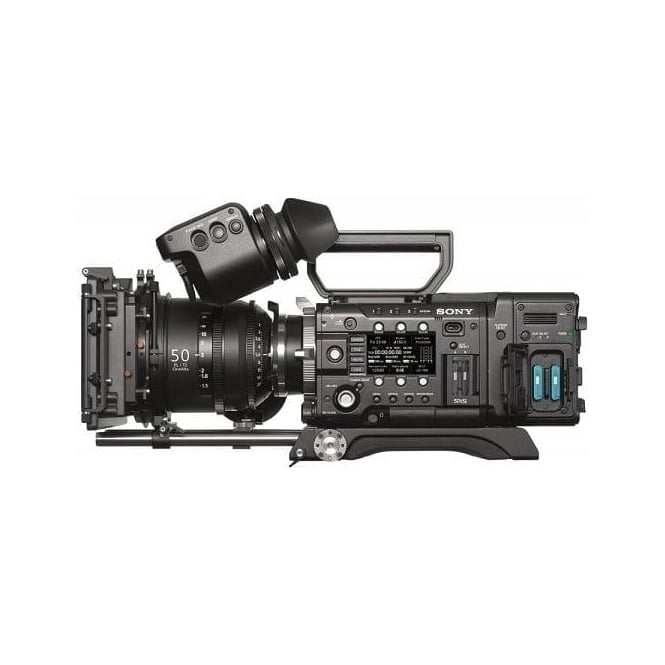

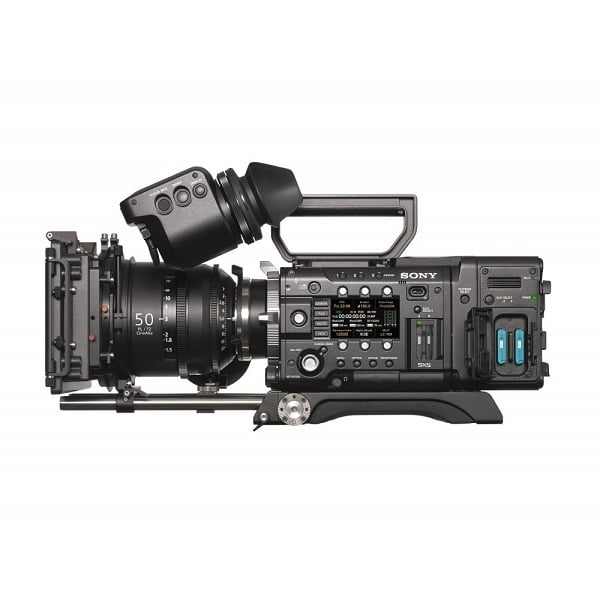

Sony PMW-F55/R7 CineAlta Camcorder with AXS-R7 Recorder

code: PMW-F55/R7
  • £27,728.32
Status | Usually dispatched within 24 hours


  • Super 35mm equivalent 4K single-chip CMOS sensor with global shutter
  • 16-bit RAW 2K/4K recording options with bolt-on AXS-R5 recorder
  • AXS-R5 records onto ASXM memory cards
  • Choice of HD/2K/4K internal recording formats
  • High speed shooting up to 60 fps 4K and180 fps 2K internally and 240 fps 2KRAW with optional AXS-R5 recorder
  • Next generation high-speed SxS PRO+ memory card
  • Simultaneous RAW and onboard camera SxS recording
  • Real world workflows
  • True colour technology
  • Vast exposure latitude to 14 f-stops
  • Small lightweight design for added versatility in 3D
  • Optional shoulder rig
  • Choice of viewfinders includes amazing OLED technology
  • Incredible flexibility with the choice of PL-mount, FZ-mount and still lenses
  • A new generation of Sony PL-mount lenses
  • Intuitive one-touch interface
  • Real-time 4K output and other vital connections
  • Long-life Olivine battery and quick charger
  • Revolutionary electronic global shutter

Sony PMW-F55/R7 (PMWF55/R7, PMW/F55/R7, pmw-f55/r7) (AXS/R7, AXS_R7) CineAlta Camcorder with Sony AXS-R7 Recorder

Comes with 2 Years Sony Prime Support Warranty - Beware of grey imports.

Sony 4K sensor for gorgeous, super-sampled HD, 2K and 4K.

The PMW-F55 CineAlta camera shoots spectacular images with its 8.9 megapixels (effective) Sony 4K image sensor, incorporating a revolutionary electronic global shutter to eliminate rolling shutter distortions. You get superb dynamic range, the widest colour gamut, and pristine image quality, whether you shoot in HD, 2K or 4K.

Multiple recording formats includes HD/2K/4K on SxS memory and 16-bit RAW 2K/4K on AXSM media

Multiple recording formats include MPEG-2 HD422, MPEG4 SStP*, XAVC 2K*/HD, XAVC QFHD*/4K and 16-bit RAW 2K/4K. You can have simultaneous recording on internal high-speed SxS PRO+ memory cards and RAW 2K/4K recording on sleek AXSM memory cards using the optional bolt-on AXS-R5 recorder, designed specifically to attach seamlessly to the F55 and F5 cameras. There is also high speed shooting up to 240 fps RAW 2K and 60 fps in RAW 4K recording onto the AXS-R5.

Expected as a future upgrade. Recording onto the optional AXS-R5 recorder.

Lightweight modular design to maximise versatility in 2D and 3D.

The F55 is exceptionally small, light and modular, letting you build up the right configuration for each job – or each shot. As well as the choice of formats and internal and external recording options, you can attach a variety of viewfinders, including the revolutionary optional DVF-EL100 OLED viewfinder, PL-mount, FZ-mount and still lenses, including second-generation Sony PL-mount lenses, and extra long-life Olivine – Lithium Iron Phosphate – batteries. The chassis is only slightly wider than a typical PL-mount prime lens, perfect for 3D rigs. An optional shoulder rig provides for hand-held and shoulder-mounted shooting.

Higher resolution, higher contrast LCD digital viewfinder for CineAlta cameras

The DVF-L350 colour HD digital viewfinder offers LCD quality for CineAlta cameras with a digital interface, such as the PMW-F55 and PMW-F5. Take a major step forward in operating with the incredible image of this 3.5-inch* LCD viewfinder. Compared to previous Sony viewfinders, the DVF-L350 has higher resolution (960 x 540) plus ten times the contrast. And the eyepiece flips up for direct monitoring.

Viewable area, measured diagonally.

AXS-R7 External Recorder

The durable, dust and splash-proof AXS-R7 Portable Memory Recorder attaches seamlessly to the high end F55 and F5 CineAlta cameras, speeding up the 4K production workflow without compromising quality. The AXS-R7 doubles 4K RAW recording from 60 fps up to 120 fps for the F55 camera compared to previous Sony recorders. For shooting at higher frame rates, the recorder captures 2K RAW at up to 240 fps for the F55 and F5, for playback with 10x super slow motion. Working with high-speed AXSM™ A Series memory cards, the recorder features dual memory card slots for extra security and to extend recording times. The recorder also offers 4K RAW cache recordings up to 30 seconds while in standby mode. The tough, all-metal casing makes the AXS-R7 the ideal companion to the F55 and F5 for all kinds of high-end drama, documentary and wildlife productions.

  • Imaging Device (Type): Super 35mm equivalent Single-chip CMOS with Global Shutter
  • Imaging Device (Pixel Count): 11.6 M (total), 8.9 M (effective)
  • Built-in Filters: Clear, 0.9 (1/8ND), 1.8 (1/64ND)
  • Sensitivity (2000 lx, 89.9% reflectance): Video Gamma: T11@24p (3200K light source)
  • ISO Sensitivity S-Log2 Gamma: ISO 1250 (D55 Light source)
  • Lens Mount: PL mount (with supplied lens mount adapter)
  • Flange Focal Length: FZ mount (without supplied lens mount adapter)
  • Latitude: 14-stop
  • S/N Ratio: 57dB (Video Gamma, 24p, Noise Suppression OFF)
  • Shutter Speed: 1/24s to 1/6,000s
  • Shutter Angle: 4.2°to 360°(electrical shutter)
  • Slow Shutter (SLS): 2, 3, 4, 5, 6, 7, and 8-frame accumulation
  • Slow & Quick Motion Function: XAVC 4K/QFHD: 1-60p (NTSC), XAVC 4K/QFHD: 1-50p (PAL)
  • XAVC HD/2K: 1-180p (NTSC), 23.98p/29.97p w/ Option, XAVC HD/2K: 1-150p (PAL), 25p w/ Option, XAVC HD: 1-60p (NTSC), XAVC HD: 1-50p (PAL)
  • White Balance: Preset (3200K, 4300K, 5500K), Memory, ATW
  • Gain: -3, 0, 3, 6, 9, 12, 18 dB, AGC
  • Gamma Curve: Standard (x6), HG1, HG2, HG3, HG4, HG7 and HG8, S-Log2 Gamma
  • Audio Input: CH-1/CH-2: XLR-type 3-pin (female) (x2), Line/Mic/Mic +48V/AES/EBU selectable
  • Video Output: HD-Y or HD Sync (tri-level) V1.0, Analog Composite (VUP)
  • Audio Output: Phono jack (CH-1, CH-2)
  • DC Output: 4-pin (x1), 11 V to 17 V DC (MAX 2.0A) w/ battery adapter
  • HD-SDI Output: HD mode: SDI 1/2 Line Output, SDI 3/4 Monitor Output (character on/off), 4K mode: SDI 1/2/3/4 Line Output (character on/off), HD-SDI/3G-SDI switchable
  • Timecode Input/Output: TC IN/OUT (x1) switchable
  • Genlock Input: BNC (x1)
  • Remote: 8-pin (x1)
  • HDMI Output: A Type (x1)
  • USB: USB device, Mini-B (x1), USB host, type-A (x1)
  • Headphone Output: Stereo mini jack (x1)
  • Speaker Output: Monaural
  • Shutter: BNC (x1)
  • Wi-Fi: USB host, type-A (x1)
  • Media Type: ExpressCard/34 slot (x2), SD card slot (x1)
  • Recording Format (Video): MPEG-2 Long GOP, HD 422 mode: CBR, 50 Mbps max, MPEG-2 422P@HL
  • Recording Format (Audio): Linear PCM (2 ch, 24-bit, 48-kHz)
  • Recording Frame Rate: XAVC 4K: 4096 x 2160, 23.98p/25p/29.97p/50p/59.94p, XAVC QFHD: 3840 x 2160, 23.98p/25p/29.97p/50p/59.94p, XAVC 2K: 2048 x 1920, 23.98p/24p/25p/29.97p/50p/59.94p, XAVC HD: 1920x1080, 23.98p/25p/29.97p/50p/59.94p, MPEG4 SStP: 1920 x 1080, 23.98p/24p/25p/29.97p, MPEG2 HD: 1920x1080, 50i/59.94i/23.98p/25p/29.97p, MPEG2 HD: 1280 x 720, 50p/59.94p
  • Battery Operating Time: Approx. 150 min with BP-FL75, Approx. 210 min with BP-GL95A
  • Power Requirements: DC 12 V (11 V to 17.0 V)
  • Power Consumption: Approx. 25 W (while recording XAVC 4K 60p, EVF Off, LCD monitor Off, 4K SDI On)

In the box

  • 1 x Lens mount adapter
  • 1 x Battery adapter
  • 1 x Audio input connector
  • 1 x Screws for the audio input connector
  • 1 x Tape measure hook
  • 1 x USB wireless LAN module IFU-WLM3
  • 1 x Before Using this Unit
  • 1 x Operating Instructions (CD-ROM)
  • 1x AXS-R7 External Recorder
