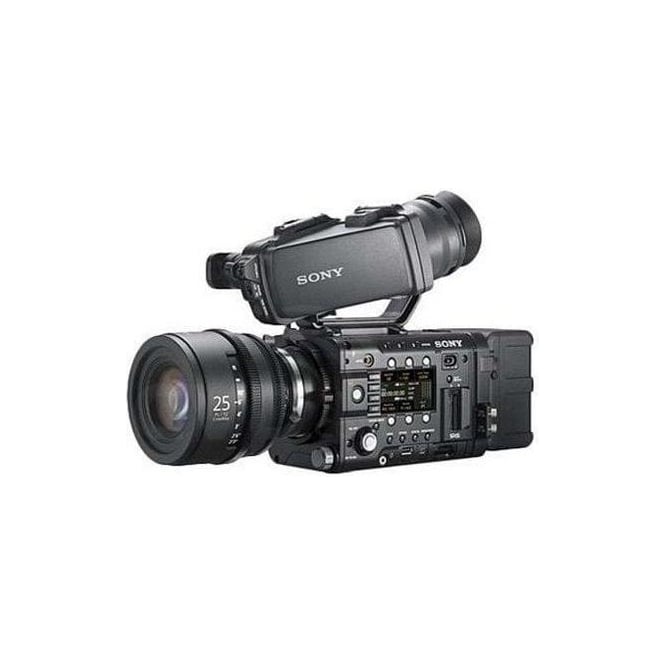

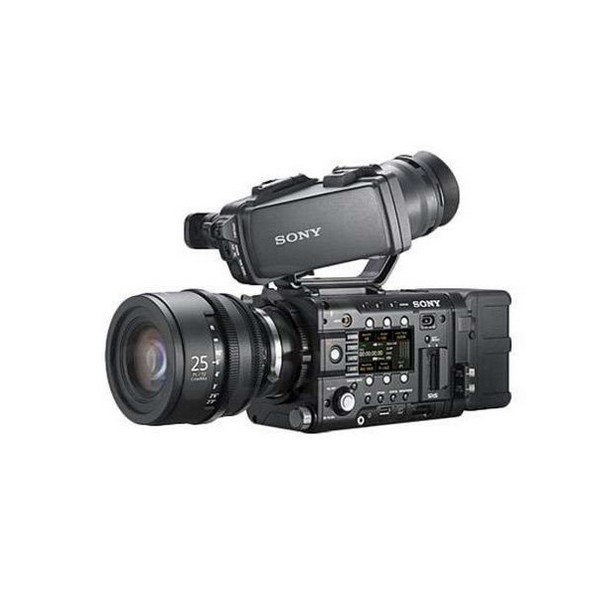

Sony PMW-F5/CBK-55BK F5 Camera + ENG Shoulder Kit

Sony PMW-F5/CBK-55BK (PMWF5CBK55BK, PMW F5 CBK 55BK, PMW/F5/CBK/55BK, pmw-f5/cbk-55bk) F5 Camera + ENG Shoulder Kit

The Sony PMW-F5 offers robust built-in recording modes, all with vibrant 4:2:2 colour. Further options include the wonderful precision of 16-bit linear RAW 2K/4K recording and high speed shooting at up to 120 fps without cropping.

The various recording formats available include MPEG-2 HD422, MPEG4 SStP, XAVC 2K/HD and 16-bit RAW 2K/4K. The Sony F5 has simultaneous recording on to internal high-speed SxS PRO+ memory cards and RAW 2K/4K recording on sleek AXSM™ memory cards using the optional bolt-on AXS-R5 recorder, designed specifically to attach seamlessly to both the F55 and F5 cameras. High speed shooting up to120 fps XAVC 2K/HD* internally and 120 fps RAW 2K onto the AXS-R5 is also available for the PMW-F5 camera.

Sony PMW-F5 - A lightweight modular design.

• Small and compact the Sony PMW-F5 allows you to configure the right set-up for each project – or individual shot with it’s modular design. A range of formats, both internal and external recording options and accessories are available on the F5 camera.
• A range of viewfinders are available, including the revolutionary optional DVF-EL100 OLED viewfinder, PL-mount, FZ-mount and still lenses, including second-generation Sony PL-mount lenses, and extra long-life Olivine – Lithium Iron Phosphate – batteries. The chassis on the Sony PMW-F5 Camera is only slightly wider than a typical PL-mount prime lens, perfect for 3D rigs. An optional shoulder rig provides for hand-held and shoulder-mounted shooting with the Sony F5.

CBK-55BK: Greater flexibility of shooting style for documentaries, sports and news

• The CBK-55BK build-up kit enables one-person operation of the PMW-F55 and PMW–F5 CineAlta cameras, making it easy to achieve a shooting style to suit a variety of needs while maintaining the familiar, easy-to-use interface features of traditional shoulder camcorders.

Good weight balance

• The CK55BK shoulder mount pack has an ergonomic design usable with any lenses and featuring an adjustable shoulder pad and front block control.

DWX Digital Wireless Audio Slot-in

• The Sony CBK-55BK provides a slot-in option for the DWX Series DWR-S02D 2 channel digital wireless receiver.

• Power Requirements: DC 12 V (11 V to 17 V)
• Power Consumption: Approx .24 W (while recording XAVC HD 60p, EVF Off, LCD monitor Off, HD-SDI On)
• Operating Temperature: 0°C to 40°C,32°F to 104°F
• Storage Temperature: -20°C to +60°C, -4°F to +140°F
• Mass : 2.2 kg (without lens, handle, audio box and accessories), 4 lb 14 oz (without lens, handle, audio box and accessories)
• Dimensions (W x H x D):  130 x 125 x 191 mm (without protrusions), 5 1/8 x 5 x 7 5/8 inches (without protrusions)
• Battery Operating Time : Approx. 160 min with BP-FL75,Approx. 230 min with BP-GL95A
• Recording Format (Video:  XAVC (AVC/H.264 High 4:2:2 Intra Profile),HD: SMPTE RP2027 Class101 compliant,MPEG2 HD (MPEG-2 Long GOP),HD 422 mode: CBR, 50 Mbps max., MPEG-2 422P@HL
• Recording Format (Audio) :LPCM 8CH (2CH recording/playback), 24-bit, 48-kHz
• Recording Frame Rate : XAVC 2K (2048 x 1080): 23.98p/24p/25p/29.97p/50p/59.94p, XAVC HD (1920x1080): 23.98p/25p/29.97p/50p/59.94p, MPEG4 SStP (1920 x 1080): 23.98p/24p/25p/29.97p, MPEG2 HD (1920x1080): 23.98p/25p/29.97p/50i/59.94i,MPEG2 HD (1280 x 720): 50p/59.94p
• Recording/Playback Time : XAVC HD, 23.98p: Approx. 70 min (SBP-64B)/Approx. 140 min (SBP-128B), 59.94p: Approx. 30 min (SBP-64B)/Approx. 60 min (SBP-128B),
• MPEG2 HD: Approx. 60 min (SBS-32G1A)/Approx. 120 min (SBS-64G1A)

Camera Section

• Imaging Device (Type) Super 35mm equivalent Single-chip CMOS
• Imaging Device (Pixel Count): 11.6M (total), 8.9M (effective)
• Aspect Ratio : 17:9
• Built-in Filters : Clear, 0.9 (1/8ND), 1.8 (1/64ND)
• Sensitivity : (2000 lx, 89.9% reflectance) Video Gamma: T14@24p (3200K light source)
• ISO Sensitivity : S-Log2 Gamma: ISO 2000 (D55 light source)
• Lens Mount : PL mount (with supplied lens mount adapter)
• FZ mount : (without supplied lens mount adapter)
• Latitude : 14-stop
• S/N Ratio: 57dB (Video Gamma, 24p, Noise Suppression OFF)
• Shutter Speed : 1/24s to 1/6,000s (23.98PsF)
• Shutter Angle : 4.2°to 360°(electrical shutter)
• Slow Shutter (SLS) : 2, 3, 4, 5, 6, 7, 8-frame accumulation
• Slow & Quick Motion Function : XAVC 2K/HD: 1-120p (NTSC), 23.98p/29.97p, XAVC 2K/HD: 1-100p (PAL), 25p
• White Balance Preset: (3200K, 4300K, 5500K), Memory
• Gain : -3, 0, 3, 6, 9, 12, 18 dB, AGC
• Gamma : Curve Standard (x6), HG1, HG2, HG3, HG4, HG7, HG8 S-Log2 Gamma

Input/Output

• Audio Input : CH-1/CH-2: XLR-type 3-pin (female) (x2), Line/Mic/Mic +48V (AES/EBU) *4  switchable
• DC Input: XLR-type 4-pin (male) (x1), 11 V to 17 V DC
• DC Output : 4-pin (x2), 11 V to 17 V DC (max. 1.8 A) with battery adapter
• Viewfinder: Digital viewfinder interface (x1)
• SDI Output: BNC (x4), SDI 1/2 Line Output, SDI 3/4 Monitor Output
• Test Output : BNC (x1), HD-Y or HD Sync (tri-level) V1.0
• Timecode Input/Output : TC IN/OUT (x1) switchable
• Genlock : Input BNC (x1)
• Remote : 8-pin (x1)
• HDMI Output: A Type (x1)
• USB: USB device, Mini-B (x1), USB host, type-A (x1)
• Headphone Output: Stereo mini jack (x1)
• Speaker: Output Monaural
• Shutter: BNC (x1) (To be supported by future upgrades.)
• Wi-Fi: USB host, type-A (x1)

Media

• Type ExpressCard/34 slot (x2)
• SD card slot (x1)

In the box

• PMW-F5/CBK-55BK F5 Camera + ENG Shoulder Kit
