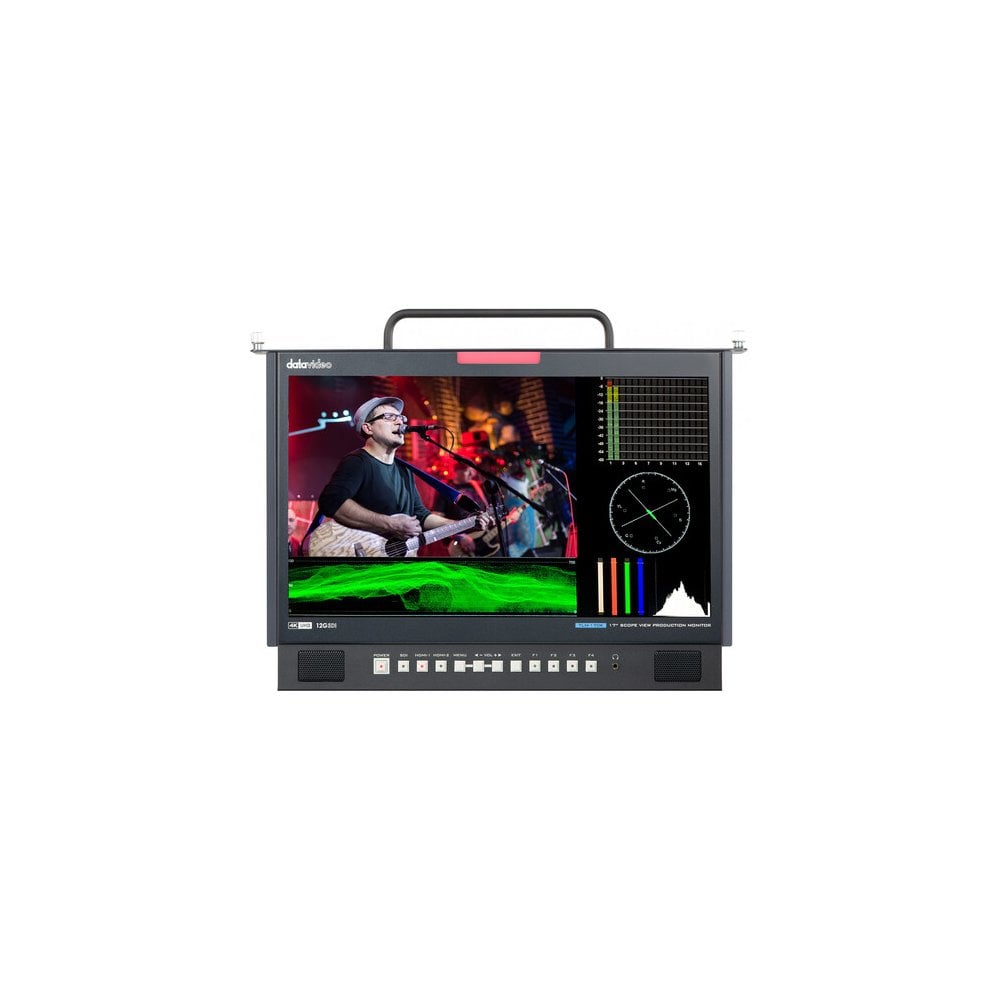

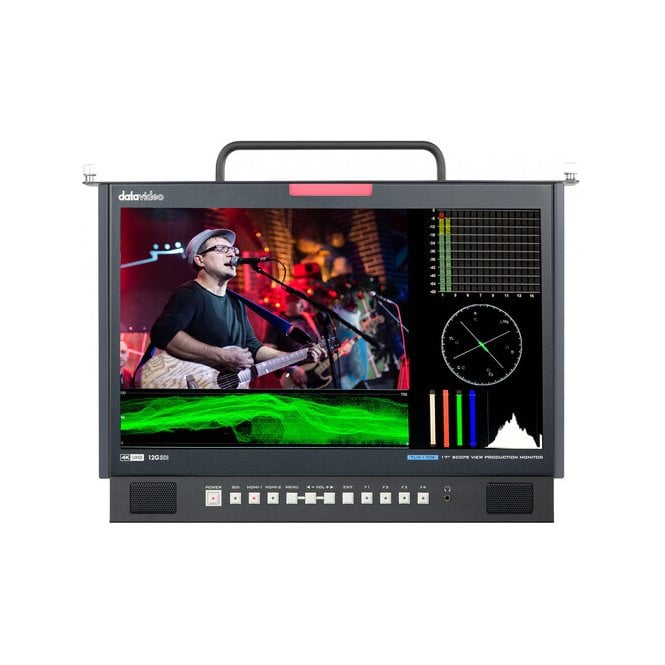

Datavideo TLM-170 (KM) 1U Foldable Rackmount 17" UHD Production Monitor

Datavideo TLM-170 (KM) 1U Foldable Rackmount 17" UHD Production Monitor(DATA-TLM170KM)

Add a high-quality 1080p display and professional features to your production with the rackmount TLM-170KM 17.3" ScopeView Production Monitor from Datavideo. The monitor features a 3840 x 2160 resolution display and supports up to DCI 4K60 video via a 12G-SDI input, two HDMI 2.0 inputs, an HDMI output, and an SDI loop-through output. The inputs and outputs also support cross conversion so, for example, you can input via SDI and output to HDMI.

The monitor features a large, dual-color LED tally light on the front at the top, indicating live or cued status, that is controlled using the tally input on the back. The display features a ±89° angle of view, 300 cd/m² brightness, a 700:1 contrast ratio, dual speakers, and a headphone jack. Image management features include pixel zoom up to 8x, blue only, markers, underscan, H/V delay, waveform, peaking, false color, image flip, safe frame, and more. The monitor comes with a 1 RU pullout tray for rackmount installation.

Natural Color, Brightness, and Contrast

The TLM-170K series monitors feature a UHD 4K 3840 x 2160 IPS LCD panel. The high-bright, high-contrast panel provides rich color, revealing subtle detail in bright highlights and dark shadows. It provides an 8-million pixel resolution which is four times the detail than the Datavideo Full HD monitor.

HDR Support

The monitor is ideal for presenting 4K HDR (High Dynamic Range) content, revealing the ultimate in detail and clarity for stunning images.

Multiple Input and Output Configurations

One 12G-SDI and two HDMI 2.0 inputs

One 12G-SDI and one HDMI 2.0 loop-through outputs

Various Built-In Functions

The monitor features numerous built-in monitoring tools, including support column (YRGB peak), timecode, waveform, vectorscope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more.

Tally Light

A tally light is included for use with live production.

Audio Support

There is a 3.5mm headphone jack and front speakers on the front of the display.

Shortcut Buttons

User-defined F1/F2/F3/F4 shortcut keys on the front of the monitor help to apply functions quickly.

Mounting Options

A 1 RU pullout rackmount tray kit is included.

Panel Type TFT LCD

Display Size 17.3" / 43.9 cm

Resolution 3840 x 2160

Aspect Ratio 16:9

Viewing Angle Horizontal: 178° (89/89)

Vertical: 178° (89/89)

Touchscreen No

Maximum Brightness 300 nits / cd/m2

Contrast Ratio 700:1

HDR Compatibility Yes

Pixels Per Inch (ppi) 129 ppi

Image Controls Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

Inputs / Outputs

Video I/O 1 x BNC (12G-SDI) Input

2 x HDMI 2.0 Input

1 x BNC (12G-SDI) Loop Output

1 x HDMI 2.0 Loop Output

Embedded Audio SDI

HDMI

Audio I/O 1 x 1/8" / 3.5 mm Headphone Output

Built-In Speaker 2 x 3 W

Power I/O 1 x XLR 4-Pin (12 VDC) Input

1 x Unspecified 2-Pin (12 VDC) Input

Other I/O 1 x USB-A (Firmware) Input

1 x 1/8" / 3.5 mm (Tally) Input

Media/Memory Card Slot None

Wi-Fi None

Bluetooth None

Mobile App Compatible No

*As of November, 2022: Check with manufacturer for the most up-to-date compatibility

Format Support

Video Format SDI

DCI 4K: 60/59.94/50/30/29.97/25/24/23.98

UHD 4K: 60/59.94/50/30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 24

1080i: 60/59.94/50

720p: 60/59.94/50

576i

480i

HDMI

DCI 4K: 60/59.94/50/30/29.97/25/24/23.98

UHD 4K: 60/59.94/50/30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 24

1080i: 60/59.94/50

720p: 60/59.94/50

576i

480i

Power

DC Input Power 12 VDC at 3 A

Battery Type None

Power Consumption 34.6 W (Maximum)

Environmental

Operating Temperature 32 to 72°F / 0 to 40°C

Operating Humidity 10 to 80%

Storage Temperature -4 to 140°F / -20 to 60°C

General

Dimensions 15.9 x 12 x 1.44" / 40.3 x 30.5 x 3.66 cm

Weight 9.0 lb / 4.1 kg

Packaging Info

Package Weight 22.485 lb

Box Dimensions (LxWxH) 25.8 x 23.2 x 7"

In the Box

Datavideo TLM-170KM 17.3" 4K ScopeView Production Monitor (Rackmount, 1 RU)

1 RU Rackmount Kit

Power Adapter
