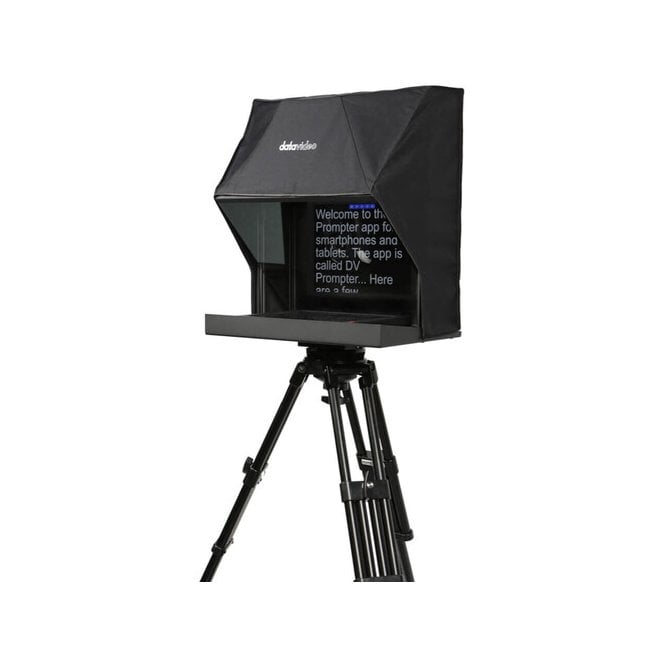

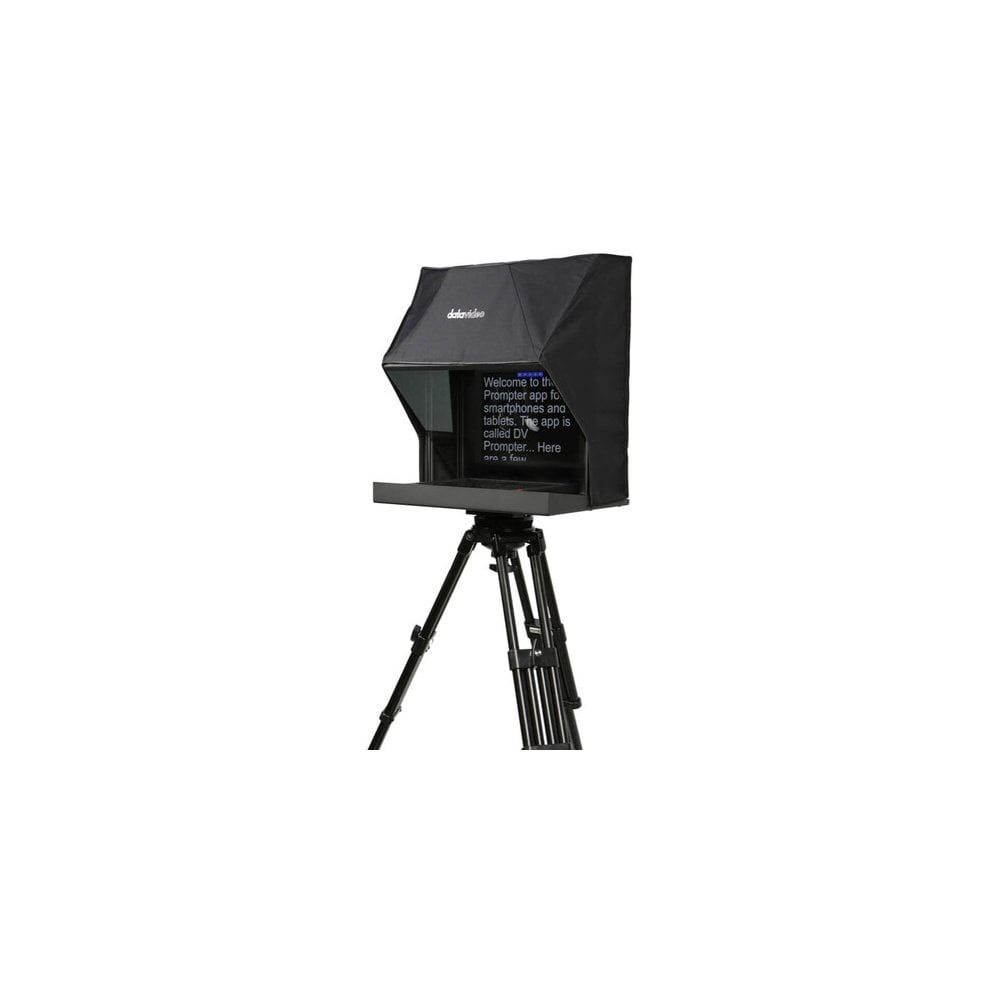

Datavideo TP-900 Ptz Lcd Prompter

Datavideo TP-900 Ptz Lcd Prompter(DATA-TP900)

he TP-900 Presentation Prompter Kit from Datavideo is a professional teleprompter designed specifically for PTZ cameras and controlled via Ethernet by a production team instead of the talent. It features a streamlined design that features a 15" monitor with integrated dvPrompter Plus app, 70/30 beamsplitter glass, a cloth hood with frame, and a camera mounting rail, making it ideal for conferencing, government, corporate, education, and broadcast studios.

The TP-900 features a high-bright 15" 4:3 display that can be seen outdoors and includes a power supply and D-Tap cable to power it via an optional battery anywhere, making it ideal for indoor or remote locations. It mounts onto a frame and the camera mounts behind the glass using a durable camera rail. Control and monitor the prompter over a local network using any device with a modern web browser, load, reload, and control scripts over a local network. It supports optional hardware controllers such as the WR-500 remote or FS-30 foot pedal.

Designed for PTZ Cameras

The TP-900 teleprompter can be used with any size PTZ cameras, where the camera is mounted directly to the teleprompter rig. The unique TP-900 camera mounting system allows both horizontal and vertical adjustment and supports most PTZ cameras in the market.

Built-In Teleprompter Application

The TP-900 features a bright 15" 4:3 LCD screen with the powerful dvPrompter Plus application built in, so there is no need to run software on a laptop.

Supports Talent Monitors

The TP-900 supports a talent monitor up to 19" with VESA 75 and 100mm mounts, ideal for use with TLM-170 series monitors.

Easy Control and Monitoring via Ethernet

Control and monitor the prompter over a local network using any device with a modern web browser, load, reload, and control scripts over a local network.

Synchronize Multiple Units via HDMI or IP

Connect multiple TP-900s together using the HDMI input and output or use IP synchronization over Ethernet. The HDMI input also allows the 15" LCD screen to be used as a HDMI monitor with third-party software if required. The HDMI output can also be used to drive external displays.

Powerful Rich Text Editor

You can remotely change the font size, type, color, and justification on a per script basis and even use multiple different fonts within a single script. The editor also has support for embedding images and creating playlists from multiple scripts.

P2P Interview Configuration

When using two TP-900 kits together in a P2P (Peer to Peer) interview configuration, the interviewer and the interviewee are able to look directly into the camera lens while still seeing and looking directly at an image of each other.

Video Conferencing

Look natural on camera, the TP-900 allows you to see your guests while looking directly into the center of the camera lens. The TP-900s high-brightness 15" screen features mirroring in hardware, simply connect your VC system via HDMI and you are ready to go.

Supports PowerPoint and Keynote Slides

In addition to text-based scripts, you can now import your PowerPoint or Keynote presentation slides via the web interface; slides can be controlled using the hardware WR-500 control or the web-based remote control interface. dvPrompter Plus supports seamlessly switching between text-based scripts and slides, you can even add slides and text-based scripts to a playlist. dvPrompter Plus supports mirroring slides in real time, so your content is the right way around even when viewed via the mirror glass.

Optional Hardware Controllers

The TP-900 can also be controlled using the optional WR-500 handheld remote, FS-30 Foot Pedal, or any generic presentation remote with a USB receiver.

Real-Time Editing

Interrupt live broadcasts with breaking news or urgent updates by simply modifying the script via the web interface and watch it update in real time.

General

Beamsplitter Ratio 70/30

Beamsplitter Shape Trapezoidal

Beamsplitter Material Glass

Tripod Mount Type 1 x 1/4"-20 Female

1 x 3/8"-16 Female

Monitor

Size (Diagonal) 15" / 38.1 cm

Maximum Brightness 350 nits / cd/m2

Resolution 1024 x 768

Inputs/Outputs 1 x HDMI Unspecified Version Output

1 x HDMI Unspecified Version Input

1 x (RJ45) Output

Self Reversing No

Power I/O 1 x Barrel Female Input

Output Voltage 12 VDC

Software

Mobile App Compatible No

*As of February, 2023: Check with manufacturer for the most up-to-date compatibility

Physical

Height Adjustment None

Dimensions 23.2 x 21.1 x 13.8" / 590.0 x 535.0 x 350.0 mm

Weight 22.7 lb / 10.3 kg

Packaging Info

Package Weight 33 lb

Box Dimensions (LxWxH) 25.3 x 21.9 x 11.4"

In the Box

Datavideo TP-900 Presentation Prompter Kit for PTZ Cameras

15" LCD Control Unit

Rail with Spacer Block

Frame for Glass with 4 Straps

70/30 Mirror Glass

Glass Support Bar

Power Supply

USB Mouse

Ethernet Cable (16.4')

3.5mm Input Adapter for WR-500 Remote Control

TP-900 Metal Base Tray with Tripod Plate

150 x 150 PTZ Scissor Lift

Cloth Hood

2 x 12V D-Tap Cable

3/8"-16 to 1/4"-20 Adapter

Hardware Mounting Kit (Screws, Supports, Caps)
