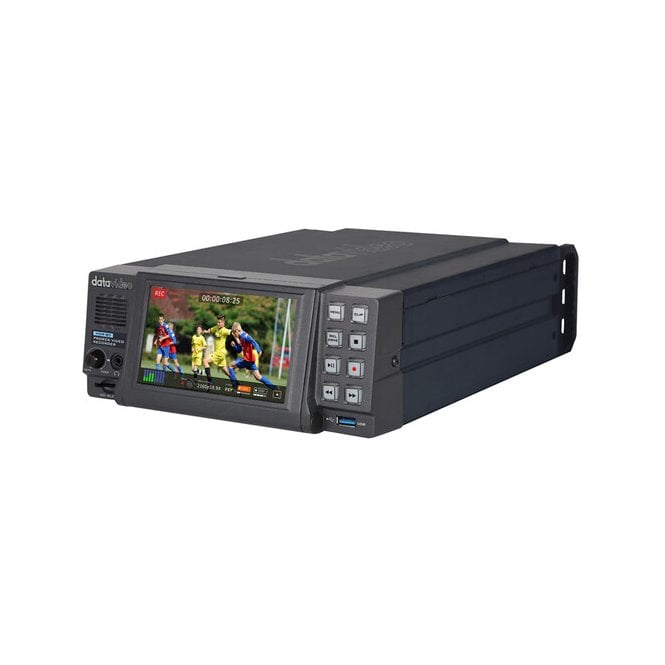

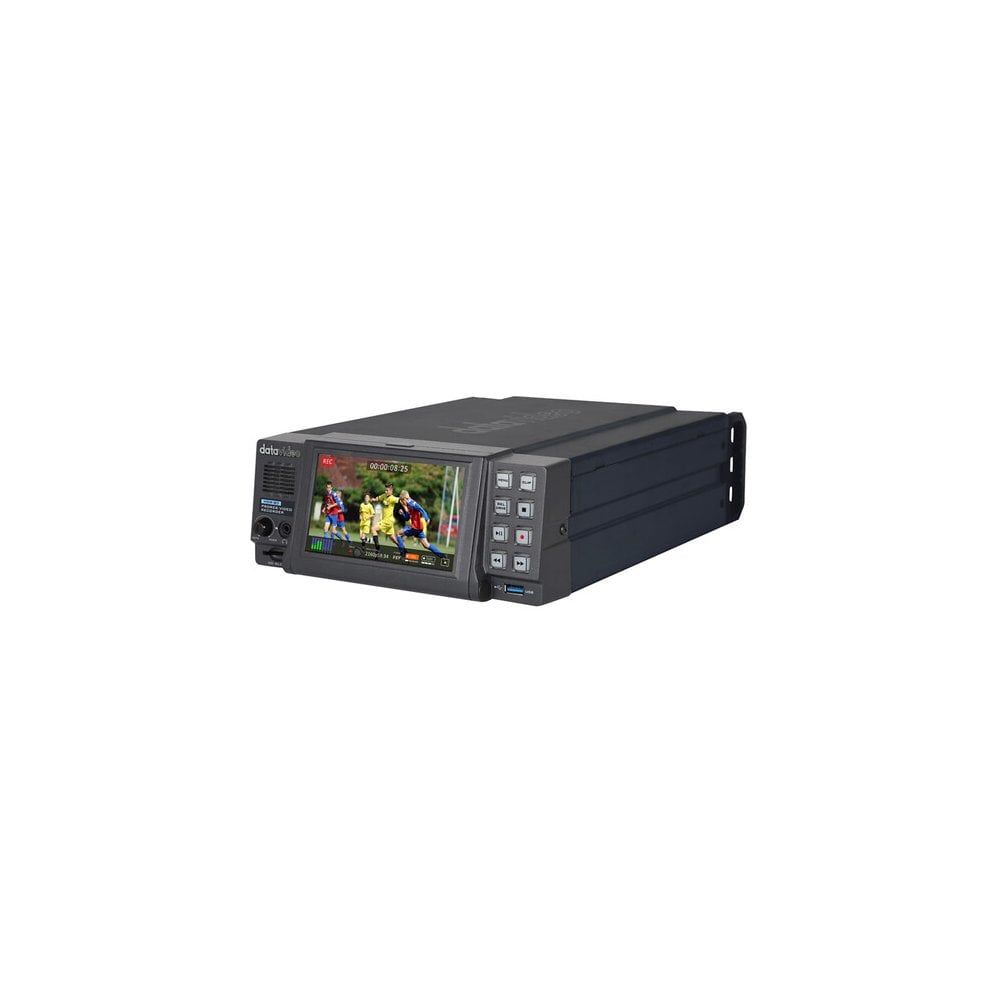

Datavideo Hdr-80 Desktop 4K ProRes Video Recorder

Datavideo Hdr-80 Desktop 4K ProRes Video Recorder(DATA-HDR80)

HDR-80 4K ProRes Dual Disk Recorder and Four HD Video Cameras facilitating live video recording.

HDR-80 is a ProRes 4K recorders that record video on two SSD hard drives. HDR-80 has a high resolution 5" LCD touch screen on the front for video monitoring, device settings, and configuration. The monitor also provides a complete suite of scopes and calibration tools such as waveform, vectorscope, focus peaking to ensure perfect recording.

HDR-80 ProRes Video Recorder (Desktop), Large 5" LCD Touch screen for operating and monitoring, 10-Bit 4:2:2 ProRes, Supports UHD 12G SDI I/O & 4K HDMI I/O with embedded audio, Records on two 2.5" SSDs, Full HD, 4 x 3G ISO Recording, 2 x XLR Analogue Audio I/O, Time code & Close Captioning support, DVIP (Ethernet) and RS-232 control, GPI (Record Start/Stop), Black burst and Tri-Level Sync Reference.

Compatibility Samsung 870 EVO SSD

Inputs / Outputs

USB I/O 1 x USB-A Female Input

Video I/O 1 x HDMI 2.0 Input

1 x HDMI 1.4 Input

1 x BNC (12G-SDI) Input

3 x BNC (3G-SDI) Input

1 x HDMI 2.0 Output

1 x BNC (12G-SDI) Output

3 x BNC (3G-SDI) Output

Audio I/O 2 x XLR 3-Pin Input (Balanced Analog)

2 x XLR 3-Pin Output (Balanced Analog)

1 x 1/8" / 3.5 mm Headphone Output

Power

Power Source AC Input

DC Input Power 12 VDC at 3 A

Operating Temperature 32 to 72°F / 0 to 40°C

Physical

Dimensions 12.3 x 8.7 x 3.8" / 313 x 220 x 97 mm

Weight 6.2 lb / 2.8 kg

Packaging Info

Package Weight 8.555 lb

Box Dimensions (LxWxH) 15.2 x 12.2 x 8.3"

In the Box

Datavideo ProRes UHD 4K Video Recorder (Desktop Model)

Power Adapter

Power Cable

2 x Removable 2.5" SSD Enclosure

8 x SSD Enclosure Screw

SATA to USB Cable
