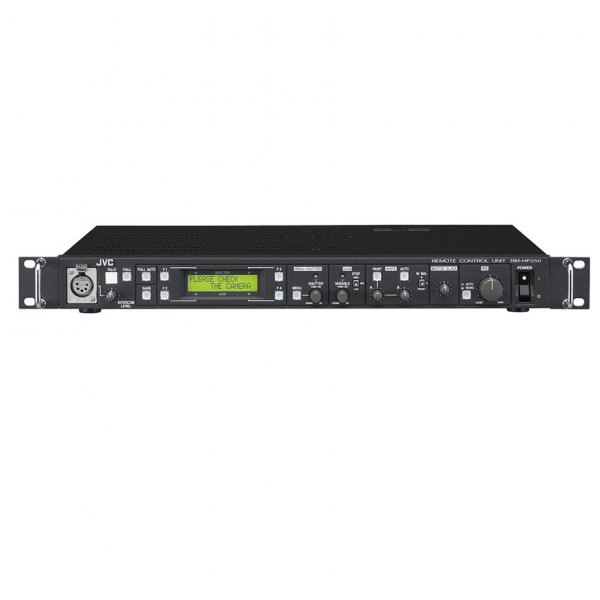

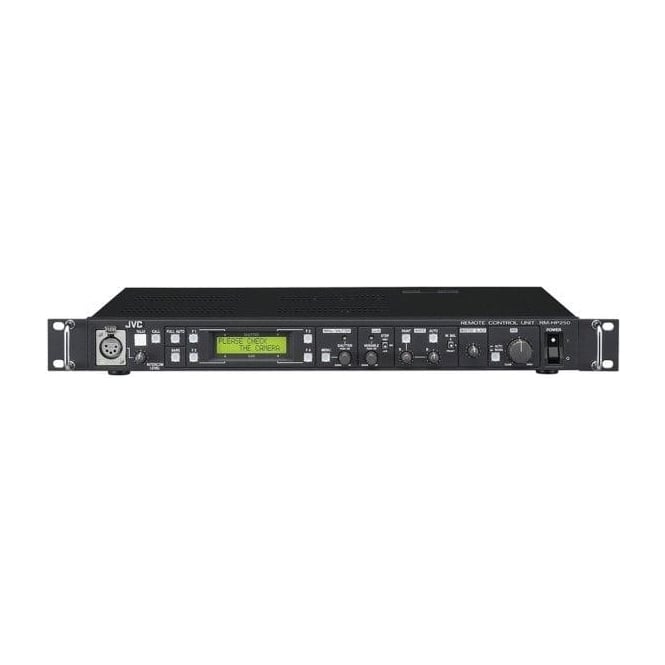

JVC RM-HP790DE Camera Control Unit
Remote Control Unit
Compatible with the JVC GY-HD251E Camera
Camera control up to 100m via multicore cable
HD and SD analogue component signals
HD/SD SDI in and out
Studio CCU with HD SDI for the GY-HD251E/GY-HM790 Camera's.
KeyFeatures:
HD/SD SDI in and out (through), in conjunction with GY-HD251E and JVC special 26-pin HK type with multicore cable
HD and SD analogue component signals via standard 26-pin multicore cable
Optional RM-LP25U operator control panel (OCP) with joystick for local control
Camera menu access and control
4 user settings assignable to any camera function
4 user scene file settings
Compatible with Sony 26-pin CCU cable
RTS or 2-wire compatible intercom system
Compact size: rack mount, 1U
Generic Spec: RM-HP790DE
Specs:Analogue composite: 1.0V p-p, 75 ohms, unbalanced (SD only)
Analogue component: Y: 1.0V p-p, 75 ohms, unbalancedC: 0.7V p-p, 75 ohms, unbalanced
HD/SD SDI: SMPTE292M compliant HD serial digital signalSMPTE259M compliant SD serial digital signal
Intercom: 2-line system, -10dB, 600 ohms, unbalanced
Genlock: BB: SMPTE170M (RS-170A) compliant (SD)
HDTV Tri-sync: SMPTE296M / SMPTE274M compliant
Aux: VBS or VS: 1V p-p, 75 ohms, unbalanced
Tally: Contact closure or power (5 to 24V DC or 6V AC)
Power requirement: AC 230V, 50Hz
Power consumption: T.B.A.
Operating Temperature: +5°C to +40°C
Storage temperature: -20°C to +60°C
Operating Humidity: Less than 80%
Dimensions (WxHxD): 465 x 64 x 306mm
Weight: Approx. 5.5 kg net
