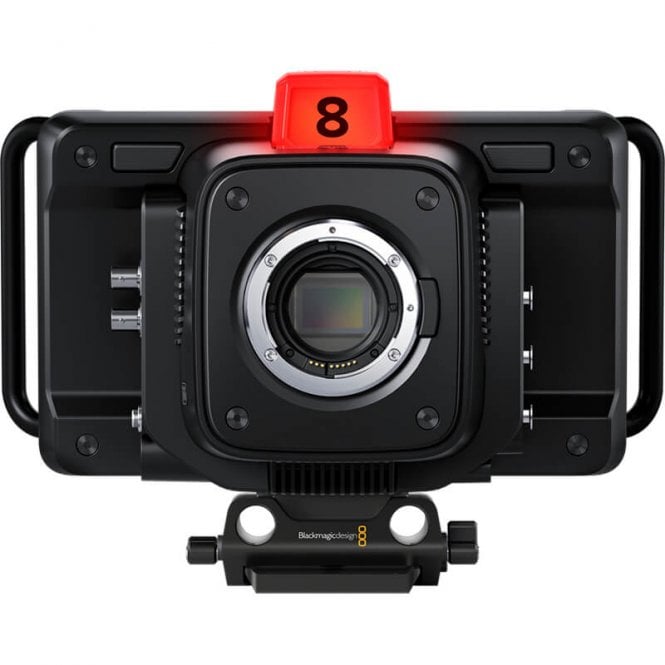

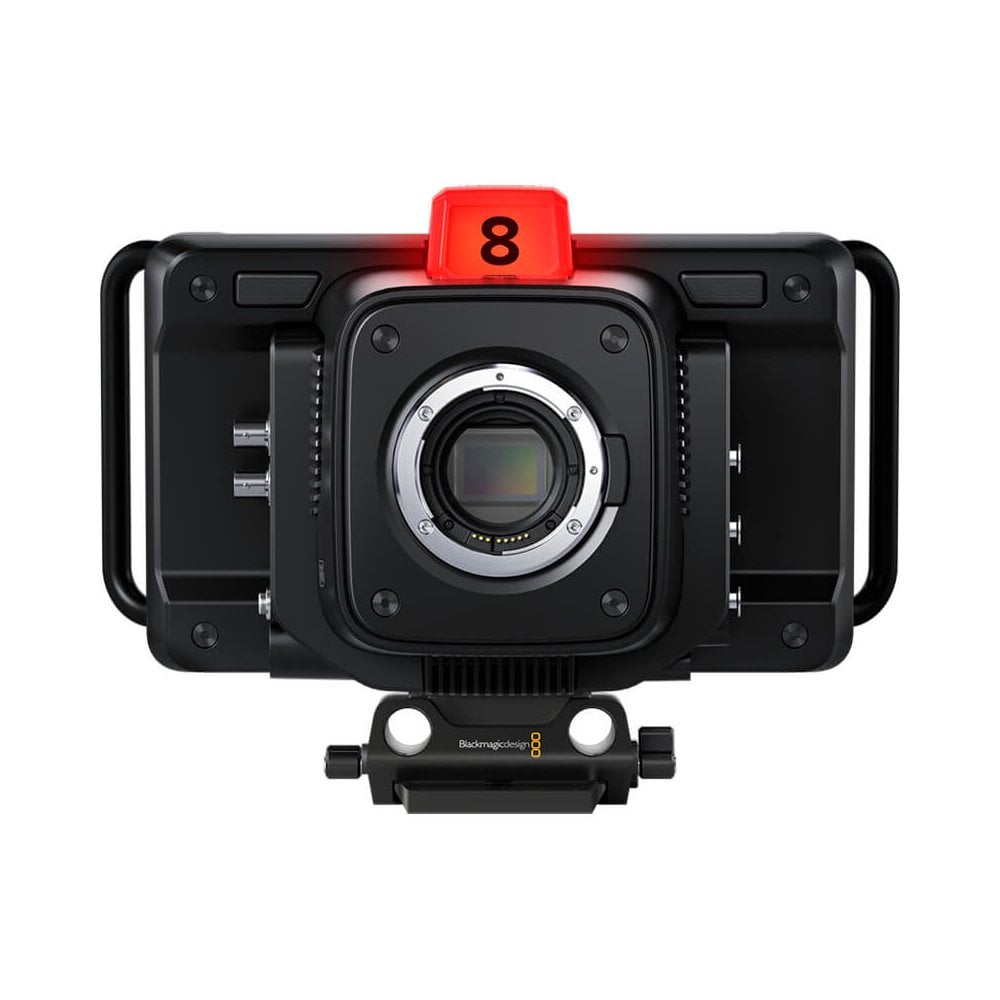

Blackmagic Studio Camera 6K Pro

Blackmagic Studio Camera 6K Pro(BMD-CINSTUDMFT/G26PDK, BMD CINSTUDMFT/G26PDK, BMD/CINSTUDMFT/G26PDK)

BLACKMAGIC STUDIO CAMERA 6K PRO

Designed as the ultimate studio camera, Blackmagic Studio Camera 6K Pro adds a larger 6K Super 35 sensor and EF lens mount for true cinematic images in live production. There are built in ND filters that let you reduce the amount of light entering the camera, allowing you to work in a wider range of situations, including in bright sunlight. Plus stream direct to the internet with built in streaming! You also get the same powerful 12G‑SDI, 10G Ethernet and HDMI connections found on the 4K Pro G2.

THE ULTIMATE SELF CONTAINED LIVE STUDIO CAMERAS

With 3 models of Blackmagic Studio Camera, you can choose the one that’s best for your work. Even with 3 different models, each camera still has the same Blackmagic generation 5 colour science, so have the same cinematic images when mixed and matched on the same job. The distinctive design has the benefits of a large studio camera as it’s a combination of camera and viewfinder in a single lightweight design. All models offer gain from -12dB (100 ISO) up to +36dB (25,600 ISO) for amazing low light performance with low image grain and noise, as well as maximum dynamic range from the sensor. That means you can shoot in locations with limited lighting. They even have built in colour correctors.

LIGHTWEIGHT CARBON FIBER POLYCARBONATE

Blackmagic Studio Cameras are built from advanced carbon fiber reinforced polycarbonate, so they are light weight and very strong. That's important when you are carrying multiple cameras into venues such as old theatres, stadiums or nightclubs that have crazy stairs and hard to access backstage areas. Plus the ergonomic design has all external connections on the tripod handle side of the camera. This design and the folding sunshade makes the cameras extremely fast to set up.

HIGHLY VISIBLE TALLY LIGHT

Blackmagic Studio Cameras have a large built in tally light to see which camera is on-air. The light is so big, you can see it from a great distance! Plus numeric decals are included so you can number each camera. There's also a separate tally light on the rear under the sunshade, perfect when tilting the camera down. Tally is flexible as it works via SDI, HDMI or the Ethernet connection. When using Ethernet, the Blackmagic Studio Converter even includes conventional tally GPI inputs.

LARGE BUILT IN VIEWFINDER

The design of the Blackmagic Studio Camera is based on an incredible full HD resolution viewfinder with a bright screen and wide viewing angle. Until now, only incredibly expensive studio cameras had the advantage of such a large viewfinder for better focusing and framing of shots! For outdoor use, there's a sunshade included that folds up to protect the screen. This sunshade can also be easily unclipped and removed, or even replaced with the metal sunshade from the URSA Studio Viewfinder.

TOUCHSCREEN AND MANUAL CONTROLS

For fast moving live production, it's vital to have all camera controls instantly accessible. The viewfinder LCD is also a touchscreen so you can access camera settings via on screen menus. You get knobs for LCD brightness and contrast, and a focus peaking knob lets you fine tune the focus highlighting for accurate camera focus. There's also touch parameters for camera settings such as colour temp, gain, audio level and more. Plus there's even a program return and customizable function buttons.

COMPATIBLE WITH POPULAR PHOTOGRAPHIC LENSES

As photographic lenses are designed to handle high resolutions and are mass produced, they're great for high end television use. The MFT and EF lens mounts allow you to choose from a massive range of lenses from a wide range of different manufacturers. Often these lenses are so well built, you get broadcast style results combined with very accurate focus and zoom control. This means you can add the optional focus and zoom demands and use the camera just like a professional broadcast camera.

BOTH BROADCAST AND CONSUMER CONNECTIONS

The Blackmagic Studio Cameras have been designed to look attractive but still provide all the connections in a logical lay out. The connections on the right are for all video inputs and outputs and this means they can be tied to the tripod handle. On the left side are the connections for your talkback, audio inputs, USB and more. That's great for headphones as the connection on the camera is on the same side as the connection on the headphones, so you don't have to deal with any cable tangles.

INCLUDES TRIPOD MOUNT

Every Blackmagic Studio Camera includes a tripod mount so you don't need to purchase any accessories. The mount includes a quick release sliding plate, so you can attach the camera to the tripod just by sliding it onto the plate. That makes setup very fast when arriving on location. Plus the tripod mount includes two horizontal mounting holes so you can add optional rails when you need to support heavy items on the lens side of the camera such as prompters, matte boxes or heavy lenses.

DC, XLR OR ETHERNET POWERED

The Blackmagic Studio Camera features a common plug pack power connection with a locking ring so it won't get disconnected accidentally. On the Pro models, you can also connect via a 4 pin broadcast style XLR power connection, or if you use the Blackmagic Studio Converter to connect via Ethernet, the single Ethernet connection will also fully power the camera. That means when you use Ethernet, you don't need to plug in any local camera power at all.

Image Sensor 23.1 x 12.99 mm (Super35) CMOS

Sensor Resolution Not Specified by Manufacturer

ISO Sensitivity 100 to 25,600

Gain 0 to 18 dB

Sensitivity f/11 at 2000 lux 89.9% Reflectance (UHD 4K60)

f/12 at 2000 lux 89.9% Reflectance (UHD 4K60)

Signal-to-Noise Ratio 63 dB

Camera

Lens Mount Canon EF Mount

Shutter Speed 1/5000 to 1/24 Second

Built-In ND Filter Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters

Built-In Microphone Type Stereo

Broadcast System Compatibility NTSC, PAL

Interfaces

CCU I/O None

Video I/O 1 x BNC (12G-SDI) Input

1 x BNC (12G-SDI) Output

1 x HDMI Output

Audio I/O 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body

1 x 1/8" / 3.5 mm TRS Stereo Microphone Input

1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output

1 x XLR 5-Pin Intercom Input/Output

Other I/O 1 x RJ45 (10 Gigabit Ethernet) Control/Data/Monitor/Video Input/Output

2 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output

Recording

Raw Recording Blackmagic RAW 10-Bit

6144 x 3456 up to 50 fps

5376 x 3024 up to 60 fps

3840 x 2160 up to 60 fps

Audio Recording ProRes: 2-Channel 24-Bit 48 kHz LPCM Audio

Display

Display Type Fixed Touchscreen LCD

Size 7"

Resolution 1920 x 1200

Power

Power I/O 1 x XLR 4-Pin (12VDC) Input

1 x Barrel (12VDC) Input

Power Consumption 59 W

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

Storage Temperature -4 to 113°F / -20 to 45°C

Operating Humidity 0 to 90%

General

Accessory Mount 2 x 1/4"-20 Female

Tripod Mount 3/8"-16 Female

Dimensions (W x H x D) 10.77 x 7.83 x 6.59" / 27.36 x 19.89 x 16.74 cm (Without Protrusions)

Weight 4.28 lb / 1.94 kg

Packaging Info

Package Weight 8.165 lb

Box Dimensions (LxWxH) 12.6 x 10.6 x 8.2"

Blackmagic Studio Camera 6K Pro

Blackmagic Studio Camera Sun Shade

Tripod Mount compatible with 15mm lightweight rails

Tripod Mount Plate

Turret Dust Cap

External 12V DC power supply with locking connector and international sockets adapters for most countries.

Welcome wallet with QR code for software download

DaVinci Resolve download card

Blackmagic Design sticker
