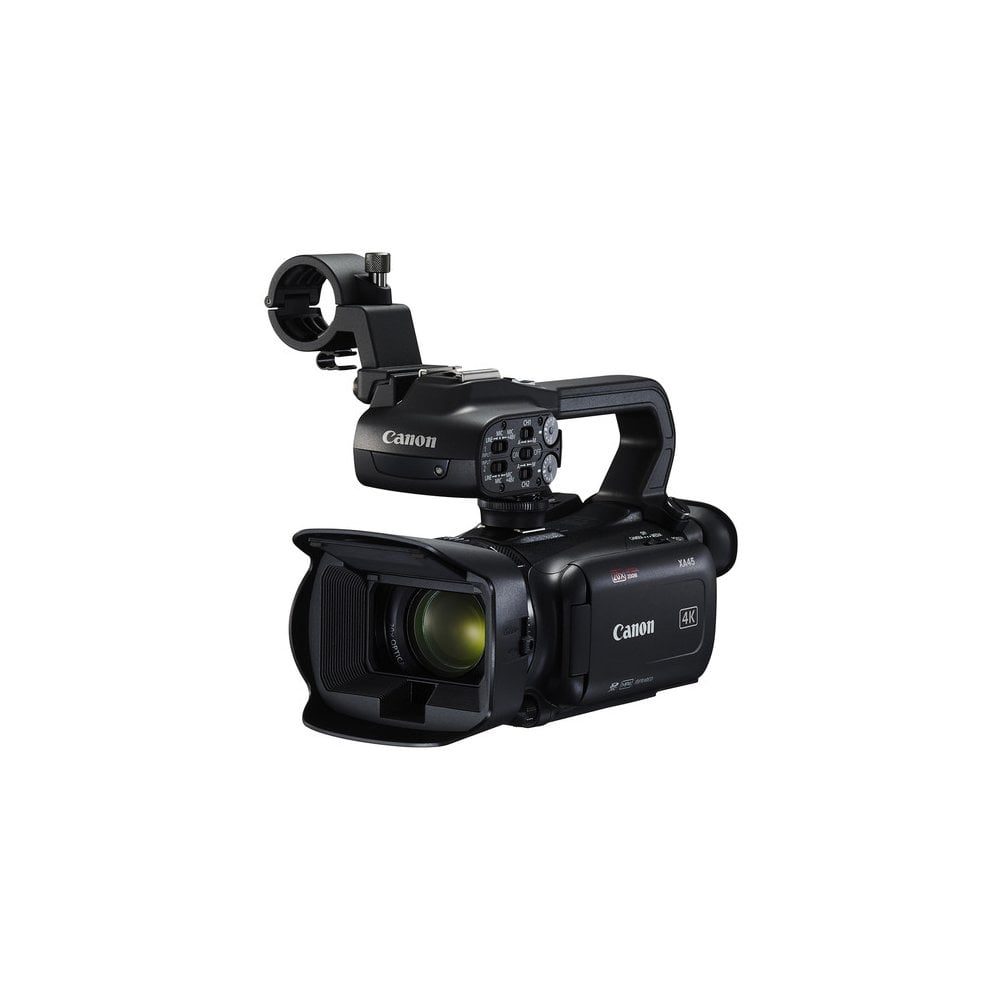

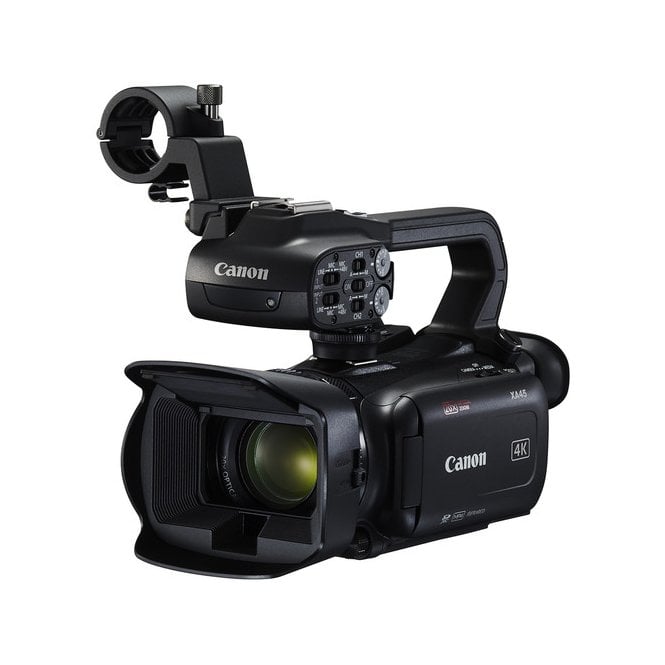

Canon 3665C007 XA45 Professional UHD 4K Camcorder

code: 3665C007
  • £1,498.17
Availability | Usually dispatched within 24 hours
Loading...

Features:

  • 4K UHD / 25P, XF-AVC up to 160Mbps, MP4 up to 150Mbps
  • 29.3 – 601mm, Wide-angle 4K zoom
  • High quality Full HD, Uses the 4K UHD sensor to deliver superior Full HD images
  • 5-Axis IS, Advanced optical and dynamic image stabilization
  • Infrared mode, Capture high-quality video in conditions with little to no ambient light
  • 3.0-inch touch screen, Easy focus point and camera control
  • Linear PCM, 2 x XLR terminals plus built-in mic
  • Dual card slots, SD card simultaneous or relay recording

Canon 3665C007 (3665C007-XA45, 3665C007/XA45, 3665C007_XA45, 3665c007, xa45) XA45 Professional UHD 4K Camcorder

Compact and efficient – XA-series 4K camcorder with UHD resolution and high magnification

The XA45/XA40 features a 1/2.3’’ type CMOS Sensor along with DIGIC DV6 image processor delivering 4K UHD. Full HD image quality is improved thanks to Over Sampling HD Processing. The XA45/XA40 features a lens with 20x optical zoom with 29.3mm wide angle.

Ultra-compact professional 4K UHD camcorder

The combination of a 4K 1/2.3” type CMOS sensor and DIGIC DV6 image processor delivers high quality 4K UHD images, and superior Full HD images thanks to Over Sampling HD processing. Recording options include XF-AVC 160Mbps / MP4 150Mbps at UHD 25P, XF-AVC 45Mbps at FHD 25P/50i/50P and MP4 17-35Mbps at FHD 25P/50P.

4K 20X optical zoom lens with wide angle

Capture the images you need with 20x optical zoom with wide angle starting from 29.3mm. Consistency of imaging is ensured by a powerful 5-axis image stabilisation, whilst 3D real-time lens group structure support wide-angle zoom operation.

Infrared recording capability

The XA45/XA40 includes an Infrared Mode, allowing users to capture video in conditions with little to no ambient light. There is the option of recording in white or green mode.

Slow and Fast Motion recording

Work the way your project demands with continuous recording available in Slow and Fast motion modes in both UHD and Full HD, with a maximum speed of 1200x.

Lightweight and compact with professional features

The XA45 / XA40 weighs less than 1.2kg with a 3.0-inch LCD touch screen provides intuitive control. The highly portable camcorder also supports linear PCM 4-channel audio, with built-in stereo mic and two XLR terminals. Other features include 3G-SDI (XA45 only) Additionally, two SD memory card slots are provided for simultaneous or relay recording.

Camera Image Sensor

  • Sensor: 1/2.3-type CMOS
  • Filter: RGB Primary Colour Filter
  • Total Pixels: Approx. 21.14MP
  • Effective Pixels: Approx. 8.29 MP (3840 x 2160)
  • Subject Illumination Range: Approx. 0.3 lx to 100,000 lx
  • Minimum Illumination (PAL): P Mode: Approx. 4.2 lx (shutter speed 1/25 sec with auto slow shutter On) Low Light Mode: Approx. 0.3 lx (shutter speed 1/2 sec.)

Lens

  • Zoom Ratio: 20x optical
  • Focal Length (35mm equivalent): Approx. 29.3 - 601mm Standard IS/IS Off
  • Minimum Focus Distance: 10 mm at wide end, 60 cm across entire zooming range
  • Aperture: f/1.8 - 2.8 (AV Priority and Manual Modes)
  • Aperture Blades: 8 blades
  • Filter Diameter: 58mm
  • Image Stabilization System: Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered, Off
  • ND Filter: Built-in gradation filter (Auto or Off)
  • Zoom Control: Zoom rockers on body and handle; Selectable manual zoom/focus ring on lens; Selectable High Speed and Soft Zoom modes available.
  • Zoom Speed: Variable (body rocker only) or Constant speed (body and handle rocker; Fast/Normal/Slow, 16 speed level settings in each)
  • Focus Control: MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset. AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. (Instant AF, Medium AF, Normal AF)
  • Focus System: Hybrid AF, Normal AF
  • Iris Control: Touchscreen, Auto
  • Digital Zoom / Teleconverter: 400x Digital Zoom, 2x Digital Teleconverter

Image Processor

  • Type DIGIC: DV 6
  • Colour Sampling: YCC 4:2:0
  • Bit depth: 8-bit

Recording

  • Video Storage Media: SD/SDHC/SDXC card (2 card slots)
  • Type: Class U3 cards recommended
  • Recording Time (64GB Card, approx.): XF-AVC: 160Mbps: 50 mins / 45Mbps: 185 mins MP4: 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins
  • Recording File System: FAT32/exFAT
  • Internal Recording Format (PAL): XF-AVC: 3840 x 2160 (160Mbps) / 1920 x 1080 (45Mbps) MP4: 3840 x 2160 (150Mbps) / 1920 x 1080 (35/17 Mbps)
  • External Recording Output: HDMI output (Camera mode): UHD recording mode: 1920 x 1080 25.00P YCC4:2:2 8bit Full HD recording mode: 1920 x 1080 50.00P/50.00i/25.00P; 1280 x 720 50.00P YCC4:2:2 10bit
  • External Monitoring: HDMI (50.00i)
  • Recording Frame Rate (PAL): 25.00P (UHD), 50.00P/50.00i/25.00P (Full HD)
  • Slow / Fast Motion (PAL): 3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200 1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200 1920 x 1080 / 25.00P: x0.5
  • Pre Recording Function: Yes. 3 seconds
  • Still Photos: JPEG up to 3840x2160 (Still image resolution is dependent on the video resolution)
  • Photo Storage Media: SD Card

Audio

  • Recording: MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)

Audio Control:

  • Manual/Auto
  • Independent 2ch Line/Mic/Mic+48V input; Independent level control per channel (-∞ to +18 dB); Independent audio limiters (2 ch); Input mic trimmin
  • Reference Tone: 1KHz, -12dB / -18dB / -20dB / Off
  • Microphone Attenuation: Auto/On/Off (20dB)
  • Microphone Level Matter: Yes

System Monitoring Panel

  • Type: Capacitive LCD touch panel
  • Size: 3.0-inch (7.5 cm, approx. 460,000 dots)
  • Waveform Monitor: No
  • Focus Assist: Peaking / Magnify
  • Peaking: Selectable Peaking Colour: Red / Blue / Yellow
  • Zebra: 70% or 100% reference level
  • Markers: Grid (white/grey) and Level (white/grey)

Viewfinder

  • Size: 0.24-inch, approx. 1.56 million dots
  • Correction Lens: +2.0 to -5 dioptre

Inputs / Outputs

  • Audio Input: XLR 3-pin jack (x2) with 48V phantom power, Line and Mic options on detachable handle, 3.5mm microphone input jack (Supply Voltage 2.4V DC), Built-in Mic
  • Headphone Output: 3.5mm stereo mini jack
  • HDMI Output: HDMITM mini connector
  • USB: Mini-B, Hi-Speed USB, PTP class supported

SDI Output:

  • XA45: 3G-SDI with BNC connector
  • XA40: No
  • Time Code: Superimposed on HDMI output signal (Camera Mode only)
  • Genlock: No
  • LAN: No
  • AV Terminal: No
  • DC Input: 3.4mm jack
  • Remote Control Terminal: 2.5mm mini jack

Shooting Functions Exposure

  • Exposure Metering: Centre-weighted average or segment evaluative (determined by shooting mode) No metering: Fireworks mode, Fixed exposure (1/50 sec.)
  • Exposure Compensation: Highlight AE, Exposure lock, Auto backlight compensation, Exposure compensation amount shown as ±3 when locked (±12 increments) or ±2 in AUTO (±8 increments).
  • Exposure Lock: Yes.
  • Auto Gain Control Setting: Auto / Manual
  • Auto Gain Control Limit: 0 - 24dB (1dB increments)

Shutter Speed

  • Control Modes: Auto, P, Tv, Manual
  • Shutter Speed: 1/6 - 1/2000 sec (1/2 - 1/500 sec in Low Light mode)

Slow Shutter (SLS) 50.00P:

  • Auto slow shutter On: 1/25 to 1/500 sec. Auto slow shutter Off: 1/50 to 1/500 sec.

25.00P:

  • Auto slow shutter On: 1/12.5* to 1/500 sec. (*Display is 1/12) Auto slow shutter Off: 1/25 to 1/500 sec.
  • Clear Scan: No

White Balance

  • Auto: Yes
  • Preset: Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)

Manual Setting:

  • Colour Temperature range: 2,000–15,000K
  • Default value for Set 1 and Set 2: 5,600K

Shooting Modes

Program AE: AUTO

  • Mode Manual Mode: P, Tv, Av, M (manual exposure), SCN (Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks)
  • Infrared Shooting Mode: Yes (green or white)
  • Built-in IR Lamp: Yes, in detachable Handle Unit. Wavelength: 850nm (near-Infrared)
  • Look Settings: Standard (Adjustment: Sharpness, Contrast, Colour Depth)

Wi-Fi & GPS Specifications

  • Wi-Fi: No
  • GPS Information (Optional Accessory): Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception. (requires the optional GPS Receiver GP-E2)

Miscellaneous

  • Tally Lamp: Yes, in detachable Handle Unit
  • Colour Bars (PAL): Yes. SMPTE or EBU, with 1KHz Tone
  • Accessory Shoe: Yes (cold shoe)
  • Assignable Buttons: 5 assignable Buttons: Assignable to (AF/MF) / Face Only AF / Magnification / BLC Always On / Powered IS / Auto Acquire WB / WB Priority / IR Light/ Pre REC / Review Recording / PHOTO / Monitor Channels / Menu / Off
  • Custom Dial: Tv / Av / M / AGC Limit / Exposure Compensation / Off

Time Code

  • Count-up System: Regen / Rec Run / Free Run / Preset (Non-Drop Frame)
  • Time Code Out: Via HDMI out. Superimposed on output, Camera Mode only

Accessories

Supplied:

  • Lens hood with barrier, Mic holder unit, Handle Unit HDU-1, Battery Pack BP-820, Compact Power Adapter CA-570, AC Cable, Ferrite core, Lens Cap

Optional (Includes items not currently on sale):

  • Canon Battery Pack BP-820/BP-828, Canon Compact Power Adapter CA-570 (included with camera), Canon Battery Charger CG-800E/CG-800, Canon HDMI cable HTC-100/HTC-100S, Canon Tele Converter TL-H58, Canon Wide Attachment WA-H58, Canon Soft Carrying Case SC-1000/SC-2000, Canon Shoulder Strap SS-600/SS-650, Wrist Strap WS-20, Canon PROTECT Filter 58mm, Canon ND4-L Filter 58mm, Canon ND8-L Filter 58mm, Canon GPS Receiver GP-E2, Canon Remote Controller RC-V100, Canon Battery Video Light VL-10Li/VL-10LiII, Canon Battery Pack BP-900 series (for VL-10Li/VL-10LiII), Canon Compact Power Adapter CA-910/920/930 (for charging BP-900 series), Canon Interface Cable IFC-300PCU/S / IFC-400PCU

Battery

Battery Pack:

  • Canon Battery Pack BP-820 (supplied), BP-828 (optional)

Power Consumption (recording):

  • XF-AVC: UHD/160Mbps: Approx. 4.1W (25.00P) MP4: UHD/150Mbps: Approx. 4.1W (25.00P)

Continuous Recording Time (approx.):

  • XF-AVC: UHD/160Mbps/25.00P: 175 mins (BP-820) / 270 mins (BP–828) FHD/45Mbps/50.00P: 170 mins (BP-820) / 265 mins (BP828) MP4: UHD/150Mbps/25.00p: 175 mins (BP-820) / 270 Mins (BP-828) FHD/35Mbps/50.00p: 175 mins (BP-820) / 270 Mins (BP828)

Size and Weight

Dimensions:

  • Approx. 109 x 84 x 182 mm (main body only) Approx. 131 x 180 x 231 mm (Including lens hood, BP-820, mic holder unit, and handle unit)

Weight (camera only):

  • XA45: Approx. 740g
  • XA40: Approx. 730g

Weight (fully equipped):

  • XA45: Approx. 1130g
  • XA40: Approx. 1120g (Includes lens hood, mic holder unit, handle unit, BP820, and 1 memory card)

Operating Temperature Range:

  • -5 to +45ºC, 60% relative humidity
  • 0ºC to +40ºC, 85% relative humidity

In the Box

  • Canon XA45 Professional UHD 4K Camcorder
  • Canon CA-570 Compact AC Power Adapter
  • Canon BP-820 Lithium-Ion Single Battery Pack (1780mAh, Retail Packaging)
  • Lens Hood with Lens Cover
  • Handle
  • Microphone Holder
