Canon XF605 UHD 4K HDR Pro Camcorder package A

code: XF605PACKA
  • £3,810.88
Availability | Usually dispatched within 24 hours
Loading...

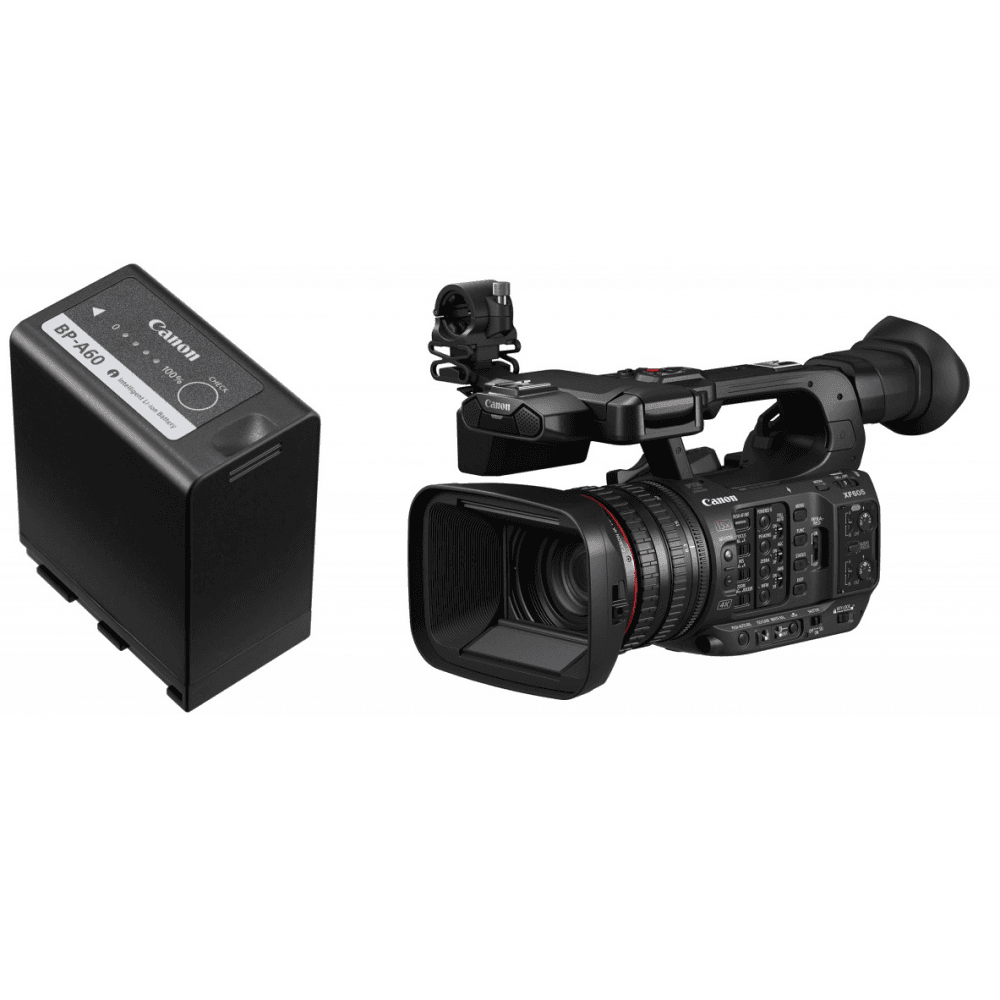

Canon XF605 camcorder package A includes:

1 x Canon XF605
1 x 0870C002AA Canon BP-A60 Battery

Canon XF605 Camcorder
The exciting Canon XF605 is the perfect camcorder for solo shooters who need to work fast in the studio or in the field. This versatile broadcast quality 4K camcorder, features advanced AF, connectivity and streaming for demanding productions. Tthe ideal solution for modern news-gathering, sports and documentary professionals.

By introducing an unrivalled level of performance and control for solo shooters, Canon has really outdone themselves with the new XF605 camcorder, Providing AI-powered autofocus, advanced connectivity, HDR recording and broadcast-level image quality, the XF605 unlocks a new level of control and 4K performance for modern news, sports and documentary professionals.

If you're looking for a similar older model, please visit the Canon XF705.

Broadcast-quality video
The large1.0-Type CMOS sensor and DIGIC DV7 processor work in harmony to deliver 4K UHD 60P/50P in 4:2:2 10-bit XF-AVC and MP4, as well as FHD 120P HFR for exceptional image quality and flexibility in post-production.

Professional optics and control
Resolve fine details with the 4K ready L-Series lens offering 15x optical zoom, and equipped with independent rings for Zoom, Focus and Iris control. Also featured are three Image Stabilisation modes, as well as built-in ND and infrared filters, offering even greater control.

Advanced autofocus
Acquire pin-sharp focus on your subject’s eyes with Eye tracking AF, and intelligent head tracking via EOS iTR AF X, an innovative ‘deep learning’ technology to track a subject's head, even when looking away.

Professional connectivity and streaming
Canon XF605 seamlessly integrates into live and offline environments, with 12G-SDI, Wi-Fi and Ethernet for IP streaming. The Content Transfer Mobile app enables the editing of News ML-G2 standard compliant metadata, transferring of footage to your iPhone, and direct uploading to FTP servers.

Intuitive controls and customisation
Stay in control and customize the XF605 camcorder to your needs with Independent controls and 11 assignable buttons. An enhanced touchscreen interface allows for quick and intuitive control of on-screen settings, menu navigation and playback control. A new multi-function hotshoe opens the door for additional accessories with expanded capabilities.

Recording versatility
Capture an expanded dynamic range in Canon Log 3 for flexibility in post-production, or shoot directly in broadcast-ready PQ or HLG HDR formats. Simultaneous recording to dual SD cards in a variety of formats offers maximum flexibility for your production needs.

Shared colour science
XF605 supports the same colour matrices as Canon's Cinema EOS and EOS R System product ranges, reducing the time needed in post-production to match colour in footage from multiple camera ranges.

Key Features:

25.5–382.5mm - Wide angle 4K 15x L-Series zoom
Autofocus
Continuous 120P
12G-SDI terminal
1.0-Type CMOS Sensor & DIGIC DV7 Processor
4K UHD 60P/50P 4:2:2/10-bit recording
Canon Log 3, HDR (PQ/HLG)
High Frame Rate recording up to 120fps (FHD)
15x Optical Zoom L-Series lens (30x Advanced Zoom in FHD)
Enhanced Dual Pixel CMOS AF with Eye AF & EOS iTR AF X (Intelligent Head Tracking)
Dual SD card slots supporting simultaneous recording, multiple formats & Proxies

Sensor 1.0 Inch-type CMOS

Filter RGB Primary Colour Filter

Total pixels Approx. 13.4 MP

Approx. 13.4 MP Approx. 8.29 MP (3840 x2160)

Image Processor DIGIC DV7

Gain Boost Function Yes, increases gain to 36dB,activated via user assigned button

Sensitivity (PAL) f/13, 50.00P, 2000 lux, reflectance 89.9%

Minimum illumination (PAL) 50.00P/50.00i Approx. 2.5 lux (1/50 second shutter speed) 25.00P Approx. 1.3 lux (1/25 second shutter speed)

Simultaneous Recording Yes. Simultaneous recording, relay recording. Different recording options possible on each memory card

Recording frame rate (PAL) UHD XF-AVC 422 10bit 3840 x 2160 (160 Mbps): 59.94P/ 29.97P/ 23.98P/50.00P/ 25.00P MP4 (HEVC/H.264) 422 10bit 3840 x 2160: 59.94P/ 29.97P/ 23.98P/50.00P/ 25.00P Full HD, XF-AVC 422 10bit:1920 x 1080 (45 Mbps) 59.94P/ 59.94i / 29.97P/ 23.98P/50.00P/ 50.00i / 25.00P 120P, MP4 (HEVC/H.264) 422 10bit,1280 x 720 59.94P/ 29.97P/ 23.98P/50.00P/ 25.00P

External recording output, 12G-SDI/HDMI 3840 x 2160: 59.94p/50.00p/29.97p/25.00p/23.98p 1920 x 1080: 59.94p/50.00p/29.97p/25.00p/23.98p/ 29.97PsF/25.00PsF 59.94i/50.00i 1280 x 720: 59.94p/50.00p 720 x 480: 59.94i 720 x 576: 50.00i

External monitoring Yes, 12G-SDI or HDMI. Simultaneous output available

High Frame Rate Yes, Up to 120P (FHD, 4:2:2/8-bit) including in 50.00Hz mode. Simultaneous Audio Recording

Pre Record function Yes. 3 seconds

Special Recording Functions Frame Recording, Interval Recording

Still photos JPEG up to 3840x2160 (Still image resolution is dependent on the video resolution)

Photo storage media SD Card (Slot B)

AUDIO

Recording MP4: MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch) XF-AVC: LPCM (24-bit 4ch)

Audio control Manual or Auto Independent 2ch Line/Mic/Mic+48V input; Independent level control per channel (-∞ to +18 dB); Independent audio limiters (2-Ch.); Input mic trimming

Reference tone 1KHz, -12dB / -18dB / -20dB / Off

Microphone attenuation On/Off (20dB)

Microphone level meter Yes

SYSTEM

Type LCD Electrotstatic Touch Panel

Size 3.45-inch type Approx. 2.76 million dots

Waveform Monitor Yes

Focus Assist Dual Pixel Focus Guide* / Peaking / Magnify

Peaking Selectable Peaking Colour: Red / Blue /

Yellow/White

False Colour Display Yes, also via EVF, SDI Out and HDMI output

Zebra 70% or 100% reference level

Markers Center, horizontal, grid, aspect, safety zone, and

user marker.

Each item can be displayed in yellow, blue, green,

red, black, gray, or white.

VIEWFINDER

Size 0.36-inch type, approx. 1.77 million dots

EVF Auto -off Yes, function enabled via assignable button

Correction lens +2.0 to -5.5 dioptre

INPUTS/OUTPUTS

Audio input XLR 3-pin jack (x2) with 48V phantom power, Line and Mic, Additional inputs via third-party accessory attached to shoe. 3.5mm microphone input jack (Supply Voltage 2.4V DC), Built-in Mic

Headphone output 3.5mm stereo mini jack

Speaker Yes, built-in

HDMI output HDMITM Type A

USB 1 x Type A. Type A power output 5V/900mA 1 x Type C. Type C compliant with UVC

SDI output 12G-SDI, BNC connector

Time code Yes, BNC connector

Genlock Yes

LAN Yes

DC input 3.4mm jack

Remote Control Terminal Type A (2.5mm jack), Type B

(8-pin connector, RS422-type)

STREAMING, WI-FI & GPS

IP Streaming Protocols

Supported UDP, RTP, RTP+FEC

News Metadata Yes, compliant with NewsML-G2 standard

Browser Remote Control Yes

Wifi Yes

Supported WI-FI IEEE802 2.4GHz/5GHz 11a/b/g/n/ac (5GHz may not be available in all regions)

GPS Information

(Optional Accessory) Location (Latitude/Longitude/Altitude), Coordinated

Universal Time (UTC), Satellite reception.

(requires the optional GPS Receiver GP-E2)

LENS

Zoom ratio 15x optical, (30x Advanced Zoom Full HD)

Focal length (35mm equivalent) Approx. 25.5 to 382.5 mm Standard IS/IS Off

Minimum focus distance 10 mm at wide end, 60 cm across entire zooming range

Max. Aperture f/2.8

Aperture blades 9 blades

Filter diameter 58mm

Image stabilization system Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered, Off

ND filter 3 densities: turret switched, motor-driven. ND 1/4, ND 1/16, and ND 1/64.

Zoom control Zoom rockers on body and handle; Selectable manual zoom/focus ring on lens; Wireless controller; Selectable High-Speed mode available.

Zoom speed Variable or Constant speed Fast/Normal/Slow, 16 speed level settings

Focus control MANUAL: Lens ring and touchscreen point selection (Focus Guide and Peaking assist functions), Focus Preset. AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Face Only AF. (Continuous AF, AF-Boosted MF, AF Speed, AF Response, AF Frame size)

Focus System Dual Pixel CMOS AF, Contrast AF, Eye AF, EOS iTR AF X

Iris control Touchscreen, Auto, Lens ring

Digital zoom/Teleconverter 300x Digital Zoom, Digital Teleconverter (x1.5/x3/x6. Not available when optical teleconverter used)

IMAGE PROCESSOR

Type

XF-AVC: 4:2:2,

MP4: 4:2:2 or 4:2:0 H.265/4:2:0 H.264.

XF-AVC/MP4 Proxy files: 4:2:0



DIGIC DV7



Colour Sampling

Bit-depth - XF-AVC/MP4 H.265: 10-bit. MP4 H.264: 8-bit XF-AVC/MP4 Proxy files: 8-bit



RECORDING

Video storage media SD/SDHC/SDXC card (2 card slots)

Type Class U3 V90 cards recommended

Recording time XF-AVC: 410Mbps. 39 mins. 310Mbps, 51 mins. 260Mbps, 100 mins. MP4/H.265: 225 Mbps, 71 mins. 170Mbps,94 mins. 135 Mbps,118 mins MP4/H.264: 150 Mbps, 107 mins. 35 Mbps, 458 mins. 8Mbps, 2006 mins

Recording file system FAT32/exFAT

Internal recording format XF-AVC (MXF) UHD: ALL-I/Long GOP. Full HD/Proxy Files: Long GOP MP4: H.265 UHD, Full HD

SHOOTING MODES

Exposure Control AUTO Mode Manual Mode: P, Tv, Av, M (manual exposure)

Custom Picture Menu CP Files: C1: BT.709 Normal C2: BT.709 Wide DR C3: BT.709 Standard C4: Canon Log 3 C5: PQ (BT.2020) C6: HLG (BT.2020) C7: EOS Standard C8: EOS Neutral C9 - C20: User Defined

WHITE BALANCE

Auto Yes. Shockless WB, AWB Response, AWB Hold (via assignable button)

Preset Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)

Manual setting Colour Temperature range: 2,000 – 15,000K Default value for Set 1 and Set 2: 5,600K

SHUTTER SPEED

Control modes Auto, P, Tv, Manual

Shutter Angle Mode Yes, 360° to11.25°

Shutter speed (PAL) Up to 1/2000 Sec.

Slow Shutter (SLS, PAL) 50.00i/50.00P:1/4, 1/8, 1/12, 1/25 sec 25.00P: 1/3, 1/6, 1/12 sec

Clear (PAL) Yes,24.00Hz to 2003.17Hz

SHOOTING FUNCTIONS EXPOSURE

Exposure metering Centre-weighted average or segment evaluative (determined by shooting mode) Fixed exposure (1/50 sec.)

Exposure compensation Highlight AE, Exposure lock, Auto backlight compensation, Exposure compensation amount shown as ±3 when locked or ±2 in AUTO (±8 increments).

Exposure Lock Yes

ISO Range/Setting ISO200 - ISO12,800. 1 Stop or 1/3 Stop increments

Auto ISO/Auto Gain Auto / Manual. Auto Gain set when shooting in

Control setting IR mode

Auto Gain Control limit Yes, selectable from -6dB to 21db, 1dB increments

What's included:

Lens hood with barrier

Lens Cap

Mic holder unit

Eye Cup

AC Cable

Compact Power Adapter (CA-200L)

Battery Charger (CG-A20)

Battery Pack BP-A30

0870C002AA Canon BP-A60 Battery
