Canon XF605 UHD 4K HDR Pro Camcorder package E

code: XF605PACKE
  • £4,696.04
Availability | Usually dispatched within 24 hours
Loading...

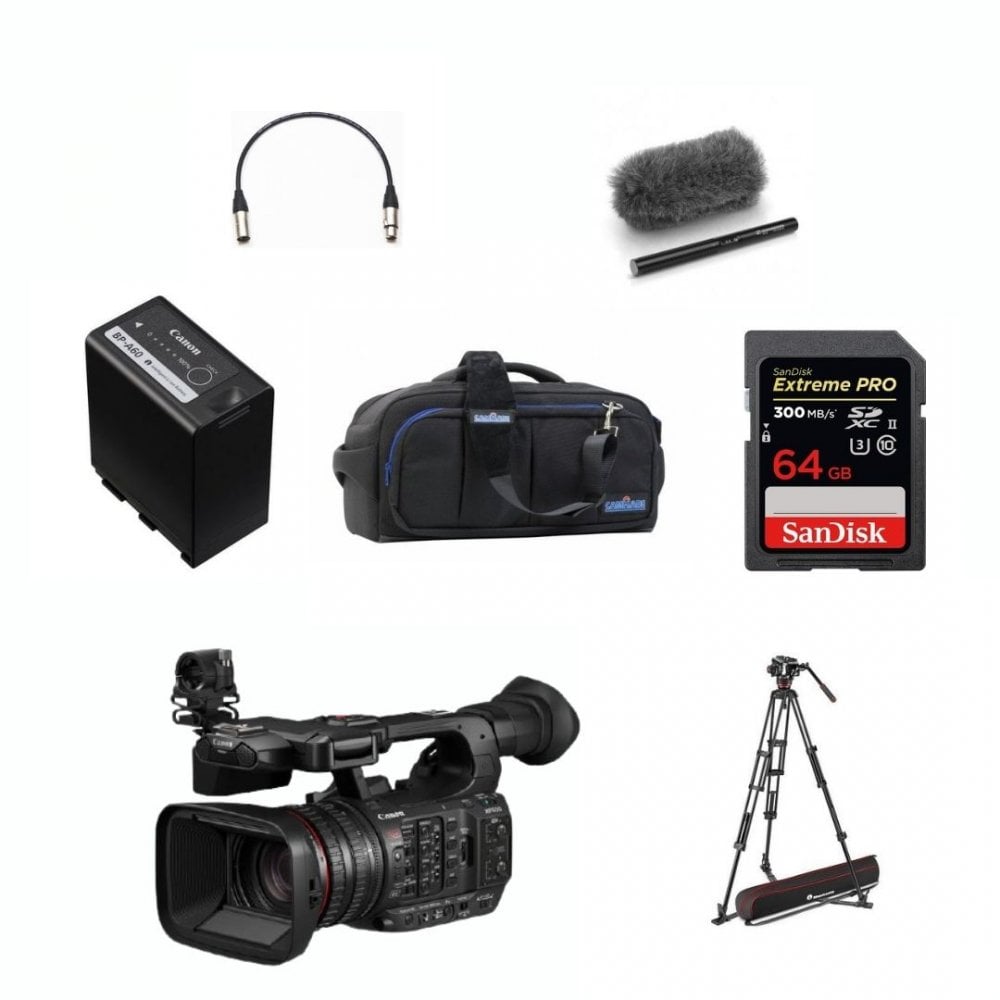

Canon XF605 (XF 605, XF-605, XF/605, 5076 C002, 5076-C002, 5076/C002) UHD 4K HDR Pro Camcorder package e includes:

1 x Canon XF605

1 x MKE 600 Shotgun Microphone (505453)

1 x 12inch 3Pin Male to Female Xlr Cable (12INCHXLR3PIN)

1 x BP-A60 Battery (0870C002AA)

1 x CAM-R&GB-MEDIUM run&gunBag Medium (CAM-R&GB-MEDIUM)

1 x 64GB Extreme PRO UHS-I SDXC Memory Card (SDSDXXY-064G-GN4IN)

1 x MAN-MVK504XTWINGA 504X Fluid Video Head with Aluminium Twin Leg Tripod GS (MAN-MVK504XTWINGA)


Canon XF605 Camcorder
The exciting Canon XF605 is the perfect camcorder for solo shooters who need to work fast in the studio or in the field. This versatile broadcast quality 4K camcorder, features advanced AF, connectivity and streaming for demanding productions. Tthe ideal solution for modern news-gathering, sports and documentary professionals.

By introducing an unrivalled level of performance and control for solo shooters, Canon has really outdone themselves with the new XF605 camcorder, Providing AI-powered autofocus, advanced connectivity, HDR recording and broadcast-level image quality, the XF605 unlocks a new level of control and 4K performance for modern news, sports and documentary professionals.

If you're looking for a similar older model, please visit the Canon XF705.

Broadcast-quality video
The large1.0-Type CMOS sensor and DIGIC DV7 processor work in harmony to deliver 4K UHD 60P/50P in 4:2:2 10-bit XF-AVC and MP4, as well as FHD 120P HFR for exceptional image quality and flexibility in post-production.

Professional optics and control
Resolve fine details with the 4K ready L-Series lens offering 15x optical zoom, and equipped with independent rings for Zoom, Focus and Iris control. Also featured are three Image Stabilisation modes, as well as built-in ND and infrared filters, offering even greater control.

Advanced autofocus
Acquire pin-sharp focus on your subject’s eyes with Eye tracking AF, and intelligent head tracking via EOS iTR AF X, an innovative ‘deep learning’ technology to track a subject's head, even when looking away.

Professional connectivity and streaming
Canon XF605 seamlessly integrates into live and offline environments, with 12G-SDI, Wi-Fi and Ethernet for IP streaming. The Content Transfer Mobile app enables the editing of News ML-G2 standard compliant metadata, transferring of footage to your iPhone, and direct uploading to FTP servers.

Intuitive controls and customisation
Stay in control and customize the XF605 camcorder to your needs with Independent controls and 11 assignable buttons. An enhanced touchscreen interface allows for quick and intuitive control of on-screen settings, menu navigation and playback control. A new multi-function hotshoe opens the door for additional accessories with expanded capabilities.

Recording versatility
Capture an expanded dynamic range in Canon Log 3 for flexibility in post-production, or shoot directly in broadcast-ready PQ or HLG HDR formats. Simultaneous recording to dual SD cards in a variety of formats offers maximum flexibility for your production needs.

Shared colour science
XF605 supports the same colour matrices as Canon's Cinema EOS and EOS R System product ranges, reducing the time needed in post-production to match colour in footage from multiple camera ranges.

Key Features:

25.5–382.5mm - Wide angle 4K 15x L-Series zoom
Autofocus
Continuous 120P
12G-SDI terminal
1.0-Type CMOS Sensor & DIGIC DV7 Processor
4K UHD 60P/50P 4:2:2/10-bit recording
Canon Log 3, HDR (PQ/HLG)
High Frame Rate recording up to 120fps (FHD)
15x Optical Zoom L-Series lens (30x Advanced Zoom in FHD)
Enhanced Dual Pixel CMOS AF with Eye AF & EOS iTR AF X (Intelligent Head Tracking)
Dual SD card slots supporting simultaneous recording, multiple formats & Proxies

Imaging

  • Sensor Resolution:Actual: 13.4 Megapixel (4268 x 3148), Effective: 8.29 Megapixel (3840 x 2160)
  • Sensor Type: 1" CMOS Sensor
  • Image Stabilization: Optical in Integrated Lens Digital
  • Built-In ND Filter: Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
  • Shutter Type: Rolling Shutter
  • Shutter Speed: 1/4 to 1/2000 sec
  • Shutter Angle: 11 to 360°
  • Sensitivity: f/12 at 2000 lux
  • Minimum Illumination: 1.5 Lux at 1/30 Shutter Speed
  • White Balance: 2000 to 15,000K

Lens

  • Focal Length: 8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm)
  • Optical Zoom Ratio: 15x
  • Max Digital Zoom: 30x ( in 1080p)
  • Maximum Aperture: f/2.8
  • Minimum Aperture: f/4.5
  • Optical Design: 18 Elements in 14 Groups
  • Minimum Focus Distance: Entire Zoom Range: 2.0' / 60.0 cm, Wide: 0.4" / 1.0 cm
  • Filter Size: 58 mm
  • Control Rings: Focus, Zoom, Iris
  • Focus Control: Autofocus, Manual Focus

Recording

Recording Modes: MXF/XF-AVC 4:2:2 10-Bit:

3840 x 2160p at 23.98/25/29.97/50/59.94 fps (160 to 410 Mb/s)

1920 x 1080p at 23.98/25/29.97/30/50/59.94/120 fps (50 to 310 Mb/s)

1920 x 1080i at 50/59.94 fps (50 to 160 Mb/s)

1280 x 720p at 23.98/25/29.97/30/50/59.94 fps

H.265/MP4 4:2:2 10-Bit:

3840 x 2160p at 23.98/25/29.97/50/59.94 fps (135 to 225 Mb/s)

1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps (50 Mb/s)

1280 x 720p at 23.98/25/29.97/50/59.94 fps (12 Mb/s)

H.265/MP4 4:2:0 10-Bit:

3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 170 Mb/s)

1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 Mb/s)

1280 x 720p at 23.98/25/29.97/50/59.94 fps (9 Mb/s)

H.264/MP4 4:2:0 8-Bit:

3840 x 2160p at 23.98/25/29.97/50/59.94 fps (150 Mb/s)

1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 Mb/s)

1280 x 720p at 50/59.94 fps

  • Variable Frame Rates:to 120 fps
  • Gamma Curve:Canon Log 3, HDR-HLG
  • Audio Recording:2-Channel 16-Bit 48 kHz AAC Audio, 4-Channel 24-Bit 48 kHz LPCM Audio
  • Still Image Support: Not Specified by Manufacturer
  • IP Streaming MPEG2: 1920 x 1080 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 16.00 Mb/s)
  • MPEG2: 1920 x 1080 to 1920 x 1080 at 50i, 59.94i (4.0 to 9.0 Mb/s)

Interface

  • Media/Memory Card Slot: Slot 1: SD/SDHC/SDXC, Slot 2: SD/SDHC/SDXC
  • Video Connectors: 1 x HDMI (HDMI 2.0) Output, 1 x BNC (12G-SDI) Output
  • Audio Connectors: 2 x 3-Pin XLR Input, 1 x 1/8" / 3.5 mm Stereo Input, 1 x 1/8" / 3.5 mm Stereo Headphone Output
  • Built-In Microphone Type: Stereo

Other I/O

  • 1 x USB Type-A Output
  • 1 x USB Type-C
  • 1 x BNC Genlock, Sync Input/Output
  • 1 x BNC Timecode Input/Output
  • 1 x 2.5 mm Control
  • 1 x 8-Pin D-Sub Control
  • 1 x RJ45 LAN Input/Output
  • Wireless Interfaces: 2.4 / 5 GHz MIMO Wi-Fi Video Output, Audio Output, Control

Monitor

  • Size:3.45"
  • Resolution: 2,760,000 Dot
  • Display Type: Articulating Touchscreen LCD

EVF

  • EVF: Attached
  • EVF Display Type; OLED
  • Screen Size: .36"
  • EVF Resolution: 1,770,000 Dots

Power

  • Battery Type: Canon BP-A Series
  • Power Connectors: 1 x Barrel (24 VDC) Input
  • Power Consumption: 21.5 W

Environmental

  • Operating Temperature: 32 to 104°F / 0 to 40°C
  • Operating Humidity: 0 to 85%

Physical

  • Accessory Mount: 1 x Cold Shoe Mount, 1 x Multi-Interface Shoe
  • Tripod Mounting Thread: 1/4"-20 Female, 3/8"-16 Female
  • Built-In Light: Yes (Infrared)
  • Dimensions:15.2 x 8.6 x 8.3" / 385 x 219 x 210 mm (With Protrusions), 13.1 x 6.8 x 6.6" / 333 x 173 x 168 mm (Without Protrusions)
  • Weight 4.4 lb / 2010 g

In The Box

  • Canon XF605 UHD 4K HDR Pro Camcorder
  • Canon BP-A30 Battery Pack for EOS C300 Mark II, C200, and C200B
  • Canon CA-CP200L Compact AC Power Adapter
  • Lens Cap
  • Lens Hood

Additional items in this package E bundle:

  • MKE 600 Shotgun Microphone
  • 12inch 3Pin Male to Female Xlr Cable
  • BP-A60 Battery
  • CAM-R&GB-MEDIUM run&gunBag Medium
  • 64GB Extreme PRO UHS-I SDXC Memory Card
  • MAN-MVK504XTWINGA 504X Fluid Video Head with Aluminium Twin Leg Tripod GS
