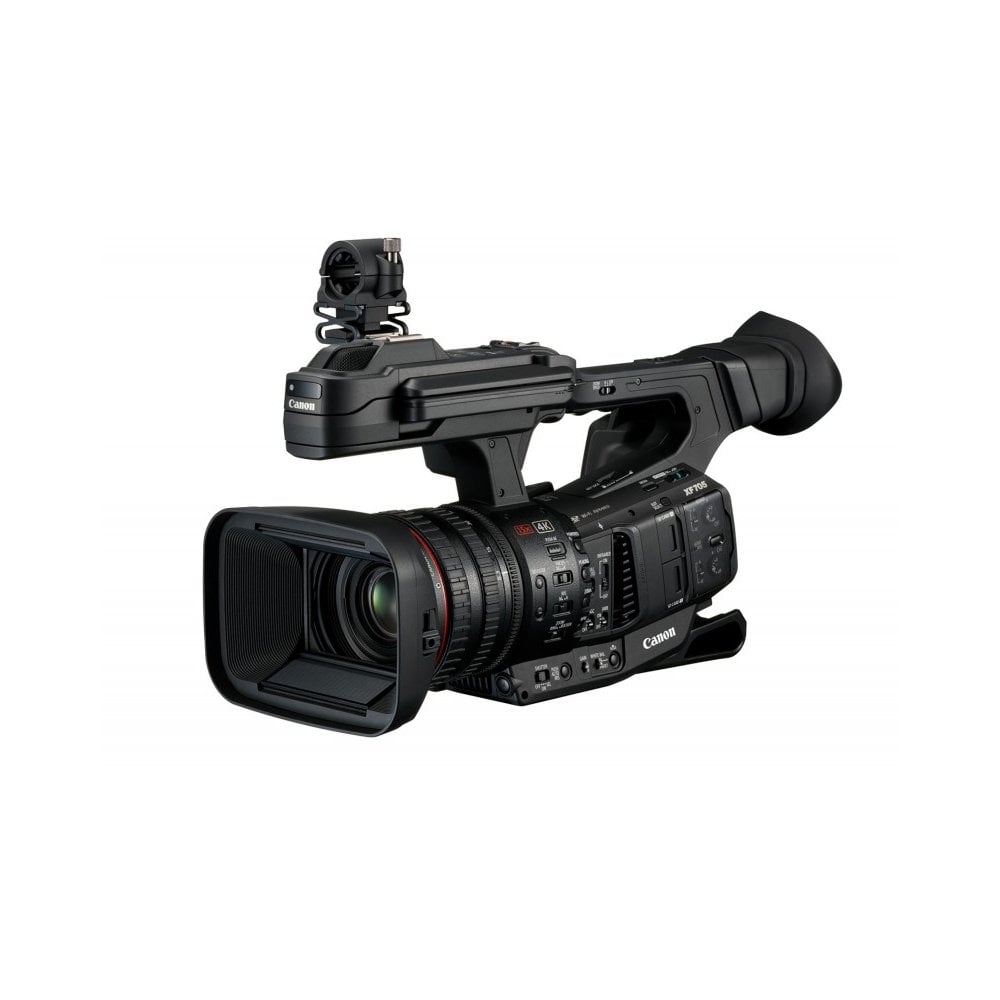

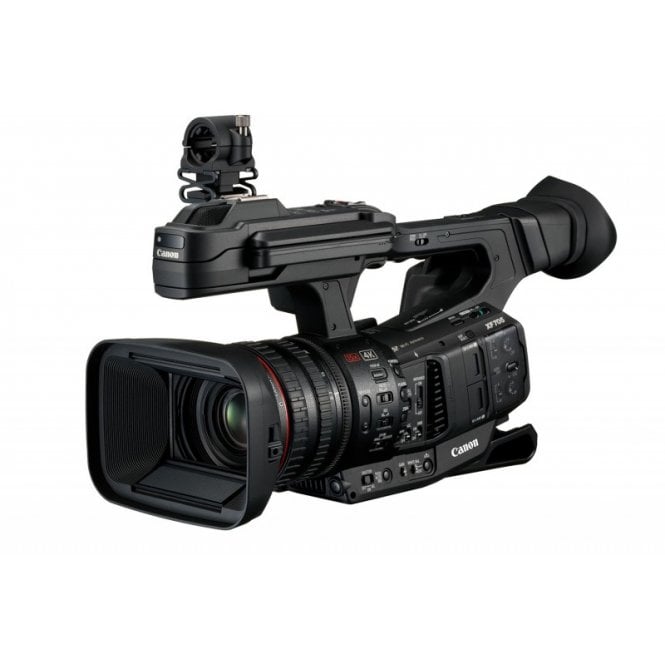

Canon XF705 Camcorder

Canon 3041C007AA  (XF/705 , XF-705 , XF 705) XF705 Camcorder

Canon UK has launched the newest addition to its XF range of camcorders – the XF705. Equipped with the next-generation XF-HEVC format, XF705 offers 4K UHD 50P 4:2:2 10-bit recording to SD cards, with impressive image quality and superior levels of detail. Combined with a 1.0 type CMOS sensor and DIGIC DV6 processing, the XF705 delivers vastly improved noise performance, sensitivity and cinematic depth of field. With a host of enhanced HDR capabilities, including an advanced 12G-SDI interface and IP streaming, the XF705 is poised to revolutionise UHD HDR production workflows for the better.

Versatile file formats to transform workflows:

Underpinned by High Efficiency Video Codec (HEVC) video compression, and leveraging the industry standard Material eXchange Format (MXF) as the container, Canon has developed the XF-HEVC file format. HEVC offers a newer encoding technology that is about twice as efficient as mainstream H.264/AVC. By using XF-HEVC the XF705 streamlines the handling of 4K UHD data, offering the ability to record high-quality 4K UHD 50P 4:2:2 10-bit files directly to widely available SD cards.

The XF705 is capable of recording HDR files internally using both the Hybrid Log Gamma (HLG) and Perceptual Quantisation (PQ) HDR formats. The camcorder also features extensive HDR assist functions to support the user when controlling exposure. The XF705 can also output a SDR signal at the same time as recording a HDR file internally to a SD card, enabling simultaneous HDR/SDR production. Equipped with an advanced 12G-SDI interface, which sends a high-quality and uncompressed UHD 50P signal over a single SDI cable, the XF705 also has the ability to stream 4K UHD HDR using the HEVC format via the network. Ideal for broadcast and video production applications, the XF705 meets the requirements of any user who needs to capture 4K UHD HDR video with a streamlined production workflow.

Shoot with confidence:

To make critical focus easier with the larger 1.0-type CMOS sensor, the XF705 also has Canon’s unique Dual Pixel CMOS AF. This provides accurate and fast autofocus with touch focus control, Face Detection AF and object tracking. The Dual Pixel Focus Guide also provides a graphical guide to support accurate focusing when manually adjusting the focus.

Image capture starts with excellent optical systems and the XF705 offers incredible versatility combined with ease of use. It offers a 4K L-series quality lens which has a 15x optical zoom range, a maximum aperture of f/2.8, a wide angle of 25.5mm and effective IS to ensure maximum control for stable 4K UHD footage. This is combined with three independent control rings with end stops to ensure that the camcorder has the level of manual control that professionals expect.

• Sensor: 1.0-type CMOS
• Filter: RGB Primary Colour Filter
• Total pixels: 13.4 MP
• Effective pixels per sensor: 8.29 MP
• Subject illumination range: Approx. 0.1 lx to 100,000 lx
• Minimum illumination(PAL/50.00Hz Mode): 1.5 lux (with Custom Picture Preset Normal 1: BT.709, full auto mode, shutter speed 1/30 sec)

Lens

• Zoom ratio: 15 x Optical (UHD Mode) 30 x Advanced Zoom Mode (FHD Only)
• Focal length: 8.3 to 124.5 mm, 35mm equivalent:Approx. 25.5 -382.5 mm, Dynamic IS Mode: Approx. 28.3 -424.6 mm
• Minimum focus distance: 10 mm at wide end, 60 cm across entire zooming range
• ND filter: 3 densities: turret switched, motor-driven.ND 1/4, ND 1/16, and ND 1/64.
• Zoom control: Via Zoom Rocker Switch, Lens Control Ring or Remote Control
• Zoom speed: Selectable. Variable or constant speed. Fast, Normal or Slow speed.
• Focus control: Dual Pixel CMOS AF, Face Only, Face Priority, One-Shot AF, AF boosted MF, Focus Assist feature, Manual via Lens Ring,
• Iris control: Manual via Iris Control Ring, Auto, Push Auto Iris
• Aperture: 9-blade Iris, Max f/2.8 -4.5, Filter diameter 58mm
• Lens elements/groups: 14 groups of 18 elements (double aspherical lenses and single Hi-UD lenses)
• Image stabilization system: Optical system + Electronic StabilisationPowered IS/Dynamic/Standard Mode/IS Off
• Digital zoom/Teleconverter: Yes. 300 X Digital Zoom, 1.5/3.0/6.0 X Digital Teleconverter.

Image Processor

• Type: Dual DIGIC DV6
• Dynamic Range: 12-stops (800%) in Canon Log3 or Wide DR mode
• Sample Depth: XF-HEVC: 4:2:2 10-bit, XF-AVC: 4:2:0 8-bit
• Custom Picture Settings: Preset: Normal 1 : BT.709 (Normal 1 (STANDARD) / BT.709 / Video), Normal 1 : BT.2020 (Normal 1 (STANDARD) / BT.2020 / Video), WideDR : BT.709 (Wide DR / BT.709 / Video), WideDR : BT.2020 (Wide DR / BT.2020 / Video)

Recording

• Video storage media: SD/SDHC/SDXC card, 2 card slots
• Type: Class U3 recommended for recording at 160MBPS
• Recording time (64GB Card, approx.): XF-HEVC; 160 Mbps: 50 Minutes. 60 Mbps: 140 Mins, 45 Mbps,185 Mins.
• Recording file system: FAT32/exFAT
• Recording file format: MXF
• Internal Recording format: XF-HEVC: H.265/HEVC, Resolution 3840 x 2160 / 1920 x 1080Colour sampling YCC 4:2:2 10-bit, Bit rate: 3840 x 2160: 160 Mbps /110 Mbps (Long GOP)1920 x 1080: 60 Mbps /45 Mbps(Long GOP), XF-AVC: MPEG-4 AVC/H.264
• Resolution 1920 x 1080, Colour sampling YCC 4:2:0 8-bit, Bit rate 45 Mbps (Long GOP)

Audio

• Recording: Linear PCM: 24-bit / 48 kHz / 4 channels (4.5 Mbps), EBU/AES3 Standard; 48kHz/24-bit/2-ch
• Control: Manual or Auto
• Reference Tone: 1KHz, -12dB / -18dB / -20dB / Off
• Microphone level meter: Yes

System

• Type: LCD Capacitive touch panel
• Size: 4-inch (10.1 cm)
• Dots: Approx. 1.23 million dots
• Adjustable: Yes
• Touch Screen Focus Point Selection: Yes. AF point selection, Face AF subject selection. Manual Focus: Focus Assist Reference Point Selection
• Focus Assist: Yes. Focus Guide Function in MF
• Peaking: Yes. Selectable Peaking Colour: Red / Blue / Yellow
• Zebra: Yes. 70%, 100%
• Markers: Yes. Horizontal (grey) / Horizontal (white) / Grid (grey) / Grid (white)

CVF

• Type: Wide Screen Organic EL display
• Size: 0.46-inch
• Dots: approx. 1.77 million dots
• Adjustable: Yes
• Viewing Angle: 100%
• Correction lens : +2.0 --5 dioptre

Inputs/Outputs

• Audio in: XLR 3-pin jacks (x2), balanced on Handle Unit. 3.5mm Stereo jack (unbalanced) on camera body
• Headphone output: Yes. 3.5mm
• Video monitor output: No
• HDMI: Yes
• USB: Yes. Min-B and Hi-Speed USB supported
• SDI output: Yes. BNC Connector, [HD]: SMPTE ST 292, [3G]: SMPTE ST 424, 425, [6G]: SMPTE ST 2081, [12G]: SMPTE ST 2082

In The Box

• 1x Canon XF705 Camcorder
• 1x Lens cap
• 1x Lens hood with barrier
• 1x Mic holder unit (with screws)
• 1x Shoulder strap (SS-1200)
• 1x Wireless Controller (WL-D6000)
• 1x Lithium battery (CR2025)
• 1x Compact Power Adapter (CA-CP200L)
• 1x AC cable
• 1x Battery Pack BP-A3
• 1x Battery Charger (CG-A20)
• 1x Eyecup
