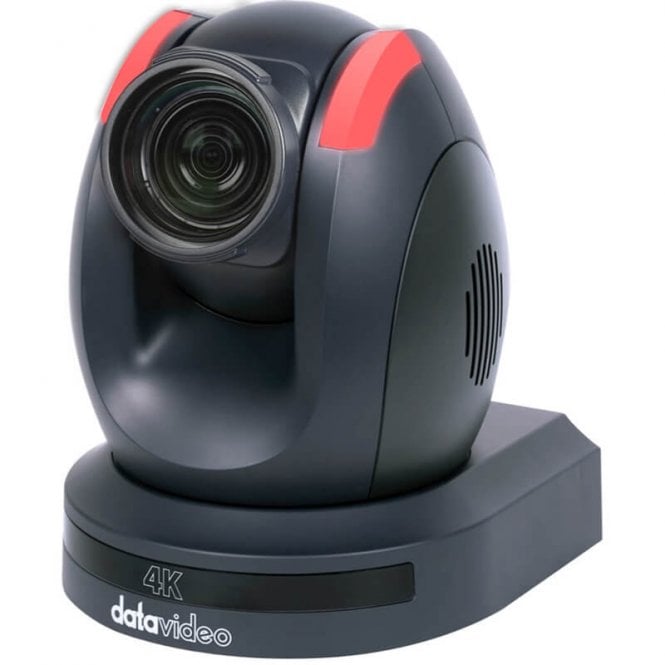

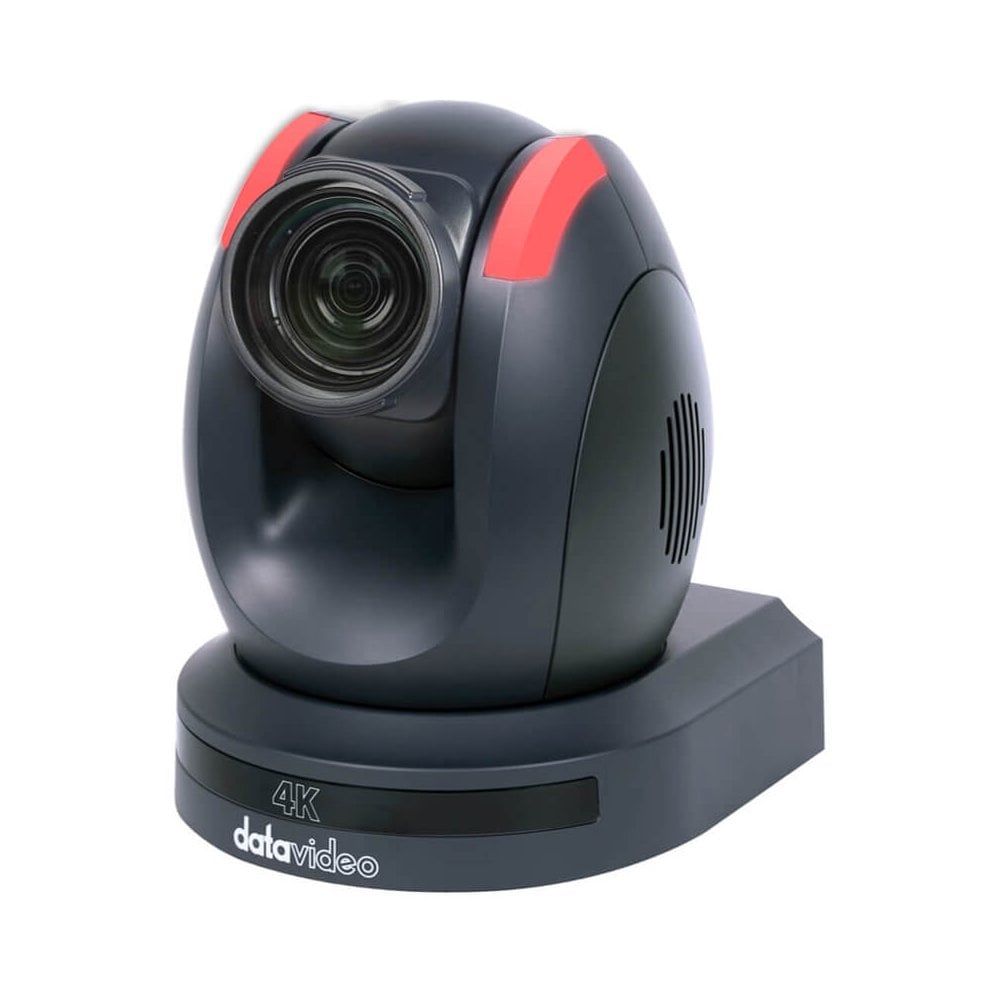

Datavideo Ptc-285 Uhd Ptz Camera

Datavideo Ptc-285 Uhd Ptz Camera(DATA-PTC285)

BRAND NEW 4K AI TRACKING PTZ CAMERA

Live productions depend on high performance cameras and camera controllers.

Datavideo is introducing the 4K50/60p Ai tracking PTZ camera , PTC-285 can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.

SIMULTANEOUS OUTPUTS

Connect your PTC-285 to multiple devices in your workflow for flexibility. All the outputs are active at the same time.

QUICK ACCESS TO CAMERA'S AI TRACKING

You will be allowed direct access to AI tracking via various external controllers such as the supplied RMC-1 remote control and DVIP controllers (RMC-300A, RMC-180 MARK II and PTC View Assist).

CUSTOM AI OBJECT TRACKING

If you are filming multiple people, you can designate a person for AI tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

SMART PTZ SPEED ADAPTATION

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

S-SHAPED SPEED CURVE

Just like how the lift accelerates or decelerates, the camera lens movement will be smooth, avoiding jerky movements that are visible to naked eyes.

SIMPLY ENABLE AI TRACKING WITH YOUR IR REMOTE CONTROL

RMC-1 PTZ Controller. All you need is a remote control to set and control all four cameras and save the four presets.

PTZ VIEW ASSIST: CONTROL UP TO FOUR CAMERAS

The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285 and PTC-300 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.

Image Sensor 1/2.8"-Type CMOS

Sensor Resolution Effective: 8.51 Megapixel

Built-In ND Filter None

Focus Control Autofocus

Manual Focus

Exposure Control

Shutter Speed 1/10000 to 1/30 Second

Signal-to-Noise Ratio 55 dB

Minimum Illumination 0.5 Lux

Flip / Mirror Support Image Flip, Mirror (Vertical)

White Balance Presets: Auto, Indoors, Manual, One Push, Outdoors

Lens

Focal Length 4.4 to 52.8mm

Optical Zoom Ratio 12x

Max Digital Zoom 16x

Field of View Horizontal: 80°

Maximum Aperture f/1.8 to 2.6

Video Capture

External Recording Modes HDMI / RJ45

3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps

1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps

1280 x 720 at 50/59.94/60.00 fps

SDI/BNC

1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps

1280 x 720 at 50/59.94/60.00 fps

Embedded Audio HDMI

SDI

LAN (RJ45)

Broadcast Output NTSC/PAL

IP Streaming H.264, H.265, MJPEG

320 x 240 to 3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p, 60p (50.00 Mb/s)

IP Multi-Stream Support Simultaneous

H.264, H.265, MJPEG: 2160p, 1080p, 720p, 480p, 360p

Control

Presets 255 via IR, RS-232, VISCA

Move Speed Pan: 0.87 to 43°/sec

Tilt: 0.69 to 21.32°/sec

Movement Range Pan: 300°

Tilt: 145° (-15 to 130°)

Tally Light Yes

Supported Control Protocols IP

IR

Pelco-D

Pelco-P

RS-232

VISCA

Interface

Video I/O 1 x BNC (3G-SDI) Output

1 x HDMI 2.0 Output

Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input

Other I/O 1 x RJ45 (Gigabit Ethernet) Control/Data/Video Input/Output

1 x USB-A (USB 2.0) Data Input

1 x RJ45 (RS-422) Control Input/Output

Built-In Speaker No

Power

PoE Support PoH 802.3at, PoE 802.3af

Power I/O 1 x DC (12VDC) Input

Power Consumption Device: 21 W

Environmental

Operating Temperature 32 to 72°F / 0 to 40°C

General

Mounting 1 x 1/4"-20 Female for Tripod

Mobile App Compatible No

*As of November, 2022: Check with manufacturer for the most up-to-date compatibility

Dimensions (W x H x D) 8.6 x 7.44 x 6.8" / 219 x 189.08 x 173 mm

Weight 5.7 lb / 2.6 kg

In the Box

1x PTC-285 product

1x RMC-1 IR remote controller

1x Ceiling mount bracket-A

1x Ceiling mount bracket -B

6x Ceiling mount bracket screw M3*4mm

1x DC 12V Power Adaptor

1x A tightrope
