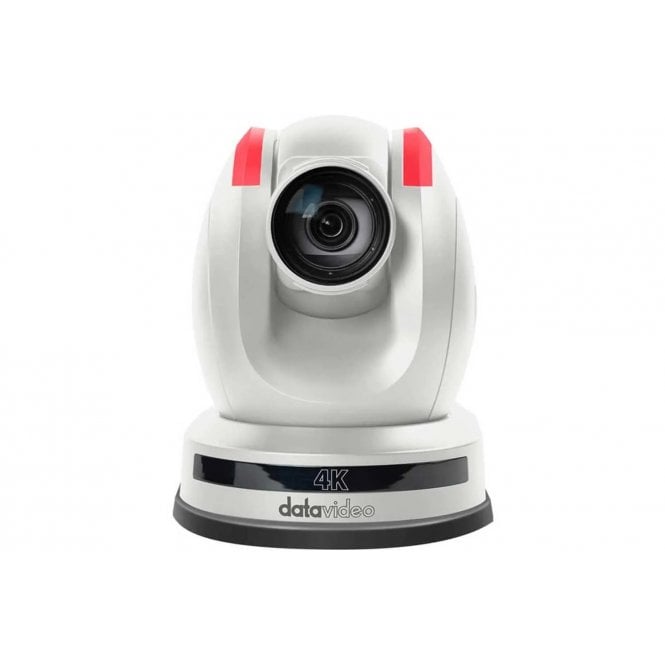

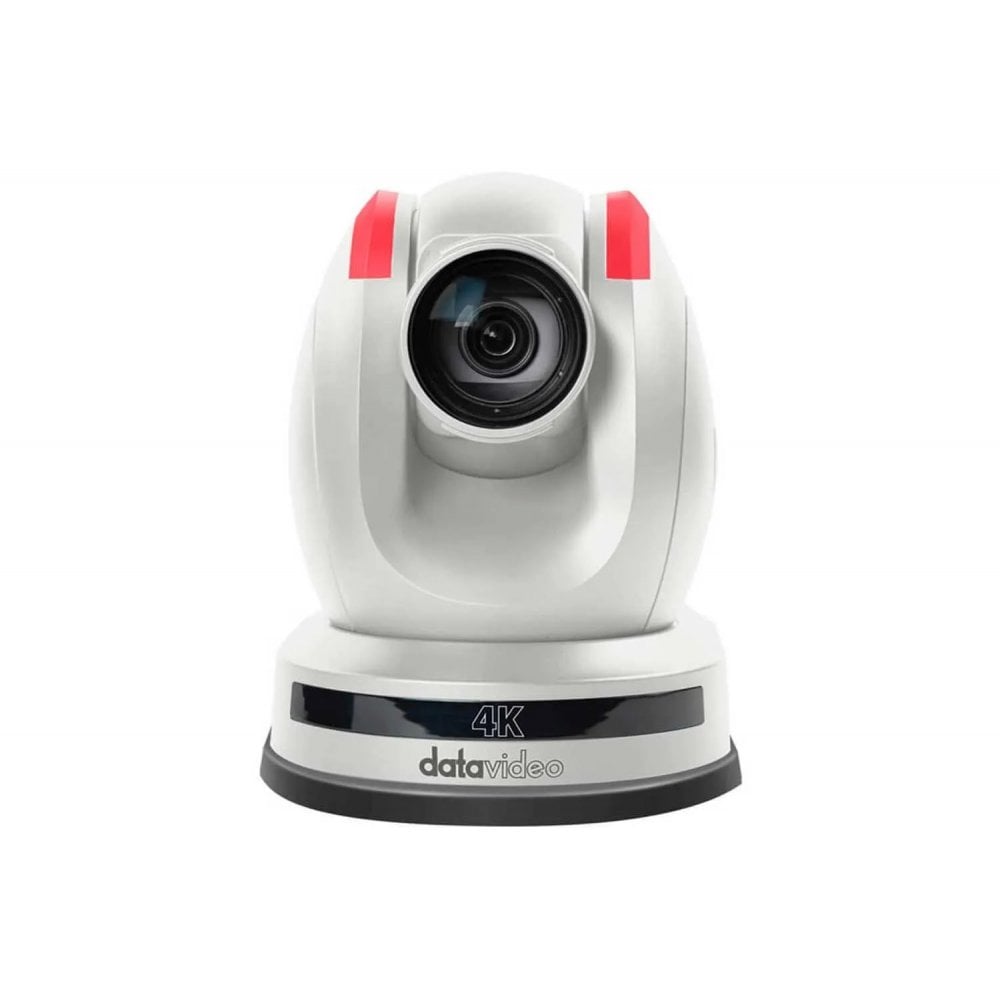

Datavideo Ptc-285 Uhd Ptz Camera w Auto Tracking (White)

Datavideo Ptc-285 Uhd Ptz Camera w Auto Tracking (White)(DATA-PTC285W)

4K AUTO TRACKING PTZ CAMERA WITH HDBASET

Live productions depend on high performance cameras and camera controllers.

Datavideo is introducing the 4K50/60p auto tracking PTZ camera, PTC-285T can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.

This HDBaseT version allows single CAT-6 cable to transfer video, control, power, and tally.

ONE CABLE SOLUTION

HDBaseT allows you to transmit power, HD video, control, and tally over a single Ethernet cable.

QUICK ACCESS TO CAMERA'S AUTO TRACKING

You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1 remote control and DVIP controllers (RMC-300A, RMC-180 MARK II and PTC View Assist).

In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include KMU-200, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Smart Classroom.

Custom Auto Tracking

If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

Smart PTZ Speed Adaptation

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

S-SHAPED SPEED CURVE

Just like how the lift accelerates or decelerates, the camera lens movement will be smooth, avoiding jerky movements that are visible to naked eyes.

SIMPLY ENABLE AUTO TRACKING WITH YOUR IR REMOTE CONTROL

RMC-1 PTZ Controller. All you need is a remote control to set and control all four cameras and save the four presets.

PTZ VIEW ASSIST: CONTROL UP TO FOUR CAMERAS

The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285 and PTC-300 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.

The app is able to decode the live streaming via RTSP, SRT, and NDI. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!

LOW NOISE IN LOW LIGHT

Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

MULTIPLE SIMULTANEOUS VIDEO OUTPUTS

Supports simultaneous HDMI 2.0 and HDBaseT/IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.

MULTIPLE NETWORK PROTOCOL WITH DUAL STREAM FUNCTION

Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

COMPATIBLE WITH VARIOUS CONTROLLER

Control real-time pan, tilt, and zoom camera movements with Datavideo HS-1600T MARK II, PTZ View Assist APP, RMC-300A and RMC-180 series. With configurable preset positions supported.

RS-422, DVIP AND ETHERNET CAMERA CONTROL

RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

POWER OVER ETHERNET

The PTC-285T supports PoE and HDBastT for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-285T.

TALLY LIGHT

Green and red lights tally to show the preview and program status for broadcast applications.WIDE 80° FIELD OF VIEW

PTC-285T provides a wide Field of View of 80°, easily shooting all the scenes in the field.

SUPPORTS H.264/H.265 VIDEO COMPRESSION

Support compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480 with 29.97fps compression. AAC, MP3 and PCM audio compression also supported.

REMOTE CONTROL FROM ANYWHERE IN THE WORLD

Control the PTZ camera at the venue from anywhere in the world using the BB-1 KIT and dvCloud streaming service.

Video format/Resolution 2160p60/59.94/50/30/29.97/25

1080p60/59.94/50/30/29.97/25

1080i60/59.94/50

720p60/59.94/50

*2160p60/59.94/50 YUV 4:2:2

Image Sensor 1/2.8" CMOS

Effective Pixels (approx.) 8.51Mega Pixels

S/N Ratio ≥55dB

Min. Illumination 0.5 Lux @ (F1.8, AGC ON)

Electronic Shutter 1/30s ~ 1/10000s

Zoom Ratio 12x Optical Zoom, 16x Digital Zoom

Gamma Control Off / Normal

Iris Control Auto / Manual

Digital Noise Reductions 3D

On-Screen Display (OSD) English/Simplified Chinese/Traditional Chinese

White Balance Auto, Indoor, Outdoor, OnePush, Manual, VAR

AGC / Gain Control Yes

Mirror / Flip Image Yes

Focus Mode Auto/Manual

Panning / Tilting Range Pan: 300°

Tilt: +130° to -15°

Panning / Tilting Speed Pan: 0.876°/s~43°/s

Tilt: 0.693°/s ~21.32°/s

Preset 255

Focal Length 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6

Field of View (Horizontal, Wide) 80°

Image Compensation Back light compensation

Video Output HDMI 2.0 x1

3G-SDI x1

10/100/1000M RJ45 (PoE) x1

Audio Input 3.5 mm x1 (mic in/line in)

switch from Web UI

Tally LED Yes

Lens Filter N/A

Control Protocol Pelco-D, Pelco-P,

VISCA, VISCA over IP,

DVIP

Remote Control Interface IR

Web UI

RS-422

DVIP

Video Compression Format H.264/H.265/MJPEG

Audio Compression Format AAC

Audio Bitrate 96Kbps, 128Kbps

HD IP Interface ----

Streaming Protocols TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast

First Stream Supported Resolution 3840x2160

1920x1080

1280x720

1024x576

960x540

640x480

640x360

Second Stream Supported Resolution 720x480

640x360

480x270

320x240

Video Bitrate 32Kbps ~ 50Mbps (Single Stream)

Video Bitrate Mode VBR, CBR

Encoding Frame rate 50Hz: 1-50fps

60Hz: 1-60fps

POE IEEE 802.3at

F/W Update Via Web UI or USB 2.0

IR Control Yes

Camera Control Unit RMC-180 series/ RMC-300C /PTZ View Assist APP

Tripod Mount 1/4-20 UNC

Optional Accessories WM-1/ WM-10/ WM-11

Colour White

Dimension (LxWxH) 173 (W) x 219 (H) x 189.08 (D)

Weight 2.6 kg

Operating Temp. Range 0~40 °C

Power DC 12V 21W
