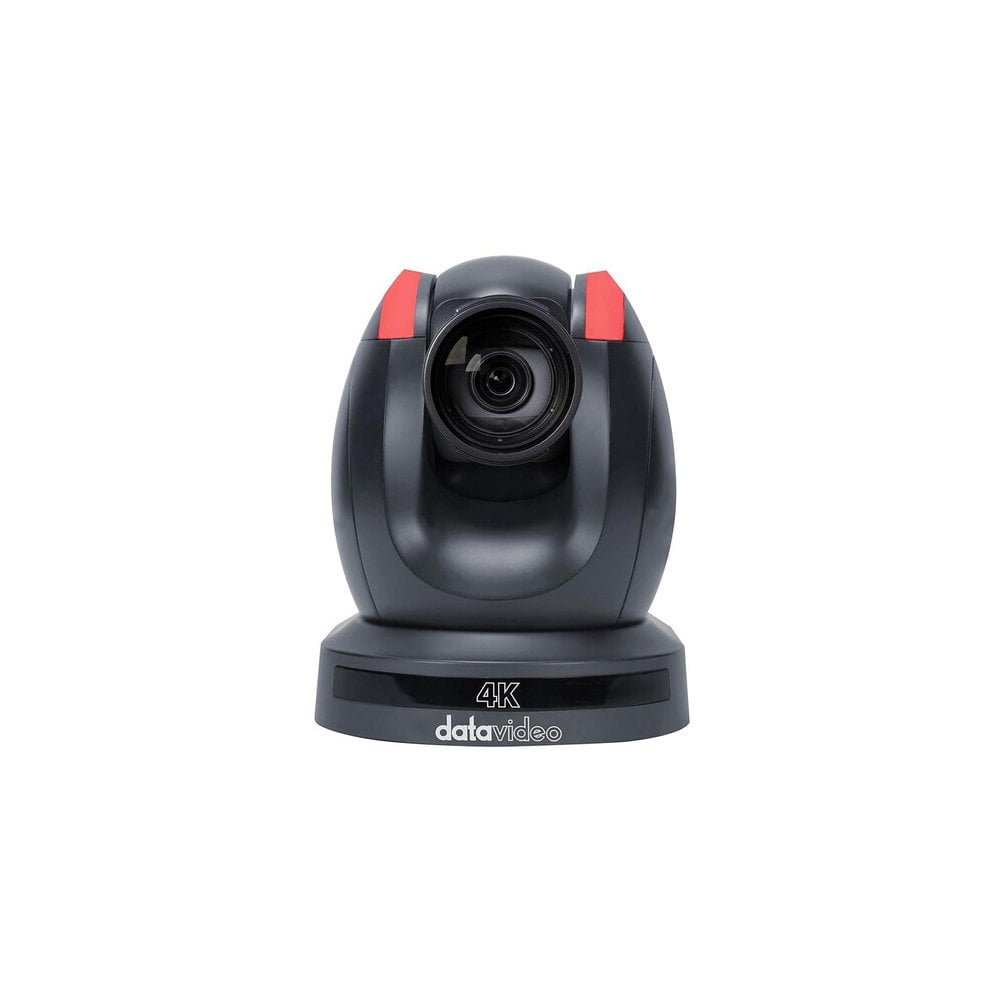

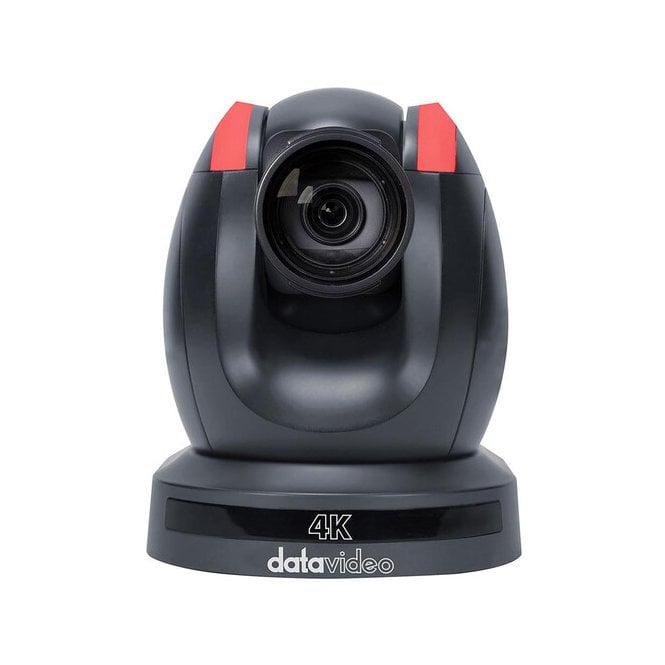

Datavideo Ptc280 4K(Uhd) Ptz Camera

Datavideo Ptc280 4K(Uhd) Ptz Camera(DATA-PTC280)

Integrate a fully functional PTZ camera and HDBaseT transmitter into your conference room or lecture hall with this PTC-280 PTZ Camera and HBT-15 HDMI to HDBaseT Transmitter bundle from Datavideo. One PTZ camera with 12x optical zoom can transmit its 4K UHD video via the HBT-15 HDBaseT transmitter box. A single Ethernet connection runs power, video, and camera control between the two devices for flexible placement.

Datavideo 4K HDMI/3G-SDI PTZ Camera with 12x Optical Zoom (Black)

Add a high-resolution PTZ camera to your conference room, education setting, live event, house of worship, or remote video conference with this black 4K HDMI/3G-SDI PTZ Camera with 12x Optical Zoom from Datavideo. The camera features remote pan, tilt, and zoom control via a remote control or via IP and serial protocols, and its built-in zoom lens offers an optical zoom range of 12x with a 16x digital zoom to view just about any angle in your setting. The camera supports frame rates and resolutions up to 4K, allowing you to utilize high-quality video for your broadcasts and internet streams. The camera sends video over its HDMI and/or 3G-SDI ports to compatible HDMI or SDI video converters, switchers, recorders, or other devices. It can also live stream video via the LAN Ethernet port.

With 255 programmable preset positions, you can set the camera to rapidly move between positions using a variety of protocols including DVIP over your LAN, RS-422 using an optional serial controller, or IR control using the included IR remote. The camera compresses using the common, high-quality H.264 and H.265 protocols for streaming over your LAN, and you can simultaneously encode two live video streams using standard RTSP or RTMP protocols that are compatible with a variety of Internet streaming sites. The camera also supports external audio input via its 3.5mm stereo line-level input, and you can mount the camera via the 1/4"-20 threaded mounting thread. There is a red/green tally light on the camera so your room will know whether the camera is on or off.

The camera is powered by the included power adapter, and it includes a ceiling mount bracket. You can utilize the separately available WM-1, WM-10, or WM-11 wall mount kits if you prefer to mount the camera on a wall.

VIDEO FORMAT/RESOLUTION

HDMI:

2160p 60/59.94/50/30/29.97/25

1080p 60/59.94/50/30/29.97/25

1080i 60/59.94/50

720p 60/59.94/50



SDI:

1080p 60/59.94/50/30/29.97/25

1080i 60/59.94/50

720p 60/59.94/50



(2160p 60/59.94/50 YUV 4:2:0 only)

IMAGE SENSOR

1/2.5" CMOS

EFFECTIVE PIXELS (APPROX.)

8.51Mega Pixels

S/N RATIO

≥55dB

MIN. ILLUMINATION

0.5 Lux @ (F1.8, AGC ON)

ELECTRONIC SHUTTER

1/30s ~ 1/10000s

ZOOM RATIO

12x Optical Zoom, 16x Digital Zoom

GAMMA CONTROL

Off / Normal

IRIS CONTROL

Auto / Manual

DIGITAL NOISE REDUCTIONS

2D/3D

ON-SCREEN DISPLAY (OSD)

English/Simplified Chinese/Traditional Chinese

WHITE BALANCE

Auto, Indoor, Outdoor, OnePush, Manual, VAR

AGC / GAIN CONTROL

Yes

MIRROR / FLIP IMAGE

Yes

FOCUS MODE

Auto/Manual

PANNING / TILTING RANGE

Pan: 300°

Tilt: +130° to -15°

PANNING / TILTING SPEED

Pan: 0.876°/s~43°/s

Tilt: 0.693°/s ~21.32°/s

PRESET

255

FOCAL LENGTH

12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6

FIELD OF VIEW (HORIZONTAL, WIDE)

71°

IMAGE COMPENSATION

Back light compensation

VIDEO OUTPUT

HDMI 2.0 x1

3G-SDI x1

10/100/1000M RJ45 x1

AUDIO INPUT

3.5mm x1

TALLY LED

Yes

LENS FILTER

N/A

CONTROL PROTOCOL

Pelco-D, Pelco-P,

VISCA, VISCA over IP

DHCP, RTSP, RTMP (IP Cam), RTMPS,

DVIP

REMOTE CONTROL INTERFACE

IR

Web UI

RS-422

DVIP

VIDEO COMPRESSION FORMAT

H.264/H.265/MJPEG

AUDIO COMPRESSION FORMAT

AAC

AUDIO BITRATE

96Kbps, 128Kbps, 256Kbps

HD IP INTERFACE

----

STREAMING PROTOCOLS

TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast

FIRST STREAM SUPPORTED RESOLUTION

3840x2160

1920x1080

1280x720

1024x576

960x540

640x480

640x360

SECOND STREAM SUPPORTED RESOLUTION

1280x720

1024x576

720x576 (50Hz)

720x480 (60Hz)

720x408

640x360

480x270

320x240

VIDEO BITRATE

32Kbps ~ 50Mbps (Single Stream)

VIDEO BITRATE MODE

VBR, CBR

ENCODING FRAME RATE

50Hz: 1-50fps

60Hz: 1-60fps

POE

Yes.

IEEE 802.3AT.

F/W UPDATE

Via Web UI or USB 2.0

IR CONTROL

Yes

CAMERA CONTROL UNIT

RMC-180 series/RMC-300 series/PTZ View Assist APP

TRIPOD MOUNT

1/4-20 UNC

OPTIONAL ACCESSORIES

WM-1/ WM-10/ WM-11

COLOR

Dark Blue/White

DIMENSION (LXWXH)

173 (W) x 219 (H) x 189.08 (D)

WEIGHT

2.8 kg

OPERATING TEMP. RANGE

0~40 °C

POWER

DC 12V 12W

In the Box

1 x PTC-280 product

1 x IR remote controller

1 x Ceiling mount bracket - A

1 x Ceiling mount bracket - B

6 x Ceiling mount bracket screw M3*4mm

1 x DC 12V Power Adaptor

1 x Safety cable
