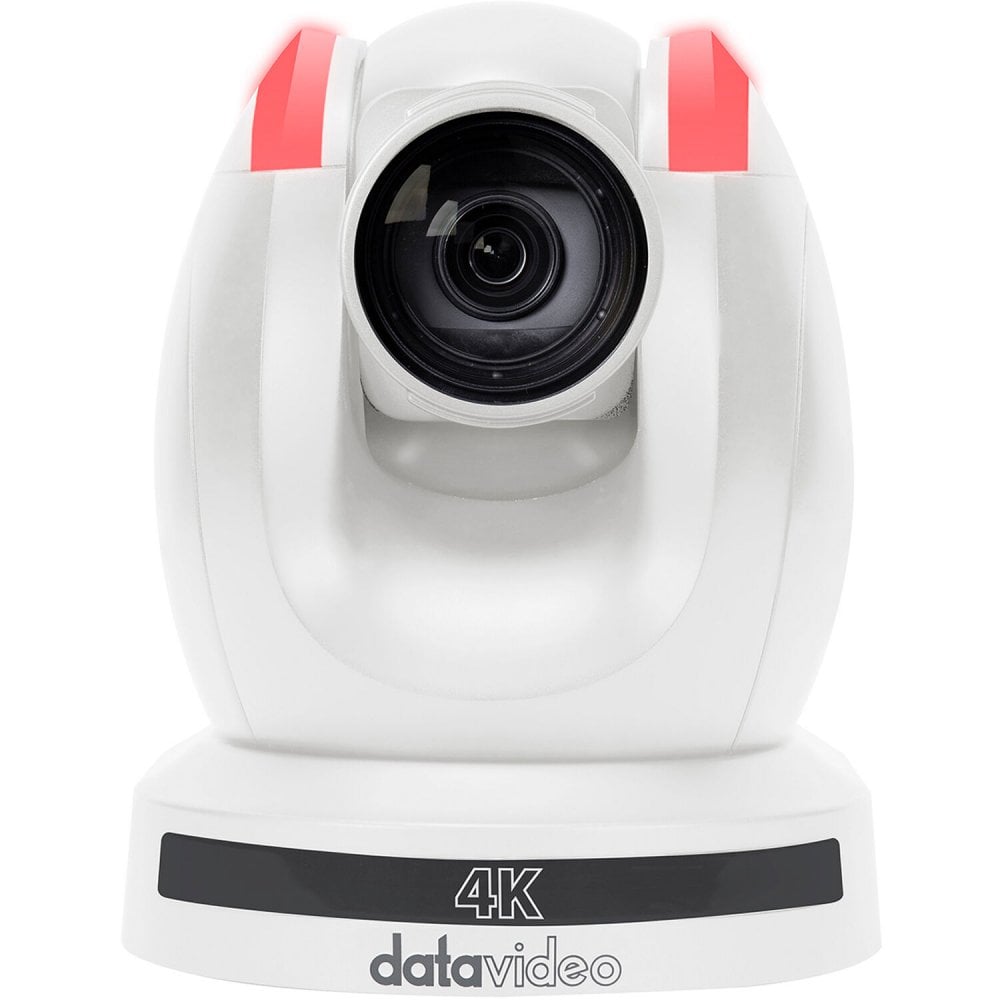

Datavideo Ptc280w 4K(uhd) Ptz Camera (white)

DataVideo Ptc280w 4K(uhd) Ptz Camera (white)(DATA-PTC280W)

Add a high-resolution PTZ camera to your conference room, education setting, live event, house of worship, or remote video conference with this white 4K HDMI/3G-SDI PTZ Camera with 12x Optical Zoom from Datavideo. The camera features remote pan, tilt, and zoom control via a remote control or via IP and serial protocols, and its built-in zoom lens offers an optical zoom range of 12x with a 16x digital zoom to view just about any angle in your setting. The camera supports frame rates and resolutions up to 4K, allowing you to utilize high-quality video for your broadcasts and internet streams. The camera sends video over its HDMI and/or 3G-SDI ports to compatible HDMI or SDI video converters, switchers, recorders, or other devices. It can also live stream video via the LAN Ethernet port.

With 255 programmable preset positions, you can set the camera to rapidly move between positions using a variety of protocols including DVIP over your LAN, RS-422 using an optional serial controller, or IR control using the included IR remote. The camera compresses using the common, high-quality H.264 and H.265 protocols for streaming over your LAN, and you can simultaneously encode two live video streams using standard RTSP or RTMP protocols that are compatible with a variety of Internet streaming sites. The camera also supports external audio input via its 3.5mm stereo line-level input, and you can mount the camera via the 1/4"-20 threaded mounting thread. There is a red/green tally light on the camera so your room will know whether the camera is on or off.

The camera is powered by the included power adapter, and it includes a ceiling mount bracket. You can utilize the separately available WM-1, WM-10, or WM-11 wall mount kits if you prefer to mount the camera on a wall.

Image Sensor 1/2.5"-Type CMOS

Sensor Resolution Effective: 8.51 Megapixel

Built-In ND Filter None

Focus Control Autofocus

Manual Focus

Exposure Control

Shutter Speed 1/10000 to 1/30 Second

Signal-to-Noise Ratio 55 dB

Minimum Illumination 0.5 Lux

Lens

Focal Length 6.7 to 125mm

Optical Zoom Ratio 12x

Max Digital Zoom 16x

Maximum Aperture f/1.58 to 3.95

Video Capture

External Recording Modes HDMI

3840 x 2160 at 25/29.97/29.97/50/59.94/59.94 fps

1920 x 1080p at 25/29.97/29.97/50/59.94/59.94 fps

1920 x 1080i at 50/59.94/59.94 fps

1280 x 720 at 50/59.94/59.94 fps

SDI/BNC

1920 x 1080p at 25/29.97/29.97/50/59.94/59.94 fps

1920 x 1080i at 50/59.94/59.94 fps

1280 x 720 at 50/59.94/59.94 fps

Broadcast Output NTSC

IP Streaming H.264, H.265, RTMP, RTSP

3840 x 2160

4096 x 2160

1920 x 1080

1280 x 720

720 x 480

480 x 360

Control

Presets 255 via IR, RS-232, VISCA

Move Speed Pan: 0.87 to 43°/sec

Tilt: 0.69 to 21.32°/sec

Movement Range Pan: 300°

Tilt: 145° (-15 to 130°)

Tally Light Yes

Supported Control Protocols IP

IR

Pelco-D

Pelco-P

RS-232

VISCA

Interface

Video I/O 1 x BNC (3G-SDI) Output

1 x HDMI 2.0 Output

Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Line Input

Other I/O 1 x RJ45 (RS-422) Output

1 x RJ45 (LAN) Control Output

1 x USB-A Input

Power

Power I/O 1 x Barrel (12VDC)

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

General

Mounting 1 x 1/4"-20 Female for Ceiling

Dimensions (W x H x D) 6.8 x 8.6 x 7.4" / 17.3 x 21.9 x 18.91 cm

Weight 98.8 oz / 2.8 kg

In the Box

Datavideo 4K HDMI/3G-SDI PTZ Camera with 12x Optical Zoom (White)

IR Remote Controller

Ceiling Mount Bracket Kit

12 VDC Power Adapter
