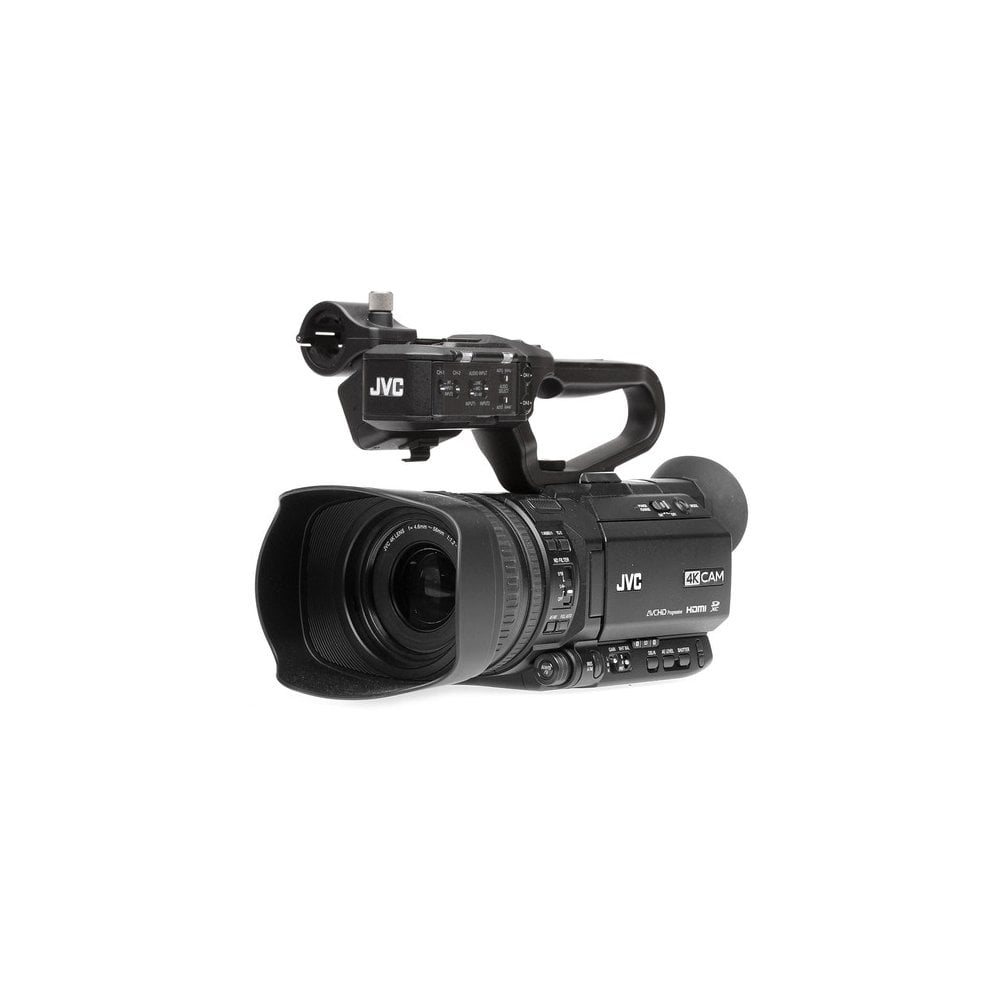

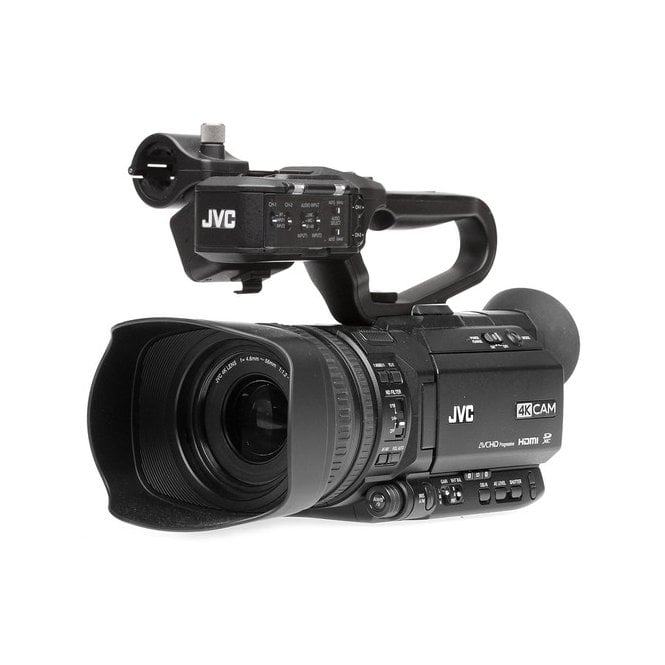

JVC GY-HM250 UHD 4K Streaming Camcorder

JVC GY-HM250 UHD 4K Streaming Camcorder with Built-in Lower-Thirds Graphics(GY-HM250U)

The JVC GY-HM250 UHD 4K Streaming Camcorder with Built-in Lower-Thirds Graphics is a full-featured pro camcorder that enables a single operator to add lower-thirds and titles while recording in HD or streaming—no external character generator or switcher is required. It features a 1/2.3" sensor and captures UHD 4K video at 24/30p, and 4:2:2 4K at 24/30p. This versatile camera offers you the option of recording UHD 4K at rates up to 150 Mb/s to SDXC Class 3 cards or up to 70 Mb/s to SDXC/SDHC Class 10 cards.

The GY-HM250's integrated IP engine enables you to stream Full HD in the field directly from the camcorder and offers remote camera control and monitoring from your mobile device or laptop. Compatible with RTMP, Zixi, and Wowza streaming, the GY-HM250 offers one-click zeroconf configuration when using a common LAN between cameras. A firmware update brings Facebook Live integration to the camera, streamlining the connection process. In HD mode, custom graphics can be created and controlled via a browser-controlled tablet or smartphone. The GY-HM250 also comes with pre-installed color schemes and the ability to upload icons or logos to add a personalized look to your footage.

An integrated 12x zoom lens with a tele-macro function provides a 35mm equivalent focal range of 29.6 to 355mm, and a 24x dynamic zoom mode is available when recording in HD. For composing and monitoring video, the camcorder features a 3.5" LCD, a 0.24" viewfinder, and a smart focus assist function. Additional features include dual SDHC/SDXC card slots, two internal ND filters, and a built-in stereo microphone. Designed to fit into professional workflows, the JVC GY-HM250 camcorder comes with 3G-SDI and HDMI outputs and dual XLR audio inputs. A top handle unit with the integrated audio box, a 7.4 VDC battery, and an AC adapter are included with the camera.

Facebook Live integration simplifies and streamlines by adding it as a menu choice. This is available via a firmware upgrade, which is included with the camera and can be downloaded for free.

UHD 4K Recording with 150 and 70 Mb/s Options

Record UHD 4K at rates up to 70 Mb/s onto lower-cost Class 10 SDHC/SDXC cards, or at 150 Mb/s using SDXC UHS-I Class 3 cards

Add Graphic Overlays in HD or While Streaming

Display custom lower-thirds and titles while recording in HD, or streaming—no external character generator or switcher required

Built-In Streaming Technology



An integrated streaming engine enables the camcorder to live stream Full HD video using RTMP, Zixi, and Wowza

Live 4K 3G-SDI and HDMI Output

Connect a UHD 4K monitor using either the 3G-SDI or HDMI output and view the camera's live 4K signal

4:2:2 4K and Full HD Recording Options



Record broadcast-quality signals in 4:2:2 4K at 24 or 30p, or capture Full HD at 24 to 60p at rates up to 50 Mb/s

Image Sensor

1/2.33"-Type CMOS

Sensor Resolution

Effective: 12.4 Megapixel

Image Stabilization

Optical in Integrated Lens

ISO/Gain Sensitivity

Gain: 0 to 24 dB (30 to 36 dB Extended)

Internal Recording

H.264

3840 x 2160 at 23.98/25/29.97 fps [70 to 150 Mb/s]

1920 x 1080p at 100/23.98/25/50/29.97/120/59.94 fps [35 to 50 Mb/s]

1920 x 1080p at 50/59.94 fps [12 to 28 Mb/s]

1920 x 1080i at 50/59.94 fps [24 to 50 Mb/s]

1440 x 1080i at 50/59.94 fps [5 to 9 Mb/s]

1280 x 720 at 59.94 fps [8 Mb/s]

720 x 576i at 50 fps [8 Mb/s]

960 x 540 at 23.98/25/29.97 fps [3 Mb/s]

720 x 480i at 50/59.94 fps [8 Mb/s]

480 x 270 at 23.98/25/29.97 fps

Video Output

SDI/BNC / HDMI

1920 x 1080p

Media/Memory Card Slot

Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended]

Video I/O

1x BNC (3G-SDI) Output

1x HDMI Output

1x 1/8" / 3.5 mm TRRS A/V (Composite) Output

Mobile App Compatible

No

Battery

JVC BN-VF823

Imaging



Image Sensor

1/2.33"-Type CMOS

Sensor Resolution

Effective: 12.4 Megapixel

Image Stabilization

Optical in Integrated Lens

Built-In ND Filter

Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16) ND Filters

Capture Type

Video Only

Exposure Control

Shutter Type

Electronic Rolling Shutter

Shutter Speed

1/10000 to 1/6 Second

ISO/Gain Sensitivity

Gain: 0 to 24 dB (30 to 36 dB Extended)

White Balance

Range: 2300 to 15,000K

Lens

Focal Length

4.6 to 56mm (35mm Equivalent: 29.6 to 355mm)

Zoom

12x Optical

Maximum Aperture

f/1.2 to 3.5

Filter Size

62 mm

Control Rings

Focus

Zoom

Focus

Focus Mode

Automatic, Manual Focus

Video Capture

Internal Recording

H.264

3840 x 2160 at 23.98/25/29.97 fps [70 to 150 Mb/s]

1920 x 1080p at 100/23.98/25/50/29.97/120/59.94 fps [35 to 50 Mb/s]

1920 x 1080p at 50/59.94 fps [12 to 28 Mb/s]

1920 x 1080i at 50/59.94 fps [24 to 50 Mb/s]

1440 x 1080i at 50/59.94 fps [5 to 9 Mb/s]

1280 x 720 at 59.94 fps [8 Mb/s]

720 x 576i at 50 fps [8 Mb/s]

960 x 540 at 23.98/25/29.97 fps [3 Mb/s]

720 x 480i at 50/59.94 fps [8 Mb/s]

480 x 270 at 23.98/25/29.97 fps

Video Output

SDI/BNC / HDMI

1920 x 1080p

Fast-/Slow-Motion Support

No

Built-In Microphone

Stereo

Audio Recording

AVCHD: 2-Channel, 16-Bit at 48 kHz via LPCM Audio

AVCHD: 2-Channel, 16-Bit at 48 kHz via AC-3 Audio

IP Streaming

H.264, H.265, MPEG2, RTMP, RTP, RTSP, ZIXI

1920 x 1080 at 50i, 59.94i (3.0 to 12.00 Mb/s)

1280 x 720 at 25p, 29.97p, 50p, 59.94p (1.5 to 12.00 Mb/s)

720 x 576 at 50i (0.3 to 8.0 Mb/s)

720 x 480 at 59.94i (0.3 to 8.0 Mb/s)

640 x 360 at 25p, 29.97p, 50p, 59.94p

Interface

Media/Memory Card Slot

Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended]

Internal Storage

No

Video I/O

1x BNC (3G-SDI) Output

1x HDMI Output

1x 1/8" / 3.5 mm TRRS A/V (Composite) Output

Audio I/O

2x XLR 3-Pin Input (+48 V Phantom Power)

1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output

1x 1/8" / 3.5 mm TRS Stereo Microphone Input (Plug-in Power)

Power I/O

1x Barrel (12VDC) Input

Other I/O

1x USB-A (USB 2.0) Data Output

1x Mini-USB (USB 2.0) Output

1x 2.5 mm Sub-Mini Control Input

Wireless

Wi-Fi

*Via Optional Adapter

Mobile App Compatible

No

Global Positioning (GPS, GLONASS, etc.)

No

Monitor

Display Type

Primary Monitor: Articulating 3.5" Non-Touchscreen LCD

Viewfinder

Type

Electronic (LCOS)

Resolution

1,560,000 Dot

Power

Battery

JVC BN-VF823

Power Consumption

≥7.9 W

Environmental

Operating Conditions

32 to 72°F / 0 to 40°C at 30 to 80% Humidity

Storage Conditions

-4 to 122°F / -20 to 50°C

General

Tripod Mount

1/4"-20 Female

Accessory Mounting Thread

1x 1/4"-20

Dimensions (W x H x D)

12.1 x 7.5 x 5.9" / 307 x 191 x 149 mm (With Handle)

Weight

3.53 lb / 1.6 kg (Body Only)

Packaging Info

Package Weight

6.02 lb

Box Dimensions (LxWxH)

13.5 x 11 x 9.99"

In the Box

JVC GY-HM250 UHD 4K Streaming Camcorder with Built-in Lower-Thirds Graphics

Handle Unit

JVC SSL-JVC50 7.4V IDX Lithium-Ion Battery for JVC Camcorders

AC Adapter

Lens Hood
