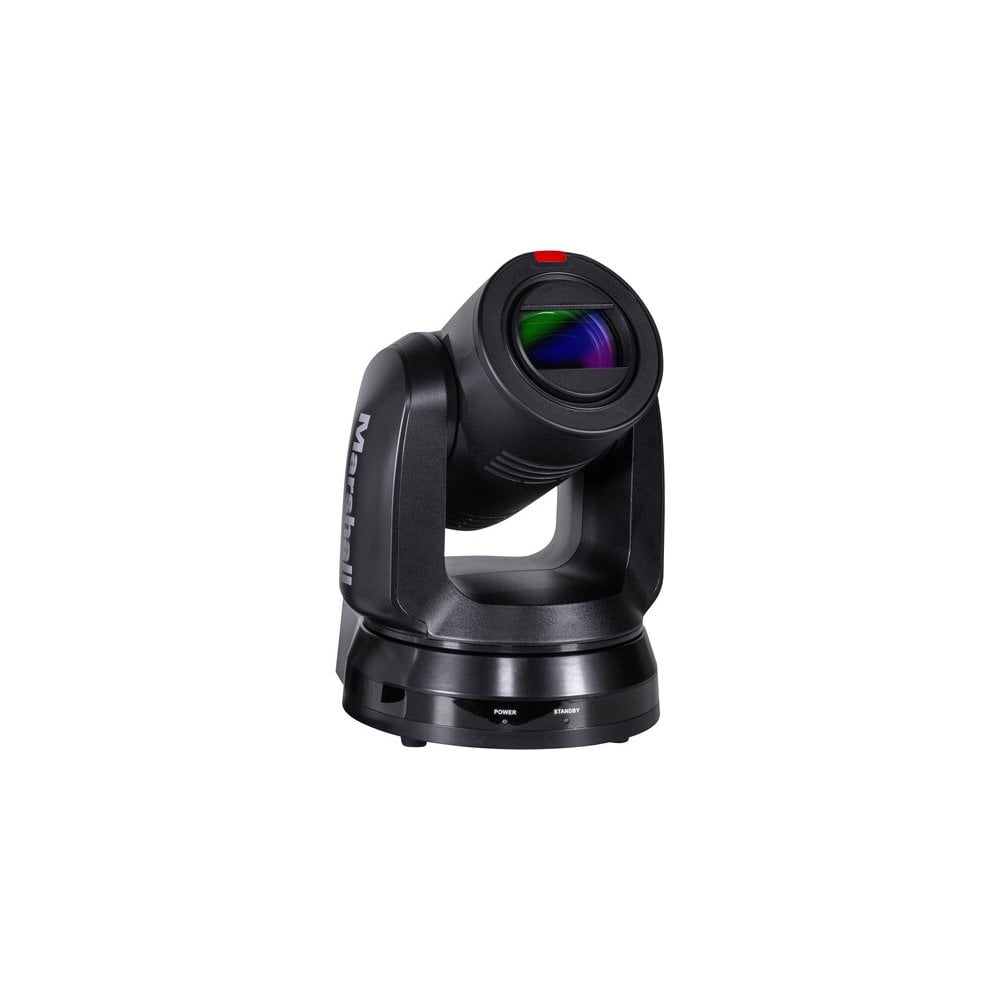

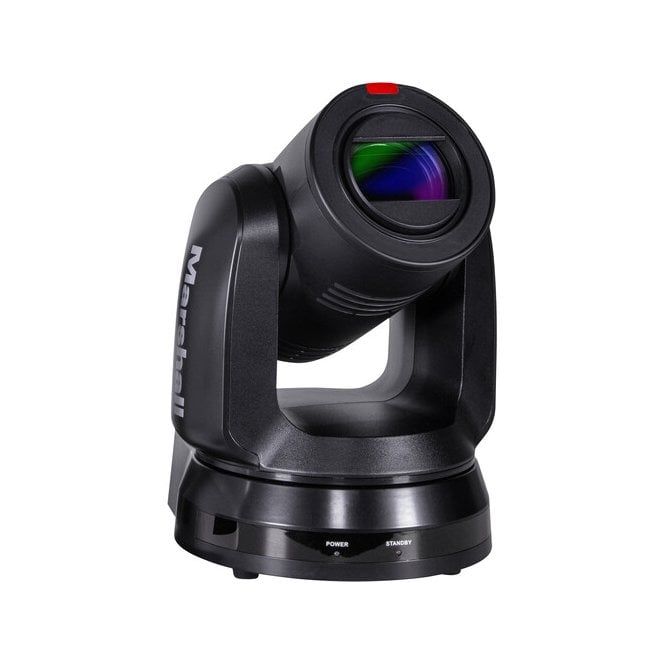

Marshall CV730-BK Electronics CV730 UHD60 8.5MP 30x PTZ Camera (Black)

Marshall CV730-BK (CV730/BK, CV730_BK, CV730BK, cv730-bk) Electronics CV730 UHD60 8.5MP 30x PTZ Camera (Black)

CV730-BK (Black)

3840x2160p @ 25, 29.97, 50 & 59.94 / 1920x1080p @ 25, 29.97, 30, 50 & 59.94 / 1280×720 @ 25, 29.97, 50 & 59.94

CV730 delivers crystal-clear UHD images at up-to 60p using simultaneous 12G-SDI, HDMI 2.0 and IP outputs. The high-quality 8.5MP 1/1.8″ UHD sensor is paired with accurate and smooth pan & tilt motors together with remote broadcast-style adjust & match setting control through RS232, RS422 or IP using universal protocols.

Featuring a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm through to 202mm which captures a tight head & shoulder shot at long distances.

Install one-cable to camera for all functions (power, control, audio, video) or use Ethernet for PoE+/Preview and other outputs (12G-SDI/HDMI) for simultaneous workflows for streaming, production or archiving.

Sensor

• Sensor Type: 1/1.8″ 8.5 Megapixel
• Effective Pixels: 3840×2160

Resolution & Frame Rates

• UHD 3840x2160p: 25, 29.97, 30, 50 & 59.94
• HD 1920x1080p: 25, 29.97, 30, 50 & 59.94
• HD 1280x720p: 25, 29.97, 30, 50 & 59.94

Video Output Connectors

• Video Output Connectors: 1x 12G-SDI, 1x HDMI 2.0 & 1x IP Ethernet (RJ45)

Lens

• Focal Length: 6.5mm to 202mm
• Optical Zoom Ratio: 30x
• Max. Aperture: f/1.55 to f/2.8

Audio

• Input: 3.5mm Stereo

Control Protocol

• Control Protocol: RS-422, RS-232 & IP

In the Box

• Marshall Electronics 30x Optical Zoom Camera Black
