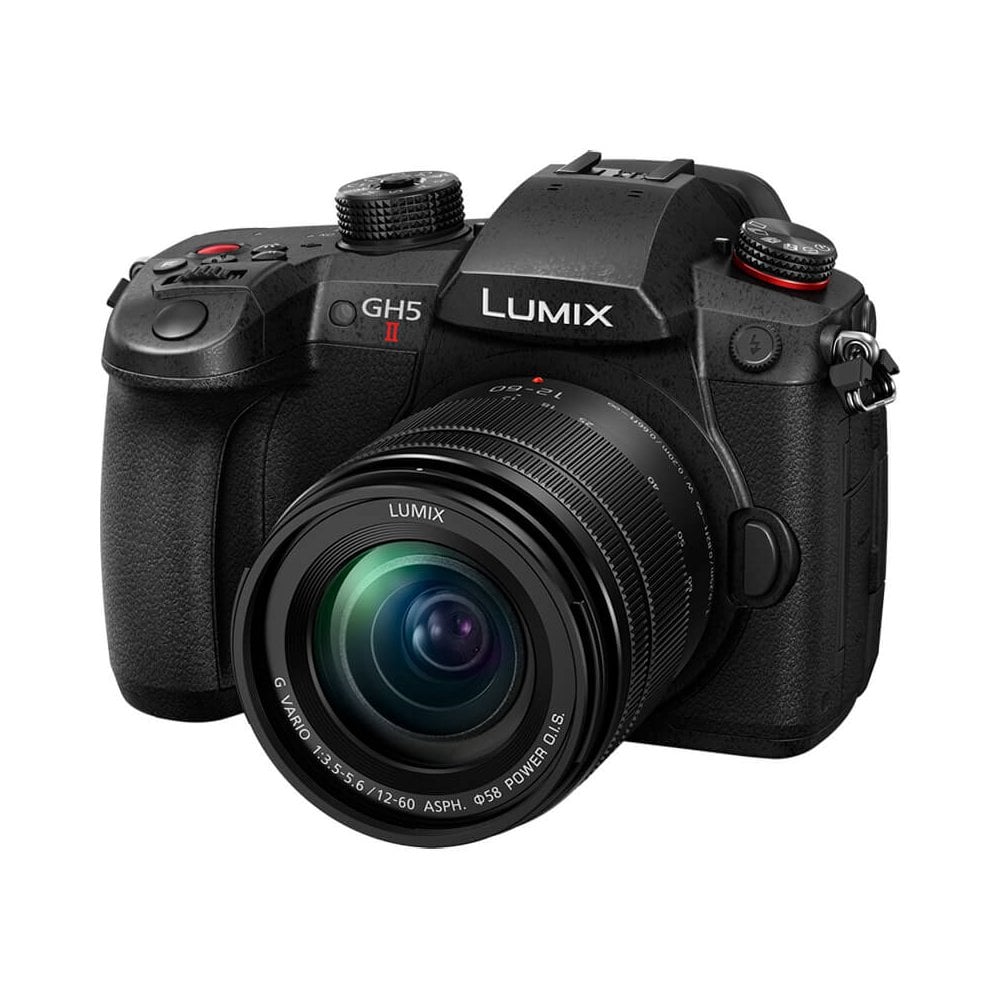

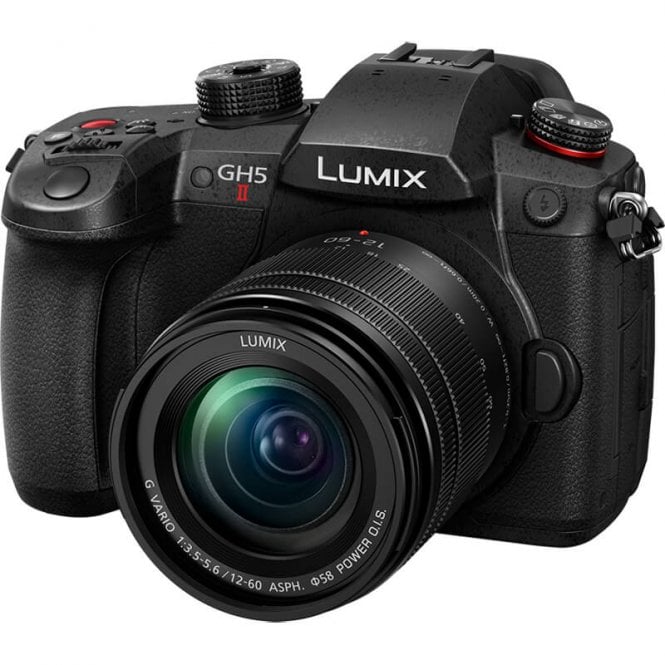

Panasonic Lumix PAN-DC-GH5M2ME GH5MK2 Camera with 12-60mm f3.5-5.6 Lumix Lens

Panasonic Lumix PAN-DC-GH5M2ME (PAN/DC/GH5M2ME, PAN_DC_GH5M2ME, DCGH5M2ME, DC-GH5M2ME, pan_dc-gh5m2me) GH5MK2 Camera with 12-60mm f3.5-5.6 Lumix Lens

Panasonic Lumix DC-GH5M2 Mirrorless Camera with 12-60mm Lumix Lens

Introducing the LUMIX GH5M2, a new Micro Four Thirds mirrorless camera that boasts outstanding video performance evolved from the renowned GH5.

In an update to the well loved GH5, a mirrorless camera revered and used by thousands of film makers, vloggers, photographers, producers across the world, Panasonic have taken its video capabilities to the max with the GH5M2. Featuring monster 4K video specs, including C4K/4K 60p 4:2:0 10-bit unlimited video recording with simultaneously output 4K 4:2:2 10-bit over HDMI.

The LUMIX GH5M2 is also capable of wireless live streaming in FHD/60p via the LUMIX Sync smartphone app, or by connecting directly to a Wi-Fi router. In addition, it will receive a future firmware update to add RTP/RTSP wired IP streaming.

The 20.3-megapixel Digital Live MOS Sensor has had a slight glow-up with AR (Anti-Reflective) coating capturing details cleanly and driving excellent lens performance. The image processor has also been updated to use the latest high-speed and high-performance Venus Engine.

For run and gun shooters and photographers using long-lenses looking for stable shooting, the Body I.S. (Image Stabiliser) in the LUMIX GH5M2 is now even more advanced, making it possible to use a 6.5-stop slower shutter speed. With the adoption of the latest algorithm developed for the S1H, video recording is smooth and stable even when the camera is in motion.

A 3.0-inch free-angle LCD with a 3:2 aspect ratio and high resolution of 1840K dots provides touch control. Compared to the GH5, the LCD features higher luminosity and superior colour reproduction to ensure high visibility outdoors.

Wireless live streaming with minimal equipment

High-quality live streaming is possible both indoors and outdoors with minimal equipment: just the LUMIX GH5M2 and a smartphone with the LUMIX Sync app. In compliance with the RTMP/RTMPS protocol using the H.264 codec, a maximum resolution/framerate of FHD/60p at 16Mbps is supported.

For wired live streaming, the dedicated LUMIX Webcam Software is available for free download.

High quality video performance

The LUMIX GH Series features outstanding video performance for professional videography and the LUMIX GH5M2 is no exception, capable of unlimited video recording in a variety of settings. When shooting video, the GH5M2’s entire sensor area is used, enabling the user to record uncropped video from the original viewing angle of the lens. Video recording options are vast, offering internal recording up to 4K 60p and 4:2:2 10-bit 30p, or 4K/6K Anamorphic modes.

To deliver high dynamic range and a broad colour spectrum, V-Log L is pre-installed in the camera, making it easy to match the colour tone with footage recorded in the S1H/S1’s V-Log and the GH5/GH5S’s V-Log L. V-Log L renders a very flat image while retaining all its colour information, which is a great benefit in post-production processing. For users who prefer to have a starting point for post-processing, there are 35 compatible conversion LUTs for VariCam cinema cameras available for free download. Practical tools like a Waveform Monitor and V-Log View Assist are also part of the GH5M2’s on-board video toolkit.

Like the S1H video flagship camera of the S Series, the LUMIX GH5M2 provides two types of Cinelike gamma presets in the Photo Style menu. These modes create impressive looks with warm skin tones or delicate nuances of light and shadow even without colour grading over V-Log footage. The Cinelike D2 preset gives priority to dynamic range, while Cinelike V2 prioritizes contrast. L.Monochrome S and L.Classic Neo have also been added. All these presets are also available in Anamorphic mode.

In VFR (Variable Frame Rate) recording, C4K/4K 60fps, Anamorphic 50fps and FHD 180fps are available. AF can be set before starting VFR recording.

A reliable tool for professionals

Tough enough to withstand heavy fielduse, the LUMIX GH5M2’s full die-cast front/rear frame is composed of a magnesium alloy and the body is splash, dust, and freeze resistant down to -10 degrees Celsius. The shutter unit is also durable for approximately 200,000 cycles.

To further support use outdoors, the camera boasts a new high-capacity 2200mAh battery (DMW-BLK22) that complies with USB PD (Power Delivery) and can be recharged via AC or USB. The LUMIX GH5M2 is equipped with a double SD memory card slot compatible with V90-classified, high-speed, high-capacity UHS-II cards for Relay, Backup and Allocation Recording.

With the advanced free-angle touch LCD, users can utilise the frame marker function to check the composition during recording in various common aspect ratios such as 16:9, 4:3, 1:1, 4:5, 5:4 and 9:16. The red recording frame indicator on the screen and in the EVF clearly signals whether the camera is recording, while a new blue indicator shows when the camera is streaming.

Future firmware updates

Firmware update for GH5M2

The LUMIX GH5M2 will continue to evolve with a future firmware update scheduled by the end of 2021. The new firmware will include:

• RTP/RTSP wired IP streaming
• Live View Composite
• USB Tethering (linked to a smartphone via 4G/5G), Compatible Streaming Distribution
• Even more stable smartphone connection

TYPE

• Type: Digital Single Lens Mirrorless camera
• Recording media: SD Memory Card / SDHC Memory Card * / SDXC Memory Card *

* Compatible with UHS-I / UHS-II UHS Speed Class 3 standard SDHC / SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

• Lens mount: Micro Four Thirds mount

IMAGE SENSOR

• Type: Live MOS sensor (17.3 x 13.0 mm)
• Camera effective pixels / Total pixels: 20.33 megapixels / 21.77 megapixels
• AR (Anti Reflection) coating: Yes
• Aspect ratio / Color filter: 4: 3 / Primary color filter
• Dust reduction system: Image sensor shift type

LATITUDE

• 12 stops (V-Log L)

STILL IMAGE

Recording file format

• Still image: JPEG (DCF, Exif 2.31), RAW

6K PHOTO (* ¹) / 4K PHOTO (* ¹)

• 6K PHOTO: MP4 (H.265 / HEVC, Audio format: AAC (2ch))
• 4K PHOTO: MP4 (H.264 / MPEG-4 AVC, Audio format: AAC (2ch))
• Extracted still images: JPEG (DCF, Exif 2.31)

Aspect ratio

• 4: 3/3: 2/16: 9/1: 1

File size (Pixels)

4: 3

• 5184x3888 (L) / 3712x2784 (M) / 2624x1968 (S) / 4992x3744 (6K PHOTO) / 3328x2496 (4K PHOTO)

3: 2

• 5184x3456 (L) / 3712x2480 (M) / 2624x1752 (S) / 5184x3456 (6K PHOTO) / 3504x2336 (4K PHOTO)

16: 9

• 5184x2920 (L) / 3840x2160 (M) / 1920x1080 (S) / 3840x2160 (4K PHOTO)

1: 1

• 3888x3888 (L) / 2784x2784 (M) / 1968x1968 (S) / 2880x2880 (4K PHOTO)

Image quality

• RAW / RAW + Fine / RAW + Standard / Fine / Standard

Color space

• sRGB, AdobeRGB

MOTION PICTURE

Recording file format

• MOV: H.264 / MPEG-4 AVC, H.265 / HEVC (Audio format: LPCM (2ch 48kHz / 16-bit, 48kHz / 24-bit *, 96kHz / 24-bit *)) * When attaching DMW-XLR1 (sold separately).
• MP4: H.264 / MPEG-4 AVC, H.265 / HEVC (Audio format: AAC (2ch))

System frequency

• 59.94Hz / 50.00Hz / 24.00Hz

Image area of video

• Full / Pixel by Pixel

MOV (* ¹) High-res audio is selectable only when using the DMW-XLR1 (sold separately).

59.94Hz [C4K] 4096x2160

• 59.94p, 200Mbps (4: 2: 0 10-bit LongGOP) * (H.265 / HEVC, LPCM, High-Res Audio) * HLG is selectable.
• 59.94p, 150Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio)
• 29.97p, 400Mbps (4: 2: 2 10-bit ALL-Intra) * / 150Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.
• 23.98p, 400Mbps (4: 2: 2 10-bit ALL-Intra) * / 150Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.

59.94Hz [4K] 3840x2160

• 59.94p, 200Mbps (4: 2: 0 10-bit LongGOP) * (H.265 / HEVC, LPCM, High-Res Audio) * HLG is selectable.
• 59.94p, 150Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio)
• 29.97p, 400Mbps (4: 2: 2 10-bit ALL-Intra) * / 150Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.
• 23.98p, 400Mbps (4: 2: 2 10-bit ALL-Intra) * / 150Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.

59.94Hz [Anamorphic 6K] 4992x3744 (4: 3)

• 29.97p, 200Mbps (4: 2: 0 10-bit LongGOP) * (H.265 / HEVC, LPCM, High-Res Audio) * HLG is selectable.
• 23.98p, 200Mbps (4: 2: 0 10-bit LongGOP) * (H.265 / HEVC, LPCM, High-Res Audio) * HLG is selectable.

59.94Hz [Anamorphic 4K] 3328x2496 (4: 3)

• 59.94p, 150Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio)
• 29.97p, 400Mbps (4: 2: 2 10-bit ALL-Intra) * / 150Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.
• 23.98p, 400Mbps (4: 2: 2 10-bit ALL-Intra) * / 150Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.

59.94Hz [FHD] 1920x1080

• 59.94p, 200Mbps (4: 2: 2 10-bit ALL-Intra) * / 100Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.
• 29.97p, 200Mbps (4: 2: 2 10-bit ALL-Intra) * / 100Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.
• 23.98p, 200Mbps (4: 2: 2 10-bit ALL-Intra) * / 100Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.

50.00Hz [C4K] 4096x2160

• 50.00p, 200Mbps (4: 2: 0 10-bit LongGOP) * (H.265 / HEVC, LPCM, High-Res Audio) * HLG is selectable.
• 50.00p, 150Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio)
• 25.00p, 400Mbps (4: 2: 2 10-bit ALL-Intra) * / 150Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.

50.00Hz [4K] 3840x2160

• 50.00p, 200Mbps (4: 2: 0 10-bit LongGOP) * (H.265 / HEVC, LPCM, High-Res Audio) * HLG is selectable.
• 50.00p, 150Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio)
• 25.00p, 400Mbps (4: 2: 2 10-bit ALL-Intra) * / 150Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.

50.00Hz [Anamorphic 6K] 4992x3744 (4: 3)

• 25.00p, 200Mbps (4: 2: 0 10-bit LongGOP) * (H.265 / HEVC, LPCM, High-Res Audio) * HLG is selectable.
• 50.00Hz [Anamorphic 4K] 3328x2496 (4: 3)
• 50.00p, 200Mbps (4: 2: 0 10-bit LongGOP) * (H.265 / HEVC, LPCM, High-Res Audio) * HLG is selectable.
• 50.00p, 150Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio)
• 25.00p, 400Mbps (4: 2: 2 10-bit ALL-Intra) * / 150Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.

50.00Hz [FHD] 1920x1080

• 50.00p, 200Mbps (4: 2: 2 10-bit ALL-Intra) * / 100Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.
• 25.00p, 200Mbps (4: 2: 2 10-bit ALL-Intra) * / 100Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.

24.00Hz [C4K] 4096x2160

• 24.00p, 400Mbps (4: 2: 2 10-bit ALL-Intra) * / 150Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.

24.00Hz [4K] 3840x2160

• 24.00p, 400Mbps (4: 2: 2 10-bit ALL-Intra) * / 150Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.

24.00Hz [Anamorphic 6K] 4992x3744 (4: 3)

• 24.00p, 200Mbps (4: 2: 0 10-bit LongGOP) * (H.265 / HEVC, LPCM, High-Res Audio) * HLG is selectable.

24.00Hz [Anamorphic 4K] 3328x2496 (4: 3)

• 24.00p, 400Mbps (4: 2: 2 10-bit ALL-Intra) * / 150Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.

24.00Hz [FHD] 1920x1080

• 24.00p, 200Mbps (4: 2: 2 10-bit ALL-Intra) * / 100Mbps (4: 2: 2 10-bit LongGOP) * / 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM, High-Res Audio) * HLG is selectable.

MP4 (* ¹)

59.94Hz [4K] 3840x2160

• 59.94p, 100Mbps (4: 2: 0 10-bit LongGOP) (H.265 / HEVC, AAC)
• 29.97p, 72Mbps (4: 2: 0 10-bit LongGOP) (H.265 / HEVC, AAC)
• 23.98p , 72Mbps (4: 2: 0 10-bit LongGOP) (H.265 / HEVC, AAC)
• 29.97p, 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, AAC)
• 23.98 p, 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, AAC)

59.94Hz [FHD] 1920x1080

• 59.94p, 28Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, AAC)
• 29.97p, 20Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, AAC)
• 23.98p, 24Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, AAC)

50.00Hz [4K] 3840x2160

• 50.00p, 100Mbps (4: 2: 0 10-bit LongGOP) (H.265 / HEVC, AAC)
• 25.00p, 72Mbps (4: 2: 0 10-bit LongGOP) (H.265 / HEVC, AAC)
• 25.00p , 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, AAC)

50.00Hz [FHD] 1920x1080

• 50.00p, 28Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, AAC)
• 25.00p, 20Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, AAC)

24.00Hz -

• -

VARIABLE FRAME RATE

• MOV (* ¹) High-res audio is selectable only when using the DMW-XLR1 (sold separately).

59.94Hz [C4K] 4096x2160

• 29.97p (Maximum output of sensor is 60fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)
• 23.98p (Maximum output of sensor is 60fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)

59.94Hz [4K] 3840x2160

• 29.97p (Maximum output of sensor is 60fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)
• 23.98p (Maximum output of sensor is 60fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)

59.94Hz [Anamorphic 4K] 3328x2496 (4: 3)

• 29.97p (Maximum output of sensor is 50fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)
• 23.98p (Maximum output of sensor is 48fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)

59.94Hz [FHD] 1920x1080

• 59.94p (Maximum output of sensor is 180fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)
• 29.97p (Maximum output of sensor is 180fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)
• 23.98p (Maximum output of sensor is 180fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG- 4 AVC, LPCM)

50.00Hz [C4K] 4096x2160

• 25.00p (Maximum output of sensor is 60fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)　

50.00Hz [4K] 3840x2160

• 25.00p (Maximum output of sensor is 60fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)

50.00Hz [Anamorphic 4K] 3328x2496 (4: 3)

• 25.00p (Maximum output of sensor is 50fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)

50.00Hz [FHD] 1920x1080

• 50.00p (Maximum output of sensor is 180fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)
• 25.00p (Maximum output of sensor is 180fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)

24.00Hz [C4K] 4096x2160

• 24.00p (Maximum output of sensor is 60fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)

24.00Hz [4K] 3840x2160

• 24.00p (Maximum output of sensor is 60fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)

24.00Hz [Anamorphic 4K] 3328x2496 (4: 3)

• 24.00p (Maximum output of sensor is 48fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)

24.00Hz [FHD] 1920x1080

• 24.00p (Maximum output of sensor is 180fps), 100Mbps (4: 2: 0 8-bit LongGOP) (H.264 / MPEG-4 AVC, LPCM)

STREAMING

Protocol

• RTMP / RTMPS

Streaming quality

NTSC (59.94Hz) [FHD] 1920x1080

• 59.94p, 16Mbps * / 8Mbps (H.264) * Not selectable when RTMPS is set.
• 29.97p, 6Mbps / 3Mbps (H.264)

NTSC (59.94Hz) [HD] 1280x720

• 59.94p, 6Mbps (H.264)
• 29.97p, 4Mbps (H.264)

PAL (50.00Hz) [FHD] 1920x1080

• 50.00p, 16Mbps * / 8Mbps (H.264) * Not selectable when RTMPS is set.
• 25.00p, 6Mbps / 3Mbps (H.264)

PAL (50.00Hz) [HD] 1280x720

• 50.00p, 6Mbps (H.264)
• 25.00p, 4Mbps (H.264)

VIEWFINDER

• Type: OLED Live View Finder
• Pixels: Approx. 3.68 million dots
• Field of view / Magnification: Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4: 3
• Eye point / Diopter adjustment: Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)
• Eye sensor: Yes
• Display speed: 120fps / 60fps

REAR MONITOR

• Type: TFT LCD monitor with static touch control
• Monitor size: Free-angle, 3.0-inch (7.5cm), 3: 2 aspect
• Pixels: Approx. 1.84 million dots
• Field of view: Approx. 100%

FOCUS

• Type: Contrast AF system
• DFD technology: Yes
• Focus mode: AFS (Single) / AFC (Continuous) / MF

AF mode

• Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical / Horizontal) / Zone (Square) / Zone (Oval) / 1-Area + / 1-Area / Pinpoint / Custom 1, 2, 3

(Full area touch is available) (Scalable AF frame size and flexible AF position)

• AF detective range: EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
• AF custom setting: AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
• AF assist light: Yes
• AF lock: Set the Fn button in custom menu to AF lock
• Post Focus / Focus Stacking: Yes / Yes
• Focus Ring Control: Nonlinear / Linear * When a compatible lens is attached.

Others

• Focus Peaking, 1-Area AF Moving Speed, AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus / Shutter Priority, Focus Switching for Vert / Hor, AF / AE Lock Hold, AF + MF, MF Assist, MF Guide, Focus Ring Lock, Show / Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, Loop Focus Frame, AFC Start Point (225-Area), Touch Shutter, Touch AF / AE Function, Touch Pad AF, Lens Focus Resume

EXPOSURE CONTROL

Light metering system

• 1,728-zone multi-pattern sensing system

Light metering mode

• Multiple / Center Weighted / Spot / Highlight Weighted

Metering range

• EV0-18 (F2.0 lens, ISO100 equivalent)

Recording mode

• Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure / Creative Video / Custom 1, 2, 3, 4 / Intelligent Auto

ISO sensitivity (Standard output sensitivity)

• Still image: Auto / 100 (Extended) / 200/400/800/1600/3200/6400/12800/25600 (Changeable to 1/3 EV step)
• Creative Video Mode: Auto / 100 (Extended) / 200/400/800 / 1600/3200/6400/12800 (Changeable to 1/3 EV step)

Exposure compensation

• 1/3 EV step ± 5EV (± 3EV for motion picture)

AE lock

• Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

• Image sensor shift type (5-axis / 6.5-stop *)

* Based on the CIPA standard [Yaw / Pitch direction: focusing distance f = 60mm (35mm camera equivalent f = 120mm) when H-ES12060 is used.

• Dual IS (6.5-stop * Dual IS 2 compatible)

* Based on the CIPA standard [Yaw / Pitch direction: focusing distance f = 140mm (35mm camera equivalent f = 280mm) when H-FS14140 is used.

WHITE BALANCE

White balance

• AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4

White balance adjustment

• Blue / Amber bias, Magenta / Green bias

Color temperature setting

• 2500-10000K and 100K

SHUTTER

Type

• Focal-plane shutter

Shutter speed

• Still image: Bulb (Max. 30 minutes), 1 / 8,000 - 60
• Electronic front curtain shutter: Bulb (Max. 30 minutes), 1 / 2,000 - 60
• Electronic shutter: Bulb (Max. 60 sec), 1 / 16,000 - 60
• Motion picture: 1 / 16,000 - 1/25
• Creative Video M mode / MF mode: 1 / 16,000 - 1/2

Self timer

• 10sec, 3 images / 2sec / 10sec / Custom Time

Remote control

• Remote control by DMW-RS2 (sold separately)

Silent mode / Shutter type

• Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic + NR)

BRACKET

AE bracket

• 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ± 3 EV, single / burst

Aperture bracket

• 3, 5 or all positions

Focus bracket

• 1 to 999 images, focus steps can be set in 10 levels

White balance bracket

• 3 images in blue / amber axis or in magenta / green axis, color temperature setting

BURST SHOOTING

Burst speed

Mechanical shutter / Electronic front curtain shutter

• AFS / MF: H: 12 frames / sec, M: 7 frames / sec (with Live View), L: 2 frames / sec (with Live View)
• AFC: H: 9 frames / sec (with Live View), M: 7 frames / sec (with Live View), L: 2 frames / sec (with Live View)

Electronic shutter

• AFS / MF: H: 12 frames / sec, M: 7 frames / sec (with Live View), L: 2 frames / sec (with Live View)
• AFC: H: 7 frames / sec (with Live View), M: 7 frames / sec (with Live View), L: 2 frames / sec (with Live View)

Number of recordable images

• RAW / RAW + JPEG: More than 108 images
• JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.)

* When recording is performed under the test conditions specified by Panasonic.

6K PHOTO (* ¹) / 4K PHOTO (* ¹)

Burst speed

• 6K PHOTO: 30 frames / sec
• 4K PHOTO: 60 frames / sec, 30 frames / sec

Exif information

• Yes (Each JPEG image cropped out of the 6K / 4K burst file complies with EXIF.)

TIME LAPSE SHOT

• Yes

STOP MOTION ANIMATION

• Yes

FLASH

Flash type

• TTL External Flash (sold separately)

Flash mode

• Auto * / Auto / Red-eye Reduction * / Forced On / Forced On / Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off * For iA only.

Flash synchronization

• 1st Curtain Sync, 2nd Curtain Sync.

Flash output adjustment

• 1 / 3EV step ± 3EV

Synchronization speed

• Less than 1/250 second

Wireless control

• Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch / 2ch / 3ch / 4ch

Flash sync socket

• Yes

EXTRA TELE CONVERSION

• 2.0x (EX S), 1.4x (EX M) * Only for still image recording.

PHOTO STYLE

Photo Style

• Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10

Picture adjustment

• Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB

* Adjustable settings vary depending on the Photo Style mode.

FILTER

• Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome * / Silky Monochrome * / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus * / Fantasy / Star Filter * / One Point Color / Sunshine *

* For photos only.

MOTION PICTURE FUNCTION

Master pedestal level

• 31 steps

Luminance level

• 8-bit: 0-255 / 16-235 / 16-255
• 10-bit: 0‒1023 / 64‒940 / 64‒1023

Wave form monitor / Vectorscope

• Selectable

LUT view assist

• Monitor / HDMI

HLG view assist

• Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)

Anamorphic desqueeze display

• 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF

Synchro scan

• Yes

Time code

• Count Up: Rec Run / Free Run selectable, Time Code Mode: Drop frame / Non-drop frame selectable (When NTSC (59.94Hz) is selected.)

SS / Gain operation

• Shutter Duration / ISO / Angle / ISO / Shutter Duration / dB

Color bars / 1kHz test tone

• Yes (SMPTE / EBU / ARIB) / Yes

Knee control

• Yes (in Like709 mode)

Other functions

• Red REC Frame Indicator, Streaming Blue Frame Indicator,

VERTICAL POSITION INFORMATION

• Still image / Motion picture (ON / OFF)

LEVEL GAUGE

• Yes

FUNCTION BUTTON

REC

• Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW + JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Custom Setting (Photo) / AF Custom Setting (Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF / AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K / 4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Motion Pic. Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adapter Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost IS (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec / Playback Switch / Video Record / LVF / Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF / Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist (Monitor) / HLG View Assist (HDMI) / Sheer Overlay / IS

PLAY

• Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K / 4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec / Playback Switch / LVF / Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K / 4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default

PRINT

• PictBridge compatible

INTERFACE

USB

• SuperSpeed USB 3.1 Gen1 Type-C

HDMI (* ²)

HDMI

• HDMI TypeA
• Audio: Stereo

Monitor-through

• 4: 2: 2 10bit (When [Rec Quality] is set to [4: 2: 2 10bit] or [4: 2: 0 10bit].)
• 4: 2: 2 8bit (When [Rec Quality] is set to [ 4: 2: 0 8bit].)
• Down Convert: Auto / 4K / 1080p / 1080i / OFF

Playback

• 59.94Hz: Auto / C4K / 60p / C4K / 30p / 4K / 60p / 4K / 30p / 1080p / 1080i / 720p / 480p
• 50.00Hz: Auto / C4K / 50p / C4K / 25p / 4K / 50p / 4K / 25p / 1080p / 1080i / 720p / 576p
• 24.00Hz: Auto / C4K / 24p / 4K / 24p / 1080p

Remote input

• φ2.5mm

Microphone

• Stereo, Wind Noise Canceller: OFF / Low * / Standard / High * When attaching DMW-MS2 (sold separately).

External microphone / external audio device input

• φ3.5mm for external microphone / external audio device
• MIC (Plug-in Power) / MIC / LINE is selectable.
• Stereo / Lens Auto / Shotgun / Super Shotgun / Manual is selectable when attaching DMW-MS2 (sold separately).

XLR microphone

• Yes with DMW-XLR1 (sold separately)

Speaker

• Monaural

Headphone output

• φ3.5mm

SD card slot

• Slot 1, Slot 2

WIRELESS

Wi-Fi

• 2.4GHz (STA / AP) (IEEE802.11b / g / n)
• 5GHz (STA) (IEEE 802.11a / n / ac) * 5GHz Wi-Fi is not available in some countries.

Bluetooth

• Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT *

• Yes.

* Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery

• Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
• USB power supply, USB power charging, USB power delivery

Battery life (CIPA standard)

• Approx. 400 images, 1200 images (Power Save LVF mode *) with H-ES12060 / DMW-BLK22
• Approx. 410 images, 1200 images (Power Save LVF mode *) with H-FS12060 / DMW-BLK22

* Under the test conditions specified by Panasonic based on CIPA standard. When the time to get into sleep mode is set to 1 sec.

Continuous recordable time (Motion picture) (* ¹)

• MP4 [4K / 60p]: Approx. 120 min with H-ES12060 / H-FS12060
• MP4 [FHD / 60p]: Approx. 140 min with H-ES12060 / H-FS12060

Actual recordable time (Motion picture) (* ¹)

• MP4 [4K / 60p]: Approx. 60 min with H-ES12060 / H-FS12060
• MP4 [FHD / 60p]: Approx. 70 min with H-ES12060 / H-FS12060

Battery grip

• DMW-BGGH5 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)

• Approx. 138.5 x 98.1 x 87.4 mm / 5.45 x 3.86 x 3.44 inches (excluding protrusions)

Weight

• Approx. 727g / 1.60 lb (SD Memory Card x 1, Battery, Body)
• Approx. 647g / 1.43 lb (Body only)

OPERATING ENVIRONMENT

• Operating temperature (* ³): -10oC to 40oC (14oF to 104oF)
• Operating humidity: 10% RH to 80 ％ RH

In the Box

• Panasonic Lumix GH5MK2 Camera with 12-60mm f3.5-5.6 Lumix Lens
• Body Cap,
• Hot Shoe Cover,
• Eye Cup,
• Flash Synchro Socket Cap,
• Cover for the Battery Grip Connector,
• Shoulder Strap,
• Battery Pack,
• Battery Charger,
• AC Adaptor,
• USB Connection Cable (A-C),
• Cable Holder
