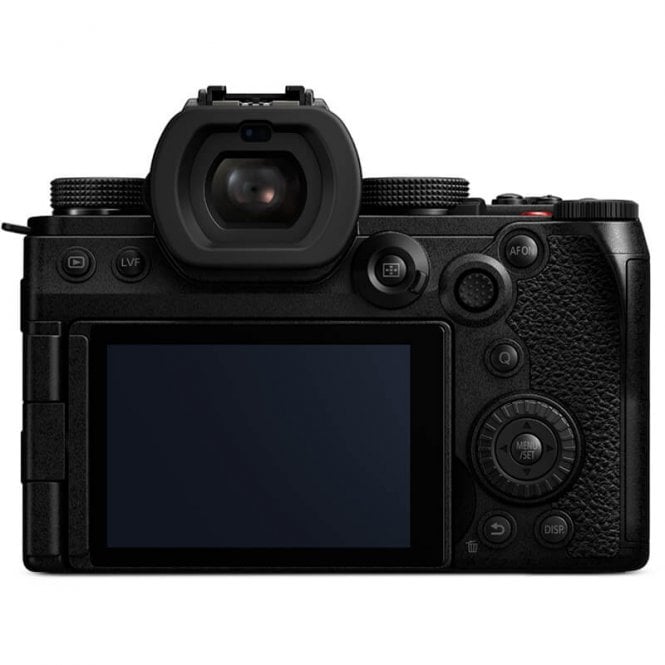

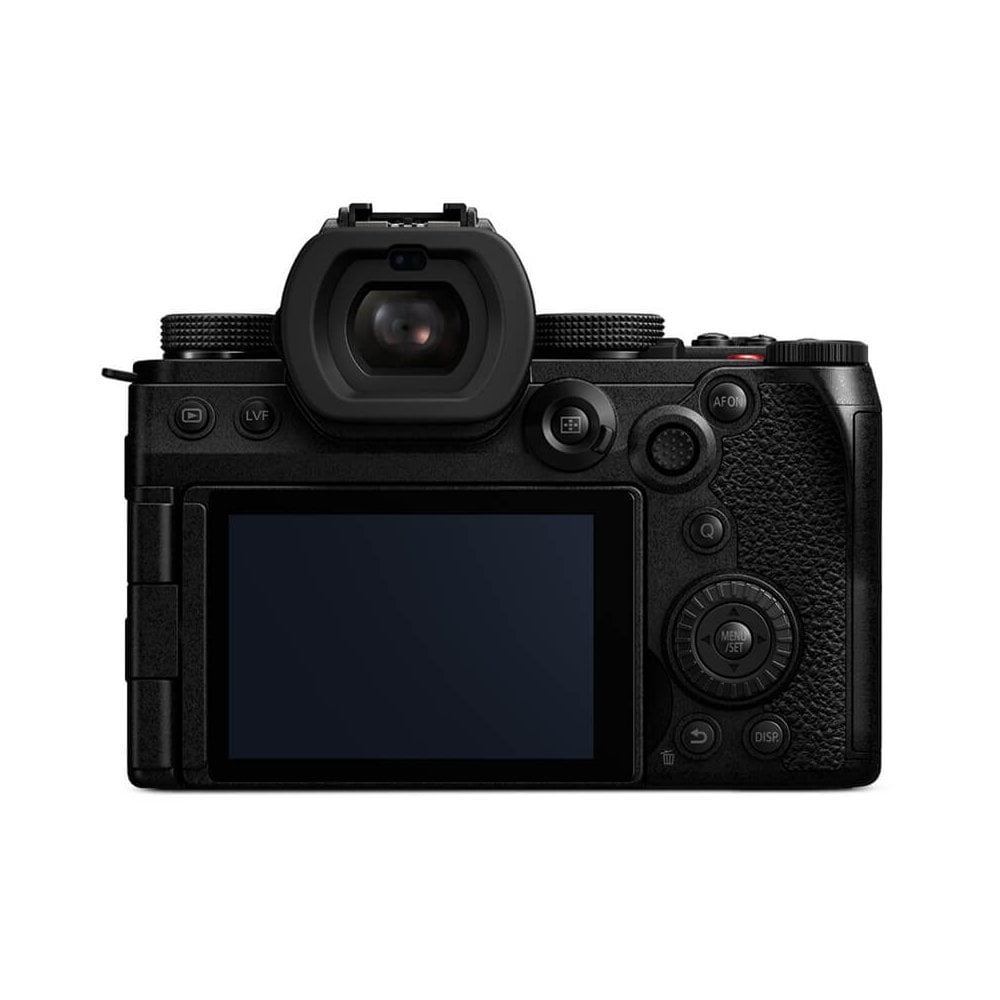

Panasonic Lumix S5 IIX Body Only

Panasonic Lumix S5 IIX Body Only (PAN-DC-S5M2XE, PAN DC S5M2XE, PAN/DC/S5M2XE)

Advanced features like PDAF and I.S. (Image stabilization) make using the LUMIX S5IIX a truly rewarding experience. Capture high-quality photos and video with unlimited recording and enjoy enhanced mobility with this compact full-frame mirrorless camera.

ADVANCED FEATURES

Phase Hybrid AF dramatically improves subject tracking and recognition performance.

Active I.S. Technology

The LUMIX S5IIX is optimal for shooting video while walking.

A wide variety of video expression options

The camera offers a full range of functions to expand the possibilities of expression for creators, including unlimited 4:2:2 10-bit C4K/4K 60p/50p recording, high-resolution 6K (5952x3968, 3:2) (5952x3136, 17:9), and more.

New generation of imaging devices

The first LUMIX mirrorless camera to feature a 24.2MP CMOS sensor with Phase Detection AF, the LUMIX S5IIX is equipped with a new engine.

Designed for durability

A highly versatile and durable HDMI Type A terminal is provided.

A higher grade of visual expression

Enjoy RAW video data output, ProRes recording, All-Intra video, and external USB-SSD recording for professional video production.

Streaming options

Choose your favourite approach: wireless live streaming (RTMP/RTMPS), USB-tethering (RTMP/RTMPS), and wired live streaming (RTP/RTSP).

LUMIX DESIGN PHILOSOPHY: SHAPING EMOTIONS

The new all-black design of the LUMIX S5IIX is made to encourage the creator to becomes immersed in capturing the subject, oblivious to the tools in use. It’s designed to harmonize with the shooting environment and prevent reflections on the iris or recording media supporting artistic creativity.



A HIGHER GRADE OF VISUAL EXPRESSION

With the LUMIX S5IIX, recording and playback is supported using an external SSD via USB. In addition, the ability to record ProRes 422 HQ (maximum 1.9Gbps) and 4:2:2 10-bit All-Intra directly to SSDs, which combine portability and high capacity has improved efficiency in data backup and post-processing.

GO LIVE ANYTIME, ANYWHERE

Choose your favorite streaming approach to share your latest in real time! For outdoor use, wireless live streaming (RTMP/RTMPS) is easy to set up with the LUMIX Sync app. For indoor use, highly stable wired live streaming (RTP/RTSP) is also available.

Live streaming to the platforms that comply with RTMP/RTMPS is basically possible (Compatibility with all the platforms is not guaranteed.) There may be the cases where the live streaming is not possible when the service of the platform changes. For more information, please refer to the terms and conditions of the platform. ･Since the transmission speed of live streaming varies depending on the Internet environment, smartphone performance, etc., we recommend that you conduct a transmission test in advance. ･A commercially available USB ethernet adaptor is required to convert the DC-S5IIX's USB Type C terminal to a LAN terminal.

Compatibilities of USB ethernet adapter: https://panasonic.jp/support/global/cs/dsc/connect/ethernet_adp/index.html

PHASE HYBRID AF FOR AGGRESSIVE SHOOTING

The most important thing in autofocus is to be dependable. The new Phase Hybrid AF delivers speed and accuracy to help you capture the target subject even in the most challenging scenes where multiple subjects are involved, and even in backlit or low-light environments.

GREAT FOR SHOOTING AS YOU WALK: ACTIVE I.S. TECHNOLOGY

New Active I.S. lets you walk and shoot at the same time. By determining the status of camera shake and optimizing correction ratios, Active I.S. can compensate for even significant camera shake, approximately 200%* more than conventional systems. *Compared with LUMIX S5. Focal length 20mm, when using S-R2060.

HEAT MANAGEMENT FOR UNLIMITED RECORDING TIME

4:2:2 10-bit C4K/4K 60p/50p unlimited recording time.* With a compact body equivalent to the S5, the LUMIX S5IIX’s new optimized heat dissipation structure enables extended recording even when shooting at heavy loads (e.g. high-resolution video over 4K, HFR video). *The camera may stop recording when used in a temperature that is lower or higher than the recommended operating temperature (0 to 40 degrees). Recording stops when the continuous recording time exceeds 30 minutes in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.

LUMIX COLOUR SCIENCE TECHNOLOGY

The LUMIX commitment to superior image quality

The new engine delivers more true-to-life colours, finer resolution, and a natural three-dimensional effect, and combined with Dual Native ISO technology, effectively suppresses noise even when shooting at ultra-high sensitivities, beautifully rendering even dark areas.

Easy colour grading with REAL TIME LUT

LUT-applied photos and videos can be recorded internally without any special software. Even if you don’t have specialized editing skills, the camera helps you expand your range of expression as much as you want.

Lens Mount Leica L

Sensor Resolution Actual: 25.28 Megapixel

Effective: 24.2 Megapixel (6000 x 4000)

Sensor Type 35.6 x 23.8 mm (Full-Frame) CMOS

Image Stabilization Sensor-Shift, 5-Axis

Capture Type Stills & Video

Exposure Control

Shutter Type Electronic Shutter, Mechanical Focal Plane Shutter

Shutter Speed Mechanical Shutter

1/8000 to 60 Seconds

Up to 30 Minutes in Bulb Mode

Electronic Front Curtain Shutter

1/2000 to 60 Seconds

Up to 30 Minutes in Bulb Mode

Electronic Shutter

1/8000 to 60 Seconds

Up to 60 Seconds in Bulb Mode

Bulb/Time Mode Bulb Mode, Time Mode

ISO Sensitivity Photo/Video

100 to 51,200 (Extended: 50 to 204,800)

Metering Method Center-Weighted Average, Highlight Weighted, Multiple, Spot

Exposure Modes Aperture Priority, Auto, Manual, Program, Shutter Priority

Exposure Compensation -5 to +5 EV (1/3 EV Steps)

Metering Range 0 to 18 EV

White Balance 2500 to 10,000K

Presets: AWB, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4

Continuous Shooting Mechanical Shutter

Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)

Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)

Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)

Electronic Shutter

Up to 30 fps for up to 200 Frames (Raw) / 200 Frames (JPEG)

Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)

Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)

Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)

Interval Recording Yes

Self-Timer 2/10-Second Delay

Still Image Capture

Image Sizes 3:2

96 MP (12,000 x 8000) *Via In-Camera Pixel-Shift

96 MP (8496 x 5664) *Via In-Camera Pixel-Shift

24.2 MP (6000 x 4000)

24.2 MP (4272 x 2848)

24.2 MP (3024 x 2016)

4:3

96 MP (10,656 x 8000) *Via In-Camera Pixel-Shift

96 MP (7552 x 5664) *Via In-Camera Pixel-Shift

24.2 MP (5328 x 4000)

24.2 MP (3792 x 2848)

24.2 MP (2688 x 2016)

16:9

96 MP (12,000 x 6736) *Via In-Camera Pixel-Shift

96 MP (8496 x 4784) *Via In-Camera Pixel-Shift

24.2 MP (6000 x 3368)

24.2 MP (4272 x 2400)

24.2 MP (3024 x 1704)

1:1

96 MP (8000 x 8000) *Via In-Camera Pixel-Shift

96 MP (5664 x 5664) *Via In-Camera Pixel-Shift

24.2 MP (4000 x 4000)

24.2 MP (2848 x 2848)

24.2 MP (2016 x 2016)

65:24

24.2 MP (6000 x 2208)

2:1

24.2 MP (6000 x 3000)

Aspect Ratio 1:1, 2:1, 3:2, 4:3, 16:9, 65:24

Image File Format JPEG, Raw

Bit Depth 14-Bit

Video Capture

Internal Recording Modes H.264/H.265/MOV/MP4/ProRes 4:2:2/4:2:0 8/10-Bit

5952 x 3968 at 23.98/24.00/25/29.97 fps [200 Mb/s]

5952 x 3136 at 23.98/24.00/25/29.97 fps [200 Mb/s]

5888 x 3312 at 23.98/24.00/25/29.97 fps [200 Mb/s]

4096 x 2160 at 23.98/24.00/25/29.97 fps [150 to 400 Mb/s]

3840 x 2160 at 23.98/24.00/25/29.97 fps [72 to 400 Mb/s]

1920 x 1080 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94/100/119.88 fps [20 to 454 Mb/s]

External Recording Modes 12-Bit via HDMI

5888 x 3312 at 23.98/25/29.97 fps

10-Bit via USB

5776 x 3056 at 23.98/24.00/25/29.97 fps

4096 x 2160 at 23.98/24.00/25/29.97 fps

1920 x 1080 at 24.00/25/50 fps

Sensor Crop Modes Super35 / APS-C

4096 x 2160

3840 x 2160

3328 x 2496

1920 x 1080

Fast-/Slow-Motion Support Yes

Gamma Curve Panasonic V-Gamut, V-Log

Recording Limit None

Broadcast Output NTSC/PAL

IP Streaming RTP, RTSP

3840 x 2160 to 1280 x 720 at 25p, 29.97p, 50p, 59.94p (4.0 to 25.00 Mb/s)

Built-In Microphone Type Stereo

Audio Recording MOV: 2-Channel 24-Bit 48 kHz LPCM Audio

MP4: 2-Channel 16-Bit 48 kHz AAC Audio

Interface

Media/Memory Card Slot Dual Slot: SD/SDHC/SDXC (UHS-II)

Video I/O 1 x HDMI Output

Audio I/O 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output

1 x 1/8" / 3.5 mm TRRS Headphone/Mic Microphone Input

Power I/O 1 x USB-C Input/Output

Other I/O 1 x USB-C Data Input/Output (Shared with Power Input)

Wireless 2.4 / 5 GHz Wi-Fi (802.11b/g), Wi-Fi 5 (802.11ac), Bluetooth 5.0

App Compatible Yes: Android & iOS

App Name: Lumix Sync

Functionality: Access Stored Files, Firmware Update, Remote Control

*As of January, 2023: Check with manufacturer for the most up-to-date compatibility

Global Positioning (GPS, GLONASS, etc.) None

Monitor

Size 3"

Resolution 1,840,000 Dot

Display Type Free-Angle Tilting Touchscreen LCD

Viewfinder

Type Built-In Electronic (OLED)

Resolution 3,680,000 Dot

Eye Point 21 mm

Coverage 100%

Magnification Approx. 0.78x

Diopter Adjustment -4 to +2

Focus

Focus Type Auto and Manual Focus

Focus Mode Continuous-Servo AF, Manual Focus, Single-Servo AF

Autofocus Points Photo, Video

Contrast Detection, Phase Detection: 779

Autofocus Sensitivity -6 to +18 EV

Flash

Built-In Flash No

Flash Modes Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction

Maximum Sync Speed 1/250 Second

Flash Compensation -3 to +3 EV (1/3 EV Steps)

Dedicated Flash System TTL

External Flash Connection Hot Shoe

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

Operating Humidity 10 to 80%

General

Battery Type 1 x Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Approx. 370 Shots)

Tripod Mounting Thread 1 x 1/4"-20 Female (Bottom)

Accessory Mount 1 x Hot Shoe Mount on Camera Body

Material of Construction Magnesium Alloy

Dimensions (W x H x D) 5.29 x 4.03 x 3.55" / 13.44 x 10.24 x 9.02 cm (Without Protrusions)

Weight 1.45 lb / 658 g (Body Only)

1.64 lb / 744 g (With Recording Media)
