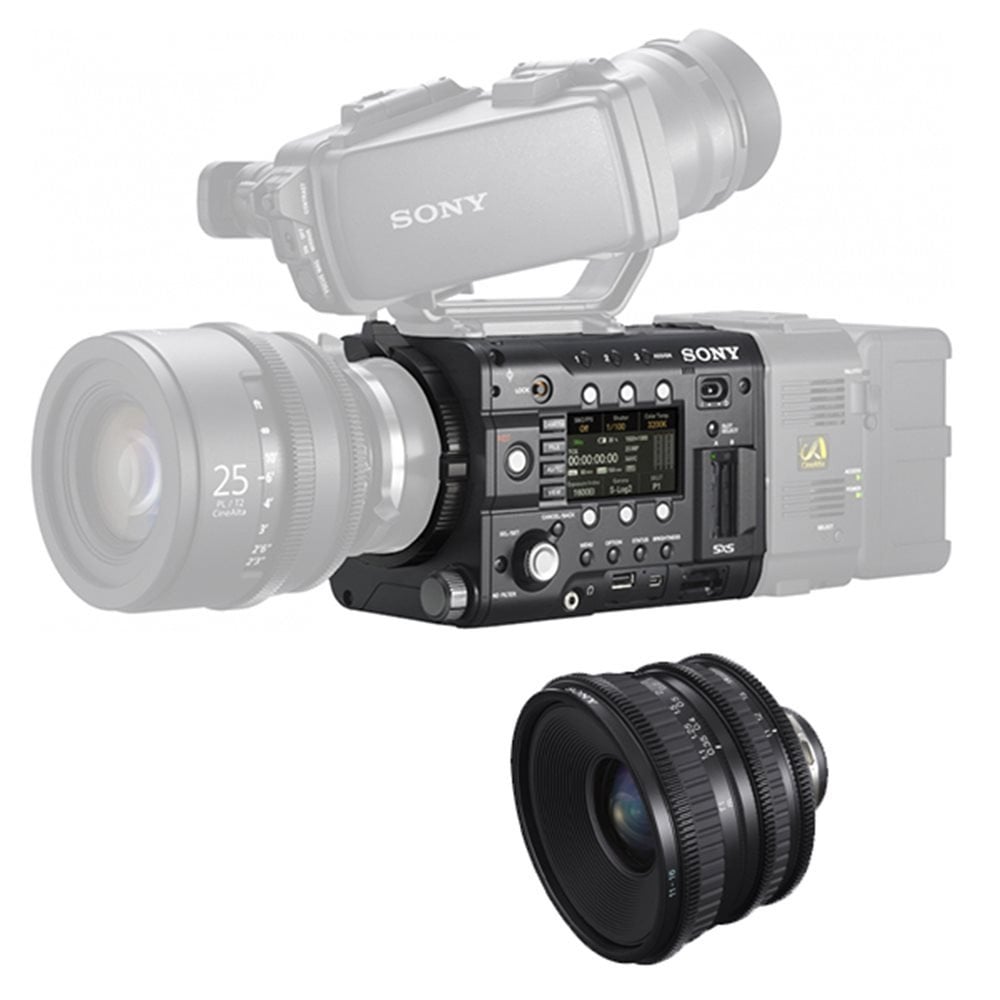

Sony F5 Full HD 4K Camera + Wide Lens Kit

Sony PMW-F5/WIDELENS (PMW/F5/WIDELENS, PMW-F5-WIDELENS, PMW/F5_WIDELENS) F5 Full HD 4K Camera + Wide Lens Kit

Sony 4K sensor for gorgeous, super-sampled HD and 2K.

• The PMW-F5 CineAlta allows you to shoot spectacular images with its 8.9 megapixels (effective) Sony 4K image sensor. Superior, super-sampled pictures with higher contrast, rich colour reproduction and greater clarity. Robust built-in recording modes, all with vibrant 4:2:2 colour. Irresistible options include the amazing precision of 16-bit linear RAW 2K/4K recording and high speed shooting at up to 120 fps without cropping.

Multiple recording formats

• Includes 16-bit RAW 2K/4K on AXSM media and HD/2K on SxS memory, MPEG-2 HD422, MPEG4 SStP*, XAVC 2K*/HD and 16-bit RAW 2K/4K**.
• Simultaneous recording on internal high-speed SxS PRO+ memory cards and RAW 2K/4K recording on sleek AXSM™ memory cards using the optional bolt-on AXS-R5 recorder, designed specifically to attach seamlessly to the F55 and F5 cameras. There is also high speed shooting up to120 fps XAVC 2K/HD* internally and 120 fps RAW 2K onto the AXS-R5.

Lightweight modular design to maximise versatility in 2D and 3D.

• The F5 is exceptionally small, light and modular, letting you build up the right configuration for each job – or each shot. As well as the choice of formats and internal and external recording options, you can attached a variety of viewfinders, including the revolutionary optional DVF-EL100 OLED viewfinder, PL-mount, FZ-mount and still lenses, including second-generation Sony PL-mount lenses, and extra long-life Olivine – Lithium Iron Phosphate – batteries. The chassis is only slightly wider than a typical PL-mount prime lens, perfect for 3D rigs. An optional shoulder rig provides for hand-held and shoulder-mounted shooting.
• This camcorder includes a wide-angle zoom 1.5-times 11-16mm T3.0 lens aimed at high-end cinema, drama, documentary and commercials productions.
• The SCL-P11X15 has been specifically designed to fit to the PMW-F3K via the camcorder’s supplied PL Mount Adapter, which also means the lens is compatible with any other PL Mount camcorder from Sony and also camcorders from many other manufacturers.

PrimeSupport

• This product comes with PrimeSupport – fast, hassle-free repairs and a helpline offering expert technical advice. Which gives you the peace of mind that Sony is looking after your equipment, and your business.

PMW-F5 Specifications

• Imaging Device (Type): Super 35mm equivalent Single- chip CMOS
• Imaging Device (Pixel Count): 11.6 M (total), 8.9 M (effective)
• Built-in Filters: Clear, 0.9 (1/8ND), 1.8 (1/64ND)
• Sensitivity (2000 lx, 89.9% reflectance): Video Gamma: T13 @24p
• (3200K Light source)
• ISO Sensitivity: S-Log2 Gamma: ISO 2000 (D55 Light source)
• Lens Mount: PL mount (with supplied lens mount adapter)
• Flange Focal Length: FZ mount (without supplied lens mount adapter)
• Latitude: 14-stop
• S/N Ratio: 57dB (Video Gamma, 24p, Noise Suppression OFF)
• Shutter Speed: 1/24s to 1/6,000s
• Shutter Angle: 4.2°to 360°(electrical shutter)
• Slow Shutter (SLS): 2, 3, 4, 5, 6, 7, and 8-frame accumulation
• Slow & Quick Motion Function: XAVC HD/2K: 1-120p (NTSC), 23.98p/29.97p, XAVC HD/2K: 1-100p (PAL), 25p
• White Balance: Preset (3200K, 4300K, 5500K), Memory, ATW
• Gain: -3, 0, 3, 6, 9, 12, 18 dB, AGC
• Gamma Curve: Standard (x6), HG1, HG2, HG3, HG4, HG7 and HG8 S-Log2 Gamma
• Audio Input: CH-1/CH-2: XLR-type 3-pin (female) (x2), Line/Mic/Mic, +48V/AES/EBU selectable
• Video Output: HD-Y or HD Sync (tri-level) V1.0, Analog Composite (VUP)
• Audio Output: Phono jack (CH-1, CH-2)
• DC Output: 4-pin (x1), 11 V to 17 V DC (MAX 2.0A) w/ battery adapter
• HD-SDI Output: SDI 1/2 Line Output, SDI 3/4 Monitor Output (character on/off)
• Timecode Input/Output: TC IN/OUT (x1) switchable
• Genlock Input: BNC (x1)
• Remote: 8-pin (x1)
• HDMI Output: A Type (x1)
• USB: USB device, Mini-B (x1), USB host, type-A (x2)
• Headphone Output: Stereo mini jack (x1)
• Speaker Output: Monaural
• Shutter: BNC (x1)
• Wi-Fi: USB host, type-A (x1)
• Media Type: ExpressCard/34 slot (x2), SD card slot (x1)
• Recording Format (Video): MPEG-2 Long GOP, HD 422 mode: CBR, 50 Mbps max, MPEG-2 422P@HL
• Recording Format (Audio): Linear PCM (2 ch, 24-bit, 48-kHz)
• Recording Frame Rate: XAVC 2K: 2048 x 1920, 23.98p/24p/25p/29.97p/50p/59.94p, XAVC HD: 1920x1080, 23.98p/25p/29.97p/50p/59.94p, MPEG4 SStP: 1920 x 1080, 23.98p/24p/25p/29.97p, MPEG2 HD: 1920x1080, 50i/59.94i/23.98p/25p/29.97p, MPEG2 HD: 1280 x 720, 50p/59.94p
• Battery Operating Time: Approx. 160 min with BP-FL75, Approx. 230 min with BP-GL95A
• Power Requirements: DC 12 V (11 V to 17.0 V)
• Power Consumption: Approx .24 W (while recording XAVC HD 60p, EVF Off, LCD
• monitor Off, HD-SDI On)
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to +60°C
• Dimensions (WxDxH): 15.1 cm x 21.0 cm x 18.9 cm
• Weight: 2.2 kg

Lens Specifications

• Mass Approx.: 1,100 g
• Operating temperature: 0 ºC to + 40 ºC (32 ºF to 104 ºF)
• Storage temperature: –20 ºC to + 60 ºC (–4 ºF to 140 ºF)
• Supplied accessories: Operating Instructions (1), Lens cap (1), Mount cap (1), Retainer (1), Foot (1)
• Focal length: 11 mm to 16 mm
• Zoom: Manual
• Zoom ratio: 1.5 ×
• Maximum relative aperture: T3.0
• Iris: Manual T3.0 to T22
• Focus: Manual Ranges: 0.35 m to (from the imaging plane)
• Filter mounting screw: M 105 mm, pitch 1.0 mm
• Mount system: Sony PL mount

In the box

• 1x FZ-to-PL Lens mount adapter
• 1x 11-15mm / T3.0 Wide Angle Zoom PL Mount Lens
• 1x V-Mount battery adapter
• 1x Audio input module
• 1x IFU-WLM3 wifi antenna
• 2x CD-ROM
• 1x Lens cap
• 1x Mount cap
• 1x Retainer
• 1x Foot
• 1x Operating instructions
