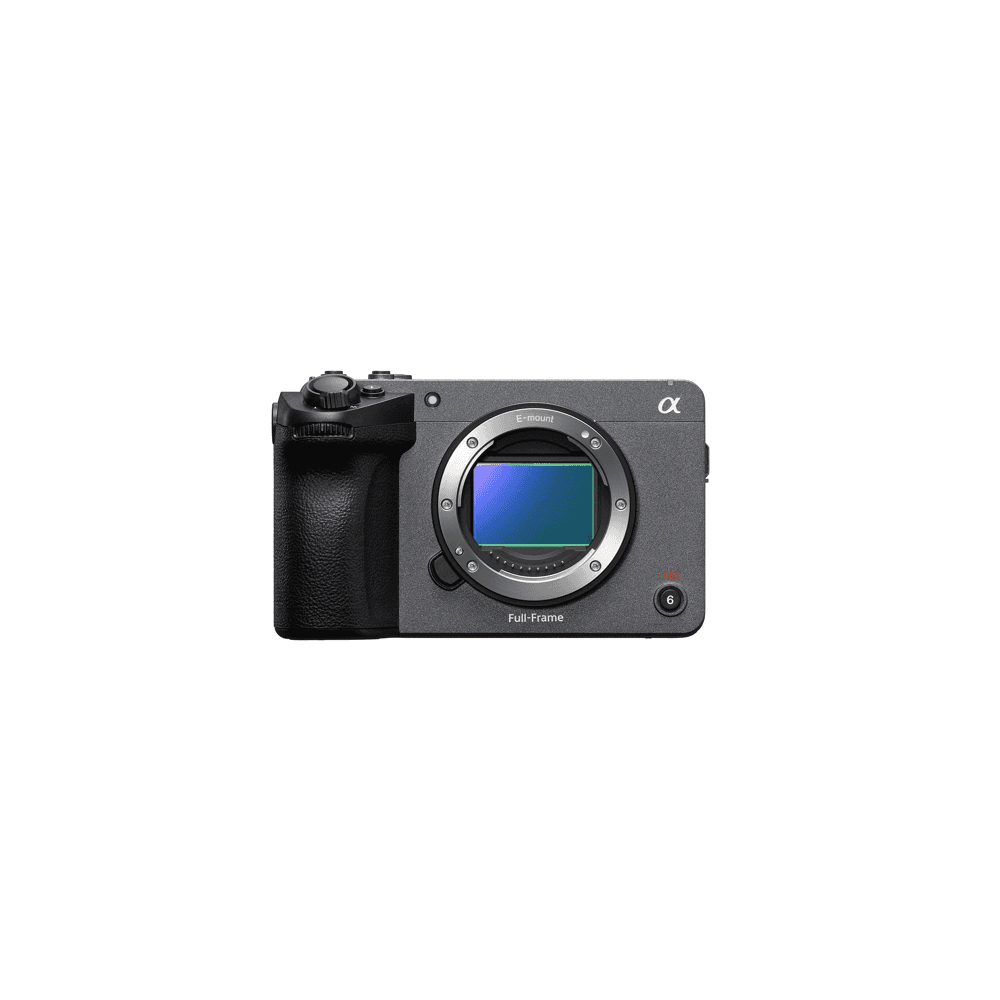

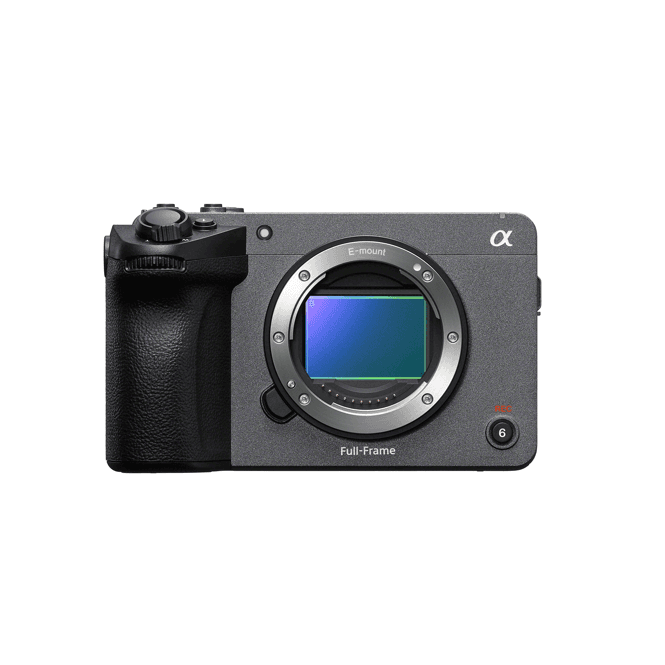

Sony FX5 Full-frame Cinema Line Camera - Body Only

Sony ILMEFX5BB.CEC (ILMEFX5BB/CEC, ILMEFX5BB_CEC, ILMEFX5BBCEC, ILMEFX5BB CEC) FX5 Full-frame Cinema Line Camera - Body Only

The Sony FX5 Full-Frame Cinema Line Camera is a professional digital cinema camera designed for filmmakers, content creators, and production teams who require cinematic image quality in a compact and portable form factor. Positioned within Sony's acclaimed Cinema Line, the FX5 combines advanced imaging technology, powerful video capabilities, and production-focused features to support everything from independent filmmaking and documentaries to commercial productions and broadcast applications.

Lighting the Way Forward

Lighting a creative path, the FX5 empowers filmmakers to step confidently into the next stage of their professional journey. Bringing an advanced cinema look and refined operability together in a compact body, it gives creators the freedom to realise their vision with greater precision, control, and expressive potential.

5K full-frame fully-stacked Exmor RS™ CMOS sensor for speed, detail and latitude

The full-frame stacked Exmor RS CMOS sensor enables fast readout for high-resolution, high-frame-rate recording. Wide latitude and low noise ensure smooth gradation and natural textures, even in high-contrast scenes.

BIONZ XR2™ with integrated AI processing for enhanced shooting support

The BIONZ XR2 engine delivers dramatic improvements in image, sound, communication, operation, and more. Built-in AI processing enables enhanced subject recognition and deep learning-based Auto Tracing White Balance (ATW), helping you shoot with confidence.

Open Gate and other image scan modes

The FX5 offers full-frame Open Gate recording — a first in the Cinema Line FX series. With 5K up to 120 fps (FF 3:2)15, 4K up to 240 fps (FF crop) and more, it gives you the freedom to adjust framing, speed and workflow to realise even the most ambitious vision.

Internal X-OCN compressed RAW video recording

Capture 16-bit scene-linear X-OCN internally eliminating the need for an external RAW data recorder. With LT, C1 and C2 codecs, you can balance image quality, file size and RAW workflow flexibility to suit the production.

Three Base ISO settings for effective noise control in any environment

Three Base ISO settings - a standard ISO 800, a mid-sensitivity ISO 4000, and a high-sensitivity ISO 1280019 for low light - are available to match your shooting environment. Capture clean shadows and wide latitude across varied lighting conditions, for consistently stunning clarity.

15+ stops of latitude for low-noise shadow detail

Wide latitude helps capture highlight and shadow detail with smooth, natural gradation. Low shadow noise preserves clarity, texture and atmosphere, letting you push your creative grading choices further.

Dual Gain Shooting debuts in the Cinema Line FX camera series

Dual Gain Shooting maximises latitude while reducing noise to enhance shadow details. Making full use of the sensor’s capability, it delivers smooth, natural gradients for greater editing flexibility.

High-frame-rate capture, including 5K at up to 120 fps2223

High frame rates open up striking slow-motion possibilities. The FX5 records up to 5K at 120 fps22 and 4K at 240 fps, giving creators the power to capture fast-paced action with impressive detail and clarity — ideal for everything from cinematic storytelling to sharp sports and documentary footage.

Precise, reliable AF and tracking with AI-based subject recognition

With built-in AI processing, the BIONZ XR2 engine accurately recognises human, animal, and bird eyes (Real-time Eye AF). Fast Hybrid AF uses up to 759 points to ensure accurate focus and tracking that keeps up with quick-moving subjects, even in dark scenes and when shooting with a shallow depth of field.

Built-in de-squeeze for anamorphic shooting

Built-in de-squeeze support makes anamorphic shooting easier on set. With 1.3x, 1.5x, 1.6x, 1.8x and 2.0x settings, the FX5 works smoothly with a wide range of anamorphic lenses

Deep learning-based illumination estimation

Deep-learning-based illumination estimation achieves unprecedented Auto Tracing White Balance (ATW) accuracy, even in challenging scenes. It delivers accurate colour reproduction even under lighting conditions that previously tended to cause colour cast.

S-Cinetone™ for a refined cinematic look

S-Cinetone brings Sony cinema colour science to the FX5, delivering natural skin tones, smooth gradation and a polished look straight out of camera.

Wide-gamut colour for more grading control

With colour gamuts exceeding both BT.2020 and DCI-P3, S-Gamut3 and S-Gamut.Cine retain broad colour information for more precise grading and easier colour matching with VENICE 2 in multi-camera shoots.

Three S-Log3 modes for flexible workflows

From cinematic shoots to run-and-gun, choose Cine EI, Cine EI Quick or Flexible ISO25 to capture imagery with maximum latitude. You can also import up to 16 user LUTs allowing you to easily monitor the intended look in real-time.

5-axis stabilisation for steadier handheld shooting

A precision stabilisation unit and gyro sensors combine to provide optical 5-axis in-body stabilisation. An enhanced stabilisation unit expands the roll-direction compensation range by up to 2x, effectively reducing handheld roll shake. The result is a camera that’s ideal for handheld shooting. Dynamic active Mode adds extra electronic support, and stabilisation data can also be used in post-production.

Lightweight, compact design for agility on set

The compact flattop body and stable grip are built for comfortable handheld work. Paired with Sony's compact lenses, the FX5 becomes a mobile system for flexible shooting with gimbals, in tight spaces and more.

High-quality 96 kHz / 32bit float audio recording

The XLR handle unit30 supports two XLR/TRS inputs, a 3.5 mm stereo mini jack and up to 96 kHz / 32bit float audio. With up to 4 channels of top-quality audio recording, it helps you capture cleaner sound without slowing down the shoot.

BIG6 (HOME) screen for faster on-set control

Inherited directly from Sony’s high-end CineAlta cameras, the BIG6 (HOME) screen displays six essential settings together: frame rate, EI/ISO/Gain, shutter, iris, LUT and white balance. Touch operation, the multi-function dial, and Fixed/Variable frame-rate control help you work quickly and efficiently.

Power that keeps pace with long shoots

A high-capacity 2670 mAh NP-SA10036 battery can provide up to 170 minutes of recording time. Optimised power management, faster charging38, USB Power Delivery (PD)39 and battery condition display make day-to-day operation easier.

Cooling designed for uninterrupted 170 minutes of recording

An efficient fan cooling system and advanced design help keep the camera cool, even when the LCD monitor is closed. Three fan modes — [Auto], [Minimum], and [OFF in REC] — let you balance cooling and noise to suit your shooting needs.

GENERAL

• Camera type: Interchangeable lens digital camera
• Lens mount: E-mount

CAMERA SECTION

• Type: 35mm full frame (35.9 x 24.0 mm), Exmor RS CMOS sensor
• Number of pixels (effective)*1: Approx. 16.6 megapixels max.
• Number of pixels (total): Approx. 18.2 megapixels
• Optical low pass filter: Yes
• Latitude: 15+ stops (S-Log3)
• Color temperature range: 2000 K - 15000 K
• Anti-Dust function: Yes

RECORDING SYSTEM (MOVIE)

• Video compression: X-OCN
• Video compression: XAVC HS: MPEG-H HEVC/H.265
• Video compression: XAVC S: MPEG-4 AVC/H.264
• Audio recording format: LPCM 4ch (48 kHz 24 bit), PCM 4ch (48 kHz 32 bit float)*2, LPCM 4ch (96 kHz 24 bit)*2, PCM 4ch (96 kHz 32 bit float)*2

MOVIE FUNCTION

• Slow & Quick Motion (S&Q): Yes
• Proxy recording: Yes
• TC/UB: Yes
• RAW Output: Yes (HDMI)
• Memory card slot: SLOT A: Multi slot for SDXC (UHS-I/II compliant) memory card / CFexpress 2 Type A card, SLOT B: Multi slot for SDXC (UHS-I/II compliant) memory card / CFexpress 2 Type A card

FOCUS SYSTEM

• Type: Fast Hybrid AF (phase-detection AF / contrast-detection AF)
• Focus point: Max. 759 points (phase-detection AF)
• Recognition target (Movies): Human
• Recognition target (Movies): Animal
• Recognition target (Movies): Bird
• Other features: AF Subj. Shift Sensitivity (Movie), AF Transition Speed (Movie), Focus Map (Movie), AF Assist (Movie)
• ISO sensitivity: ISO 320 - 409600 equivalent, AUTO (ISO 320 - 409600, selectable upper limit)

LCD SCREEN

• Type: 8.8 cm (3.5-type) type TFT
• Touch panel: Yes
• Number of dots (total): 2 764 800 dots
• Adjustable angle: Opening Angles (approx.): Up 98 °, down 40 °, side 180 °, rotation 270 °

CLEAR IMAGE ZOOM

• Movies: Approx. 1.5x (4K), Approx. 2x (HD)

SHUTTER

• Shutter speed: Movies: 64 F to 1/8000 s

IMAGE STABILISATION

• Type: Image sensor-shift mechanism with 5-axis compensation (compensation depends on lens specifications)
• Mode: Movie: Dynamic active / Active / Standard / Off

ACCESSIBILITY

• Functions: Screen Reader, Focus Magnifier, Focus Map (Movie), Peaking Display, Subject Recognition in AF, Touch Focus, Touch Tracking, Multi-angle LCD screen, Custom function, Enlarge Screen

INTERFACE

• PC interface: Mass-storage
• Multi / Micro USB terminal*3: -
• USB Type-C® Terminal: Yes (PORT1: SuperSpeed USB 10 Gbps (USB 3.2) compatible, PORT2: Hi-Speed USB 480 Mbps (USB 2.0) compatible)
• Wireless LAN (built-in): Yes (Wi-Fi Compatible, IEEE 802.11a/b/g/n/ac/ax (2.4 GHz band/5 GHz band/6 GHz band))*4
• Bluetooth: Yes (Bluetooth Standard Ver. 5.3 (2.4 GHz band))
• HDMI output: HDMI connector (Type-A)
• Multi Interface Shoe*6: Yes (with Digital Audio Interface)
• Mic Terminal: Yes (3.5 mm Stereo minijack)
• XLR audio input: Yes (3-pin (female) x2)
• Headphone terminal: Yes (3.5 mm Stereo minijack)
• Remote Control (Wireless): Yes (Bluetooth remote control)
• LAN terminal: Yes (2.5GBASE-T, 1000BASE-T, 100BASE-TX)
• Functions: FTP Transfer Func. (Wired LAN, USB Tethering, Wi-Fi)
• VF terminal: Yes

NETWORK STREAMING

• Video data format: MPEG-4 AVC/H.264, MPEG-H HEVC/H.265 *7
• Video resolution: 3840 x 2160, 1920 x 1080, 1280 x 720
• Audio data format: AAC-LC 2ch (16bit 48 kHz)
• Protocol: RTMP, RTMPS, SRT

AUDIO

• Microphone: Built-in, stereo
• Speaker: Built-in, monaural

LENS COMPENSATION

• Lens compensation: Shading, Chromatic Aberration, Distortion, Breathing (Movie)

POWER

• Battery: One rechargeable battery pack NP-SA100
• Movies (actual shooting)*8: Approx. 105 min (LCD monitor) (CIPA standard)
• Movies (continuous shooting): Approx. 170 min (LCD monitor) (CIPA standard)
• Internal battery charge: Yes (Available with USB Type-C terminal. USB Power Delivery compatible)*9
• USB power supply: Yes (Available with USB Type-C Terminal. USB Power Delivery compatible)
• Power consumption: With LCD screen: Approx. 7.4 W (with FE 28-70mm F3.5-5.6 OSS II lens attached)

WEIGHT

• Including Accessory: Approx.1046 g
• With battery and memory card: Approx. 734 g
• With battery and memory card (oz.): Approx. 1 lb 9.9 oz
• Body only: Approx. 643 g
• Body only (oz.): Approx. 1 lb 6.7 oz

DIMENSIONS

• Dimensions (W x H x D):
• Approx. 132.2 x 79.0 x 87.0 mm (from grip to monitor)
• Approx. 5 1/4 x 3 1/8 x 3 1/2 inches (from grip to monitor)

OPERATION

• Operating temperature: 0 - 40 ℃ / 32 - 104 °F
• Storage temperature: -20 to 55 ℃ / -4 to 131 °F

NOTES

• *1 Number of effective pixels varies depending on attached lenses and camera settings.
• *2 When using accessories that support 4ch output / 96 kHz / 32 bit float with the Multi Interface Shoe
• *3 Supports Micro USB compatible device.
• *4 Models sold in some countries/regions support IEEE 802.11b/g/n/ax (2.4GHz) wireless LAN only or 802.11a/b/g/n/ac/ax (2.4GHz/5GHz) wireless LAN only.
• *5 Models sold in some countries/regions support IEEE 802.11b/g/n/ax (2.4GHz) wireless LAN only.
• *6 Sony accessories for the Accessory Shoe can be attached.
• *7 When [Protocol] is set to [RTMP/RTMPS], [MPEG-4 AVC/H.264] is only available.
• *8 Indication recording time, which is defined by repeating the cycle: Power on, start recording, zoom , stand-by and power off.
• *9 Requires USB PD (27 W min.) external power supply and cable if charging the battery pack while it is inserted into the camera.
• *10 USB PD compatible power supply and USB cable are not included for the Battery Charger BC-SAD1 (supplied). Simultaneous two-battery charging requires a USB PD compatible power supply that can deliver 45 W or higher. Single-battery charging requires a USB PD compatible power supply that can deliver 27 W or higher. A USB cable that support USB PD is required in both cases.

In The Box

• 1x Sony FX5 Cinema Line Camera
• 1x Rechargeable Battery NP-SA100
• 1x Battery Charger BC-SAD1
• 1x Body cap
• 1x Accessory shoe cap
• 1x VF terminal protect cap
