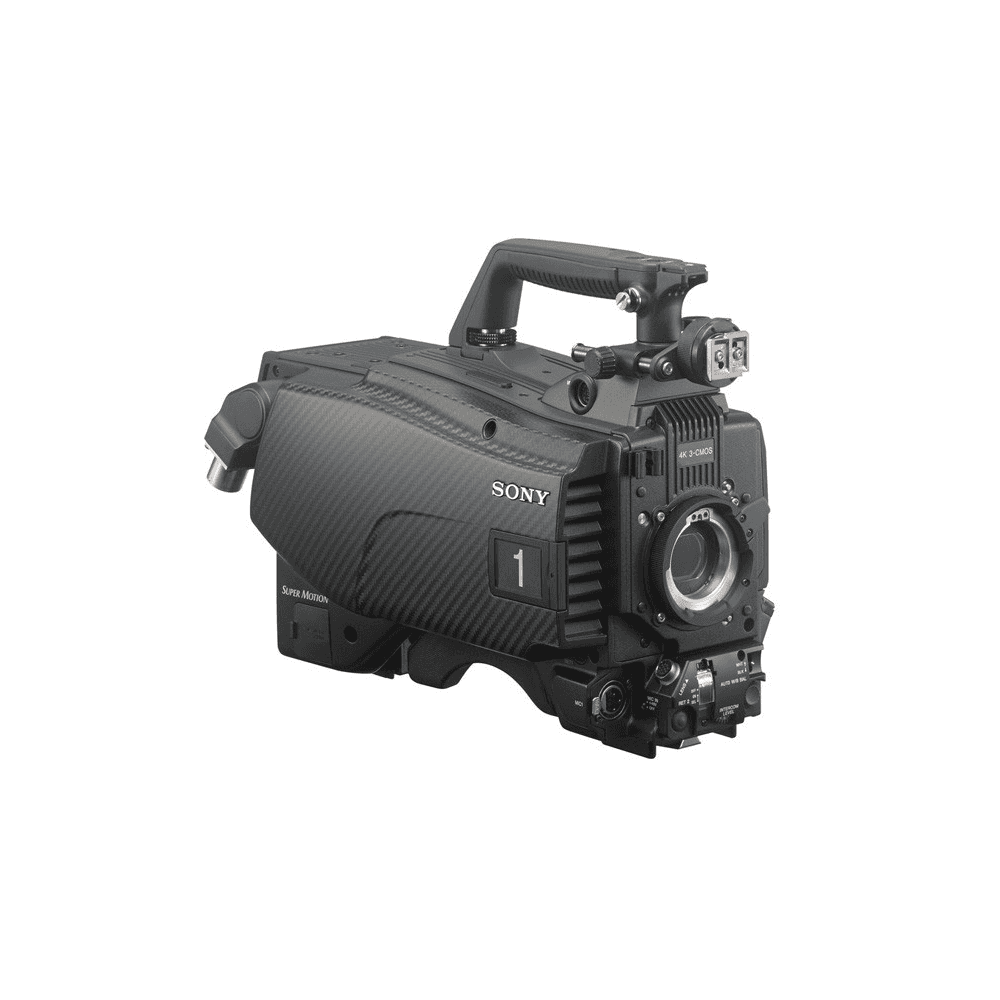

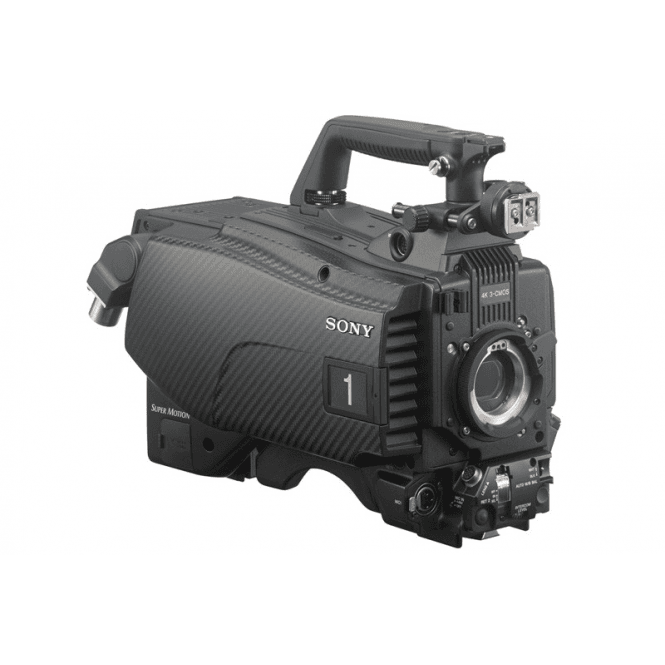

Sony HDC-4300//U 4K/HD System Camera (Body Only)

Sony HDC-4300//U (HDC/4300//U, HDC_4300//U, HDC 4300//U) 4K/HD System Camera (Body Only)

Flexible, no-compromise production in 4K and HD

• The HDC-4300 puts you in total control of your content. For the first time, one camera platform is all you need to handle 4K, HD and super slow motion – helping you generate maximum returns on today’s production budgets.
• Delivering uncompromised image quality, the HDC-4300 integrates seamlessly with HD infrastructures and accessories as well as the world’s most advanced 4K live production workflows. Optional software upgrades let you add amazing HD 8x super slow motion and 4K image capture to standard HD outputs. All the flexibility and control you demand are right there in a single high-performance platform.

Seamless integration with existing workflows

• The HDC-4300 joins Sony’s widely acclaimed HDC Series family of live production solutions. Operation is reassuringly familiar to operators and cameramen, so you’re up and running faster without expensive re-training.
• The HDC-4300 is fully compatible with a wide range of existing products and workflows, including viewfinders, large lens adaptors and camera control units. There’s no need for investment in additional accessories, keeping costs and inventory down.

Amazing colour and imagery with next-generation innovation

• Featured in the HDC-4300, cutting-edge Sony technological innovation and unparalleled hands-on live production experience are crystallised in the design of the world’s first three 2/3-inch 4K imaging device. This advanced optical system supports the next-generation ITU-R BT.2020 colour gamut, enabling more precise colour reproduction in live broadcasts. You’ll see the difference with vibrant, true-to-life images that make viewers feel as if they’re actually there.

General

• Power requirements: AC 240 V, 1.4 A (max.), DC 180 V, 1.0 A (max.), DC 12 V, 7 A (max.)
• Operating temperature: -20°C to +45°C (-4°F to +113°F)
• Storage temperature: -20°C to +60°C (-4°F to +140°F)
• Mass: Approx. 5.0 kg (11 lb 0.37 oz) (unit only)

Camera section

• Pickup device: 3-chip 2/3-inch type CMOS
• Spectrum system: F1.4 prism
• Built-in filters: ND: 1 : CLEAR, 2：1/4ND, 3：1/8ND, 4：1/16ND, 5：1/64ND, CC: A : CROSS, B：3200K, C：4300K, D：6300K
• Sensitivity : F8.0 (2000 lx, 89.9% reflection)
• Signal-to-noise ratio : -62 dB (HD/59.94i)
• Horizontal resolution: 2000 TV lines (at center) in 4K, 5% or higher modulation
• Input/output connectors
• BPU: Optical/electrical multi-connector (1)
• Audio input: (CH1, CH2) XLR-type 3-pin, female (1 each)
• For MIC : -60 dBu (can be set to a value up to –20 dBu using the menu or from the HDCU2000/2500), balanced
• For LINE:: 0 dBu, balanced
• Mic input: XLR-type 3-pin, female (x 1)
• Return control: 6-pin (x1)
• Prompter/Genlock: BNC (x1), 1 Vp-p, 75 Ω
• Prompter 2: BNC (x1), 1 Vp-p, 75 Ω
• DC input: XLR-type 4-pin (x1), DC 10.5 V to 17 V
• DC output: 4-pin (x1), DC 10.5 V to 17 V, 0.5 A (max.), 2-pin (x1), DC 10.5 V to 17 V, 2.5 A (max.) (Limitations may apply, depending on the load and input conditions.)
• Test out: BNC (x1)
• SDI (1, 2): BNC (1 each)
• SDI Monitor: BNC (x1)
• Earphone: Stereo mini jack (x1)
• Tracker : 10-pin (x1)
• Crane: 12-pin (x1)
• Intercom: (1, 2) XLR-type 5-pin, female (1 each)
• Remote: 8-pin (x1)
• Network trunk: RJ-45 8-pin (x1)
• Lens: 12-pin (x1)
• Viewfinder: 20-pin (x1)
• USB: USB 2.0, Type A, 4-pin (x1)

In the box

• 1x HDC-4300 Body
• 1x Operation manual
• 1x Set Cable clamp belt
• 1x Set Number plates
• 2x Screws (+B3x8)
