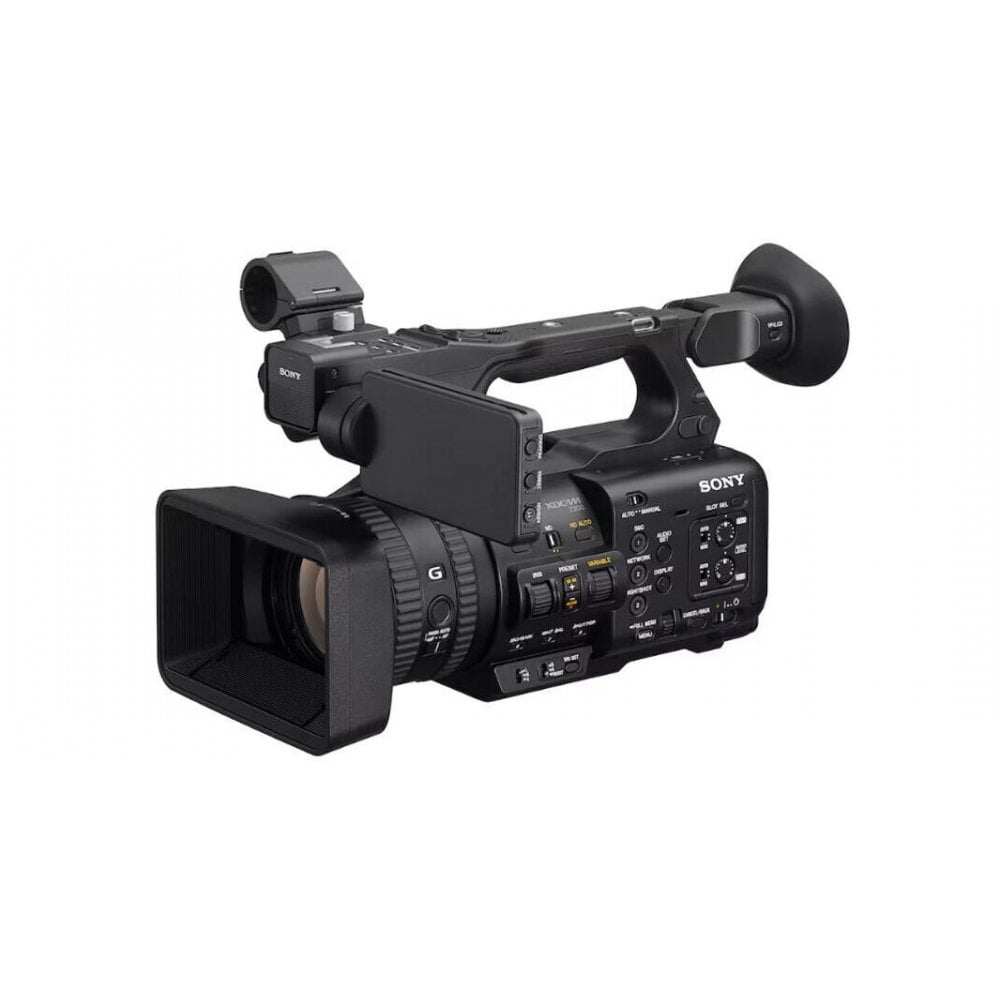

Sony PXW-Z200 4K HDR Camcorder

Sony PXW-Z200 4K HDR Camcorder
(Sony PXW-Z200, PXW/Z200, PXW_Z200, PXWZ200, PXW Z200)

Shoot, record, and stream in 4K HDR with a 20x optical zoom, AI-powered Subject Recognition AF, integrated 2.4 GHz/5 GHz* Wi-Fi, and 12G-SDI connectivity.

Crisp details and vivid colors, every time

Capture stunning 4K HDR footage with exceptional colors, textures, and details. The PXW-Z200’s powerful 1.0-type Exmor RS™ stacked CMOS sensor ensures high sensitivity and low noise, delivering up to 120fps* in 4K and 240fps in FHD. Full-pixel readout and BIONZ XR™ image processing maintain every detail, while 709tone and S-Cinetone™ compatibility make color-matching with Sony system cameras and Cinema Line seamless.

Intelligent features for smarter shooting

Sony innovations ensure you capture top-quality content. The advanced AI Processing Unit recognizes human subjects, while the Fast Hybrid AF system tracks and maintains precise focus. The Electronic Variable ND Filter allows for optimal exposure in various lighting conditions, with Auto ND handling adjustments automatically.

Reliable streaming and broadcast-friendly connectivity

Built-in 2.4 GHz/5 GHz* Wi-Fi works seamlessly with Sony’s C3 Portal (paid) or XDCAM Pocket apps for simple, high-quality streaming directly from the camera. The Monitor & Control** app enables remote operation from your smartphone or tablet. The PXW-Z200 also features built-in 12G-SDI for enhanced bandwidth, TC input/output, and XAVC (MXF) broadcast-friendly recording.

1.0-type Exmor RS CMOS sensor

Delivering exceptional imaging performance for a compact camcorder, the PXW-Z200 features a 1.0-type Exmor RS CMOS sensor with approximately 14.0 effective megapixels. Its unique stacked structure improves readout speeds and enhances low-light performance.

BIONZ XR image processing

The BIONZ XR image processor, integrated within the sensor, ensures faster autofocus, higher frame rates, improved Auto Tracing White Balance (ATW), and superior noise reduction. The 5K oversampling with full-pixel readout transforms ample image data into stunning 4K (3840 x 2160) 60p video.

Advanced AI Processing Unit for next-generation autofocus

The PXW-Z200’s AI Processing Unit, combined with BIONZ XR, uses deep learning based on human form and posture data to deliver precise human subject recognition. The Fast Hybrid AF system offers 81% coverage, supporting Subject Recognition AF and Real-time Tracking, ensuring focus on subjects across the frame.

4K 120fps for stunning slow-motion footage

The Exmor RS sensor enables high frame rate (HFR) recording, capturing 4K footage at up to 120fps and FHD at 240fps. This allows for 4x slow-motion in 4K at 30p or 5x slow-motion at 24p, with fast autofocus maintaining sharp focus throughout.

20x optical zoom

The 20x power zoom G Lens™ covers a versatile range, from wide-angle interviews to telephoto close-ups. Clear Image Zoom technology boosts the zoom to 30x in 4K or 40x in FHD, while offering smooth, silent operation with maximum apertures of F2.8 (wide) to F4.5 (telephoto).

Built-in Electronic Variable ND Filter

Effortlessly adjust the built-in Electronic Variable ND Filter from 1/4 to 1/128 ND or use the Auto ND function for automatic exposure adjustments—ideal for dynamic shooting conditions.

Compact design and portability

The PXW-Z200’s lightweight, compact design makes it easy to transport. The main body weighs only 1.96 kg (4 lb 5.1 oz) and measures 175.6 mm x 201.3 mm x 371.1 mm. For storage, the dimensions shrink, and the detachable microphone holder adds further portability.

Flexible camera control

Two independent control rings for focus/zoom and two dials for IRIS/ND Variable provide easy control over exposure, focus, and zoom. The camera also features 12 user-assignable buttons for personalized settings and fast operation.

Multiple recording formats

The PXW-Z200 supports a range of recording formats, including XAVC (MXF), XAVC S-I for high-quality 10-bit 4:2:2 recording, XAVC HS-L (H.265), XAVC S-L (H.264), and proxy recording. These options provide flexibility for post-production and efficient file management.

Dependable battery power

The PXW-Z200 is compatible with Sony BP-U35, BP-U70, or BP-U100 lithium-ion batteries, delivering up to 90 minutes of continuous operation with a BP-U35. The batteries are also interchangeable with other Sony cameras like the PXW-Z280 and FX9.

Wireless monitoring and remote control

Built-in Wi-Fi supports wireless monitoring and remote control via the Monitor & Control app, enabling touch focus, iris adjustment, and more.

Designed for live streaming

Stream directly to live streaming platforms via Wi-Fi or a wired connection. Support for RTMP/RTMPS and SRT protocols makes it easy for solo operators to manage streaming and distribution, while apps like C3 Portal (paid) enhance workflow efficiency.

Sustainability

Sony has made efforts to reduce the environmental footprint of the PXW-Z200 across the product lifecycle, from development and supply chain to production and packaging.

General

• Camera Type: Solid-state memory camcorder
• Mass (Main Body Only): Approx. 1960 g (4 lb 5.1 oz.)
• Mass (including Supplied Accessories and Battery): Approx. 2400 g (5 lb 4.7 oz.) *1
• Dimensions (W x H x D): Approx. 175.6 x 201.3 x 371.1 mm (7 inch x 8 inch x 14 5/8 inch)
• Battery: BP-U35, BP-U70, BP-U100
• Battery: Yes (Available with USB Type-C Terminal. USB Power Delivery compatible)
• Power Requirements: DC 19.5 V
• Normal Power Consumption: Approx. 20 W
• Maximum Power Consumption: Approx. 37 W
• Operating Temperature: 0 to 40 ℃ (32 ℉ to 104 ℉)
• Storage Temperature: -20 to 60 ℃ (-4 ℉ to 140 ℉)
• Battery Operating Time (Continuous Shooting): 90 minutes
• Recording Format (Video): XAVC S: MPEG-4 AVC / H.264, XAVC HS: MPEG-H HEVC / H.265

Lens

• Zoom Ratio: 20x
• Focal Length: f=7.71-154.21 mm
• Focal Length (35mm Format Equivalent): 24-480 mm
• Iris: F2.8-F4.5
• Focus Range (from the front of the Lens): Approx. 10 mm to ∞
• Filter Diameter: 72 mm

Camera Section

• Imaging Device (Type): 1.0-type (13.2 mm x 8.8 mm) Exmor RS CMOS sensor
• Number of Pixels (Total): Approx. 20.9 megapixels
• Number of Pixels (Effective): Approx. 14.0 megapixels max.
• Built-in ND Filter: Linear variable ND (1/4 ND - 1/128 ND)
• Minimum Illumination: 1.2 lx (typ)*4
• Optical Low Pass Filter: Yes
• Shutter Type: Electronic shutter
• Shutter Speed: 1/8000 sec to 64F
• Slow & Quick Motion (S&Q): Yes
• White Balance: 2000 K - 15000 K
• Gain: -3 to 36 dB (Every 1 dB)
• Base Look: S-Cinetone, ITU709, 709tone, s709, 709(800%), S-Log3, HLG (Live / Mild / Natural)
• Image Stabilization (Type): Lens-shift mechanism and electronic
• Image Stabilization (Mode): Active / Standard / Off
• Lens Compensation: Peripheral Shading, Chromatic Aberration, Distortion
• ISO Sensitivity: ISO 250-16000 equivalent (Using SDR Reset look), AUTO (ISO 250-16000, selectable lower limit and upper limit)
• Focus Type: Fast Hybrid AF (Phase-detection AF / contrast-detection AF)
• Focus Point: Max. 475 points (Phase-detection AF)
• Focus Recognition Target: Human
• Other Focus Features: AF Subj. Shift Sensitivity, AF Transition Speed, AF Assist
• Proxy Recording: Yes
• Clear Image Zoom: Approx. 1.5x (4K), approx. 2x (HD)

Interface

• Audio Input: 3.5 mm Stereo minijack, XLR 3-pin (Female) x2
• Multi Interface Shoe: Yes (With Digital Audio Interface)
• Built-In Microphone: Built-in, stereo
• Headphone Terminal: Yes (3.5 mm Stereo minijack)
• Built-In Speaker: Built-in, monaural
• Recording System (Audio): LPCM 4ch (48 kHz 24 bit)
• SDI Output: BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A / B), HD-SDI
• HDMI Output: HDMI connector (Type-A)
• TC / UB: Yes
• Timecode Input / Output: BNC, TC IN/OUT Switchable
• USB Terminal: Yes (SuperSpeed USB 5 Gbps (USB 3.2) compatible)
• DC Input: Yes
• Remote: Yes (2.5 mm Stereo mini-mini jack)
• Remote (Wireless): Yes (Bluetooth remote control)
• Wired LAN: Yes (1000BASE-T, 100BASE-TX, 10BASE-T)
• Wireless LAN (Built-In): Yes (Wi-Fi Compatible, IEEE 802.11a / b / g / n / ac (2.4 GHz band / 5 GHz band)) *5 *6
• PC Interface: Mass-storage / MTP
• Other Function: FTP Transfer Func. (Wired LAN (USB-LAN), USB Tethering, Wi-Fi)

Monitoring

• Type (Viewfinder): 1.0 cm (0.39-type) electronic viewfinder (XGA OLED)
• Number of Dots (Viewfinder): 2 359 296 dots
• Magnification (Viewfinder): Approx. 1.07x *7 with 50 mm lens at infinity,-1 m-1
• Diopter Adjustment (Viewfinder): -4.0 to +3.0 m-1
• Eye Point (Viewfinder): Approx. 22 mm from the eyepiece lens, at -1 m-1 *8
• Type (LCD Screen): 8.8 cm (3.5-type) type TFT
• Touch Panel (LCD Screen): Yes
• Number of Dots (Total) (LCD Screen): 2 764 800 dots

Media

• Type: SLOT A: Multi slot for SD (UHS-I / II compliant) memory card / CFexpress Type A card, SLOT B: Multi slot for SD (UHS-I / II compliant) memory card / CFexpress Type A card

Streaming

• Protocols: RTMP, RTMPS, SRT
• Video Data Format: MPEG-4 AVC / H.264, MPEG-H HEVC / H.265
• Video Resolution: 3840 x 2160 (Using RTMP / RTMPS), 1920 x 1080, 1280 x 720
• Audio Data Format: AAC-LC 2ch (16bit 48 kHz)

Accessibility

• Accessibility Functions: Enlarge Screen, Screen Reader

Notes

• When attaching lens hood, LCD hood, microphone holder, eyecup and BP-U35.
• Using BP-U35, normal power consumption.
• The number of effective pixels will vary depending on the shooting mode and settings.
• 3840 x 2160 / 29.97p mode, F2.8, +36 dB gain, SS=1/30 (sec), BaseLook=ITU709.
• (Configuration method / Access method) WPS or manually / infrastructure mode. When connecting to smartphones, the camera can always work as a base without a wireless access point. (Security: WEP / WPA-PSK / WPA2-PSK / WPA3-SAE)*6
• The model shipped to countries with legal restrictions on 5 GHz band communication does not support 5 GHz communication. Please check the regulations in your country or region
• 35 mm camera equivalent
• CIPA standard
• Design and specifications are subject to change without notice.

In The Box

• 1x Sony PXW-Z200 4K HDR Camcorder
• 1x AC Adaptor
• 1x Power cord
• 1x Battery charger
• 1x Battery pack
• 1x LCD hood
• 1x Lens hood
• 1x Eyecup
• 1x Microphone holder
• 1x Cold shoe kit
