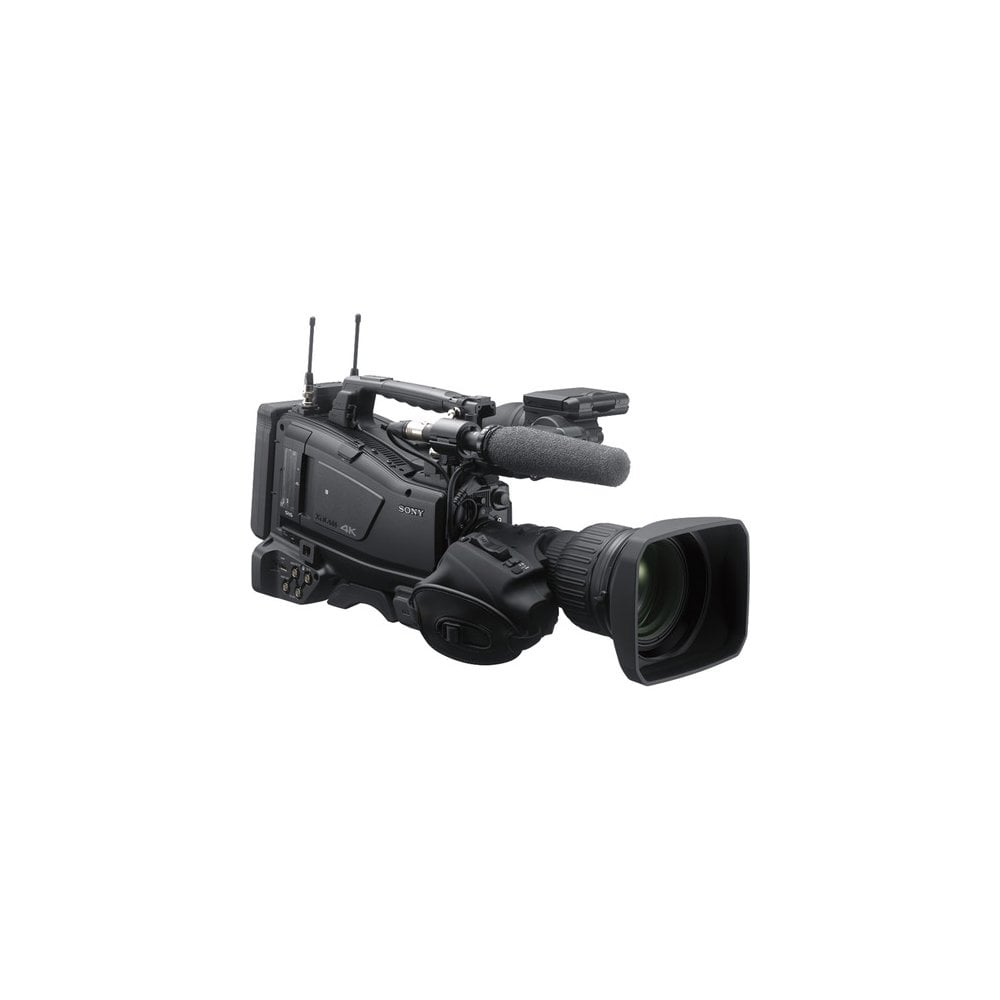

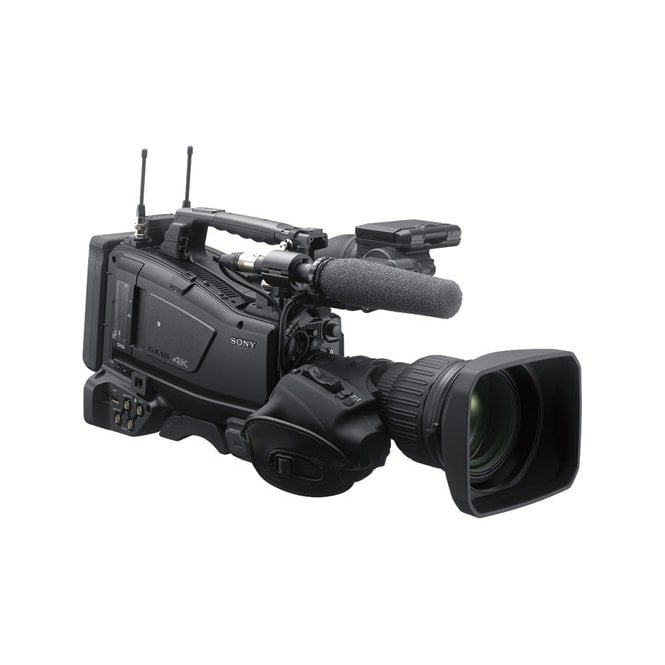

The PXW-Z450 4K UHD Shoulder Camcorder from Sony features a single Exmor R CMOS sensor with 3840 x 2160 resolution. The PXW-Z450 camcorder supports the Sony XAVC codec up to 4K UHD, 1080/59.94p and 50p recording, in addition to MPEG and DVCAM formats. In combination with the optional PWS-100RX1 Network RX Station, this camcorder enables simple yet high-quality wireless ENG workflow, providing QoS (Quality of Service)-based live streaming that will save considerable time.
The PXW-Z450 Camcorder provides a variety of AV and IT interfaces including four 3G-SDI outputs, as well as RJ-45, and USB 3.0 connection ports. Its built-in wireless function and an HD/SD-SDI input that supports a pool-feed function make it even more convenient for use. This powerful, user-oriented XDCAM Series camcorder meets a broad variety of ENG and studio applications.
The camcorder features a single 4K UHD (3840 x 2160) EXMOR R CMOS sensor. The R designation indicates it is a backlit sensor, which means that the circuitry that normally is in the front of the sensor and can limit the light reaching the sensor's photosites, has been moved to the back of the sensor. this has the effect of increasing the sensor's low light performance.
Multiple Format Recording
The PXW-Z450 Camcorder offers a wide array of recording formats for a variety of applications including ENG, EFP, and studio use. Developed on MPEG-4 AVC/H.264 compression, the XAVC codec provides support for the 4K UHD and Full HD format of XAVC long 4:2:2 1080/59.94p and 50p formats. The camcorder also supports SD video in a variety of resolutions using DVCAM compression.
Built-in Wireless Module and ONLINE Button
To support effective wireless news production workflows, the PXW-Z450 Camcorder incorporates a built-in wireless capability. It also provides an 'ONLINE' button, located on the inside panel, which lets you instantly switch on functions like Network Client Mode, Auto Proxy Upload, and Live Streaming.
Embedded RJ-45 Connector
This Ethernet connector provides robust and fast connection to the network and can be utilized for file transfer, live streaming, and camera control from a web browser
NFC (Near Field Communication) for Easy Wireless LAN Connection
An NFC function supports easy connection for launching the CBM (Content Browser Mobile) application on a smartphone or tablet. This means you can skip cumbersome setup procedures.
Optimized Weight Balance
Building upon its years of camera design, Sony has shifted the camcorder's center of gravity towards the back of the body to optimize the camcorder's weight balance.
Low Power Consumption
This camcorder achieves power consumption as low as 24W in normal recording mode. This enables continuous recording operation for approximately 160 minutes with Sony's BP-FLX75 (sold separately) standard-type battery.
Supports Full HD OLED Viewfinder
Equipped with two types of connectors for a viewfinder interface, the PXW-Z450 Camcorder supports a variety of Sony's viewfinders, including the Full HD OLED HDVF-EL30 and HDVF-EL20, as well as the QHD LCD CBK-VF02. The HDVF-EL30 has a 960 x 540 resolution sub-LCD panel.
ONLINE Button for Easy Network Connection
The PXW-Z450 Camcorder is equipped with a dedicated ONLINE button. This delivers simple one-touch operation of ON/OFF switching for three network connection functions.
Content Browser Mobile (CBM)
CBM application software controls the camcorder remotely and is available on both Android and iOS.
Network Client Mode
You can connect Sony's PWS-100RX1 Network RX Station (sold separately) to send proxy clips or live streaming with Sony's QoS technology. The PXW-Z450 Camcorder can also be controlled remotely by the RX station.
Auto Upload (Proxy)
Clip files recorded on the camcorder can be transmitted via a network automatically when the recording is finished. XAVC 4:2:0 Long GOP clips are supported.
This camcorder can transfer MPEG2-TS (UDP/RTP) to a third-party decoder
Three-color LED Indicator
The ONLINE button indicates the status (Disabled, Ready, Enabled) in three ways (off, orange, blue).
Sony's QoS Technology
Sony's unique QoS (Quality of Service) technology minimizes risk of image quality degradation, image freeze, or audio disruption, and helps maintain video and audio integrity during communications. The PWS-100RX1 Network RX Station comes with Sony-original algorithms that automatically adjust bandwidths and buffer sizes to match the characteristics of wireless communications.
Sony Advanced Streaming with QoS
The Sony QoS Technology improves the clarity that's possible on a single 3G/4G/LTE cellular channel or your own wireless LAN network, or limited communication band of Ethernet. You get better pictures, even given the limitations of real-world networks. The endpoint of Sony's QoS streaming is the versatile PWS-100RX1 Receiver Station. 1
Conventional MPEG2-TS Streaming
For maximum flexibility, Sony's XDCAM wireless solutions also support conventional MPEG-TS streaming, so that you can stream to a wide range of receivers, including compatible third-party receivers and decoders. Sony wireless solutions will stream over a wireless LAN network, or over a 3G/4G/LTE cellular network with the appropriate carrier dongle and service. You can also enjoy wired streaming over Ethernet, using the embedded RJ-45 connector, via a router/hub.
Flexible file transfer
During field shooting news or other time-sensitive content, you can transfer files wirelessly. So, there's no need to wait for the delivery of physical media. The receiving server gets a bit-for-bit clone of the original camera file, with all the original audio, video, and metadata.
Simultaneous Recording on Two SxS Cards
The PXW-Z450 Camcorder offers a simultaneous recording capability for peace-of-mind productions. Simultaneous recording is available on both SxS card slots as a backup measure. This is within the same codec and with the same operating point in the recording formats such as XAVC-Intra, XAVC-Long, MPEG HD422, or MPEG HD (420). You can also achieve simultaneous recording with a proxy file in all combinations with the above formats recording the proxy to an SD card.
On activation, the built-in GPS receiver module records GPS data in an MXF file and a proxy file, and automatically imposes it on the live streaming signal. It is also useful for tracking shooting locations in post-production and when station-based staffs need to map a crew's location with the PWS-100RX1 Receiver for streaming.
Flexible Camera System Operation
The CA-FB70 Optical Fiber Camera Adapter or the CA-TX70 Digital Triax Camera Adapter (both sold separately) can be attached to the PXW-Z450 Camcorder for live camera operation. The CA-FB70 Adapter enables the camcorder to transmit signals via an optical fiber cable up to 820' between the CA-FB70 and HXCU-FB70 Optical Fiber Camera Control Unit (CCU) with power and signal transmission. The CA-TX70 Adapter transmits signals via triax cable up to 1968' between the CATX70 and HXCU-TX70 Digital Triax Camera Control Unit.
RGB Color LCD Display
The PXW-Z450 Camcorder is equipped with an RGB color LCD display on the inside panel. In addition to thumbnail and menu displays, you can see and monitor video reproduction in QHD (960 x 540 pixels) resolution.
Newly developed ALAC (Automatic Lens Aberration Compensation) feature decreases specific patterns of chromatic aberration caused by the lens. The camcorder supports user gamma and Focus Assist function for easier focusing on the viewfinder and provides a graphic bar indicator, while the viewfinder can indicate Waveform, Vector Scope, or Histogram. The Digital Extender function enables images to be digitally expanded two to four times in size without any loss of F-drop image sensitivity.
Horizontal Resolution: 2,000 TV lines or higher (3840 x 2160i mode), 1,000 TV lines or higher (1920 x 1080i mode)
Input SDI: 1 x BNC SMPTE ST292/ST259 (standard compliant, 4-channel audio 1.5G Pool feed recording up to 1080 59.94i), Timecode: 1 x BNC 0.5 V to 18 Vp-p, 10k Ohms, Genlock: 1 x BNC 1.0 Vp-p, 75 Ohm, unbalanced
