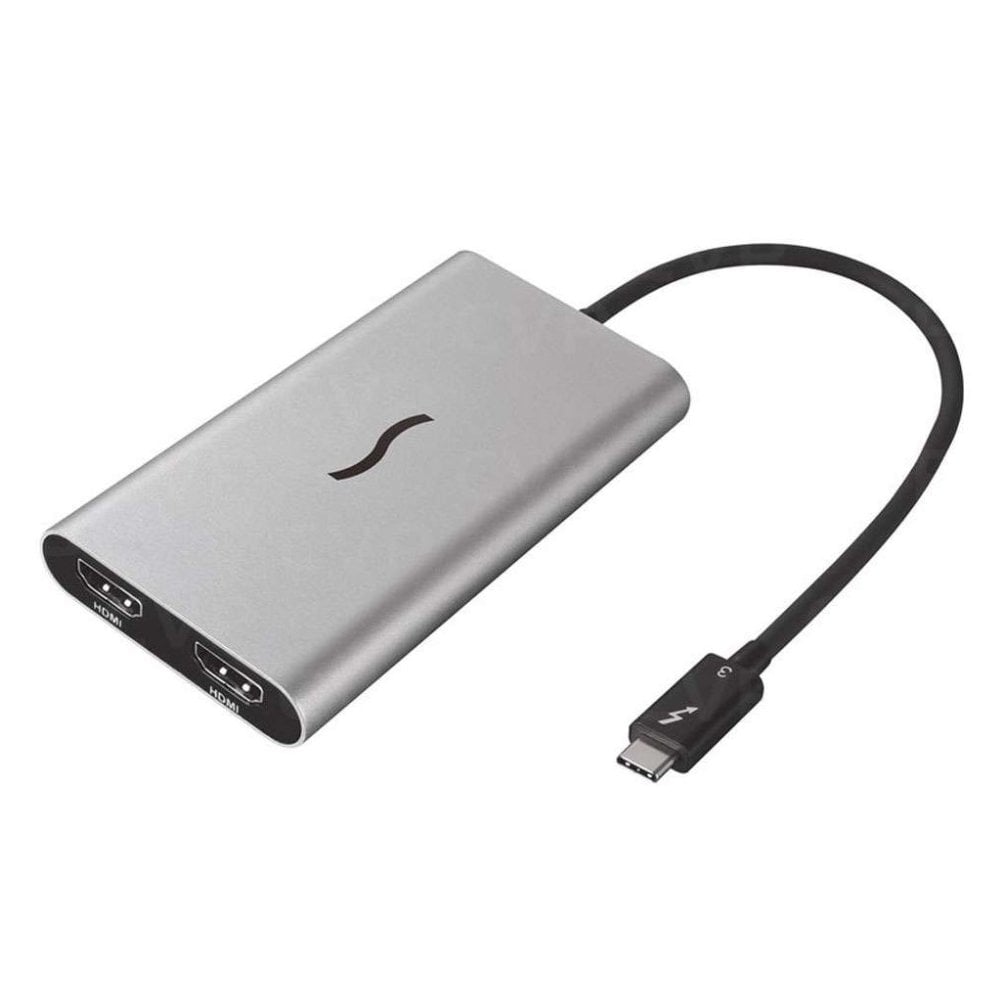

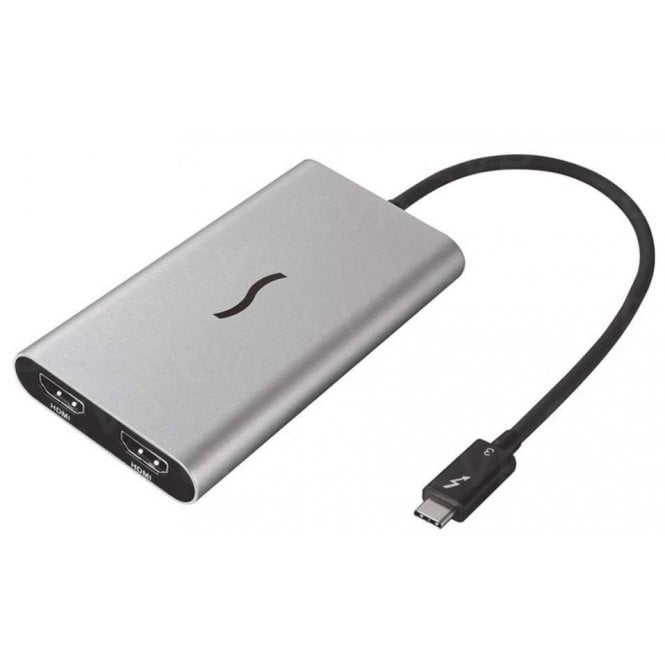

Sonnet Dual 4K 60Hz HDMI Adapter for M1 Thunderbolt Macs

Sonnet Dual 4K 60Hz HDMI Adapter for M1 Thunderbolt Macs SONUSB3DHDMI SON USB3 DHDMI SON-USB3-DHDMI SON/USB3/DHDMI

Two HDMI Displays from a SingleThunderbolt 3 Port

Certified for use with both Mac® and Windows® Thunderbolt 3 computers, Sonnet’s Thunderbolt 3 to Dual HDMI 2.0 Adapter enables you to connect up to two 4K @ 60Hz HDMI monitors to a single Thunderbolt 3 port on your computer(1).

Efficiency Enabler

Sonnet’s Thunderbolt 3 to Dual HDMI 2.0 Adapter enables you to work more efficiently with two displays attached to your notebook or all-in-one computer, while only using a single Thunderbolt 3 port on your computer.

Plug-and-Play Convenience, and No External Power Adapter Required

To use it, simply plug in the Sonnet Thunderbolt 3 to Dual HDMI 2.0 Adapter into one of your computer’s Thunderbolt 3 ports, and then connect HDMI cables (sold separately) between the adapter and your monitors. Your computer powers the Sonnet adapter, so there’s no need to connect an additional power supply. Plus, with native macOS® and Windows support, there’s no need to install separate driver software.

Adapts to Your Needs

Thunderbolt Certified for Mac® and Windows(2), the Sonnet Thunderbolt 3 to Dual HDMI 2.0 Adapter supports two monitors at resolutions up to 3840 x 2160 (4K), but you can also use it to connect monitors with lower resolutions, like full HD 1080p (1920 x 1080) or 1920 x 1200 monitors. This makes it great for use for different home and office workspace applications. Because audio support is built in to the Sonnet adapter, you don’t have to plug in a separate cable to hear sound from the monitors. And, unlike USB adapters, the Sonnet adapter won’t drain system resources that might impact your computer’s performance.

Important Notes

Although Sonnet’s Thunderbolt 3 to Dual HDMI 2.0 Adapter supports the connection of up to two 4K monitors with 60Hz refresh rates, the actual number of monitors it will support, as well as the screen refresh rates, are determined by your computer. Click here to view a list of Thunderbolt 3 hosts (computers) and their capabilities; please note that at any given time this list may not be complete. Click the appropriate Filter by Brand/OEM link, and then find your computer model. Check the center column to identify its external display support capabilities. If your model is not listed, contact your computer’s manufacturer for information.

Specifications

Form Factor

• Display apdater

Bus Interface

• 40Gbps Thunderbolt 3

External Connectors

• Two HDMI ports

Standard

• HDMI 2.0 and HDCP 2.2(4)

Supported Resolutions

• 3840 x 2160
• 2560 x 1440
• 1920 x 1080
• 1920 x 1440
• 1920 x 1200
• 1856 x 1392
• 1792 x 1344
• 1680 x 1050
• 1600 x 1200
• 1440 x 990
• 1400 x 1050
• 1360 x 768
• 1280 x 1024
• 1280 x 960
• 1280 x 720
• 1152 x 768
• 1024 x 768

Dimensions, Adapter (WxDxH)

• 2.3 x 3.9 x 0.6 in. (59 x 99 x 16 mm)

Dimensions, Cable (Length)

• 11.8 in. (300 mm)

RoHS Compliant: Yes

Mac Compatibility

Compatibility

• Intel® Macs with two Thunderbolt 3 ports support two 4K monitors with one Sonnet adapter
• Intel Macs with four Thunderbolt 3 ports support four 4K monitors with two Sonnet adapters(5)
• M1 Pro Macs support two 4K monitors with one Sonnet adapter
• M1 Max Macs support two 4K monitors with one Sonnet adapter plus two additional directly-connected monitors (4K + 6K)
• M1 Macs are not compatible
• macOS® 10.12.6+
• macOS Monterey compatible

Windows Compatibility

Compatibility

• Windows PC with Thunderbolt 3 ports(1)
• Windows 10 (64-bit Edition Version 1809 or greater)

Monitor Compatibility

EDID Version: 1.4(3)

Technical Notes

Not compatible with USB-C only ports. Not all Thunderbolt 3 computers support dual displays or 60Hz refresh rates. Visit this web page and click the Filter by Brand/OEM link matching your computer, and then locate your computer model to determine its capabilities. Please note that at any given time this list may not be completely up to date. If your computer model is not listed, please contact the manufacturer for information.

Windows computers require the latest firmware (BIOS) and other drivers to support this product. Check with your computer manufacturer for update information.

EDID stands for Extended Display Identification Data. This is how the monitor identifies its resolution modes to the adapter. EDID Version 1.4 was finalized in 2006. If your HDMI monitor is more than 10 years old, it will likely not be supported.

macOS supports HDCP only with iTunes.

Plug one into a left side port and one into a right side port.

In The Box

• 1x  Thunderbolt 3 to Dual HDMI 2.0 Adapter
• 1x  Documentation
