Sonnet DuoModo xMac Mini (Intel & M1) Echo III Rackmount

Sonnet DuoModo xMac Mini (Intel & M1) Echo III Rackmount SON/DM/ZM/E3/R SON DM ZM E3 R SON-DM-ZM-E3-R SONDMZME3R

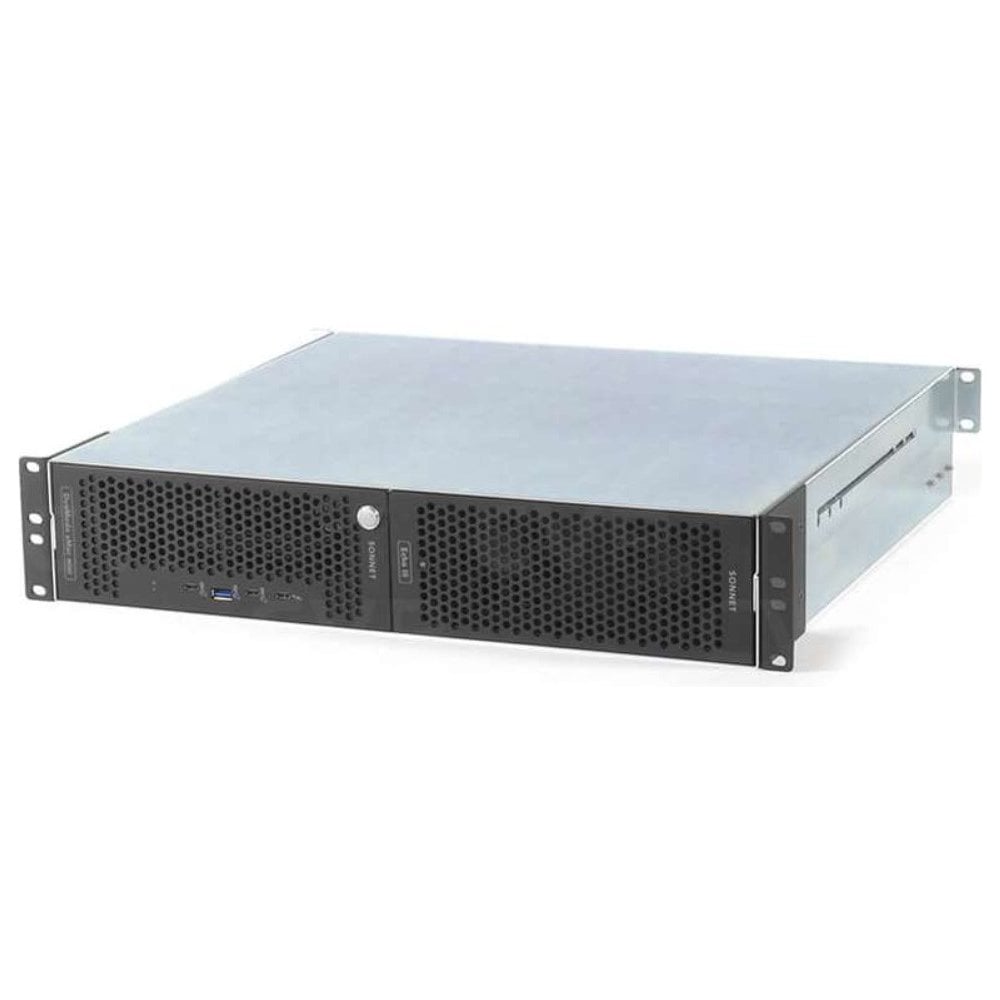

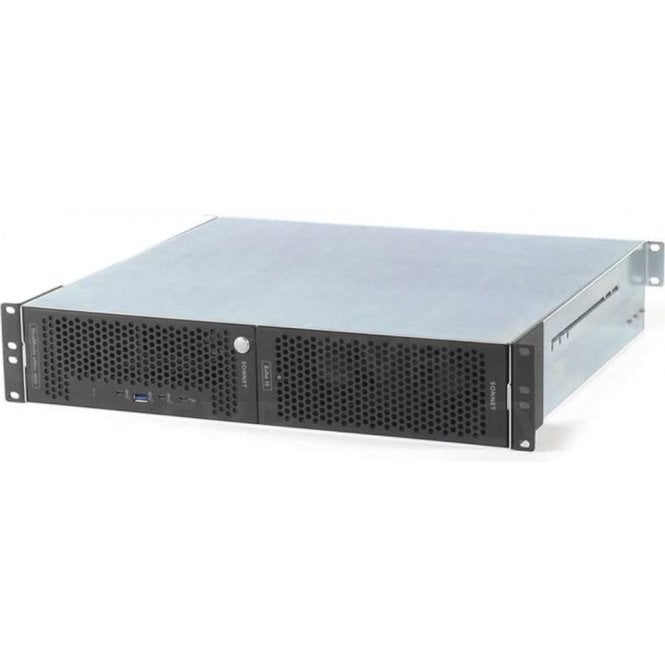

The pre-configured DuoModo™ xMac™ mini/Echo™ III Rackmount System integrates a Dual-Module Rackmount Enclosure with one xMac mini module and one Echo III module.

Mac mini Integration + Three PCIe Slots

System Configuration

• For Intel® or Apple® M1 Mac mini®

Dual-Module Rackmount Enclosure

• Dual-module 2U Rackmount Enclosure
• Rugged Steel Construction
• Blank Plate Included for Single Module Applications
• Same Enclosure Used in Echo III Rackmount
• 19 inches Wide x 16.5 inches Deep x 3.5 inches High
• Included Rack Rails Support Installation in Racks 16-24" Deep

xMac mini Module

• Securely Holds an Intel or Apple M1 Mac mini (sold separately) in a Rugged Steel Frame
• Open Access to the Computer’s Ports in Back
• Built-in Thunderbolt™ 3 Dock with SSD Sockets
• Four Front Panel Ports Include One Thunderbolt 3 (40Gbps) Port, Two USB 3.2 (10Gbps) Type-C Ports, and One USB 3.2 (10Gbps) Type A Port
• Two M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
• One Internal USB 3.2 (10Gbps) Type A port (for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive)
• Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini
• Quiet, Dual Temperature-controlled Fans
• Power Cable Included
• Thunderbolt 3 (40Gbps) Cable Included

Echo III Module

• Three Versatile PCIe Slots
• One x16 plus Two x8 PCIe Slots
• Supports Three Full-height, Full-length Thunderbolt-compatible, non-GPU PCIe Cards ( View PDF of supported PCIe Cards)
• AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
• Built-in 400W Power Supply with 75W Auxiliary Power Connector
• Powers On and Off Automatically with Connected Computer
• Dual temperature-controlled Noctua fans rated at 17 dbA
• Two Thunderbolt 3 Ports
• 40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed PCIe Cards
• Power Cable Included
• Thunderbolt 3 (40Gbps) Cable Included
• ThunderLok 3 Thunderbolt Connector Retainer Clip Included

2-year Product Manufacturers Warranty
Free Lifetime Customer Technical Support
Designed and Made in the USA

Specifications

• System Configuration: Intel or Apple M1 Mac Mini
• Module(s): xMac Mini, Echo III

In The Box

• 1 x Sonnet SON-DM-ZM-E3-R DuoModo XMac Mini/Echo III Rackmount System
