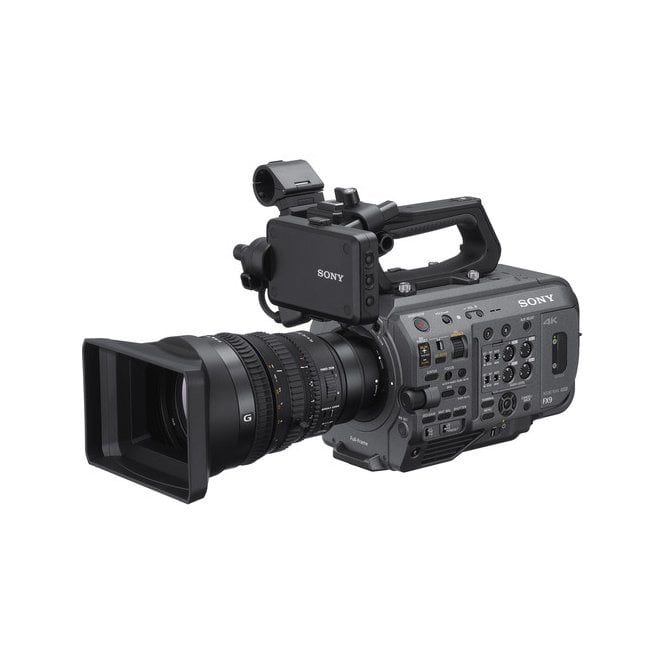

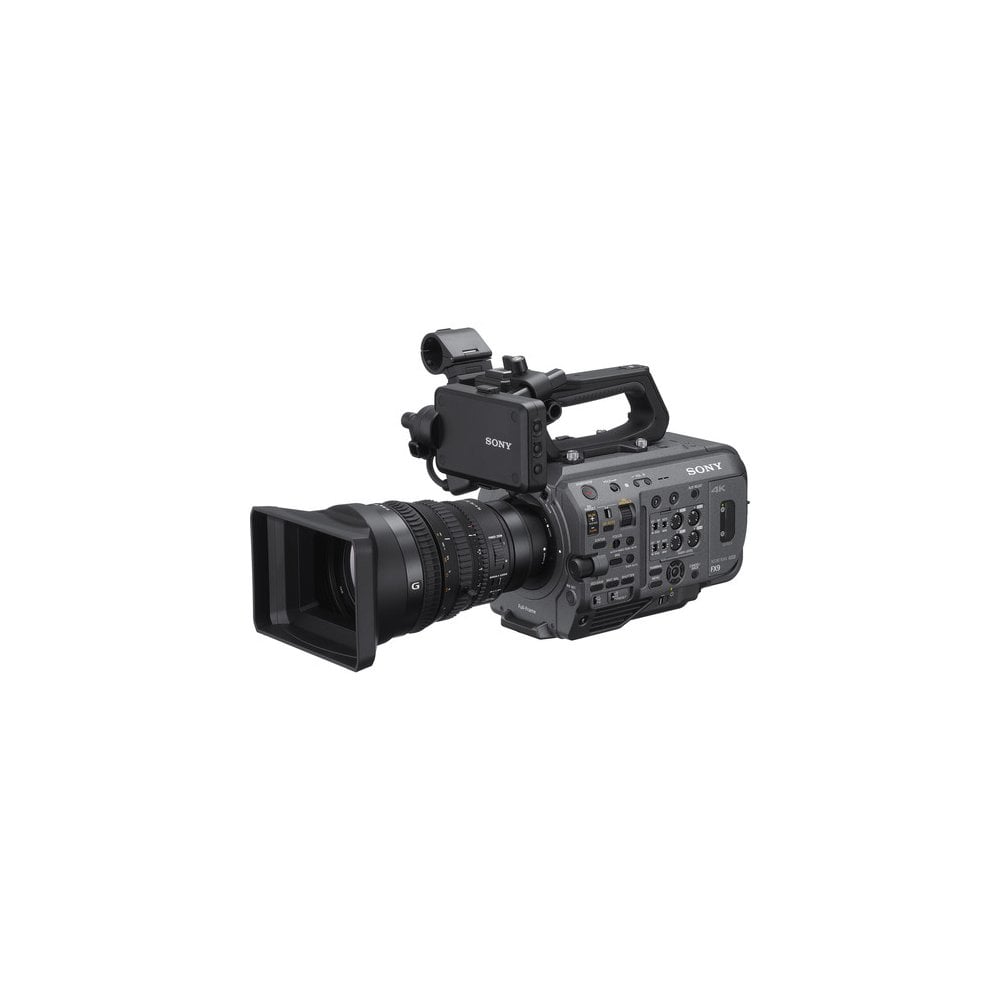

Sony PXW-FX9 6k Full-Frame XDCAM 6K System with 28-135mm lens

Sony PXW-FX9VK (PXW_FX9, PXW/FX9, PXW FX9, FX9K, FX9VK) Full-Frame XDCAM 6K System with 28-135mm lens

Full-frame creativity

Realise beautiful 4K imagery with the creative freedom made possible by oversampling a huge high resolution full-frame sensor. Capture every detail from the scene with shallow depth of field and stunning bokeh with a truly cinematic look. 15+ stops of dynamic range and Dual Base ISO enable capture of every nuance, from subtle shadow detail to specular highlights and with an immaculate colour palette.

Capturing the impossible

Make sure your story’s always clear with enhanced Fast Hybrid AF that tracks your subject with unprecedented speed, smoothness and precision. Its impact is transformative for premium documentary, commercials and event applications.

Shoot in comfort, expand your horizons

FX9 revolutionises full-frame cinematography with peerless ergonomics and advanced technology for on-the-go shooting. The world’s first full-frame electronic variable ND filter* transforms possibilities for shooting in variable lighting conditions. Built-in Wi-Fi and 12G-SDI support advanced workflows while the optional XDCA-FX9 extension unit further expands the operational possibilities of the PXW-FX9.

6K Full-Frame “Exmor R” sensor for stunning picture quality

The camera’s full-frame 6K sensor provides superb recording in DCI 4K*, Ultra HD and HD resolutions. Powerful image processing with debayering and oversampling ensures image quality beyond the limits of conventional Super 35mm sensors. The back-illuminated CMOS image sensor also uses Sony’s Exmor R technology for improved sensitivity and noise reduction. Compared to a 4K Super 35mm sensor, the FX9’s 6K sensor has over twice the surface area while providing a wider angle of view and shallower depth of field.

Phenomenal 15+ stops dynamic range for limitless expression

FX9 offers an exceptional 15+ stops of dynamic range – beyond the normal range of human perception – allowing for unprecedented creative freedom in colour grading and post. Camera operators can concentrate on framing the scene they want while relying upon the FX9 to capture every nuance and detail using either 4K 4:2:2 10-bit internal recording or 16-bit RAW external recording.* In grading, colourists can find colour and detail beyond the normal viewing abilities of the camera operator to create a final image that exactly portrays the mood of the scene.

Dual Base ISO for stunning images in any light

FX9 features a base sensitivity of ISO 800, providing the optimal dynamic range for typical documentary applications such as shooting outside or in brightly lit interiors. A secondary High Base sensitivity of ISO 4000 excels in low light conditions such as early morning and evening shoots while maintaining superb image quality. ISO 4000 is also ideal whenever you’re using slow lenses. Combining Dual Base ISO with the camera’s electronic variable ND Filter provides superb creative control in almost any shooting environment, with truly next generation responsiveness to changing conditions.

Cinematic colour science with S-Cinetone™

S-Cinetone is the default look of FX9 that’s tuned to meet the requirements of today’s content creators with rich mid-range colours, alluring facial tones and a softer tonal look – developed with the same expertise as Sony’s world-leading VENICE digital cinematography camera. S-Cinetone means that straight out of the camera your content looks fresh and vivid, with subjects that really stand out while retaining plenty of latitude in post production thanks to the high performance full-frame image sensor.

Selectable frame rates in both full-frame & Super 35

 Choose your desired frame-rate from 1fps up to 180fps* for impressive quick and slow motion footage. FX9 creates an immersive image with a wide-angle look and shallower depth of field provided by its full-frame sensor in combination with quick and slow motion. Engage your audience with this new creative look. FX9 also offers a Quality priority setting** that maximizes full HD image quality using full-frame 6K scan mode or Super 35 4K scan mode with advanced oversampling technology.

Super 35 2K imager scan mode prioritizes frame rates, so image quality may be reduced depending on the shooting environment. In this instance, below settings are recommended.

Cine EI mode: Set EI gain lower and exposure level higher instead.

Custom mode: Choose the gamma category setting of Original (S-Cinetone) or STD (STD1 to 6).

· *Up to 120fps with Ver1.0. Full-HD 180fps will be supported with future firmware

· **In full-frame scanning mode: selectable at 1–30fps/in super 35 scanning mode: selectable at 1–60fps. Quality priority setting is recommended if desired framerate is available.

Catch the action with enhanced Fast Hybrid AF

Effortlessly track fast moving subjects with pin-sharp focus, even when using wide lens aperture settings to maintain a shallow depth of field with the camera’s full-frame sensor. Developed by Sony’s α camera engineers, enhanced Fast Hybrid AF combines phase detection AF for fast, accurate subject tracking with contrast AF for exceptional focus accuracy. In addition, Face Detection intelligently recognises and locks on to human faces.

The dedicated 561-point phase detection AF sensor covers approximately 94% of the whole image area width and 96% of height, allowing consistently accurate, responsive AF tracking, even with fast-moving subjects.

Customisable AF settings

FX9’s comprehensive autofocus settings provide the creative flexibility to integrate with any project.

7-level AF transition speeds from Fast – switching between subjects as quickly as possible – to Slow, where speed is reduced to fit a more measured shooting style, such as a historical TV drama.

5-level AF subject shift sensitivity ranges from Locked-on – ignoring other moving subjects in the frame – to Responsive that switches focus from one subject to another – ideal for snapping between race cars as they speed by.

Autofocus with all E-mount lenses

Experience smooth, responsive autofocus with every E-mount lens, including Sony’s new Cinema Lens Series with premium optical performance and operability for demanding cinematography applications. Advanced E-mount lever lock operation allows quick, easy lens exchange in the field, plus added stability and security with large lenses.

World’s first electronic variable ND filter for full-frame sensor*

Realise even greater creative control with Sony’s unique built-in electronic variable neutral density (ND) filter – a world first* for professional full-frame camcorders. Set to Auto, or adjust filter density manually in smooth increments from 1/4 to 1/128 as you shoot, for perfectly exposed images without affecting depth of field as lighting conditions change. Use higher density settings with a slower shutter speed for breathtaking artistic effects.

Proven ergonomics & accessory compatibility

FX9 chassis is the latest refinement of the revolutionary FS7 design, so you can be sure it will feel great to shoot with from almost any position, while also offering compatibility with a large proportion of the countless FS7 accessories including U-series batteries, chargers, E-mount lenses, plus arms and lens adapters.*

The control arm is easily adjusted without tools, so FX9 adapts effortlessly to your physique and preferred shooting style – handheld, at waist level or shoulder mounted.

The smart grip features an updated design, more compact than before while still holding all the key shooting controls, allowing you to concentrate on the scene without distractions. FX9 also introduces a micro USB interface for improved responsiveness and support for a wrist strap.

* BP-U30 and XDCA-FS7 are not compatible with the FX9.

6-bit RAW capability*

16-bit RAW offers a phenomenal increase in post-production creative freedom to fully exploit FX9’s exceptional 15+ stops of dynamic range. FX9 supports export of 16-bit RAW at either 4K or 2K resolution using the optional XDCA-FX9 extension unit with a single BNC cable connection to compatible external RAW recorders.**

Stable, shake-free handheld footage

Advanced image stabilisation information means even handheld footage can be transformed with Sony Catalyst Browse/Catalyst Prepare software* in post-production to look as smooth as if it were shot with a gimbal.Unlike in-camera or lens stabilisation, meta data generated by FX9’s built-in gyro allows you to creatively choose the balance between the level of shake-compensation and the resolution of trimmed 4K imagery. This feature is also compatible with any E-mount lens and allows for far faster processing than conventional NLE stabilisation workflows**.

Beautifully matched shooting partners

Optimised for professional cinematography applications, the light, compact, SELP28135G  powered zoom lens is an ideal complement for the full frame imaging possibilities of the FX9.

Circular aperture with full-frame image circle format

Motorised servo zoom for smooth, precise zoom moves

Independent three rings for focus, zoom and iris with smooth, silent drive

You have the choice of purchasing the FX9 on its own (PXW-FX9) or with SELP28135G lens (PXW-FX9K).

Cinema Lens Series

Explore new artistic possibilities and precise creative control with Sony’s Cinema Lens Series. Purpose-built for documentary production and digital cinematography with full-frame cameras such as the FX9 and VENICE.

Adds shoulder-style operation, advanced networking

Further extend the capabilities of the FX9 with the optional XDCA-FX9 extension unit that optimises camera weight distribution and ergonomics for comfortable shoulder-style shooting – ideal for ENG (Electronic News Gathering) and documentary applications. The extension unit also adds advanced networking for streaming/file transfers and Timecode for multi-camera shoots.

4-channel audio input and recording

FX9 offers superb audio capabilities with independent control dials for each channel. In applications such as interview, 4-channel audio recording enables simultaneous use of an external microphone for recording ambient sounds, the built-in microphone for voice memos by the operator, and two optional UWP Series wireless microphones for voice of interviewer and interviewee. In addition, using the optional XLR-K3M, XLR-K2M or XLR-K1M XLR adapter – with two extra XLR inputs – allows even more devices to be connected.

Multi-Interface (MI) Shoe

Sony’s flexible Multi-Interface (MI) Shoe provides power, signal connections and coordinated on/off switching with compatible Sony accessories. For example, you can connect and control Sony UWP-D wireless microphone systems (optional).

Networked for high mobility

The FX9 features internal 5GHz* and 2.4GHz Wi-Fi capability as standard. Just switch on and log onto your preferred network to enable a host of advanced wireless production features:

Content Browser Mobile™** allows the PXW-FX9 to be controlled remotely from a smartphone or tablet computer via a Wi-Fi connection. Adjust the exposure level, zoom, Record/Stop and more via your mobile device – it’s ideal for single operator shoots. One-touch authentication is also possible with smartphones offering NFC connectivity.

FTP Transfer allows content files to be sent over the internet for remote storage on an FTP server even while shooting. In case of signal interruption, the system will automatically resume as soon as connection restored.

Trimming allows you to set start and end points in a clip, eliminating time-wasting transfers of unneeded content.

XDCAM air can upload proxy footage to the cloud from multiple camera operators in the field, so editing can start immediately. Uploaded content can be accessed securely from any location. News teams can even start logging clips while shooting is still going on, saving even more valuable time when a story’s breaking.

Wired LAN port with optional XDCA-FX9 allows connection of the FX9 to the Internet with a standard Ethernet cable, allowing files to be streamed or transferred by FTP.

Dual Link Cellular is enabled with optional XDCA-FX9 and uses two cellular networks in combination to provide an even more reliable network connection. FX9 is compatible with standard USB cellular dongles from most networks. (Please check for most appropriate service provider for your region. Standard network fees will apply.)

High quality Sony QoS Streaming to Network RX station (optional) and XDCAM air by Sony allows images to be streamed live for viewing at a remote location

PrimeSupport for PXW-FX9

Get 1 year of service coverage for free, in addition to the 2 years already included in your camera, by registering to PrimeSupport Pro

Enhanced Cover with PrimeSupport Elite for PXW-FX9

Image Sensor

• Image Sensor Size: 35.7 x 18.8 mm (Full-Frame)
• Sensor Type: CMOS
• Sensor Resolution: Effective: 4096 x 2160

Camera

• Lens Mount: Sony E-Mount
• Built-In ND Filter: 4 to 128 Stop Electronic ND Filter
• Recording Media: 2 x XQD Card Slots, 1 x SDHC Card Slot

Internal Recording

• Recording Modes: MPEG HD422/XAVC-I/XAVC-L 4:2:2 10-Bit: 4096 x 2160p up to 60 fps , 3840 x 2160p up to 60 fps, 1920 x 1080p up to 120 fps
• Gamma Curve: Sony S-Log 3
• Audio Recording: 4-Channel

Interfaces

• Video Connectors: 1 x BNC (12G-SDI) Output, 1 x BNC (3G-SDI) Output, 1 x HDMI (HDMI 2.0) Output
• Audio Connectors: 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
• 1 x 1/8" / 3.5 mm Stereo Headphone Output, Other I/O 1 x BNC Genlock Data Input
• 1 x BNC Timecode Data Input/Output

EVF

• EVF: Optional, Not Included

Power

• Battery Type: Sony BP-U Series
• Power Connectors: 1 x Barrel Input

Environmental

• Operating Temperature: 32 to 104°F / 0 to 40°C
• Storage Temperature: -4 to 140°F / -20 to 60°C

General

• Accessory Mount: 1 x Multi-Interface Shoe, 1 x 1/4"-20 Female
• Dimensions: 9.02 x 5.75 x 5.61" / 22.91 x 14.61 x 14.25 cm
• Weight: 4.4 lb / 2 kg

In the Box

• Sony PXW-FX9 XDCAM 6K Full-Frame Camera System (Body Only)
• Body Cap
• Viewfinder
• Eyepiece
• BP-U35 Battery
• Sony BC-U1A Battery Charger / AC Adapter for BP-U90, U60, U60T, U30
• Grip Remote Control
• 2 x Power Cord
• AC Adapter
• USB Cable
• 28-135mm lens
