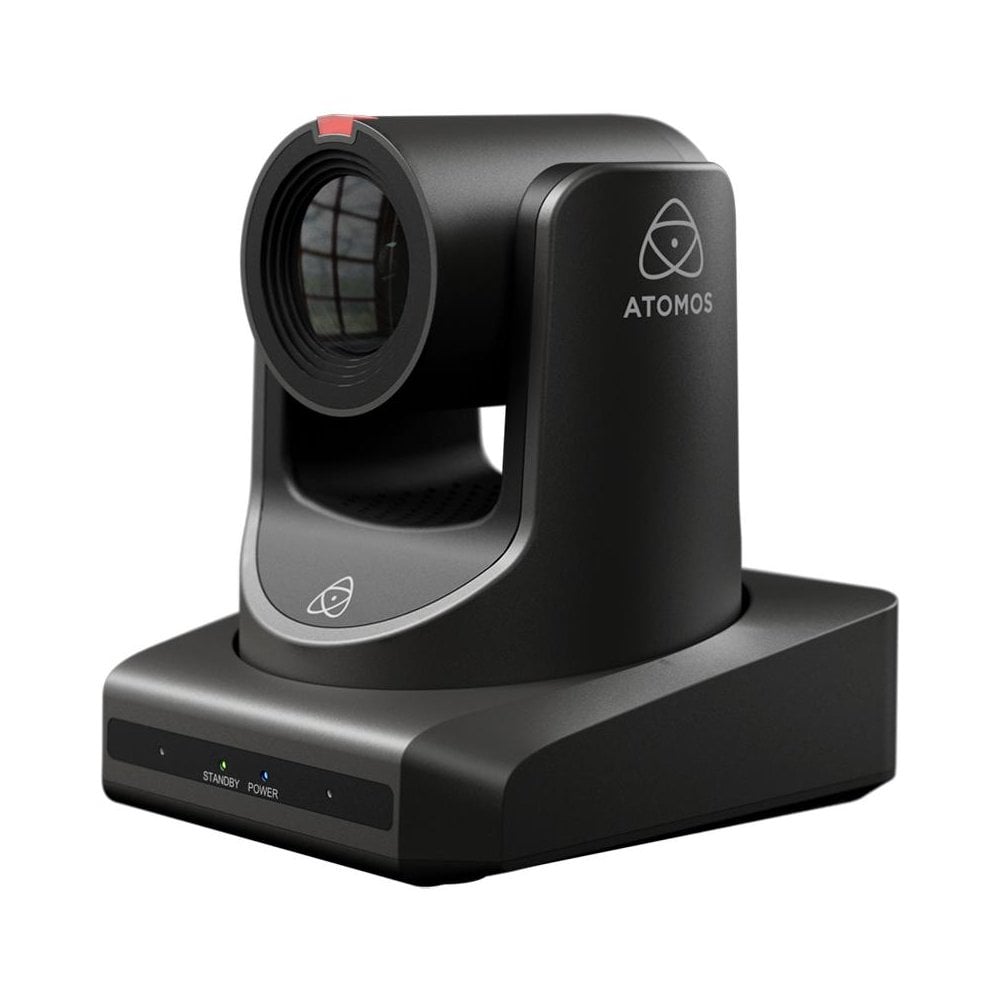

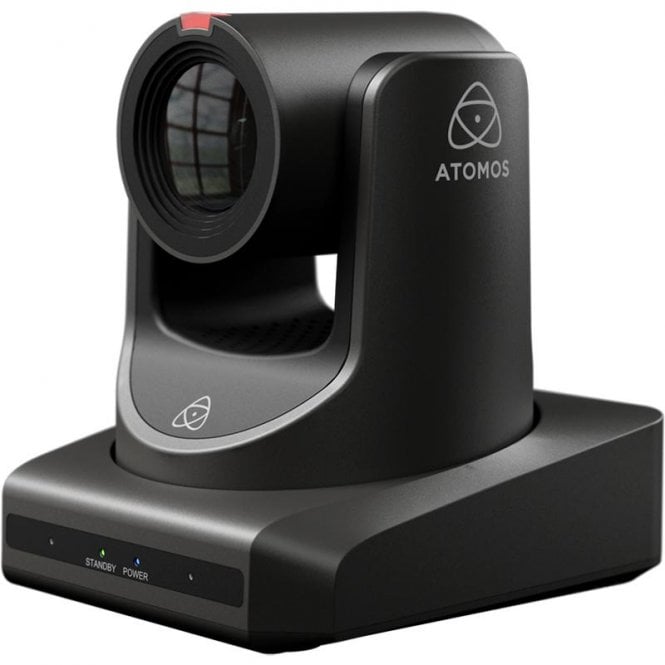

Atomos A-Eye 4K-20X AI-powered, Auto-Tracking, Cinematic Movement PTZ Camera

Atomos AOATOMAE4K20 (AOATOMAE4K20, AOATOMAE4K20, AOATOMAE4K20, AOATOMAE4K20) A-Eye 4K-20X AI-powered, Auto-Tracking, Cinematic Movement PTZ Camera

A-Eye HD-20X PTZ Camera

An affordable, high-definition PTZ solution designed for classrooms, places of worship, and entry-level production setups. Featuring a 1/2.8-inch CMOS sensor with 2.07 million effective pixels, it delivers crisp HD video up to 2K60 resolution and versatile connectivity options.

• 1/2.8" CMOS Sensor with 2.07MP resolution, supports up to HD 2K60
• 20x Optical Zoom + 16x Digital Zoom for clear, flexible framing
• NDI|HX3 License Included for efficient IP-based video streaming
• Video Outputs: HDMI, 3G-SDI, USB 3.0 (no recording), and IP
• Audio I/O: 3.5mm stereo input/output, supports built-in microphone
• Control Interfaces: RS-232 in/out, UVC, RS-485, and IP VISCA
• Compression Support: H.265 / H.264 / MJPEG
• Power Options: DC input and PoE+ compatible
• Tally Lights for live production visibility
• AI Tracking for automated subject following

• Image Sensor: 1/1.8"-Type CMOS
• Sensor Resolution: Effective: 8.42 Megapixel
• IR Cut Filter: No
• Focus Control: Autofocus, Manual Focus
• Optical Zoom Ratio: 20x
• Max Digital Zoom: 16x
• External Recording Modes: SDI/BNC / HDMI / RJ45 / USB, UHD 4K (3840 x 2160) up to 60.00 fps
• Embedded Audio: HDMI/IP/NDI/SDI/USB
• Audio Recording: AAC Audio
• Broadcast Output: NTSC/PAL
• Pan/Tilt: Tilt: 120° (-30 to 90°) at 1.7 to 100°/s , Pan: 340° (-170 to 170°) at 1.7 to 69.9°/s
• Tally Light: Yes
• Supported Control Protocols: IP, NDI|HX3, RS-232, RS-485, VISCA
• PoE Support: PoE+ 802.3at
• Power I/O: 1x DC (12VDC) Input

In The Box

• Atomos A-Eye 4K-20X AI-powered, Auto-Tracking, Cinematic Movement PTZ Camera
