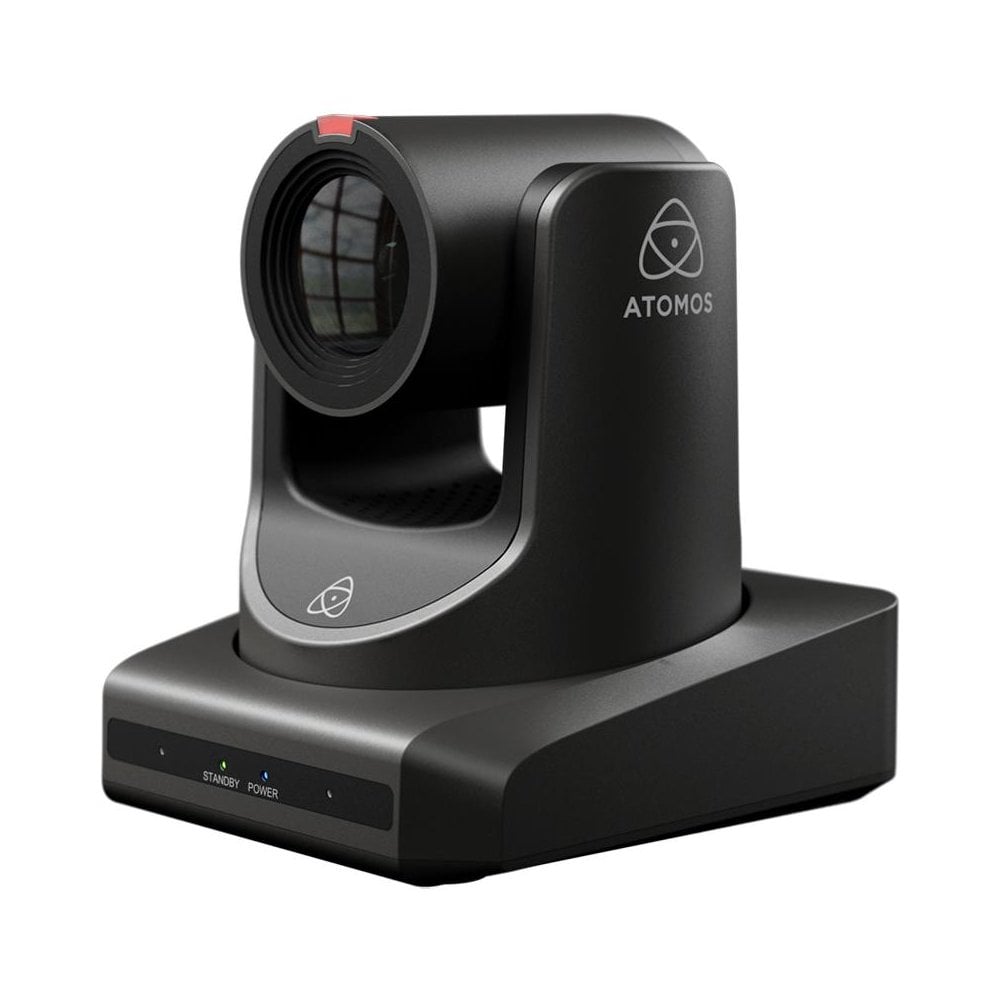

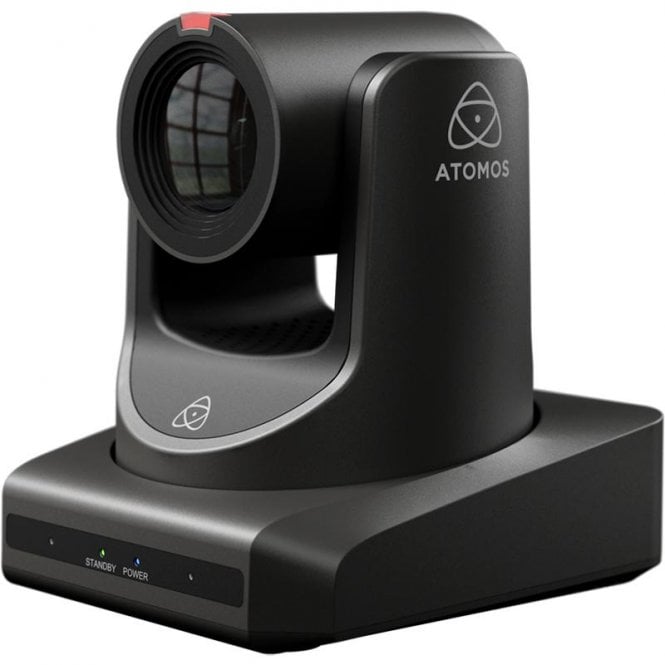

Atomos A-Eye 4K-12X AI-powered, Auto-Tracking, Cinematic Movement PTZ Camera

Atomos AOATOMAE4K12 (AO-ATOMAE4K12, AO/ATOMAE4K12, AO_ATOMAE4K12, AO ATOMAE4K12) A-Eye 4K-12X AI-powered, Auto-Tracking, Cinematic Movement PTZ Camera

A-Eye HD-20X PTZ Camera

A high-performance, cost-effective PTZ solution equipped with a 1/2.8-inch CMOS sensor delivering 2.07 megapixels and full HD video up to 2K60. Ideal for educational environments, houses of worship, and budget-conscious production setups.

• 1/2.8” CMOS Sensor with 2.07M effective pixels, supports HD up to 2K60 resolution
• 20x Optical Zoom + 16x Digital Zoom for detailed close-ups
• NDI|HX3 License Included for efficient IP video integration
• Multiple Output Options: HDMI, 3G-SDI, USB 3.0, and IP streaming
• 3.5mm Stereo Audio In/Out, built-in mic support, RS-232 control
• USB 3.0 for live output (note: recording not supported via USB)
• UVC/RS-485 & IP VISCA protocol support for remote control
• Advanced H.265/H.264/MJPEG compression
• Power options: DC input and PoE+, with integrated tally lights
• Built-in AI tracking for automatic subject following

• Image Sensor: 1/2.5"-Type CMOS
• Sensor Resolution: Effective: 8.51 Megapixel
• IR Cut Filter: No
• Focus Control: Autofocus, Manual Focus
• Optical Zoom Ratio: 12x
• Max Digital Zoom: 16x
• External Recording Modes: SDI/BNC / HDMI / RJ45 / USB UHD 4K (3840 x 2160) up to 60.00 fps
• Embedded Audio: HDMI/IP/NDI/SDI/USB
• Audio Recording: AAC Audio
• Broadcast Output: NTSC/PAL
• Pan/Tilt: Tilt: 120° (-30 to 90°) at 1.7 to 100°/s , Pan: 340° (-170 to 170°) at 1.7 to 69.9°/s
• Tally Light: Yes
• Supported Control Protocols: IP, NDI|HX3, RS-232, RS-485, VISCA
• Video I/O: 1x HDMI 1.4 Output, 1x BNC (3G-SDI) Output, 1x RJ45 (NDI) Output, 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output
• Audio I/O: 1x 1/8" / 3.5 mm TRS Stereo Line Input, 1x 1/8" / 3.5 mm TRS Stereo Line Output
• Other I/O: 1x Mini-DIN 8-Pin (RS-232) Control Input, 1x Mini-DIN 8-Pin (RS-232) Control Output, 1x Block, 2-Pin (RS-485) Control Input/Output, 1x USB-A (USB 3.0)
• Built-In Microphone: Stereo
• Built-In Speaker: No
• PoE Support: PoE+ 802.3at
• Power I/O: 1x DC (12VDC) Input

In The Box

• Atomos A-Eye 4K-12X AI-powered, Auto-Tracking, Cinematic Movement PTZ Camera
