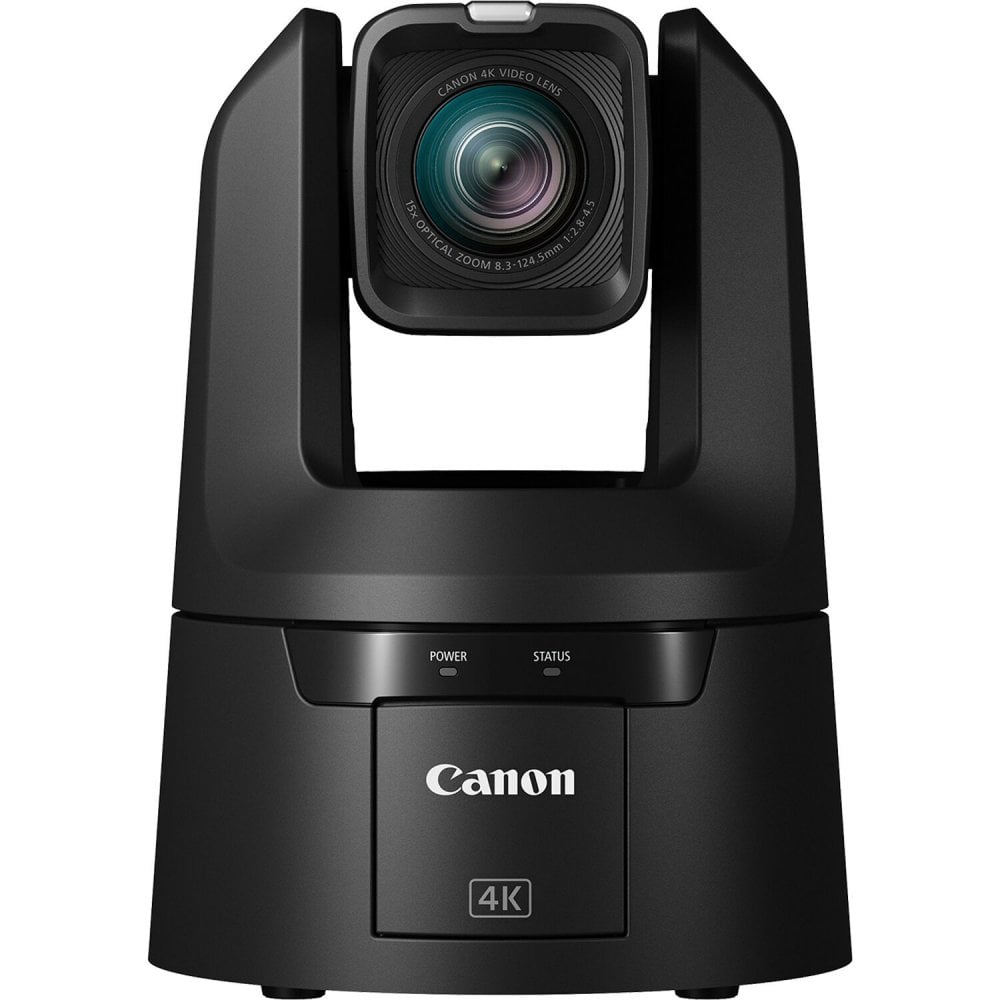

Canon 6022C001 CR-N700 4K PTZ Camera - Black

Canon 6022C001 (60-22C-001, 60/22C-001, 60/22C/001, 60 22C 001) CR-N700 4K PTZ Camera - Black

Harness the power of a 1.0-type 4K sensor and DIGIC DV7 processor with Dual Pixel AF. A 15x optical zoom (30x in Full HD) captures productions in exceptional detail, even in Night Mode. Stream 4K60P and HDR quality broadcast footage via a wide range of IP protocols.

An exceptional 4K60P professional PTZ camera with 12G-SDI connectivity and class-leading autofocus with intelligent head detection and eye tracking.

4K detail for imaging excellence

A 1.0-Type CMOS sensor and DIGIC DV7 processor deliver 4K UHD 60P imagery in up to 4:2:2 10-bit, 12G-SDI and HDMI for broadcast-standard image quality, plus 4K60P over IP.

Class-leading optical precision

The CR-N700’s high-performance lens has a 15x optical zoom (25.5mm - 382.5mm, 35mm equivalent) plus a 30x Advanced Zoom when shooting in Full HD. And when conditions are unstable, Canon’s renowned Image Stabilizer captures optimal footage.

Award-winning Auto Focus technology

Fast, intelligent, and extremely accurate focussing via multiple modes thanks to Canon’s proprietary Dual Pixel CMOS AF technology with advanced EOS iTR AF X.

Multiple protocols for seamless integration

The CR-N700 features SRT and NDI|HX1 that produce high quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP are included, along with Canon XC and Standard communication protocols, plus FreeD for integration into virtual productions.

Powerful HDR imagery and low light capture

Achieve stunning HDR imagery with direct recording into either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match your image with other Canon cameras.

Crop function – single camera, two video feeds

Select and extract a point of interest via a separate feed. The chosen area can then be output as a main or secondary signal and up to two cropped areas can be set in FHD.

Night Mode

Capture footage in near-darkness thanks to IR Mode, which extends the spectrum visible to the camera.

Comprehensive connectivity

Connect flexibly with 12G-SDI, HDMI or IP (PoE++) all supporting 4K60P, as well as professional dual XLR audio inputs. CR-N700 also includes 3G-SDI and GEN-LOCK.

Smooth and precise control

The CR-N700 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.1°/s. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party units.

Camera

• Image Sensor: Type 1.0 (1.0 in.) single-plate CMOS sensor
• Effective Pixels: approx. 8.29 megapixels (3840 x 2160)
• Lens: 15x optical zoom, 9-bladed iris diaphragm
• Optical Zoom: 15x optical zoom (30 x with advanced zoom)
• Digital Zoom: 20x digital zoom
• Focal Length: 8.3 – 124.5 mm, f/2.8 – 4.5, 35mm equivalent focal length: approx. 25.5 (W) – 382.5 mm (T)
• Angle of View: Horizontal: 73.0 (W) – 5.7° (T), Vertical: 45.2° (W) – 3.2° (T)
• Minimum Subject Illumination: Approx. 3.0 lux (with 59.94 Hz frame frequency, 1/60 sec. shutter speed, 59.94P frame rate, and 21 dB gain), Approx. 2.5 lux (with 50.00 Hz frame frequency, 1/50 sec. shutter speed, 50.00P frame rate, and 21 dB gain)
• Shutter Speed: 1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
• Iris: Manual/Automatic aperture
• Gain: -6.0 dB - 36.0 dB
• ND Filter: Built-in (Off, 1/4, 1/16, 1/64), motor operated
• Night Mode (IR Cut Filter Off): Yes
• White Balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K1, tungsten lamp: 3,200 K
• Focus: Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking, AF type: Dual Pixel CMOS AF, Contrast AF
• Minimum Focusing Distance: 1 cm at wide end, 60 cm across entire zooming range
• Gamma: BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, PQ, HLG, Pan and Tilt: Pan operation range: Horizontal ±170°, Pan operation speed: 0.1° – 100°/sec., Tilt operation range: Vertical -30° – +90°, Tilt operation speed: 0.1° – 100°/sec.Detection: Face Detection, Eye Detection)

Server

• Video Output Format: SDI: [12G-SDI] 3840 x 2160: 59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit), 1920 x 1080: 59.94P/59.94i/29.97P/29.97PsF/23.98P/50.00P/50.00i/25.00P/25.00PsF (4:2:2 10 bit), 1280 x 720: 59.94P/50.00P (4:2:2 10 bit), 720 x 576: 59.94i/50.00i (4:2:2 10 bit), [3G-SDI] 1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit) 1280 x 720: 59.94P/50.00P (4:2:2 10 bit) 720 x 576: 59.94i/50.00i (4:2:2 10 bit)
• Video Output Format: HDMI 3840 x 2160: 59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit) 1280 x 720: 59.94P/50.00P (4:2:2 10 bit) 720 x 576: 59.94i/50.00i (4:2:2 10 bit)
• Video Output Format: IP: [Frame frequency 59.94 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit), [Frame frequency 29.97 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit), [Frame frequency 50.00 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit), [Frame frequency 25.00 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit), [Frame frequency 23.98 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) *59.94 fps/50.00 fps is only when H.265. – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720, 59.94/29.97 Hz: 14.99 fps, 50.00/25.00 Hz: 12.50 fps, 23.98 Hz: 11.99 fps
• Video Output Format: USB: No
• Video Transmission Protocol: Canon XC, RTSP/RTP, NDI3|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD
• Preset: Number of presets: Max. 100 (including home position)

Interface

• Communication Control: LAN, Wi-Fi, Serial, IR
• Network Terminal: LAN x 1, RJ45, 1000Base-T
• SDI OUT Terminal: 12G-SDI OUT Terminal, BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, SMPTE ST 2082, 2081, 424, 425, 292, 259, 299, 272 compliant Embedded audio, Time code (VITC/LTC), 6G-SDI OUT Terminal: No, 3G-SDI OUT Terminal BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, SMPTE ST 424, 425, 292, 259, 299, 272 compliant Embedded audio, Time code (VITC/LTC)
• GEN-LOCK Terminal: BNC jack (also serves as the SYNC OUT terminal)
• TIME CODE Terminal: BNC jack (for both input/output)
• HDMI OUT Terminal: HDM connector (Type A), both video and audio are output only
• RS-422 Terminal: RJ45 connector x 1
• INPUT 1/INPUT 2 Terminals: XLR 3-pin jack (balanced) ((1) shield, (2) hot, (3) cold), two lines, Sensitivity (MIC): -60 dBu (manual volume center, -18 dB full scale), Sensitivity (LINE): +4 dBu (manual volume center, -18 dB full scale), Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ)
• MIC Terminal: ϕ 3.5 mm stereo mini-jack (unbalanced; supports plug-in power), Sensitivity (MIC): -72 dBu (manual volume center, -18 dB full scale), Sensitivity (LINE): -10 dBV (manual volume center, -18 dB full scale), Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
• USB Terminal: No

Physical Features

• Operating Environment: Temperature: 0°C – +40°C (+32°F – +104°F), Humidity: 10% – 90% (without condensation)
• Power Supply: PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant) – PoE and PoE+ cannot be used, External power source: 12 V DC
• Power Consumption: PoE++ Input: Approx. 37.4 W4/1.2 A max. (body only), DC Input: Approx. 36.7 W/3.5 A max. (body only)
• Dimensions (W x H x D): Approx. 200 x 269 x 208 mm (excluding protrusions)
• Weight: Approx. 4.4 kg (9.7 lbs) [Body Only]
• Noise: NC 30 or less

In The Box

• Canon CR-N700 Camera
• Mounting Bracket, with screw
• Safety Wire, with screw
• Camera-to-mount Safety Wire, with screw
• Remote Control (WL-N01)
