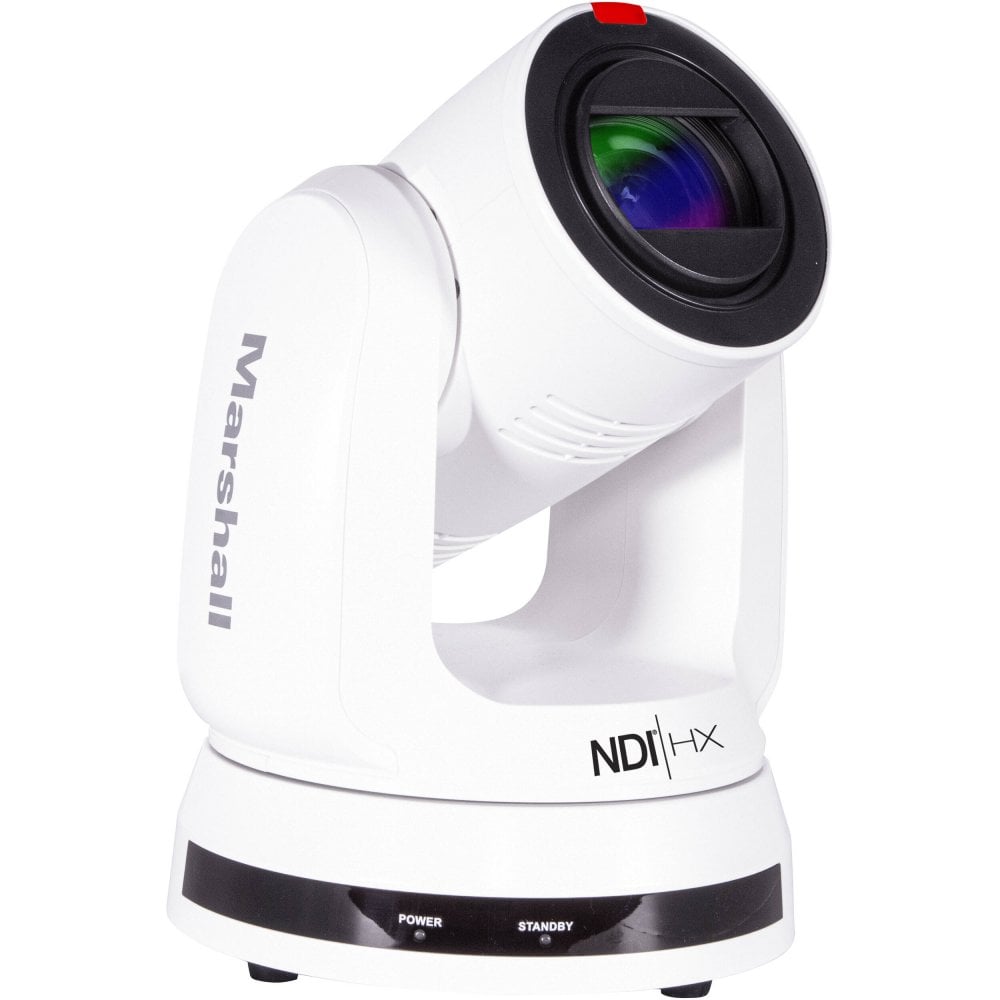

Marshall 4K NDI PTZ Camera with 6.5mm-202mm 30x Zoom Lens – White

Marshall CV730-NDIW (CV730/NDIW, CV730_NDIW, CV730NDIW, CV730 NDIW) 4K NDI PTZ Camera with 6.5mm-202mm 30x Zoom Lens – White

CV730-NDI is Marshall’s top-range NDI-equipped PTZ camera, capturing sharp UHD video at up-to 60p.

NDI®|HX2 provides low latency, high quality, frame-accurate video, and audio in real-time to IP workflows. NDI® Tools opens up the ability to integrate more video devices and applications into your NDI production workflow. Simultaneous 12G-SDI & HDMI outputs allow for integration into traditional non-networked workflows.

Featuring 12GSDI, HDMI2.0, and NDI®|HX2 from a professional level 8.5MP 1/1.8″ UHD sensor and smooth synchronous movements. CV730-NDI is the first to deliver UHD60 performance with NDI®|HX2 ease-of-use delivering crystal-clear images up to 3840x2160p at 60fps. NDI®|HX2 provides Video, Audio, Control, Tally and Power over one Ethernet cable for remote broadcast-style adjust & match settings control.

Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances.

CV730-NDI offers easy control over broadcast settings controllable from NDI® Tools such as NDI Studio Monitor and other NDI® Tools which opens the ability to integrate more networked video sources into your production workflow. Additionally, the CV730-NDI is compatible with Marshall’s VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.

CV730-NDIW (White)

3840x2160p @ 25, 29.97, 50 & 59.94 / 1920x1080p @ 25, 29.97, 30, 50 & 59.94 / 1920x1080i @ 50 & 59.94 / 1280×720 @ 25, 29.97, 50 & 59.94

Sensor

• Sensor Type: 1/1.8″ 8.5 Megapixel

Resolution & Frame Rates

• UHD 3830x2160p: 25, 29.97, 50 & 59.94
• HD 1920x1080p: 25, 29.97, 30, 50 & 59.94
• HD 1920x1080i: 50 & 59.94
• HD 1280x720p: 25, 29.97, 59.94 & 60

Input & Output Connectors

• Video Output Connectors: 1x 12G-SDI, 1x HDMI 2.0, NDI-HX2 (RJ45) & USB 3.0
• Remote Control: 1x RS-422 Interface, 1x RS-232 Input, 1x RS-232 Output
• Audio: 1x 3.5mm Audio Input
• Power: 1x 12V DC Input

Lens

• Focal Length: 6.5mm to 202mm
• Optical Zoom Ratio: 30x

Control Protocol

• Control Protocol: RS-232/RS-422

In The Box

• 1x Marshall CV730-NDI PTZ Camera Body
• 1x IR Remote Control
• 1x Power Supply Unit (PSU)
• 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
• 1x Metal Installation Plate A
• 1x Metal Installation Plate B
• 1x Set of M3 Screws
