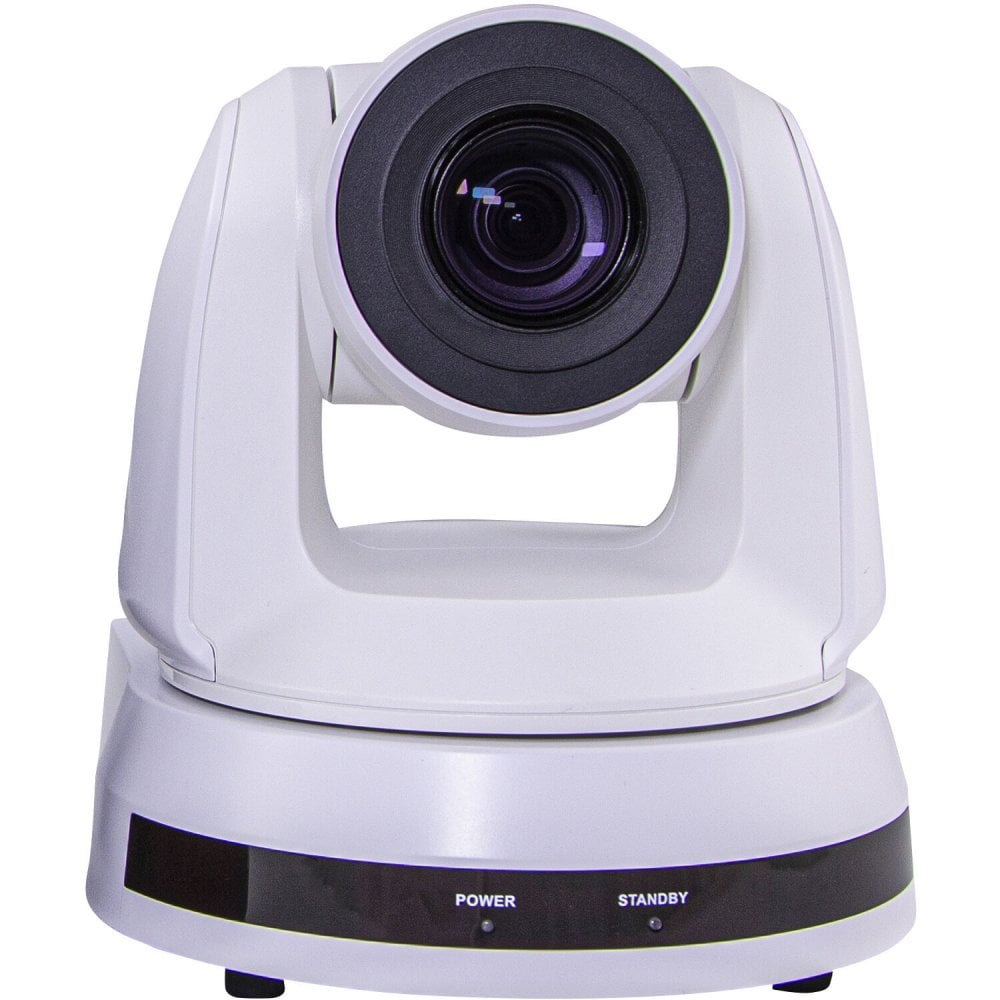

Marshall CV620 HD PTZ Camera with 5.3mm-110mm 20x Zoom Lens - White

Marshall CV620-WI (CV620/WI, CV620_WI, CV620WI, CV620 WI) CV620 HD PTZ Camera with 5.3mm-110mm 20x Zoom Lens - White

The white CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom from Marshall Electronics is designed for professional conferencing applications. It captures video at up to 1080p60 resolution and is equipped with a 5.3 to 110mm lens for up to 20x optical zoom.

Crisp Full-HD Video Output

The CV620 is built around a professional-grade, 2-Megapixel 1/2.8-inch Sony sensor, with smooth 20x Optical Zoom (5.3~110mm) outputting HD video up to 1920x1080p60fps, 1920x1080i and 1280x720p.

Versatile Camera Position

The CV620 is equipped with synchronous pan, tilt, and zoom motors with various speed adjustment for smooth and silent camera movements during operation. A 20X optical zoom block provides flexibility from 5.3mm to 110mm, maintaining image crispness in wide and tight shots.

Easy I/O and Control

Simultaneous IP, 3GSDI and HDMI outputs with command options of Visca over IP, RS-422, RS-232, or IR remote control provide flexibility for inclusion in most modern workflows. Also, easy one-cable to camera setup via IP ethernet cable for control, video, audio, tally and PoE+ (power).

Flexible Control Sources

Marshall IP PTZ Cameras are setup to be controlled from IR remote (included), VS-PTC-IP or VS-PTC-200 controllers, Video Management Software (VMS), Software GUI through web, OBS plugins/docks, vMix and other 3rd party software/hardware control decks.

• Sensor: SONY IMX327
• Video Format: 1080p/60,1080p/30, 1080p/59.94,1080i/59.94, 1080p/50,1080p/25, 1080p/29.97, 1080i/60,1080i/50, 720p/60, 720p/59.94, 720p/50
• Video Output (HD) Interface: 3G-SDI / HDMI / Ethernet (IP)
• Optical Zoom: 20X
• Horizontal Viewing Angle: 60° (Wide) to 3° (Tele)
• Panning Angle: '+/-170°
• Panning Speed: 120°/sec
• Aperture: F1.6~F3.6
• Focal Length (lens spec): 5.33~110 mm
• Shutter Speed: 1/1 to 1/10,000
• Minimum Object Distance: ∞~1.5m
• Minimum Illumination: 1.0Lux (F1.6, 50IRE, 30fps)
• Focus System: Auto, One-push AF, Manual
• Gain Control: Auto/ Manual
• White Balance: Auto/ Manual
• Exposure Control: Auto/Manual
• 3D NR: yes
• Aperture: F1.6~F3.6
• Focal Length (lens spec): 5.33~110 mm
• Image Flip: mirror/ flip/ mirror + flip
• Preset Positions: 128 savable with optional transition speeeds
• Control Interface: VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote
• Control Protocol: ONVIF,VISCA, PELCO D
• Tally Light: Yes, Front Tally Light
• PoE: IEEE 802.3at(PoE+)
• Video Stream: RTSP, RTMP, RTMPS, SRT, MPEG-TS
• Video Compression: H264: 25/30/50/60 fps 1080p/720p MJPEG 1080p 30/15 fps
• Audio Input: Line in/ Mic in
• Audio Output: Ethernet / SDI / HDMI
• IR Pass-through: Yes
• IR Receiver: Yes
• IR Remote Control: Yes
• Power Consumption: DC: 16W max, PoE+:18W max
• Weight: 1.9 Kg
• Dimensions: 185 x 186 x 174 (mm)
• Storage Temps: -20 to 60°C
• Operating Temps: 0°C to 40°C

In The Box

• CV620 HD PTZ Camera with 5.3mm-110mm 20x Zoom Lens (white)
• Remote Control
• Power Adapter
• Power Cable
• RS-422 Connector
• Ceiling Mount Kit
