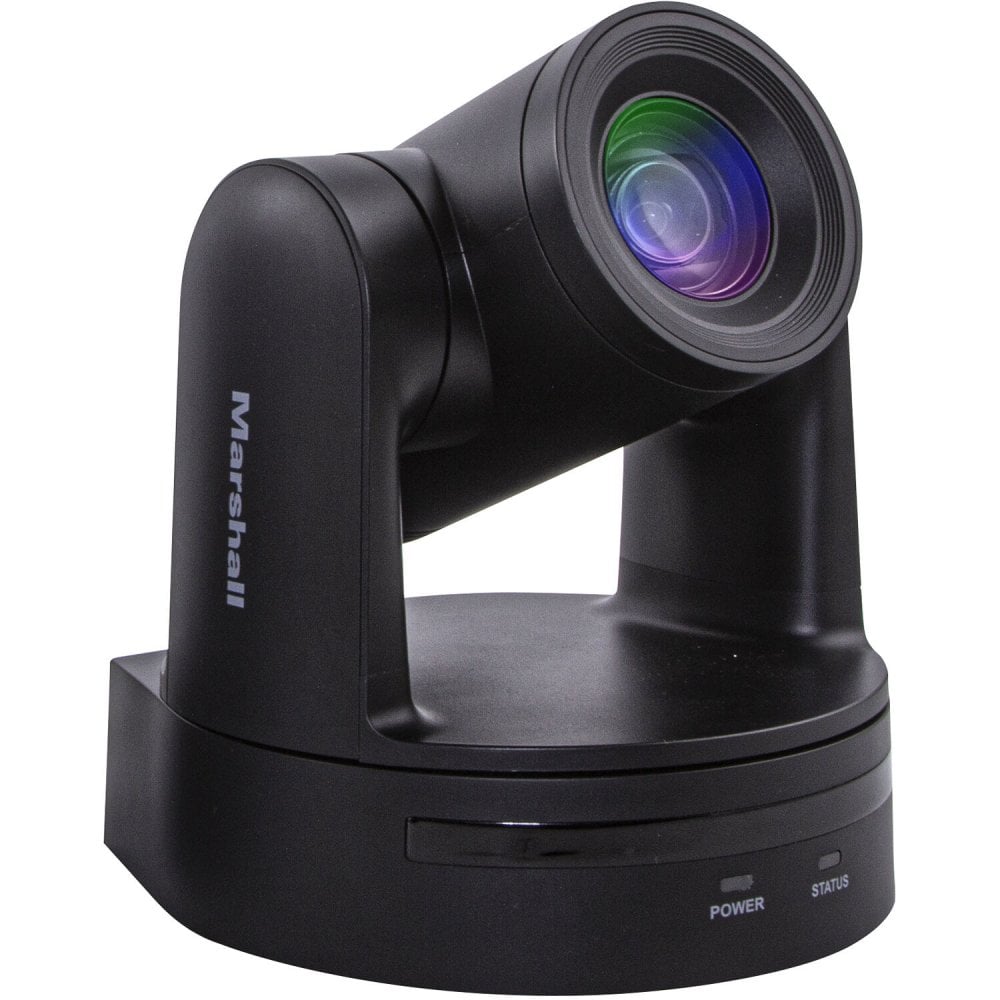

Marshall HD 3G-SDI PTZ Camera with 3mm-15mm 5x Zoom Lens - Black

Marshall CV605-BK (CV605-BK, CV605-BK, CV605-BK, CV605-BK) HD 3G-SDI PTZ Camera with 3mm-15mm 5x Zoom Lens - Black

CV605 is a compact PTZ camera utilising a professional-grade 2 megapixel sensor to capture crisp HD video at up-to 60p. The camera uses a 5x optical zoom lens, starting at a wide-angle 3mm (85° angle-of-view) through to 15.5mm (16° angle-of-view). The 3G-SDI output enables the camera to work with traditional workflows, with an IP/Ethernet output – encoded with H.264/H.265 – for use with networked setups. Marshall’s straightforward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional AV applications.

Ultra-Wide Lens with 5x Optical Zoom

The wide-angle optical zoom lens offers an impressive 85°(3mm) through 16°(15.5mm) angle-of-view with smooth transition and an additional 10x digital zoom range.

3G-SDI & IP/Ethernet Workflows

With both 3G-SDI & IP/Ethernet outputs, CV605 is compatible for use with both traditional SDI workflows and newer networked solutions. With the IP/Ethernet connector the camera can be powered with PoE, controlled using Visca over IP, as well as transmitting the camera’s audio and video signal – all over a single CAT5/6 cable.

Exceptional Low-Light Sensitivity

CV605 operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions.

CV605-BK (Black)

1920x1080p @ 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080i @ 50, 59.94 & 60 / 1280x720p @ 25, 29.97, 50, 59.94 & 60

Sensor

• Sensor Type: 1/2.8″ 2 Megapixel

Resolution & Frame Rates

• HD 1920x1080p: 25, 29.97, 30, 50, 59.94 & 60
• HD 1920x1080i: 50, 59.94 & 60
• HD 1280x720p: 25, 29.97, 30, 50, 59.94 & 60

Video Output Connectors

• Video Output Connectors: 1x 3G-SDI & 1x IP Ethernet (RJ45)

Lens

• Focal Length: 3mm to 15.5mm
• Optical Zoom Ratio: 5x

Audio

• Input: 3.5mm Stereo

Control Protocol

• Control Protocol: RS-232/RS-422 & VISCA over IP

In The Box

• 1x Marshall CV605 PTZ Camera Body
• 1x IR Remote Control
• 1x Power Supply Unit (PSU)
• 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
