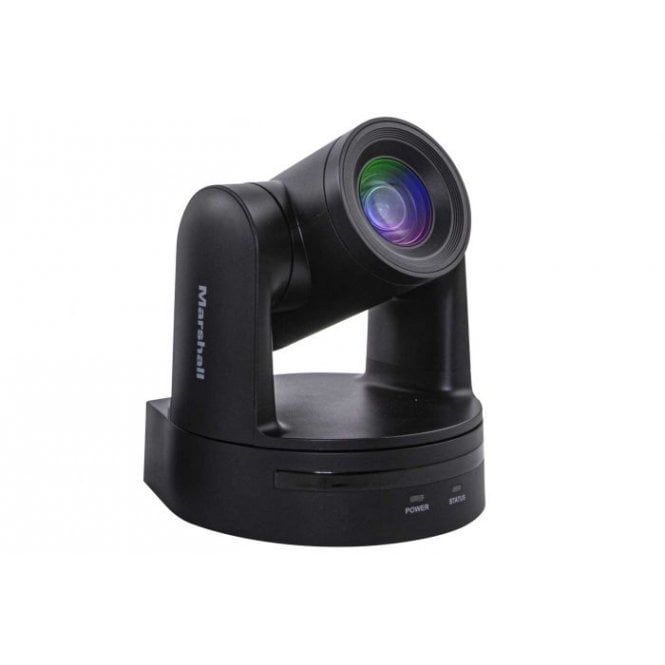

Marshall HD PTZ Camera with 3mm-15mm 5x Zoom Lens - Black

Marshall CV605-U3 (CV605/U3, CV605_U3, CV605U3, CV605 U3) HD PTZ Camera with 3mm-15mm 5x Zoom Lens - Black

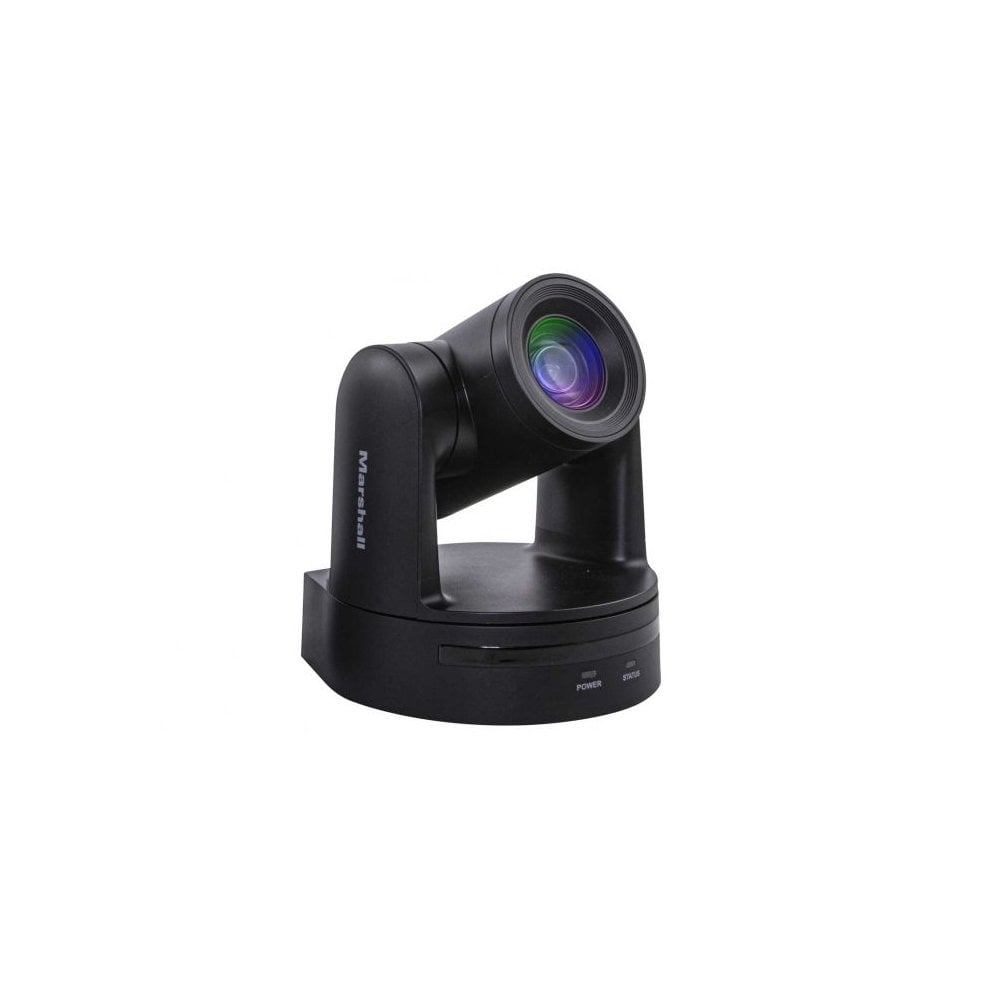

CV605-U3 is a compact PTZ camera utilising a professional-grade 2 megapixel sensor to capture crisp HD video at up-to 60p. The camera uses a 5x optical zoom lens, starting at a wide-angle 3mm (85° angle-of-view) through to 15.5mm (16° angle-of-view).

With the choice of three video outputs – USB 3.0 (Type C), HDMI & IP/Ethernet (H.264 & H.265) – CV605-U3 can be used with a variety of use-cases and workflows. The USB-C connector allows the camera to interface directly with computers, enabling uses including video calls & meetings, as well as for streaming with popular software including OBS and vMix.

The camera also features an RJ45 ethernet connector, allowing a single cable to send video and audio, control with Visca over IP, as well as being able to power the camera with PoE. Signals are encoded with either H.264 or H.265 and can be decoded with any existing IP networked solution.

Marshall’s straightforward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional AV applications.

Ultra-Wide Lens with 5x Optical Zoom

• The wide-angle optical zoom lens offers an impressive 85°(3mm) through 16°(15.5mm) angle-of-view with smooth transition and an additional 10x digital zoom range.

Exceptional Low-Light Sensitivity

• CV605 operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions.

Zoom Certified

• CV605-U3 is certified by Zoom and operates within the Zoom Room infrastructure seamlessly providing a wide-angle, high-quality video source for any Zoom video call.

Privacy Standby Mode

• CV605-U3 features a standby mode for privacy between video calls. Managing what is being streamed over the internet is paramount to protect intellectual properties and proprietary information while not in video meetings.

CV605-U3 (Black)

1920x1080p @ 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080i @ 50, 59.94 & 60 / 1280x720p @ 25, 29.97, 50, 59.94 & 60

Sensor

• Sensor Type: 1/2.8″ 2 Megapixel

Resolution & Frame Rates

• HD 1920x1080p: 25, 29.97, 30, 50, 59.94 & 60
• HD 1920x1080i: 50, 59.94 & 60
• HD 1280x720p: 25, 29.97, 30, 50, 59.94 & 60

Video Output Connectors

• Video Output Connectors: 1x USB 3.0 (Type C), 1x HDMI & 1x IP Ethernet (RJ45)

Lens

• Focal Length: 3mm to 15.5mm
• Optical Zoom Ratio: 5x

Audio

• Input: 3.5mm Stereo

Control Protocol

• Control Protocol: RS-232/RS-422 & VISCA over IP

In The Box

• 1x Marshall CV605-U3 PTZ Camera Body
• 1x IR Remote Control
• 1x Power Supply Unit (PSU)
• 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
